◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10942 - FTR(THAI)EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#26484) — 174 parça

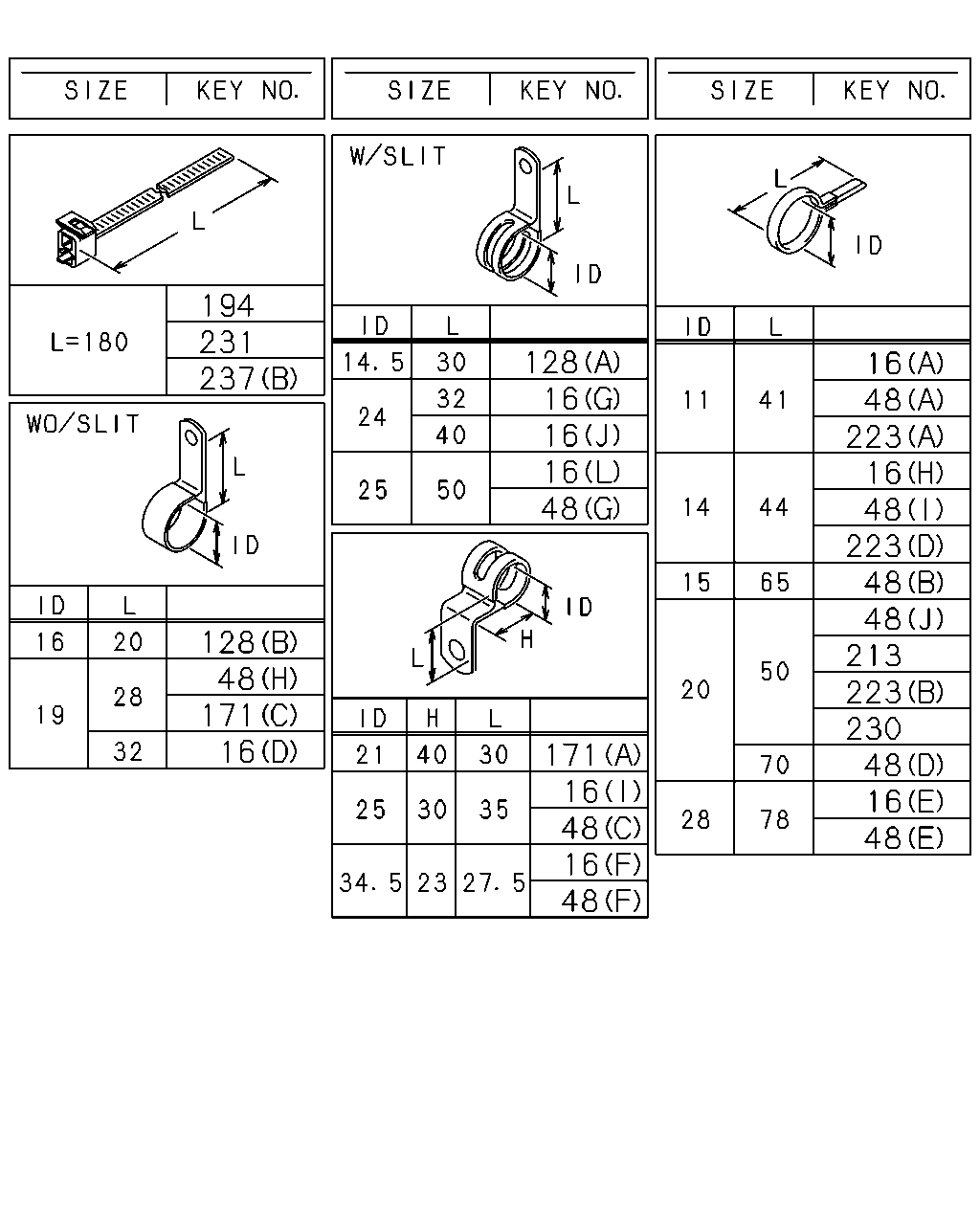

çizim 82076
194 231 237 128 16 16 16 48 16 48 223 16 48 223 48 48 213 223 230 48 16 48 128 48 171 16 171 16 48 16 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 03 1 0407- ● ●
16 CLIP; HARNESS
(G) ID=24 L=32 THA 		1-09700-766-1 01 1 0407- ● ●
16 CLIP; HARNESS
(E) ID=28 L=78 THA 		1-09700-858-0 01 1 0407- ● ●
16 CLIP; HARNESS
(I) ID=25 H=30 L=35 		1-09700-875-0 01 1 0407- ● ●
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407- ● ●
16 CLIP; HARNESS
(L) ID=25 L=50 		1-09701-019-0 01 1 0407- ● ●
16 CLIP; HARNESS
(K) ID=19 H=33 L=45 THA 		1-09701-045-0 01 1 0407- ● ●
16 CLIP; HARNESS
(J) ID=24 L=40 		1-09701-139-0 01 1 0407- ● ●
16 CLIP; HARNESS
(B) L=300 THA 		1-09707-001-1 01 1 0407- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0407- ● ●
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0407-0606 ● ●
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ●
16 CLIP; HARNESS
(H) ID=14 L=44 THA 		9-09917-427-0 03 1 0407- ● ●
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(B) ID=15 L=65 THA 		1-09700-466-0 02 1 0407- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 03 1 0407- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 0407- ● ●
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 THA 		1-09700-858-0 04 1 0407- ● ●
48 CLIP; FRAME HARNESS
(C) ID=25 H=30 L=35 		1-09700-875-0 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(G) ID=25 L=50 		1-09700-976-0 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(K) L=250 		5-09707-030-1 02 1 0407- ● ●
48 CLIP; FRAME HARNESS
(H) ID=19 L=28 		9-09525-856-0 01 1 0407-0606 ● ●
48 CLIP; FRAME HARNESS
(H) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 THA 		9-09917-427-0 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 THA 		8-97916-115-0 09 1 0407- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM<42W> (J) ID=20 L=50 THA 		8-97916-115-0 11 1 0407- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (J) ID=20 L=50 THA 		8-97916-115-0 17 1 0407- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0407-0606 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0407- ● ●
171 CLIP; STARTER HARNESS
(A) ID=21 L=30 H=40 		1-09700-991-1 01 1 0407- ● ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 02 1 0407- ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0407-0606 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
194 CLIP; BAND
L=180 THA 		1-09707-162-1 01 1 0407- ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 THA 		8-97916-115-0 03 1 0407- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 01 1 0407- ● ●
223 CLIP; AIR TANK HARNESS
(C) OD=9 H=6 THA 		1-09709-178-0 01 1 0407- ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 THA 		9-09917-427-0 03 1 0407- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 THA 		9-09917-430-0 02 1 0407- ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 THA 		9-09917-430-0 02 1 0407- ● ●
231 CLIP; BAND,OIL PRESS
L=180 THA 		1-09707-162-1 01 1 0407- ● ●
237 CLIP; BAND,ACL
(A) L=600 		1-09707-107-1 01 1 0407- ● ●
237 CLIP; BAND,ACL
(B) L=180 THA 		1-09707-162-1 01 1 0407- ● ●
çizim 82108
38 313 38 38 38 139 38 38 516 239 239 239 38 88 173 209 133 524 219 294 210 520 184
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 02 1 0407-0611 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 02 1 0612- ● ●
38 BOLT; CLIP,HARNESS
(G) M10X16 FLANGE 		0-28181-016-0 01 1 0407-0512 ● ●
38 BOLT; CLIP,HARNESS
(G) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0407- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0407-0611 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0407-0611 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0612- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0612- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0407-0611 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0612- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0611 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE THA 		0-28050-816-0 04 1 0612- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0611 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE THA 		0-28650-820-0 04 1 0612- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0611 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE THA 		0-28650-825-0 01 1 0612- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0407-0611 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE THA 		0-28650-825-0 03 1 0612- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0407-0701 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0702- ● ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0407- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0407- ● ●
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0407-0611 ● ●
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0407-0611 ● ●
139 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 0612- ● ●
139 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 0612- ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0407- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 0407- ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0407-0603 ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604- ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0407- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407- ● ●
239 BOLT; GRAND
(A) M5X8 THA 		0-20800-508-0 01 1 0407- ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0407- ● ●
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0407- ● ●
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 0603- ● ●
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 0603- ● ●
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 0603- ● ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0611 ● ●
313 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 0612- ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0407- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0407- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0407-0605 ● ●
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 01 1 0606- ● ●

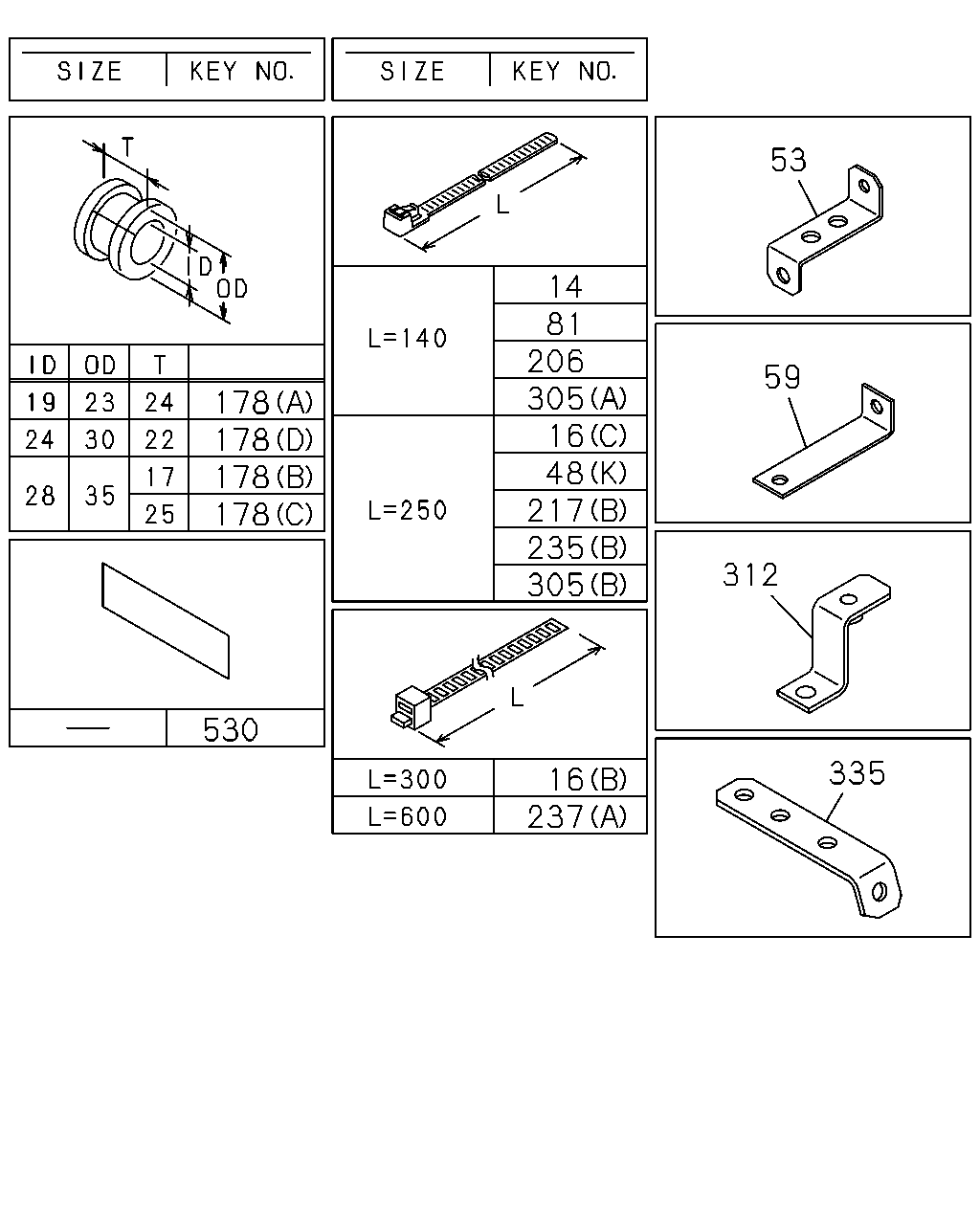

çizim 84321
53 14 81 206 305 16 48 217 235 305 59 178 178 178 178 312 530 335 16 237
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-1 01 1 0407- ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 03 1 0407- ● ●
16 CLIP; HARNESS
(G) ID=24 L=32 THA 		1-09700-766-1 01 1 0407- ● ●
16 CLIP; HARNESS
(E) ID=28 L=78 THA 		1-09700-858-0 01 1 0407- ● ●
16 CLIP; HARNESS
(I) ID=25 H=30 L=35 		1-09700-875-0 01 1 0407- ● ●
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407- ● ●
16 CLIP; HARNESS
(L) ID=25 L=50 		1-09701-019-0 01 1 0407- ● ●
16 CLIP; HARNESS
(K) ID=19 H=33 L=45 THA 		1-09701-045-0 01 1 0407- ● ●
16 CLIP; HARNESS
(J) ID=24 L=40 		1-09701-139-0 01 1 0407- ● ●
16 CLIP; HARNESS
(B) L=300 THA 		1-09707-001-1 01 1 0407- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0407- ● ●
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0407-0606 ● ●
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ●
16 CLIP; HARNESS
(H) ID=14 L=44 THA 		9-09917-427-0 03 1 0407- ● ●
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(B) ID=15 L=65 THA 		1-09700-466-0 02 1 0407- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 03 1 0407- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 0407- ● ●
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 THA 		1-09700-858-0 04 1 0407- ● ●
48 CLIP; FRAME HARNESS
(C) ID=25 H=30 L=35 		1-09700-875-0 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(G) ID=25 L=50 		1-09700-976-0 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(K) L=250 		5-09707-030-1 02 1 0407- ● ●
48 CLIP; FRAME HARNESS
(H) ID=19 L=28 		9-09525-856-0 01 1 0407-0606 ● ●
48 CLIP; FRAME HARNESS
(H) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 THA 		9-09917-427-0 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 THA 		8-97916-115-0 09 1 0407- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM<42W> (J) ID=20 L=50 THA 		8-97916-115-0 11 1 0407- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (J) ID=20 L=50 THA 		8-97916-115-0 17 1 0407- ●
53 BRACKET; HARNESS 1-47476-812-1 01 1 0407- ● ●
59 BRACKET; FRAME HARNESS
L=95 THA 		1-82699-085-0 01 1 0407- ● ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0407- ● ●
178 GROMMET; HARNESS
WHEEL BASE 3600MM<36W> (B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0407- ●
178 GROMMET; HARNESS
WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W> (B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0407- ●
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0407- ● ●
178 GROMMET; HARNESS
(D) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0407- ● ●
178 GROMMET; HARNESS
WHEEL BASE 5500MM<55W> (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0407- ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0407- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0407- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0407- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=6 H=25 L=21 THA 		1-09700-432-0 01 1 0407- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0407- ● ●
237 CLIP; BAND,ACL
(A) L=600 		1-09707-107-1 01 1 0407- ● ●
237 CLIP; BAND,ACL
(B) L=180 THA 		1-09707-162-1 01 1 0407- ● ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 0407- ● ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 0407- ● ●
305 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-1 04 1 0407- ● ●
312 BRACKET; CLIP HARNESS 1-47478-981-0 01 1 0407- ● ●
335 BRACKET; CONNECTOR
THA 		1-82698-167-0 01 1 0407- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0407- ● ●

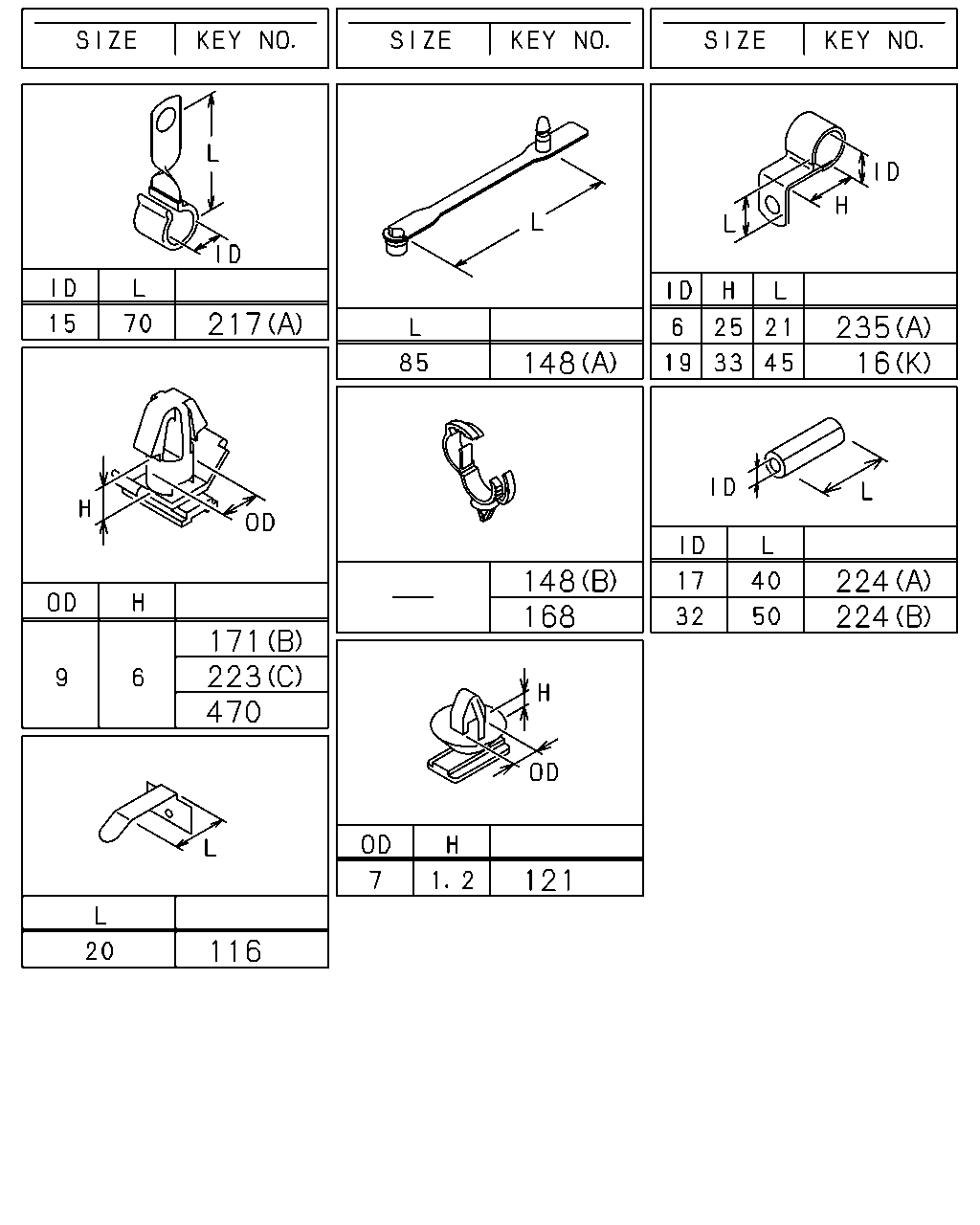

çizim 86318
217 235 16 148 148 168 224 224 171 223 470 121 116
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 03 1 0407- ● ●
16 CLIP; HARNESS
(G) ID=24 L=32 THA 		1-09700-766-1 01 1 0407- ● ●
16 CLIP; HARNESS
(E) ID=28 L=78 THA 		1-09700-858-0 01 1 0407- ● ●
16 CLIP; HARNESS
(I) ID=25 H=30 L=35 		1-09700-875-0 01 1 0407- ● ●
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407- ● ●
16 CLIP; HARNESS
(L) ID=25 L=50 		1-09701-019-0 01 1 0407- ● ●
16 CLIP; HARNESS
(K) ID=19 H=33 L=45 THA 		1-09701-045-0 01 1 0407- ● ●
16 CLIP; HARNESS
(J) ID=24 L=40 		1-09701-139-0 01 1 0407- ● ●
16 CLIP; HARNESS
(B) L=300 THA 		1-09707-001-1 01 1 0407- ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0407- ● ●
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 0407-0606 ● ●
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ●
16 CLIP; HARNESS
(H) ID=14 L=44 THA 		9-09917-427-0 03 1 0407- ● ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0407- ● ●
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 0407- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 THA 		8-94232-611-0 01 1 0407- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 THA 		8-97069-515-0 01 1 0407- ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 THA 		8-97069-515-0 05 1 0407- ● ●
171 CLIP; STARTER HARNESS
(A) ID=21 L=30 H=40 		1-09700-991-1 01 1 0407- ● ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 02 1 0407- ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0407-0606 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0407- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0407- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 01 1 0407- ● ●
223 CLIP; AIR TANK HARNESS
(C) OD=9 H=6 THA 		1-09709-178-0 01 1 0407- ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 THA 		9-09917-427-0 03 1 0407- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 THA 		9-09917-430-0 02 1 0407- ● ●
224 SLEEVE; RUBBER,HARNESS
(A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0407- ● ●
224 SLEEVE; RUBBER,HARNESS
(B) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0407- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=6 H=25 L=21 THA 		1-09700-432-0 01 1 0407- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0407- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 THA 		1-09709-178-0 01 1 0407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
