8-10 — WIRING HARNESS AND FUSE (#26483) — 60 parça
çizim 22629

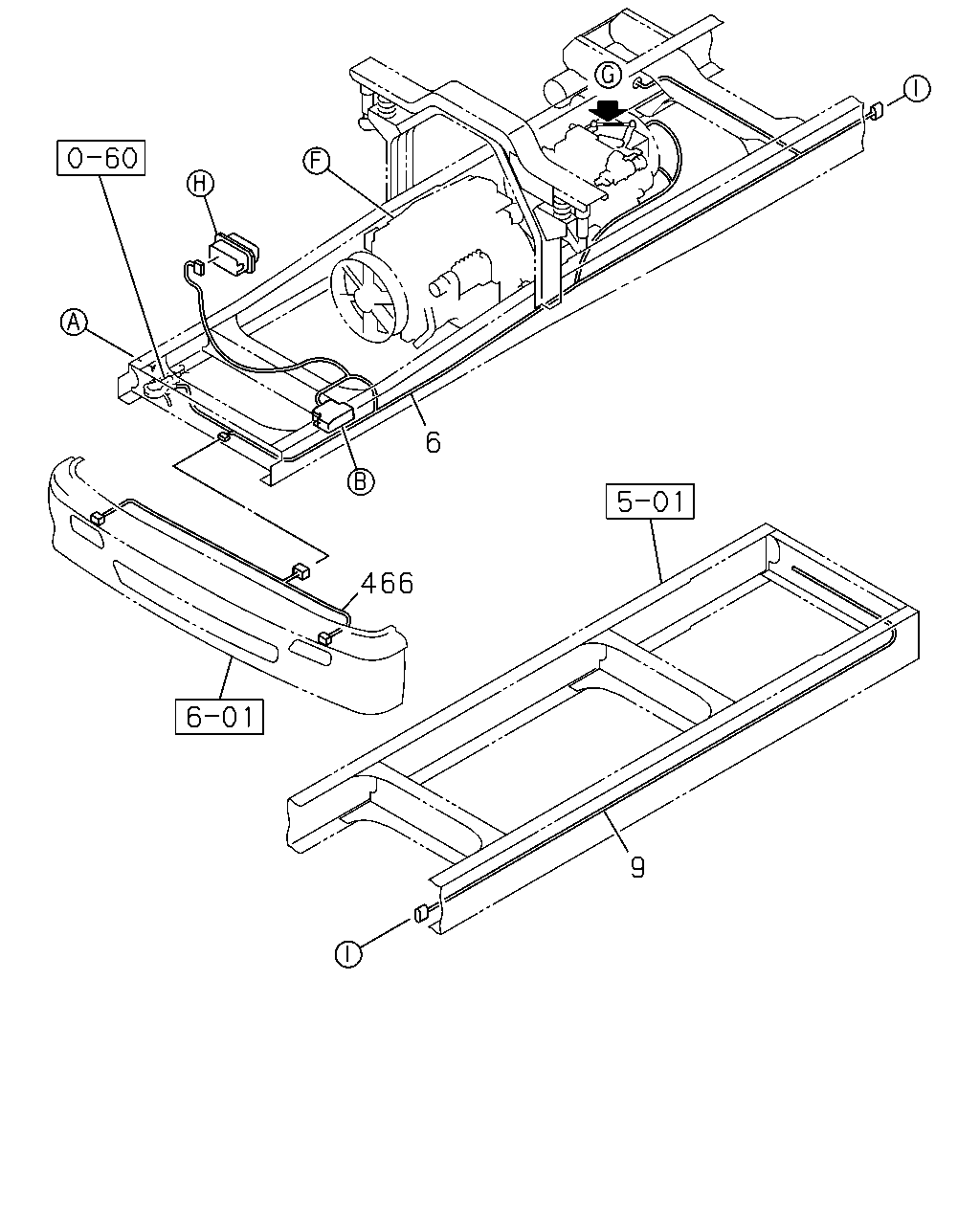

6 466 9
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
THA 		8-97915-006-1 01 1 0407- ● ●
9 HARNESS; FRAME,RR
WHEEL BASE 3600MM<36W> THA 		8-97917-553-0 01 1 0407- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM<42W> THA 		8-97917-555-0 01 1 0407- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM<50W> THA 		8-97917-554-0 01 1 0407- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM<55W> THA 		8-97917-556-0 01 1 0407- ●
466 HARNESS; BUMPER
THA 		8-97916-311-0 01 1 0407- ● ●
çizim 24462
276 277 265 262 6 264
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
THA 		8-97915-006-1 01 1 0407- ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0407- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0407- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0407- ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0407- ● ●
277 BOLT; BOX ASM FIX
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611 ● ●
277 BOLT; BOX ASM FIX
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
277 BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0407-0704 ● ●
277 BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0705- ● ●
çizim 83942

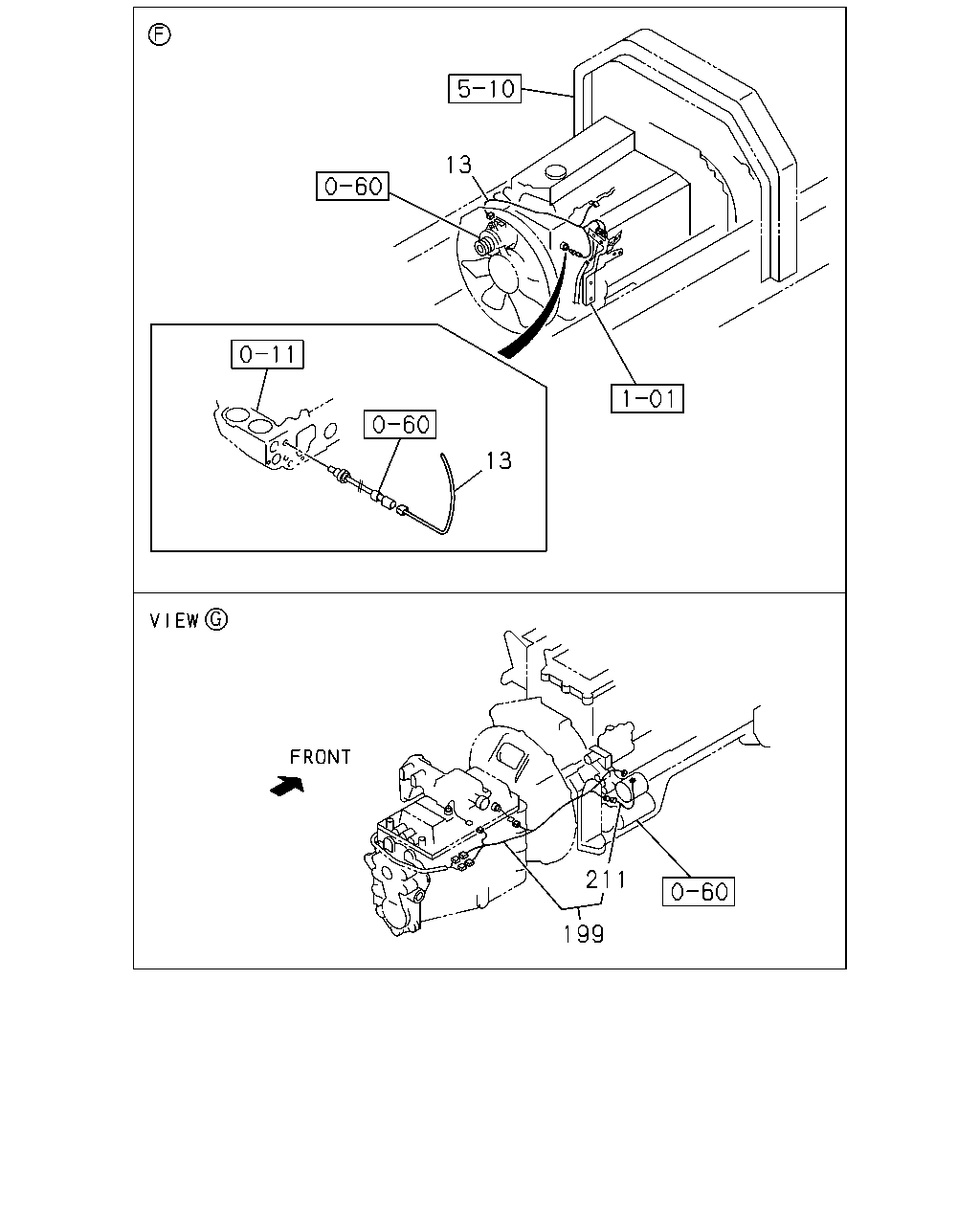

13 13 211 199
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
THA 		8-97915-005-1 01 1 0407- ● ●
199 HARNESS; STARTER
THA 		8-97916-312-0 01 1 0407- ● ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE THA 		1-82659-124-0 01 1 0407- ● ●
çizim 83990

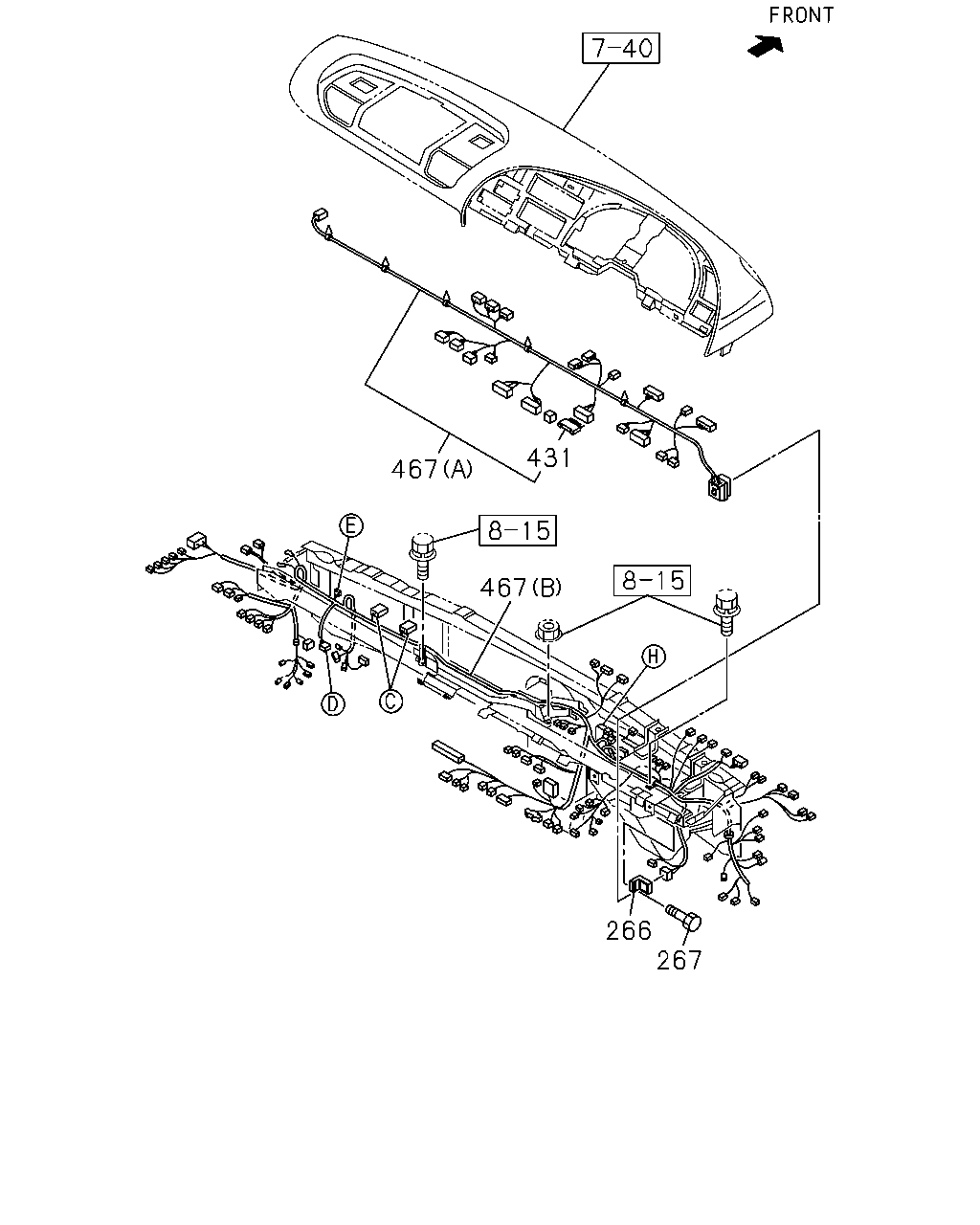

431 467 467 266 267
BalonParca AdiParca NoAdetTipApplied Date A B
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0407- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER THA 		1-09981-438-0 02 1 0407- ● ●
431 CONNECTOR; JOINT
BROWN 10P THA 		1-82699-601-0 01 1 0407- ● ●
431 CONNECTOR; JOINT
BROWN 10P THA 		1-82699-601-0 02 1 0407- ● ●
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407- ● ●
467 HARNESS; FACIA
(B) THA 		8-97922-663-0 01 1 0407- ● ●
çizim 84454

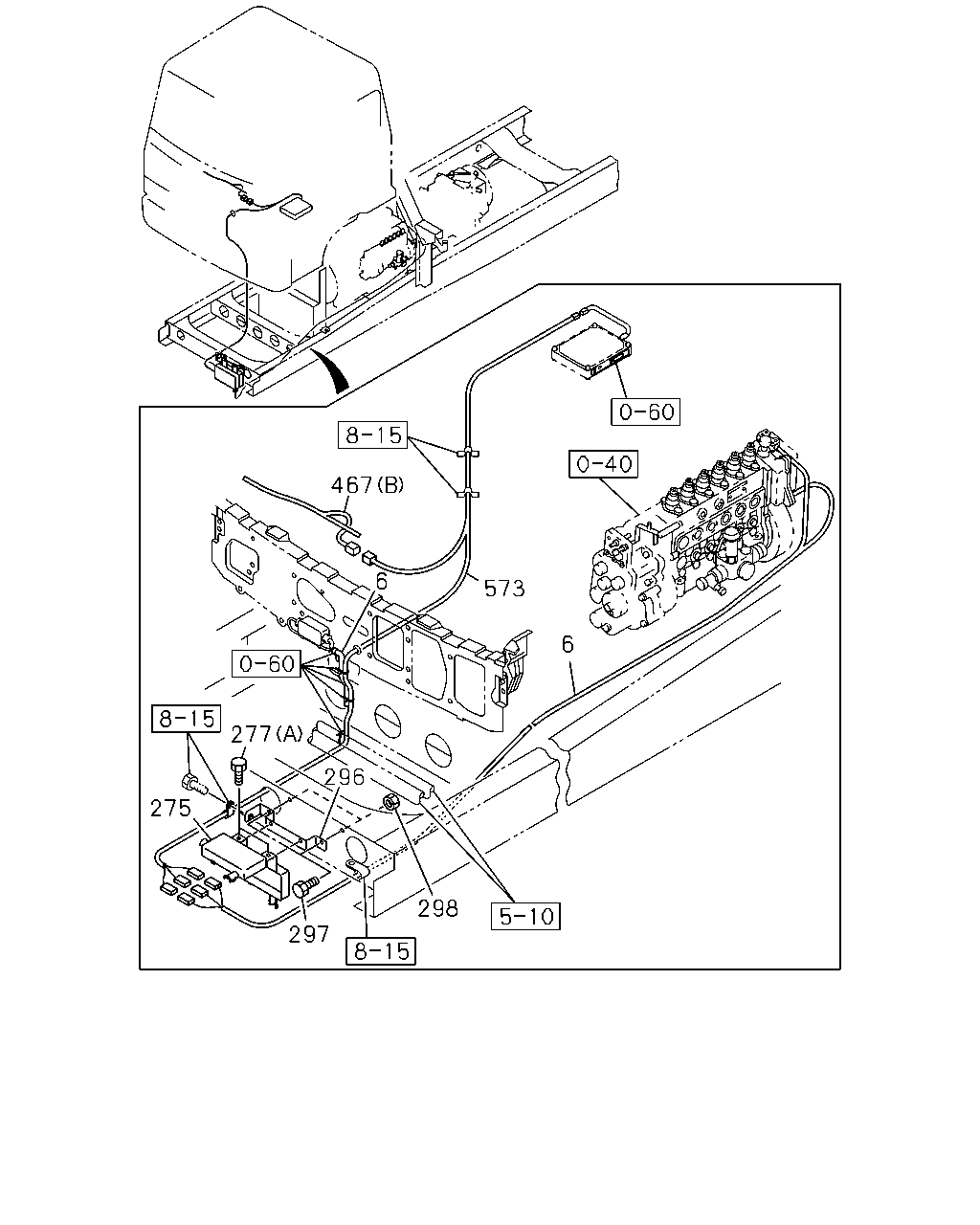

467 6 573 6 277 296 275 298 297
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
THA 		8-97915-006-1 01 1 0407- ● ●
275 BOX ASM; FRAME HARNESS 1-82699-378-0 01 1 0407- ● ●
277 BOLT; BOX ASM FIX
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611 ● ●
277 BOLT; BOX ASM FIX
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
277 BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0407-0704 ● ●
277 BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0705- ● ●
296 BRACKET; HARNESS BOX 1-82699-923-0 01 1 0407- ● ●
297 BOLT; BOX BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611 ● ●
297 BOLT; BOX BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
298 NUT; BOX BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407- ● ●
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407- ● ●
467 HARNESS; FACIA
(B) THA 		8-97922-663-0 01 1 0407- ● ●
573 HARNESS; CONTROL UNIT
THA 		8-97915-003-1 01 1 0407- ● ●
çizim 84461
10 27 27 467 41 5 4 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
THA 		1-82510-635-0 01 1 0407- ● ●
5 FUSE; FACIA HARNESS
15A BLUE THA 		5-82516-003-0 12 1 0407- ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN THA 		8-94159-007-0 14 1 0407- ● ●
10 BOX; FUSE,HARNESS
THA 		1-82510-409-0 01 1 0407- ● ●
27 FUSE UNIT
(A) 40A GREEN THA 		8-94468-662-0 03 1 0407- ● ●
27 FUSE UNIT
(B) 60A YELLOW THA 		8-94468-669-0 01 1 0407- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 THA 		8-94121-482-0 01 1 0407- ● ●
62 DIODE; HARNESS
(A) BLACK 10P THA 		1-82699-703-0 02 1 0407- ● ●
62 DIODE; HARNESS
(B) BLACK 3P-1.5A THA 		8-94416-438-1 01 1 0407- ● ●
62 DIODE; HARNESS
(C) BLACK 2P-1.5A THA 		8-94422-639-1 01 1 0407- ● ●
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407- ● ●
467 HARNESS; FACIA
(B) THA 		8-97922-663-0 01 1 0407- ● ●
çizim 84535

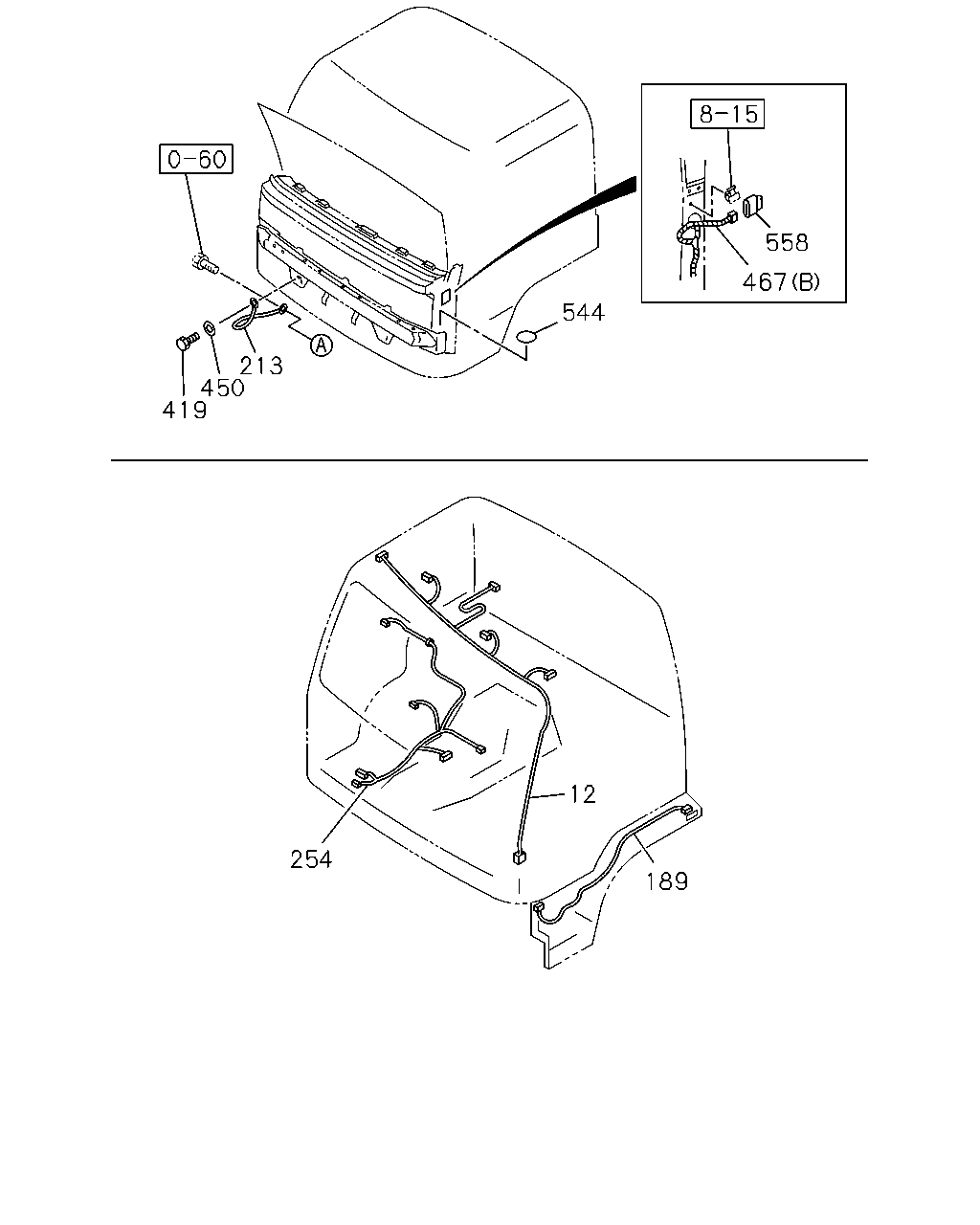

558 467 544 213 450 419 12 254 189
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
THA 		8-97917-543-0 01 1 0407- ● ●
189 HARNESS; EXT
THA 		8-97916-648-0 02 1 0407- ● ●
213 CABLE; EARTH,CAB TO FRAME
THA 		8-97916-647-0 01 1 0407- ● ●
254 HARNESS; CAB FLOOR
THA 		8-97922-669-0 01 1 0407- ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0407- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		9-09164-608-0 01 1 0407-0605 ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ●
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407- ● ●
467 HARNESS; FACIA
(B) THA 		8-97922-663-0 01 1 0407- ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK THA 		1-76798-019-0 01 1 0407- ● ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0407- ● ●
