◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#2648) — 119 parça

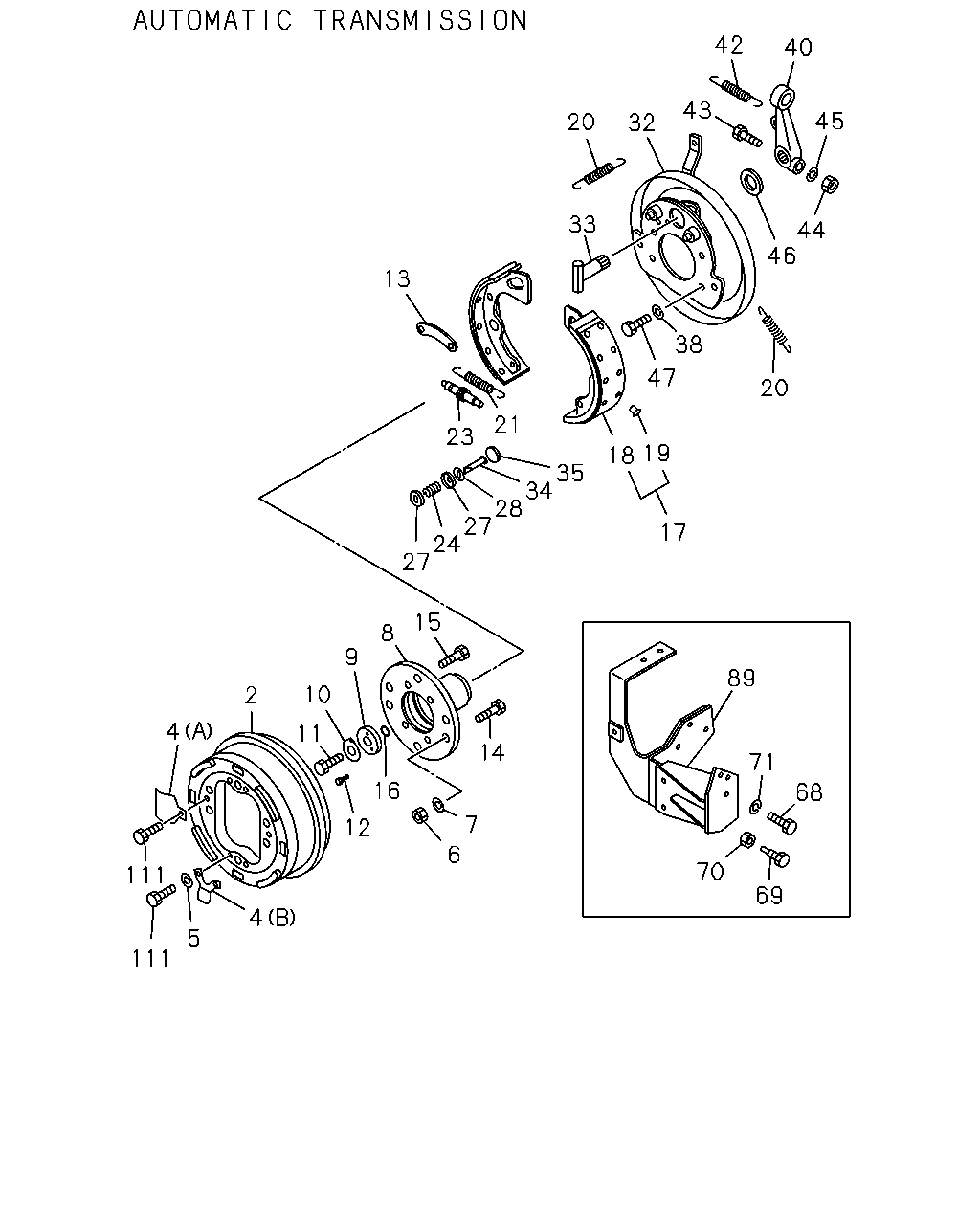

çizim 4794
42 40 43 45 20 32 33 44 46 13 38 47 20 21 23 18 19 35 34 28 27 24 27 17 15 8 9 89 10 2 4 11 14 71 16 68 7 12 6 70 111 69 4 5 111
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 DRUM; PARKING BRK 1-46211-004-1 01 1 9101- ● ● ●
2 DRUM; PARKING BRK 9-46211-051-0 01 1 9101- ●
4 COVER; ADJ HOLE 9-46219-015-1 02 1 9101- ● ● ●
4 COVER; ADJ HOLE
(A) 		9-46219-023-0 02 1 9101-9205 ●
4 COVER; ADJ HOLE
(A) 		1-46219-085-0 02 1 9206- ●
4 COVER; ADJ HOLE
(B) 		9-46219-024-0 02 1 9101- ●
5 WASHER; LK,COVER,CHECK HOLE 9-09150-508-0 06 1 9101- ●
6 NUT; FLANGE 9-99110-514-0 06 1 9101- ●
7 WASHER; LK,FLANGE 9-09150-514-0 06 1 9101- ●
8 FLANGE; PARKING BRK
W/BOLT 		1-37243-047-1 01 1 9101-9111 ● ● ●
8 FLANGE; PARKING BRK 1-37243-225-0 01 1 9112- ● ● ●
8 FLANGE; PARKING BRK
WO/BOLT 		1-37243-042-2 01 1 9101- ●
9 WASHER; FLANGE FIX 1-09503-078-0 01 1 9101- ●
10 PLATE; LOCK 1-37249-021-0 01 1 9101- ●
11 BOLT; FLANGE FIX 1-09087-014-0 01 1 9101- ●
12 BOLT; FIX 0-50040-614-0 01 1 9101- ●
13 BRACE; PARKING BRK 9-46239-003-0 01 1 9101- ● ● ●
13 BRACE; PARKING BRK 9-46239-002-0 01 1 9101- ●
14 BOLT; DRUM TO FLANGE 9-46219-012-0 06 1 9101- ●
15 BOLT; FLANGE
M12X39 		1-09046-001-2 04 1 9101- ● ● ● ●
16 GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 9101- ● ● ●
16 GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). 		9-09921-103-0 01 1 9101- ●
17 SHOE; PARKING BRK 1-46220-012-0 02 1 9101-9411 ● ● ●
17 SHOE; PARKING BRK 1-46220-024-0 02 1 9412- ● ● ●
17 SHOE; PARKING BRK 1-46220-004-0 02 1 9101-9411 ●
17 SHOE; PARKING BRK 1-46220-025-0 02 1 9412- ●
18 LINING; BRK,PARKING 1-46225-004-0 02 1 9101-9411 ●
18 LINING; BRK,PARKING 1-46225-024-0 02 1 9412- ●
19 RIVET; LINING,PARKING BRK 9-09871-033-0 24 1 9101- ●
20 SPRING; RETURN,SECONDARY,PARKING BRK 9-09942-567-1 02 1 9101- ● ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK 9-09942-434-0 02 1 9101- ●
21 SPRING; RETURN,PARKING BRK SHOE 1-09583-268-0 01 1 9101- ● ● ●
21 SPRING; RETURN,PARKING BRK SHOE 9-09942-516-0 01 1 9101- ●
23 SCREW; ADJ,PARKING BRK SHOE 9-46240-008-0 01 1 9101- ● ● ●
23 SCREW; ADJ,PARKING BRK SHOE 1-46240-003-0 01 1 9101- ●
24 SPRING; BRK SHOE 9-09941-186-0 02 1 9101- ●
27 SEAT; BRK SHOE 9-46239-005-1 04 1 9101- ●
28 WASHER; BRK SHOE 9-46239-006-1 02 1 9101- ●
32 PLATE; SUPPORT,PARKING BRK 1-46213-023-0 01 1 9101- ● ● ●
32 PLATE; SUPPORT,PARKING BRK 1-46213-006-1 01 1 9101- ●
33 SHAFT; CAM,PARKING BRK 1-46251-002-0 01 1 9101- ● ● ●
33 SHAFT; CAM,PARKING BRK 9-46251-069-0 01 1 9101- ●
34 PIN; BRK SHOE 9-46239-004-1 02 1 9101- ●
35 GROMMET; BRK SHOE 9-46239-007-0 02 1 9101- ●
38 WASHER; LK,SUPPORT PLATE 9-09150-514-0 04 1 9101-9207 ● ● ●
38 WASHER; LK,SUPPORT PLATE 9-09150-514-0 03 1 9208- ● ● ●
38 WASHER; LK,SUPPORT PLATE 1-09500-002-0 04 1 9101- ●
40 LEVER; CM/SHF,PARKING BRK 1-46252-003-0 01 1 9101- ● ● ●
40 LEVER; CM/SHF,PARKING BRK 1-46259-005-0 01 1 9101- ●
42 SPRING; RETURN,LEVER 9-09942-592-0 01 1 9101- ● ● ●
42 SPRING; RETURN,LEVER 1-09583-041-0 01 1 9101- ●
43 BOLT; LEVER TO CM/SHF 9-01041-040-0 01 1 9101-9204 ●
43 BOLT; LEVER TO CM/SHF 0-10811-040-0 01 1 9205- ●
44 NUT; LEVER TO CM/SHF 9-09110-410-0 01 1 9101- ●
45 WASHER; LK,LEVER TO CM/SHF 9-09150-010-0 01 1 9101-9608 ●
45 WASHER; LK,LEVER TO CM/SHF
ID=10.2 		9-09150-510-0 01 1 9609- ●
46 WASHER; LEVER 9-09855-367-0 01 1 9101- ● ● ●
46 WASHER; LEVER 9-09855-362-0 01 1 9101- ●
47 BOLT; SUPPORT PLATE 0-23801-432-0 03 1 9101- ● ● ●
47 BOLT; SUPPORT PLATE 1-09087-001-1 04 1 9101- ●
68 BOLT; BRKT,PARKING BRK CONT 1-09087-005-1 03 1 9101- ●
69 BOLT; GASKET BRK SUPPORT 1-09009-039-0 01 1 9101- ●
70 NUT; LK,PARKING BRK 9-99110-412-0 01 1 9101-9307 ●
70 NUT; LK,PARKING BRK 9-99110-512-0 01 1 9308- ●
71 WASHER; LK,BRKT FIX,PARKING 9-09150-512-0 03 1 9101- ●
89 BRACKET; PARKING BRK CONT 1-46276-054-2 01 1 9101- ●
111 BOLT; COVER,CHECK HOLE
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9101-9204 ● ● ●
111 BOLT; COVER,CHECK HOLE
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205- ● ● ●
111 BOLT; COVER,CHECK HOLE
M8X12 		9-02040-812-0 06 1 9101-9204 ●
111 BOLT; COVER,CHECK HOLE
M8X12 		0-20800-812-0 06 1 9205- ●

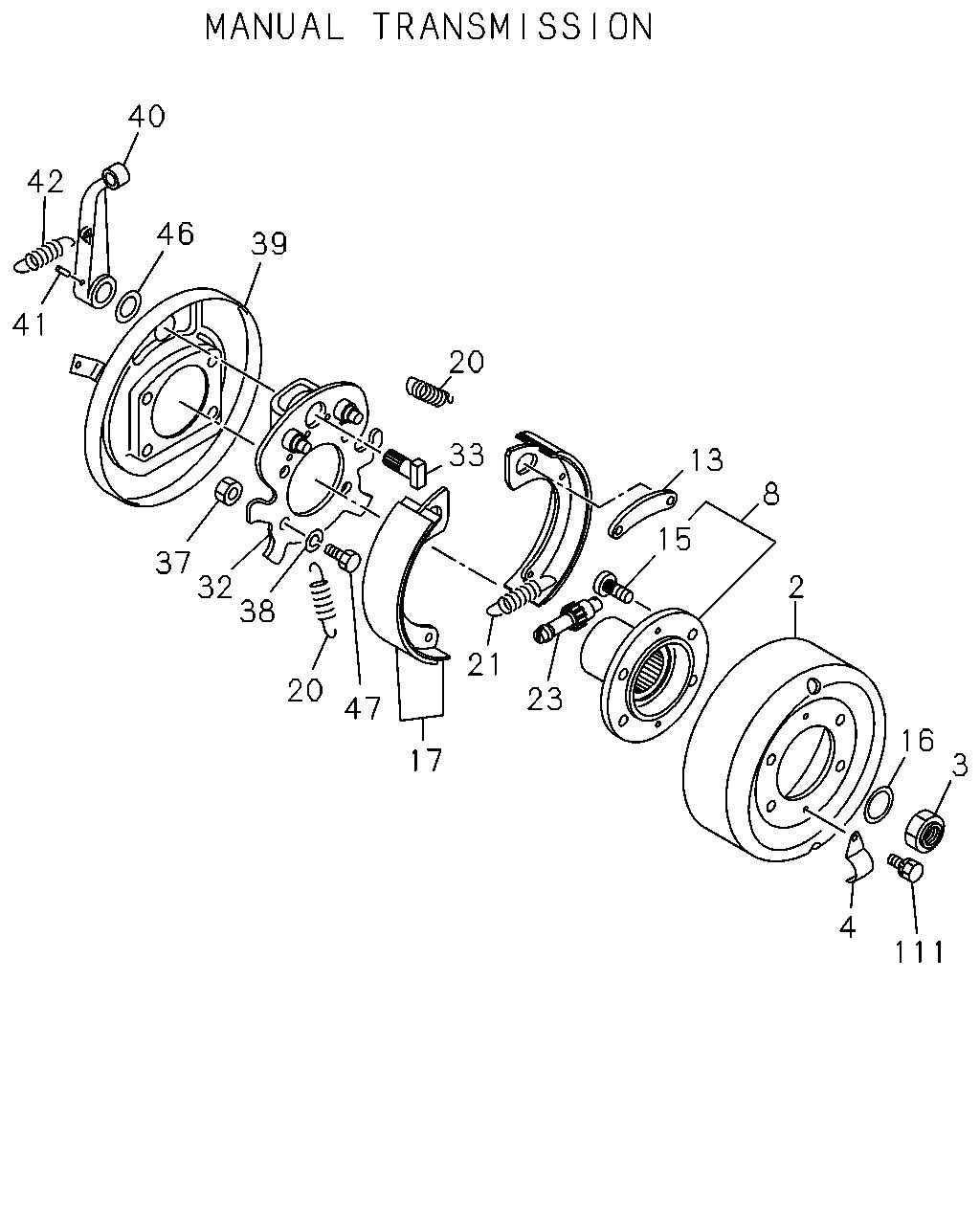

çizim 37114
40 42 46 39 41 20 33 13 8 15 37 32 38 2 21 20 23 47 16 17 3 4 111
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 DRUM; PARKING BRK 1-46211-004-1 01 1 9101- ● ● ●
2 DRUM; PARKING BRK 9-46211-051-0 01 1 9101- ●
3 NUT; LK
M30 FLANGE 		1-09449-066-1 01 1 9101- ● ● ●
4 COVER; ADJ HOLE 9-46219-015-1 02 1 9101- ● ● ●
4 COVER; ADJ HOLE
(A) 		9-46219-023-0 02 1 9101-9205 ●
4 COVER; ADJ HOLE
(A) 		1-46219-085-0 02 1 9206- ●
4 COVER; ADJ HOLE
(B) 		9-46219-024-0 02 1 9101- ●
8 FLANGE; PARKING BRK
W/BOLT 		1-37243-047-1 01 1 9101-9111 ● ● ●
8 FLANGE; PARKING BRK 1-37243-225-0 01 1 9112- ● ● ●
8 FLANGE; PARKING BRK
WO/BOLT 		1-37243-042-2 01 1 9101- ●
13 BRACE; PARKING BRK 9-46239-003-0 01 1 9101- ● ● ●
13 BRACE; PARKING BRK 9-46239-002-0 01 1 9101- ●
15 BOLT; FLANGE
M12X39 		1-09046-001-2 04 1 9101- ● ● ● ●
16 GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 9101- ● ● ●
16 GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). 		9-09921-103-0 01 1 9101- ●
17 SHOE; PARKING BRK 1-46220-012-0 02 1 9101-9411 ● ● ●
17 SHOE; PARKING BRK 1-46220-024-0 02 1 9412- ● ● ●
17 SHOE; PARKING BRK 1-46220-004-0 02 1 9101-9411 ●
17 SHOE; PARKING BRK 1-46220-025-0 02 1 9412- ●
20 SPRING; RETURN,SECONDARY,PARKING BRK 9-09942-567-1 02 1 9101- ● ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK 9-09942-434-0 02 1 9101- ●
21 SPRING; RETURN,PARKING BRK SHOE 1-09583-268-0 01 1 9101- ● ● ●
21 SPRING; RETURN,PARKING BRK SHOE 9-09942-516-0 01 1 9101- ●
23 SCREW; ADJ,PARKING BRK SHOE 9-46240-008-0 01 1 9101- ● ● ●
23 SCREW; ADJ,PARKING BRK SHOE 1-46240-003-0 01 1 9101- ●
32 PLATE; SUPPORT,PARKING BRK 1-46213-023-0 01 1 9101- ● ● ●
32 PLATE; SUPPORT,PARKING BRK 1-46213-006-1 01 1 9101- ●
33 SHAFT; CAM,PARKING BRK 1-46251-002-0 01 1 9101- ● ● ●
33 SHAFT; CAM,PARKING BRK 9-46251-069-0 01 1 9101- ●
37 NUT; SUPPORT PLATE
M14 		9-99111-514-0 01 1 9101-9207 ● ● ●
37 NUT; SUPPORT PLATE
M14 FLANGE 		1-09440-047-0 01 1 9208-9310 ● ● ●
37 NUT; SUPPORT PLATE
M14 FLANGE 		1-09440-048-0 01 1 9311- ● ● ●
38 WASHER; LK,SUPPORT PLATE 9-09150-514-0 04 1 9101-9207 ● ● ●
38 WASHER; LK,SUPPORT PLATE 9-09150-514-0 03 1 9208- ● ● ●
38 WASHER; LK,SUPPORT PLATE 1-09500-002-0 04 1 9101- ●
39 COVER; DUST,PARKING BRK 1-46213-019-0 01 1 9101- ● ● ●
40 LEVER; CM/SHF,PARKING BRK 1-46252-003-0 01 1 9101- ● ● ●
40 LEVER; CM/SHF,PARKING BRK 1-46259-005-0 01 1 9101- ●
41 PIN; KNOCK,LEVER 9-09878-594-0 01 1 9101- ● ● ●
42 SPRING; RETURN,LEVER 9-09942-592-0 01 1 9101- ● ● ●
42 SPRING; RETURN,LEVER 1-09583-041-0 01 1 9101- ●
46 WASHER; LEVER 9-09855-367-0 01 1 9101- ● ● ●
46 WASHER; LEVER 9-09855-362-0 01 1 9101- ●
47 BOLT; SUPPORT PLATE 0-23801-432-0 03 1 9101- ● ● ●
47 BOLT; SUPPORT PLATE 1-09087-001-1 04 1 9101- ●
111 BOLT; COVER,CHECK HOLE
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9101-9204 ● ● ●
111 BOLT; COVER,CHECK HOLE
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205- ● ● ●
111 BOLT; COVER,CHECK HOLE
M8X12 		9-02040-812-0 06 1 9101-9204 ●
111 BOLT; COVER,CHECK HOLE
M8X12 		0-20800-812-0 06 1 9205- ●
