Sayfa 7-70 - Isuzu EPC

7-70 — SEPARATER AND BED (#26479) — 49 parça

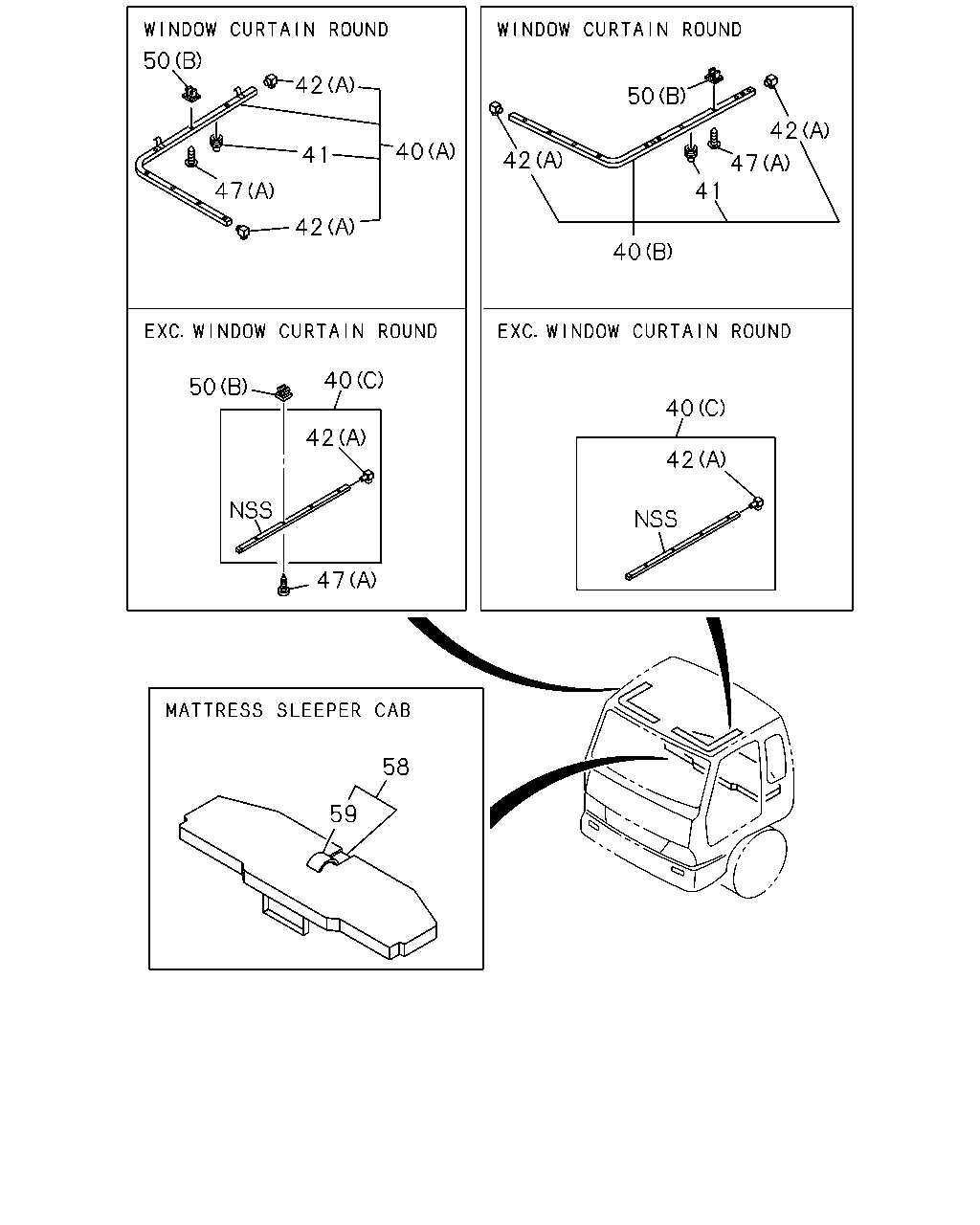

50 42 50 42 40 41 42 47 41 47 42 40 40 50 40 42 42 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73996-367-1	01	1	0407-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (B)	1-73996-368-1	01	1	0407-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-378-1	02	1	0407-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	40	1	0407-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0407-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0407-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0407-	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0407-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0407-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0407-	●	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	25	1	0407-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0407-	●	●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	0407-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0407-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 THA	8-94279-078-0	25	1	0407-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5	1-09983-159-0	15	1	0407-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 THA	8-94279-078-0	11	1	0407-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-519-1	01	1	0407-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-666-1	01	1	0407-	●	●

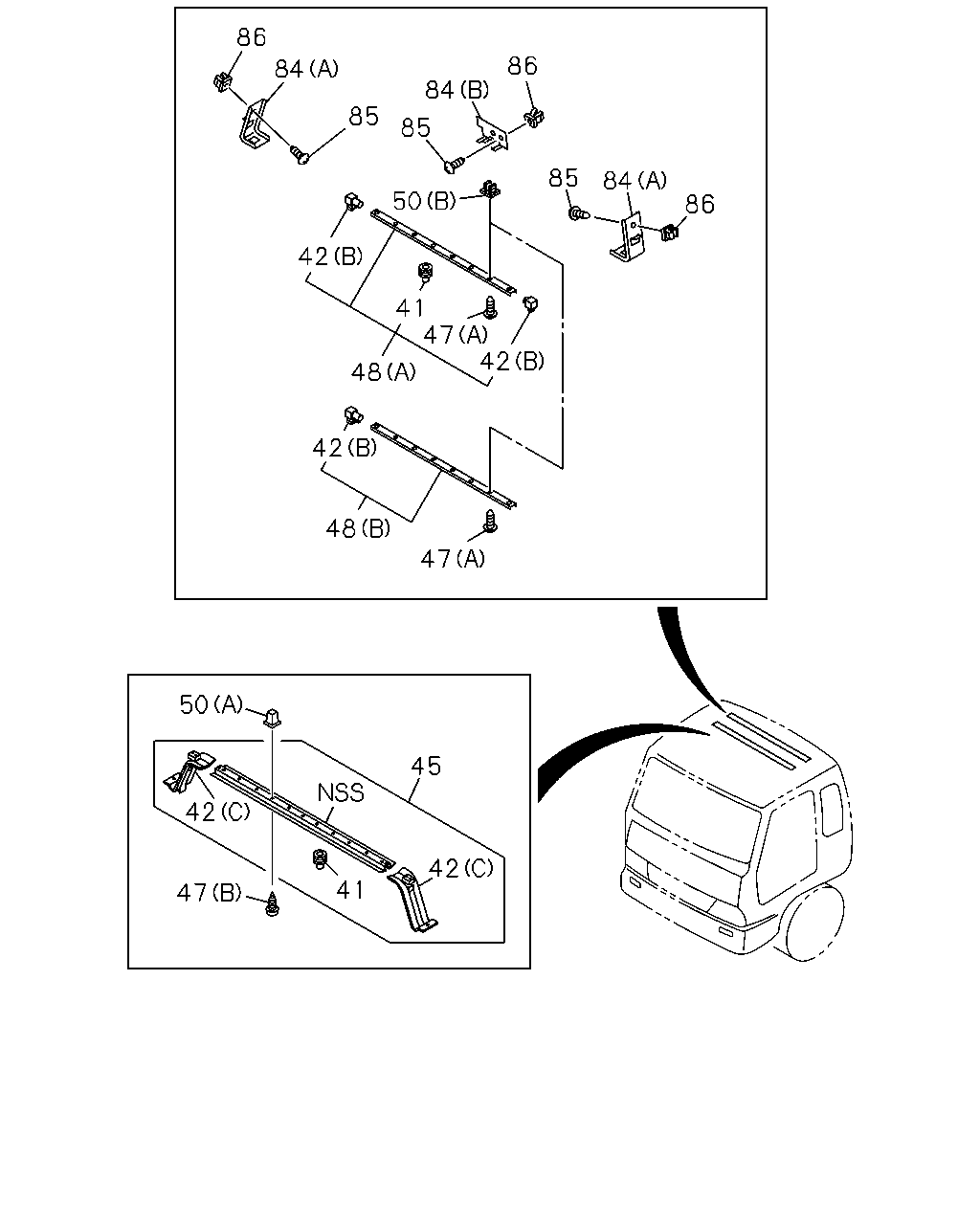

86 86 84 84 85 85 85 84 50 86 42 41 47 42 48 42 48 47 50 45 42 42 41 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	40	1	0407-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0407-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0407-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0407-	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0407-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0407-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0407-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73996-370-1	01	1	0407-	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73996-369-1	01	1	0407-	●	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	25	1	0407-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0407-	●	●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	0407-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-386-1	01	1	0407-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-385-1	01	1	0407-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0407-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 THA	8-94279-078-0	25	1	0407-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5	1-09983-159-0	15	1	0407-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5 THA	8-94279-078-0	11	1	0407-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0407-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0407-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0407-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5 THA	8-94279-078-0	09	1	0407-	●	●

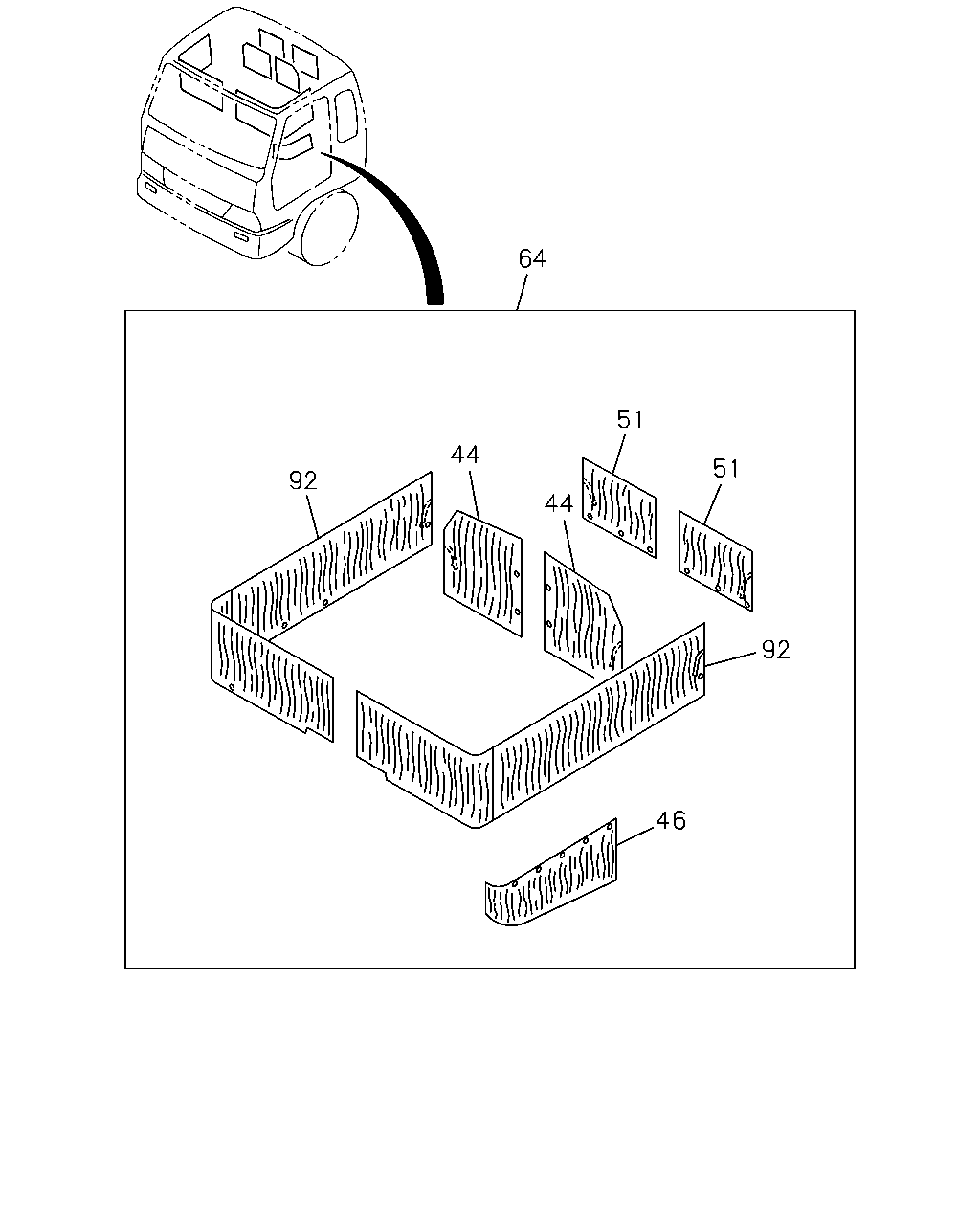

64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-207-1	01	1	0407-	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-208-1	01	1	0407-	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-303-0	01	1	0407-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-211-1	01	1	0407-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-212-1	01	1	0407-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73908-205-1	01	1	0407-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-215-1	01	1	0407-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-216-1	01	1	0407-	●	●
