◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10942 - FTR(THAI)EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#26474) — 95 parça

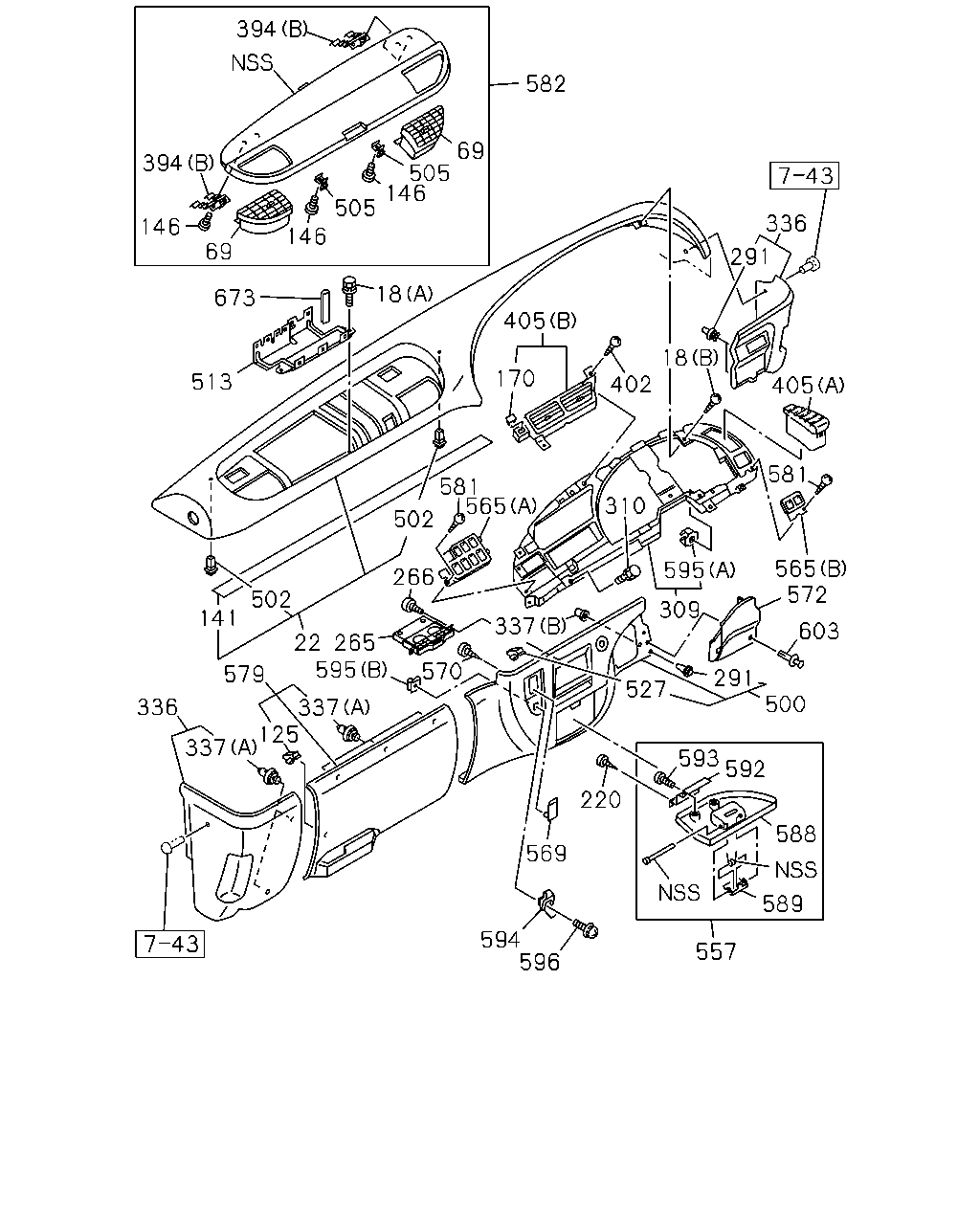

çizim 22633
394 582 69 505 146 394 505 336 146 146 69 291 18 673 405 18 170 513 402 405 581 581 565 310 502 565 572 595 266 502 309 141 337 603 595 570 579 291 527 500 336 337 125 337 593 592 220 588 569 589 594 596 557 22 265
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 07 1 0407- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0407- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0407- ● ●
22 PAD; INST 1-72318-433-4 01 1 0407- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0407- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0407- ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0407-0801 ● ●
125 CLIP; INST PANEL 8-97217-066-0 14 1 0802- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0407- ● ●
146 SCREW; TAP
M5X14 THA 		8-94279-325-0 10 1 0407- ● ●
170 COVER; HOLE 1-76367-068-0 01 1 0407- ● ●
220 SCREW; LID TO STOPPER
M5X14 THA 		8-94279-325-0 02 1 0407- ● ●
265 HOLDER; CUP 8-97853-172-8 01 1 0407- ● ●
266 SCREW; CUP STAND
M5X14 THA 		8-94279-325-0 02 1 0407- ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0407- ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0407- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 05 1 0407- ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0407- ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0407- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0407- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0407- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0407- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0407- ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0407-0604 ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-059-3 01 1 0407- ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-062-2 01 1 0407- ● ●
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0407- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER 8-94279-084-2 04 1 0407- ● ●
505 LOCK; LID 1-72558-024-2 02 1 0407- ● ●
513 BRACKET; RELAY
THA 		1-73908-425-0 01 1 0407- ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0407- ● ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0407- ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0407- ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0407- ● ●
569 HOLDER; CARD 1-72498-015-2 01 1 0407- ● ●
570 SCREW; HOLDER
M5X14 THA 		8-94279-325-0 01 1 0407- ● ●
572 COVER; INSPECTION 1-72438-183-0 01 1 0407- ● ●
579 COVER; INST PNL 1-72438-184-1 01 1 0407- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0407-0604 ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ●
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0407- ● ●
588 LID; BOX 1-72548-135-3 01 1 0407- ● ●
589 KNOB; LID 1-72548-143-0 01 1 0407- ● ●
592 HINGE; LID 1-72548-133-3 01 1 0407- ● ●
593 SCREW; HINGE
M5X14 THA 		8-94279-325-0 02 1 0407- ● ●
594 HOOK; COAT 1-72498-013-0 01 1 0407- ● ●
595 NUT; HOOK
(B) M5 		1-09984-162-0 01 1 0407- ● ●
595 NUT; HOOK
(A) 		1-72418-013-0 11 1 0407- ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0407- ● ●
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0407- ● ●
673 FINISHER; BRKT,RELAY
L=50 THA 		8-94270-377-1 01 1 0407- ● ●

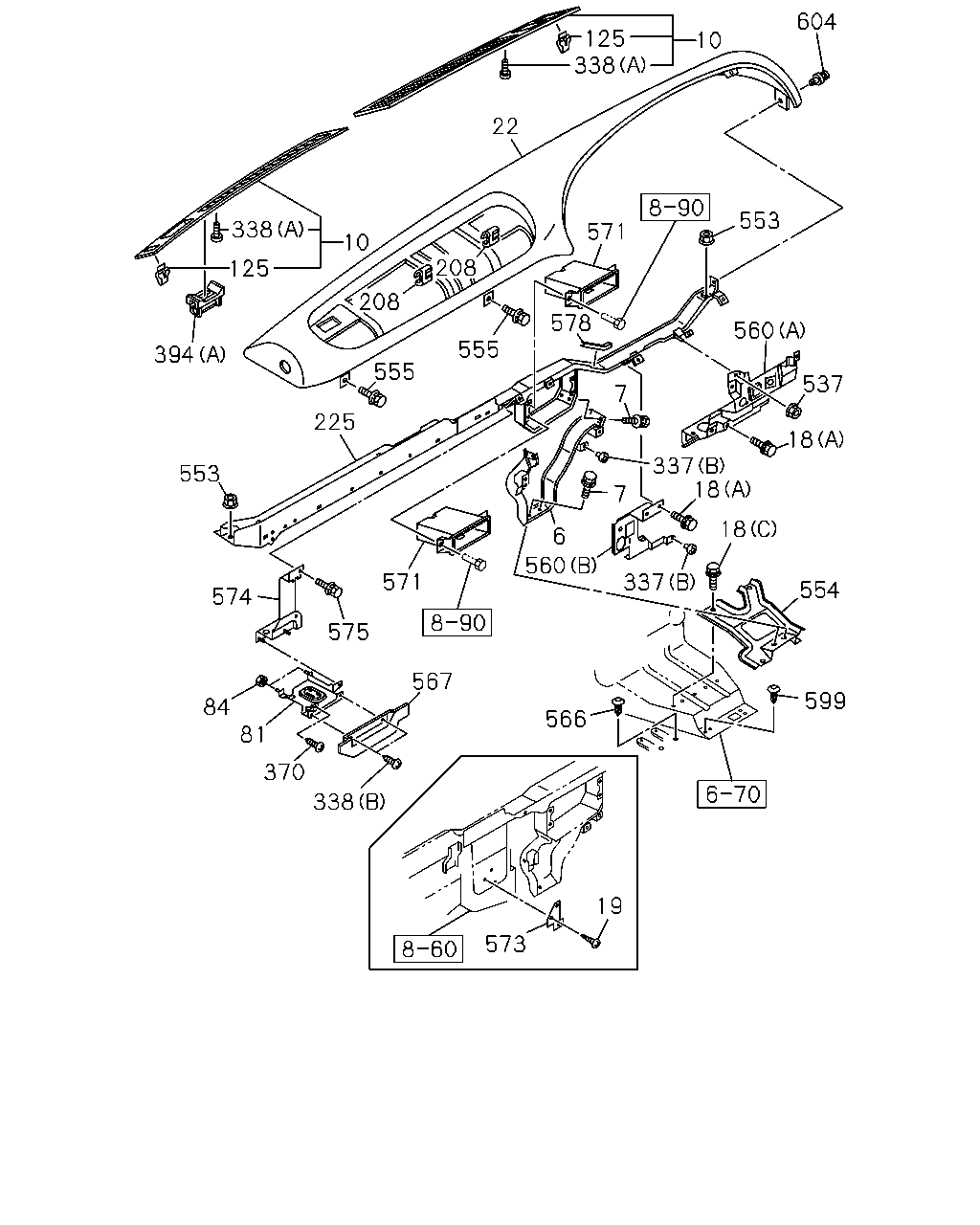

çizim 25154
604 125 338 10 22 553 338 571 10 208 125 208 578 560 555 394 555 537 7 225 18 337 18 553 7 18 6 560 571 337 554 574 575 567 599 84 566 81 370 338 19 573
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
THA 		1-65681-165-2 01 1 0407- ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 06 1 0407- ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 0407- ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 0407- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 07 1 0407- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0407- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0407- ● ●
19 SCREW; BRKT
M5X14 THA 		8-94279-325-0 02 1 0407- ● ●
22 PAD; INST 1-72318-433-4 01 1 0407- ● ●
81 BRACKET; ELEC CONT UNIT 1-73908-008-7 01 1 0407- ● ●
84 NUT; CONT UNIT BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0407- ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0407-0801 ● ●
125 CLIP; INST PANEL 8-97217-066-0 14 1 0802- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0407- ● ●
225 FRAME; FACIA
THA 		1-65681-096-2 01 1 0407- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0407- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0407- ● ●
338 SCREW; COVER
(A) M5X14 THA 		8-94279-325-0 10 1 0407-0801 ● ●
338 SCREW; COVER
(A) M5X14 THA 		8-94279-325-0 15 1 0802- ● ●
338 SCREW; COVER
(B) M6X12 		8-97094-854-0 02 1 0407- ● ●
370 SCREW; BRKT,ELEC CONT UNIT
M5X14 THA 		8-94279-325-0 01 1 0407- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0407- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0407- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0407-0605 ● ●
537 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 0606- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0407- ● ●
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0407- ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 0407-0512 ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ● ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605- ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 03 1 0407- ● ●
560 BRACKET
(A) 		1-65671-786-2 01 1 0407- ● ●
560 BRACKET
(B) 		1-65680-976-3 01 1 0407- ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0407- ● ●
567 COVER; CONT UNIT 1-65681-022-2 01 1 0407- ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0407- ● ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO & TAPE PLAYER<UN3> 		1-72438-151-3 01 1 0407- ● ●
573 BRACKET; PANEL,RELAY BOX 1-73908-023-2 01 1 0407- ● ●
574 PANEL; RELAY BOX 1-73908-252-2 01 1 0407- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0407- ● ●
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0407- ● ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0407- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0407- ● ●
