6-66 — HEAD LINING AND TRIM (#26461) — 14 parça

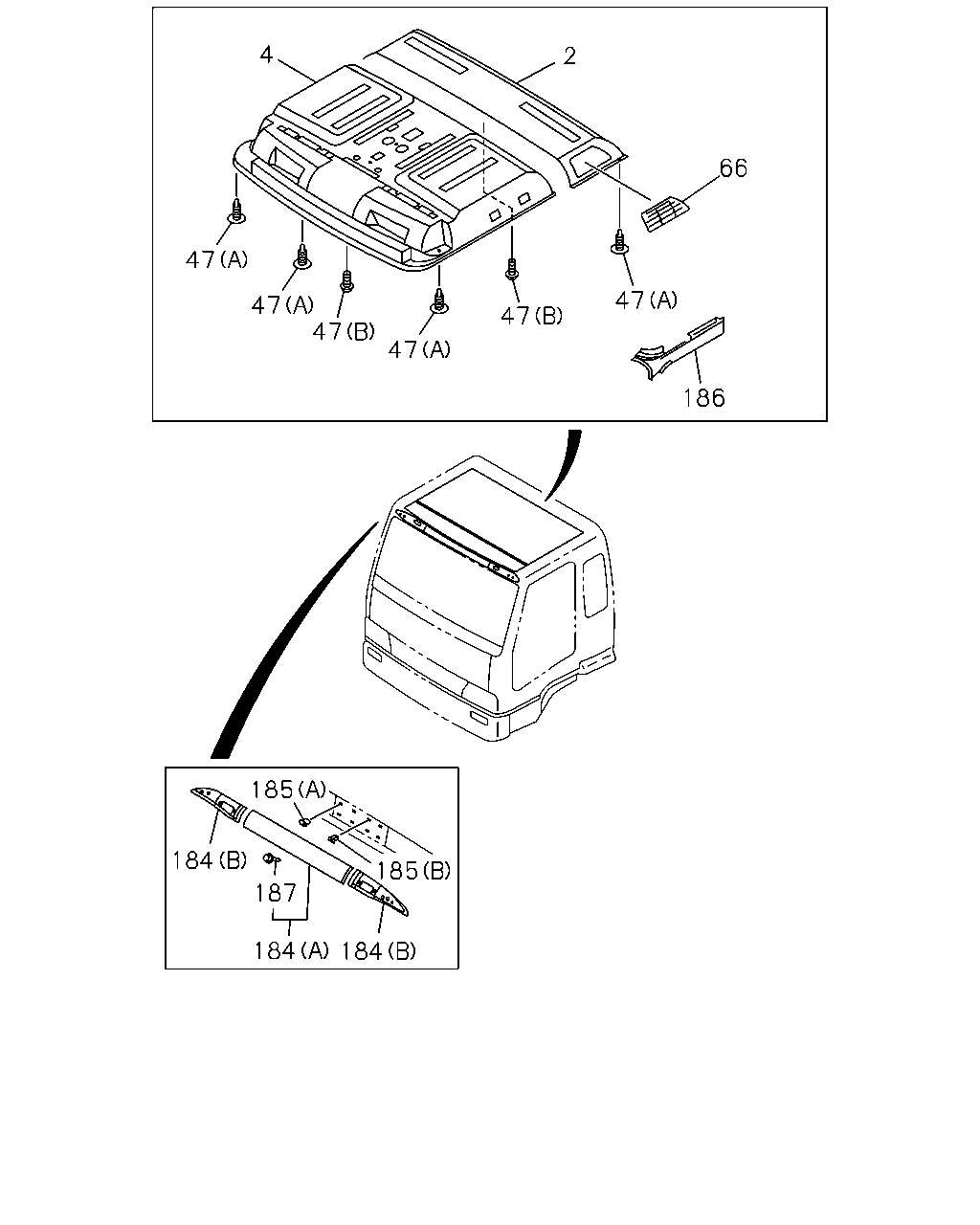

çizim 84516
4 2 66 47 47 47 47 47 47 186 185 184 185 187 184 184
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINING; HD,ROOF RR 1-73318-598-5 01 1 0407- ● ●
4 LINING; ROOF,FRT 8-97865-178-5 01 1 0407- ● ●
47 CLIP; HEADLINING
(A) D6X23 LIGHT GRAY 		1-73318-629-0 13 1 0407- ● ●
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> (B) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0407- ● ●
66 GRILLE; AIR OUTLET 1-73317-366-1 01 1 0407- ● ●
66 GRILLE; AIR OUTLET 1-73317-367-1 01 1 0407- ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 02 1 0407- ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 02 1 0407- ● ●
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 0407- ● ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0407- ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0407- ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-2 01 1 0407- ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-2 01 1 0407- ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0407- ● ●
