2-56 — AUTO TRANS CONTROL LINK (#2645) — 70 parça
çizim 37132
85 84 69 83 76 75 73 79 66 80 74 67 64 77 78 70 178 88
BalonParca AdiParca NoAdetTipApplied Date A B C D
64 CABLE; A/T CONT
RIGHT HAND DRIVE(MRR5FB) L=3000 		1-34650-075-0 01 1 9101- ●
64 CABLE; A/T CONT
LEFT HAND DRIVE(MRR6FB) L=1900 		1-34650-079-0 01 1 9101-9209 ●
64 CABLE; A/T CONT
LEFT HAND DRIVE(MRR6FB) EXC. VENEZUELA ENCAVAPACKAGE(WN4) L=1900 		1-34650-079-0 01 1 9210- ●
64 CABLE; A/T CONT
LEFT HAND DRIVE(MRR6FB) VENEZUELA ENCAVAPACKAGE(WN4) L=2800 		1-34650-102-0 01 1 9210- ●
66 BRACKET; MTG,A/T CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		1-34656-014-0 01 1 9101- ●
66 BRACKET; MTG,A/T CONT CABLE
LEFT HAND DRIVE(MRR6FB) 		1-34656-010-0 01 1 9101- ●
67 SCREW; CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		1-09087-017-0 02 1 9101- ●
67 SCREW; CONT CABLE
LEFT HAND DRIVE(MRR6FB) 		1-09087-011-0 01 1 9101- ●
69 WASHER; LK,CLIP
LEFT HAND DRIVE(MRR6FB) 		9-09150-508-0 01 1 9101- ●
70 BOLT; A/T CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		9-01901-020-0 02 1 9101-9204 ●
70 BOLT; A/T CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		0-50041-020-0 02 1 9205- ●
73 ARM; A/T
RIGHT HAND DRIVE(MRR5FB) 		1-34651-002-0 01 1 9101- ●
73 ARM; A/T
LEFT HAND DRIVE(MRR6FB) 		1-34651-005-0 01 1 9101- ●
74 TRUNNION; A/T CONT CABLE 1-34659-002-0 01 1 9101- ●
75 WASHER; PL,CONT CABLE TO A/T 9-09160-508-0 01 1 9101- ●
76 PIN; SNAP,A/T CONT 1-09747-005-0 01 1 9101- ●
77 SHIM; A/T CONT CABLE 1-34659-008-0 01 1 9101- ●
78 U-BOLT; A/T CONT CABLE 1-34659-001-0 01 1 9101- ●
79 NUT; CONT CABLE
NO.10-32 UNF 		1-09487-015-0 02 1 9101- ●
79 NUT; CONT CABLE
LEFT HAND DRIVE(MRR6FB) 5/8-18UNF 		1-09487-005-0 01 1 9101- ●
80 WASHER; CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		1-09500-015-0 02 1 9101- ●
80 WASHER; CONT CABLE
LEFT HAND DRIVE(MRR6FB) 		1-09500-005-0 01 1 9101- ●
83 NUT; A/T CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		9-09110-410-0 01 1 9101-9307 ●
83 NUT; A/T CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		9-09110-510-0 01 1 9308- ●
84 CLIP; A/T CONT CABLE
ID=12 H=24 L=20 		1-09700-605-0 01 1 9101- ●
84 CLIP; A/T CONT CABLE
LEFT HAND DRIVE(MRR6FB) ID=12 H=24 L=20 		1-09700-605-0 01 1 9101- ●
84 CLIP; A/T CONT CABLE
RIGHT HAND DRIVE(MRR5FB) ID=11 L=20 		9-09525-036-0 03 1 9101- ●
85 BOLT; A/T CONT CABLE
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		9-01900-820-0 04 1 9101-9204 ●
85 BOLT; A/T CONT CABLE
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205- ●
85 BOLT; A/T CONT CABLE
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ●
85 BOLT; A/T CONT CABLE
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ●
88 BRACKET; A/T CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		1-47465-743-0 02 1 9101- ●
178 GROMMET; CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		9-09576-395-0 01 1 9101- ● ● ●
178 GROMMET; CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		1-09333-119-0 01 1 9101- ●
178 GROMMET; CONT CABLE
LEFT HAND DRIVE(MRR6FB) 		5-09333-062-0 01 1 9301- ●

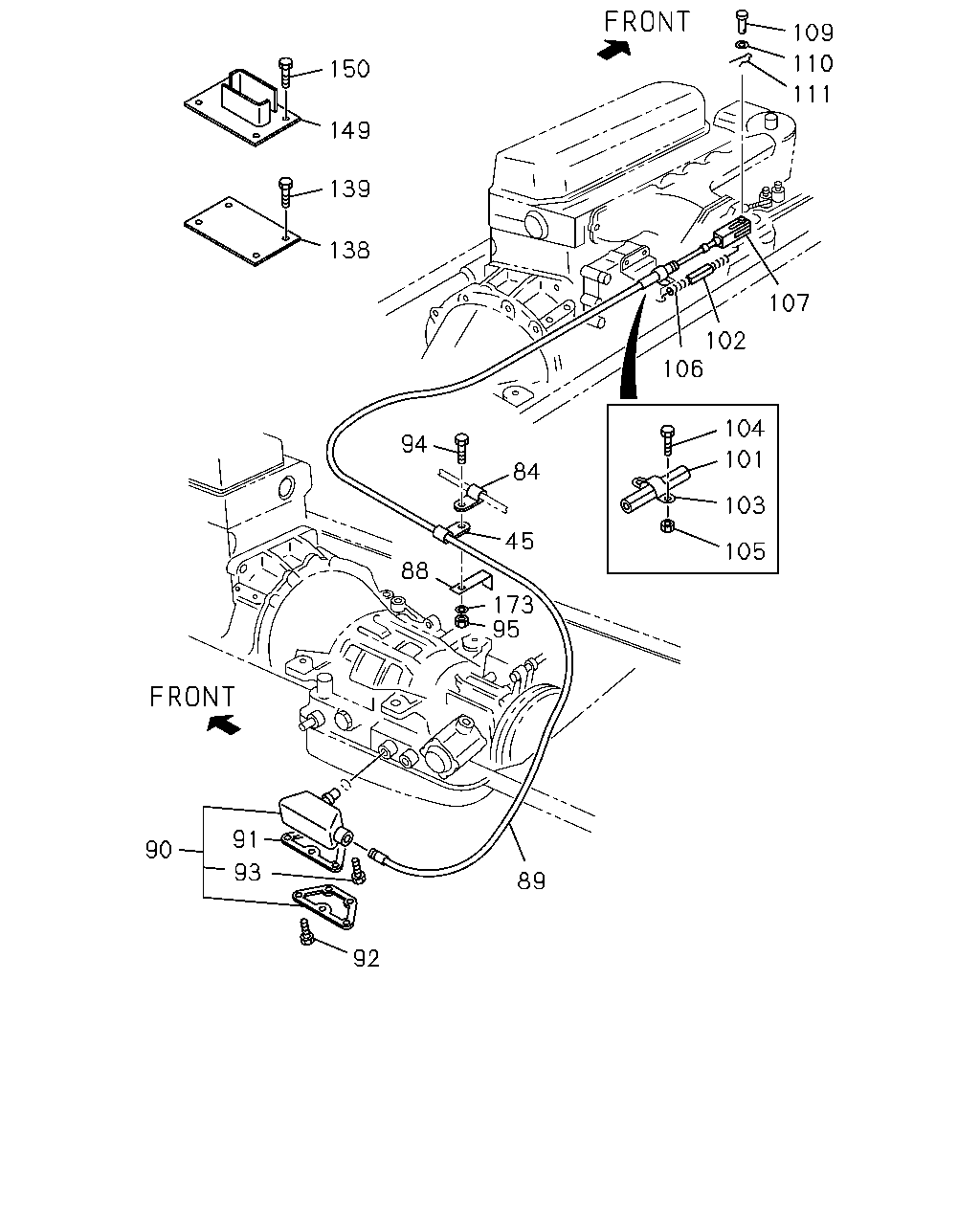

çizim 38930
109 110 150 111 149 139 138 107 102 106 104 94 101 84 103 45 105 88 173 95 91 90 93 89 92
BalonParca AdiParca NoAdetTipApplied Date A B C D
45 CLIP; CONT CABLE
ID=11 L=20 		9-09525-035-0 01 1 9101- ●
45 CLIP; CONT CABLE
ID=11 L=50 		9-09525-085-0 01 1 9101- ●
84 CLIP; A/T CONT CABLE
ID=12 H=24 L=20 		1-09700-605-0 01 1 9101- ●
84 CLIP; A/T CONT CABLE
LEFT HAND DRIVE(MRR6FB) ID=12 H=24 L=20 		1-09700-605-0 01 1 9101- ●
84 CLIP; A/T CONT CABLE
RIGHT HAND DRIVE(MRR5FB) ID=11 L=20 		9-09525-036-0 03 1 9101- ●
88 BRACKET; A/T CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		1-47465-743-0 02 1 9101- ●
89 CABLE; CONT 1-34650-049-0 01 1 9101- ●
90 ACTUATOR; THROTTLE 1-34511-002-0 01 1 9101- ●
91 GASKET; COVER,THROTTLE ACTUATOR 1-34519-002-0 01 1 9101- ●
92 SCREW; COVER,THROTTLE ACTUATOR 1-09189-002-0 04 1 9101- ●
93 SCREW; THROTTLE ACTUATOR TO CABLE 1-09189-001-0 01 1 9101- ●
94 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9101- ●
94 BOLT; CLIP
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ●
94 BOLT; CLIP
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205- ●
95 NUT; CLIP 9-09110-408-0 02 1 9101- ●
95 NUT; CLIP
LEFT HAND DRIVE(MRR6FB) 		9-09110-408-0 02 1 9101- ●
95 NUT; CLIP
RIGHT HAND DRIVE(MRR5FB) 		9-09110-408-0 04 1 9101- ●
101 SLEEVE; RUBBER,CONT CABLE
RIGHT HAND DRIVE(MRR5FB) 		5-09360-926-2 01 1 9101- ●
102 COVER; GEAR CONT 1-09369-012-0 01 1 9101- ●
103 CLIP; WIRE END 1-09709-052-0 01 1 9101- ●
104 BOLT; CLIP 0-50040-616-0 02 1 9101- ●
105 NUT; CLIP 9-09110-406-0 02 1 9101- ●
106 SPRING; RETURN,CONT CABLE 9-09942-002-0 01 1 9101- ●
107 JOINT; JAW,CONT CABLE 1-09768-014-1 01 1 9101- ●
109 PIN; CONT CABLE
OD=6 L=20 		9-08223-620-0 01 1 9101- ●
110 WASHER; PL,CONT CABLE 9-09160-506-0 01 1 9101- ●
111 PIN; SNAP,CONT CABLE 1-09747-003-0 01 1 9101- ●
138 PLATE; BRKT
RIGHT HAND DRIVE(MRR5FB) 		1-33619-277-0 01 1 9101- ●
139 BOLT; PLATE
RIGHT HAND DRIVE(MRR5FB) 		9-01960-820-0 04 1 9101-9204 ●
139 BOLT; PLATE
RIGHT HAND DRIVE(MRR5FB) 		0-50140-820-0 04 1 9205- ●
149 BRACKET; CLIP,CONT CABLE,FRAME
LEFT HAND DRIVE(MRR6FB) 		1-34619-024-0 01 1 9101- ●
150 BOLT; BRKT
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9101- ●
150 BOLT; BRKT
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK&PL WASHER 		9-01960-820-0 04 1 9101-9204 ●
150 BOLT; BRKT
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9205- ●
173 WASHER; PL,CLIP
LEFT HAND DRIVE(MRR6FB) 		9-09160-608-0 01 1 9101- ●
