Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#26425) — 69 parça

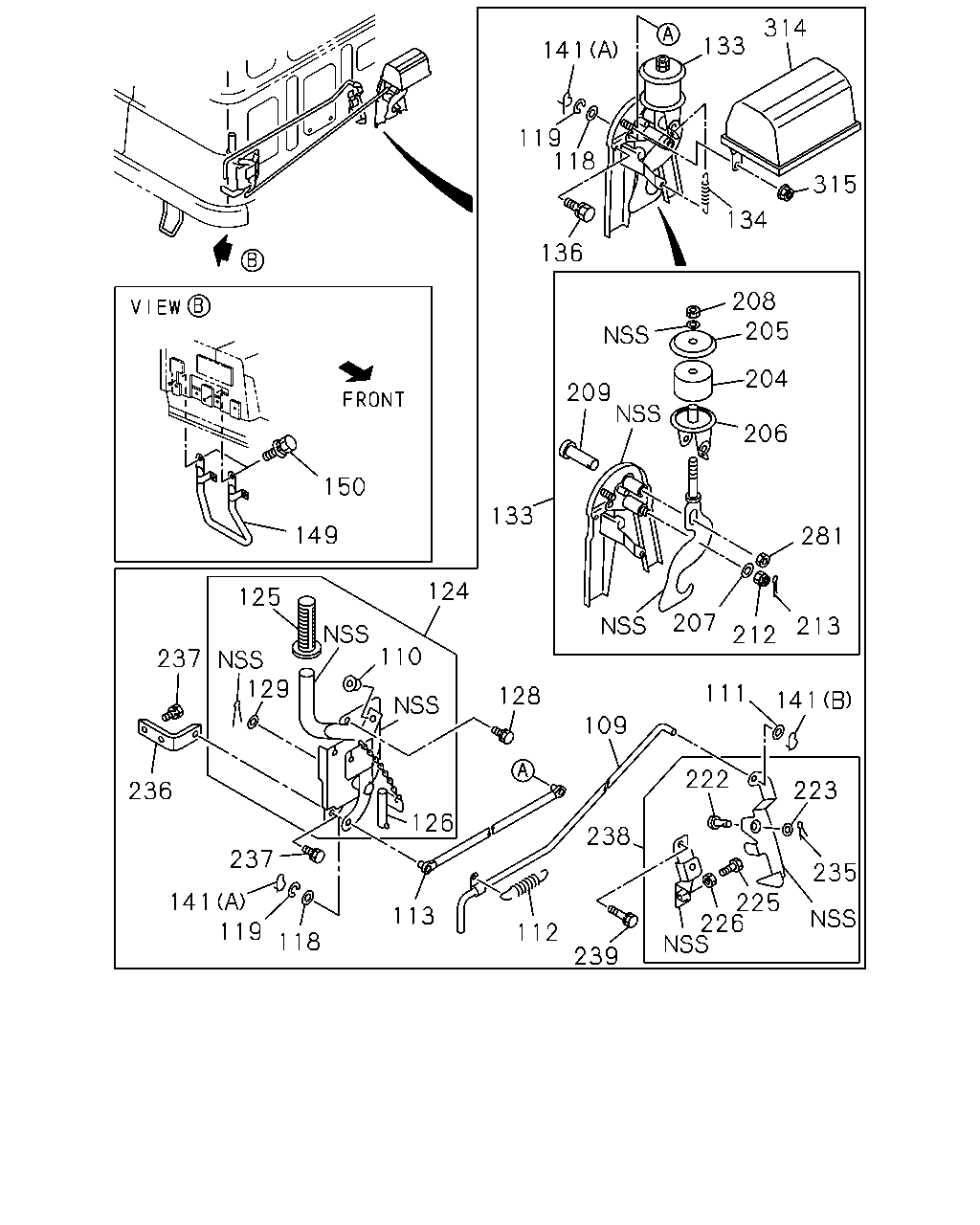

314 133 141 119 118 315 134 136 208 205 204 209 206 150 133 149 281 124 125 207 213 212 110 237 129 111 128 141 109 222 223 236 126 238 237 235 141 119 225 226 113 112 118 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
109	ROD; SAFETY,CAB LK	1-79718-642-1	01	1	0212-
110	BUSHING; SAFETY ROD,CAB LOCK	1-79718-319-1	02	1	0212-
111	WASHER; PL,SAFETY ROD	1-09985-137-0	01	1	0212-
112	SPRING; RETURN,SAFETY ROD	1-79718-655-0	01	1	0212-
113	ROD; CONN,CAB LK	1-79718-583-0	01	1	0212-
118	WASHER; PL,CONNROD ID=10.5	1-09985-107-0	02	1	0212-
119	WASHER; WAVE,CAB LOCK ROD	1-09985-045-0	02	1	0212-
124	LEVER ASM; HAND,CAB LK	1-79718-635-2	01	1	0212-
125	GRIP; HAND LEVER,CAB LOCK	1-79718-303-2	01	1	0212-
126	PIN; LK,HAND LEVER	1-79718-640-2	01	1	0212-
128	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0212-
129	WASHER; PL,BRKT ID=17	1-09985-109-0	01	1	0212-
133	LOCK ASM; CAB THA	1-79718-656-0	01	1	0212-
134	SPRING; CAB LK LEVER	1-79718-538-1	01	1	0212-
136	BOLT; CAB LK M10X25 W/LK&PL WASHER	1-09980-488-0	05	1	0212-
141	PIN; SNAP,CAB LOCK ROD (B) L=27.7	1-09987-141-0	01	1	0212-
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	02	1	0212-
149	HANDLE; TILT	1-71996-146-1	01	1	0212-
150	BOLT; TILT HANDLE M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0212-
204	RUBBER; REBOUND,CAB LK THA	1-79718-429-1	01	1	0212-
205	PLATE; SUPPORT,REBOUND RUBBER THA	1-79718-129-1	01	1	0212-
206	SUPPORT; REBOUND RUBBER THA	1-79718-434-0	01	1	0212-
207	WASHER; PL,SUPPORT PLATE ID=19 OD=44 THA	1-09985-113-0	01	1	0212-
208	NUT; SUPPORT PLATE M14 LOCK NUT W/FLANGE THA	1-79718-526-0	01	1	0212-
209	PIN; JOINT,SUPPORT THA	1-79718-523-0	01	1	0212-
212	NUT; BRKT,CAB LOCK M18 SLOTTED THA	1-09984-079-0	01	1	0212-
213	PIN; SPLIT,BRKT,CAB LK OD=3.7 L=30	9-08114-030-0	01	1	0212-
222	PIN; JOINT,SAFETY LK	1-09987-159-0	01	1	0212-
223	WASHER; PL,SAFETY LK ID=12.5 OD=22 T=1.6	1-09985-108-0	01	1	0212-
225	BOLT; SAFETY LK M8X30	1-09980-277-0	01	1	0212-
226	NUT; SAFETY LK M8	1-09984-065-0	01	1	0212-
235	PIN; SNAP	1-09987-158-1	01	1	0212-
236	SUPPORT ASM; HAND LEVER,CAB LOCK	1-79718-493-0	01	1	0212-
237	BOLT; HAND LEVER SUPPORT,CAB LOCK M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0212-
238	LOCK ASM; SAFETY,CAB TILT	1-79718-612-1	01	1	0212-
239	BOLT; SAFETY LK M8X25 W/PL WASHER	8-94279-166-0	02	1	0212-0304
239	BOLT; SAFETY LK M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0305-
281	NUT; SUPPORT M12 LOCK NUT W/FLANGE THA	1-79718-524-1	01	1	0212-
314	COVER; CAB LOCK	1-79718-575-1	01	1	0212-
315	NUT; COVER M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0212-

73 76 311 310 302 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	PAD; TORSION BAR	1-53459-790-1	02	1	0212-
76	BOLT; PAD M10X30 W/LK&PL WASHER	8-94279-213-0	06	1	0212-
301	BRACKET; RR MTG,CAB THA	8-97515-002-1	01	1	0212-
301	BRACKET; RR MTG,CAB THA	8-97515-001-1	01	1	0212-
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	0212-
302	BOLT; BRKT,CAB M8X25 W/LK&PL WASHER	1-09980-526-0	08	1	0212-
310	SEAL; BRKT OD=30 BLACK	1-76798-035-0	02	1	0212-
311	SEAL; CAB LOCK OD=30 BLACK	1-76798-035-0	02	1	0212-

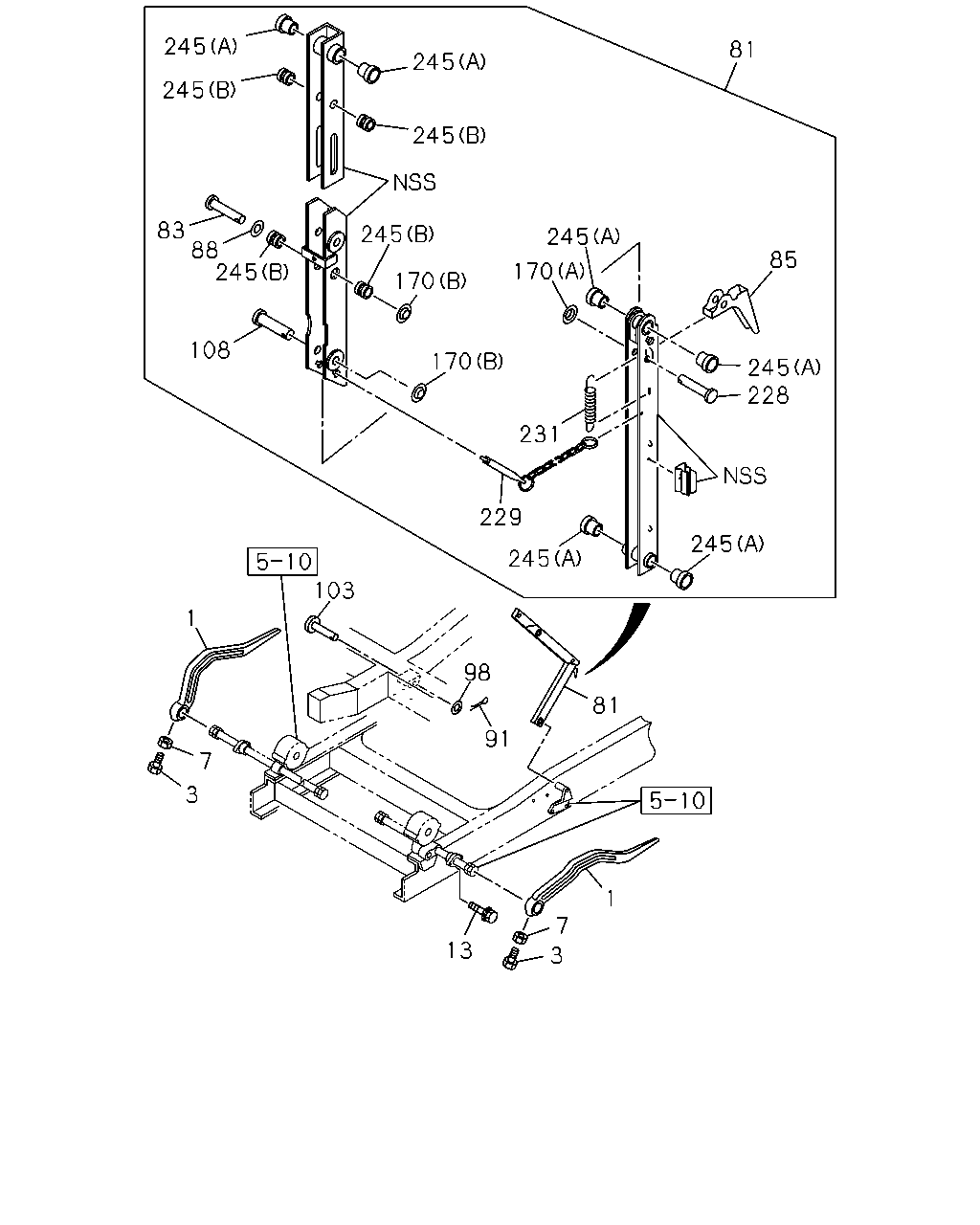

245 81 245 245 245 83 88 245 245 245 85 170 170 108 170 245 228 231 229 245 245 103 1 98 81 91 7 3 1 7 13 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER; TORSION BAR	1-53458-284-0	01	1	0212-
1	LEVER; TORSION BAR	1-53458-283-0	01	1	0212-
3	BOLT; LEVER M10X32	1-09000-435-0	04	1	0212-
7	NUT; LK,LEVER M10	9-09110-510-0	04	1	0212-
13	BOLT; BUSHING,TORSION BAR M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	0212-
81	STAY ASM; CAB TILT	1-62500-720-1	01	1	0212-0405
81	STAY ASM; CAB TILT	1-62500-761-0	01	1	0406-
83	PIN; JOINT,CAB STAY OD=10 L=42	1-09744-106-0	01	1	0212-
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	0212-
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	01	1	0212-
91	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	0212-
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	0212-
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	0212-
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	0212-
170	NUT (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	0212-
170	NUT (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	0212-
228	PIN; SAFETY LOCK SPRING,CAB STAY	1-09744-086-2	01	1	0212-
229	PIN ASM; SAFETY	1-62500-517-1	01	1	0212-
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	0212-
245	BUSHING; CAB STAY (A)	1-62500-587-0	06	1	0212-
245	BUSHING; CAB STAY (B)	1-62500-588-0	04	1	0212-
