4-80 — ROAD WHEEL (#26422) — 25 parça

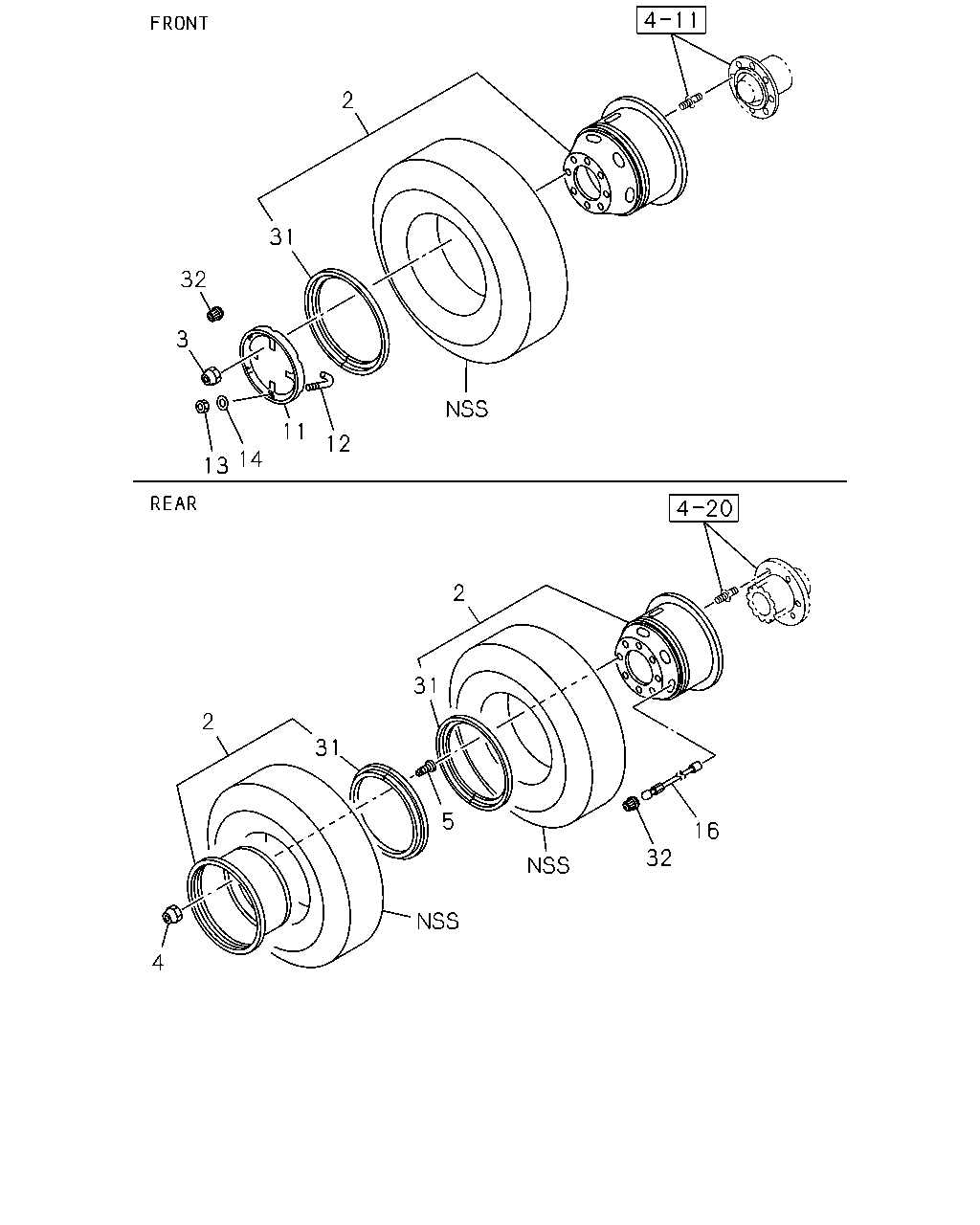

çizim 81911
2 31 32 3 11 12 14 13 2 31 2 31 5 16 32 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
FRONT 		1-42350-268-2 02 1 0212-
2 WHEEL; DISC
REAR 		1-42350-268-2 08 1 0212-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE 		1-42350-268-2 01 1 0212-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42350-268-2 01 1 0212-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD THA 		8-97916-064-0 08 1 0212-
3 NUT; WHEEL,FRT AXLE
M24 THA 		8-97916-063-0 08 1 0212-
4 NUT; WHEEL,RR AXLE
M30 THA 		8-97916-066-0 08 1 0212-
4 NUT; WHEEL,RR AXLE
M30 THA 		8-97916-066-0 08 1 0212-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD THA 		8-97916-121-0 08 1 0212-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD THA 		8-97916-121-0 08 1 0212-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA 		8-97916-065-0 08 1 0212-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA 		8-97916-065-0 08 1 0212-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA 		8-97916-676-0 08 1 0212-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA 		8-97916-676-0 08 1 0212-
11 STEP; DISC WHEEL SIDE
THA 		8-97916-040-0 02 1 0212-
12 U-BOLT; STEP DISC
L=44 THA 		9-43139-023-1 06 1 0212-
13 NUT; STEP DISC
M10 		9-09110-510-0 06 1 0212-
14 WASHER; LK,STEP DISC
ID=10.2 		9-09150-510-0 06 1 0212-
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 04 1 0212-
31 RING; SIDE,DISC WHEEL
FRONT 		1-42355-012-1 02 1 0212-
31 RING; SIDE,DISC WHEEL
REAR 		1-42355-012-1 08 1 0212-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> SPARE 		1-42355-012-1 01 1 0212-
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-012-1 01 1 0212-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> THA 		1-42374-001-0 07 1 0212-
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46> THA 		1-42374-001-0 06 1 0212-
