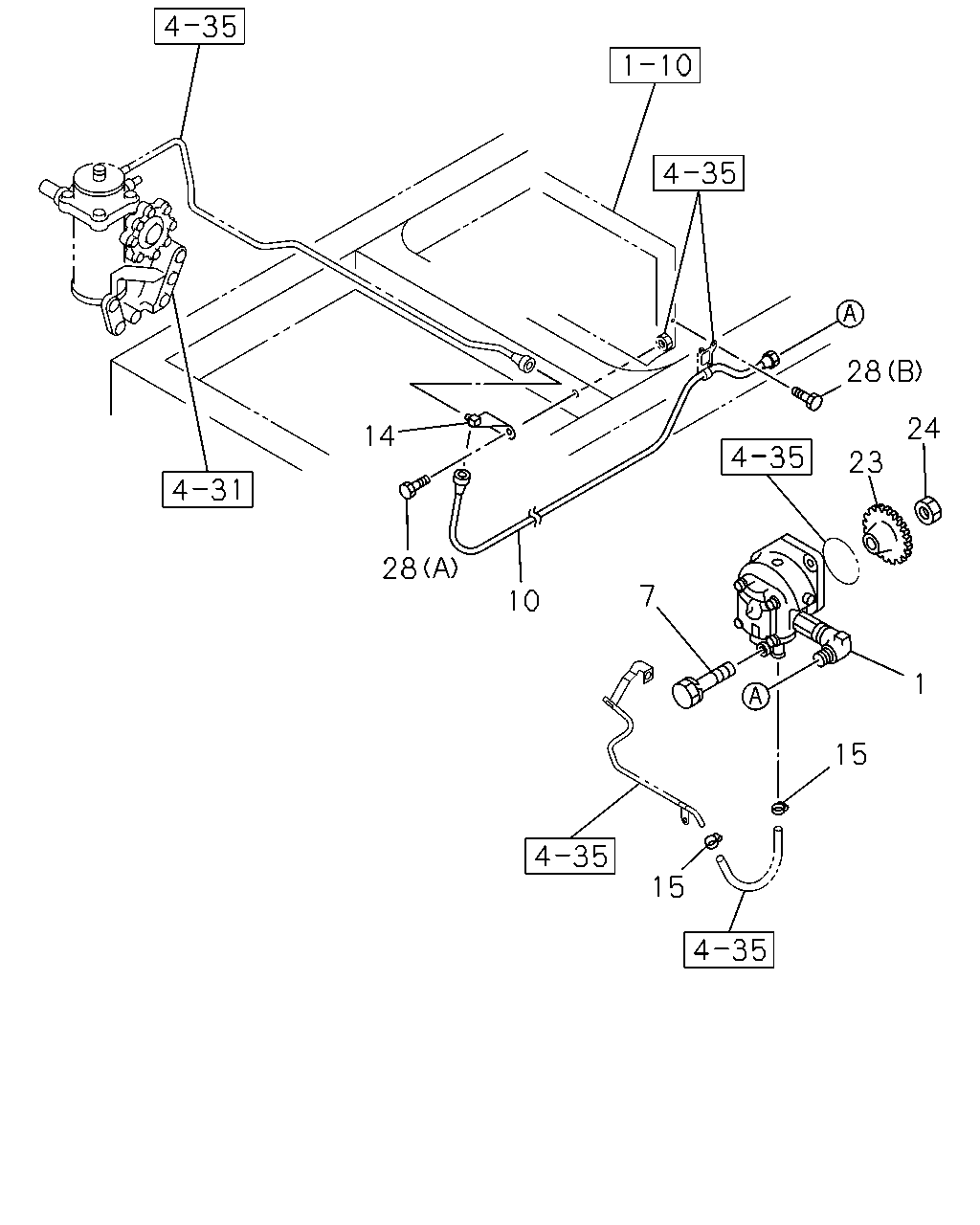

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#26415) — 9 parça

28 24 14 23 28 7 10 1 15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-595-0	01	1	0212-
7	BOLT; OIL PUMP,P/S M10X55 FLANGE THA	8-94399-863-1	02	1	0212-
10	HOSE; FLEX,P/S OIL PUMP,INL L=875	1-09364-980-0	01	1	0212-
14	UNION; FLEX HOSE,P/S	1-47470-463-1	01	1	0212-
15	CLIP; OIL PIPE SUCTION ID=32 THA	1-09704-085-0	02	1	0212-
23	GEAR; OIL PUMP Z=30	8-94396-957-3	01	1	0212-
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91150-114-0	01	1	0212-
28	BOLT; BRKT,FLEX HOSE,P/S (A) M8X25 FLANGE	0-28680-825-0	02	1	0212-
28	BOLT; BRKT,FLEX HOSE,P/S (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0212-
