Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10908 - FVZ(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶

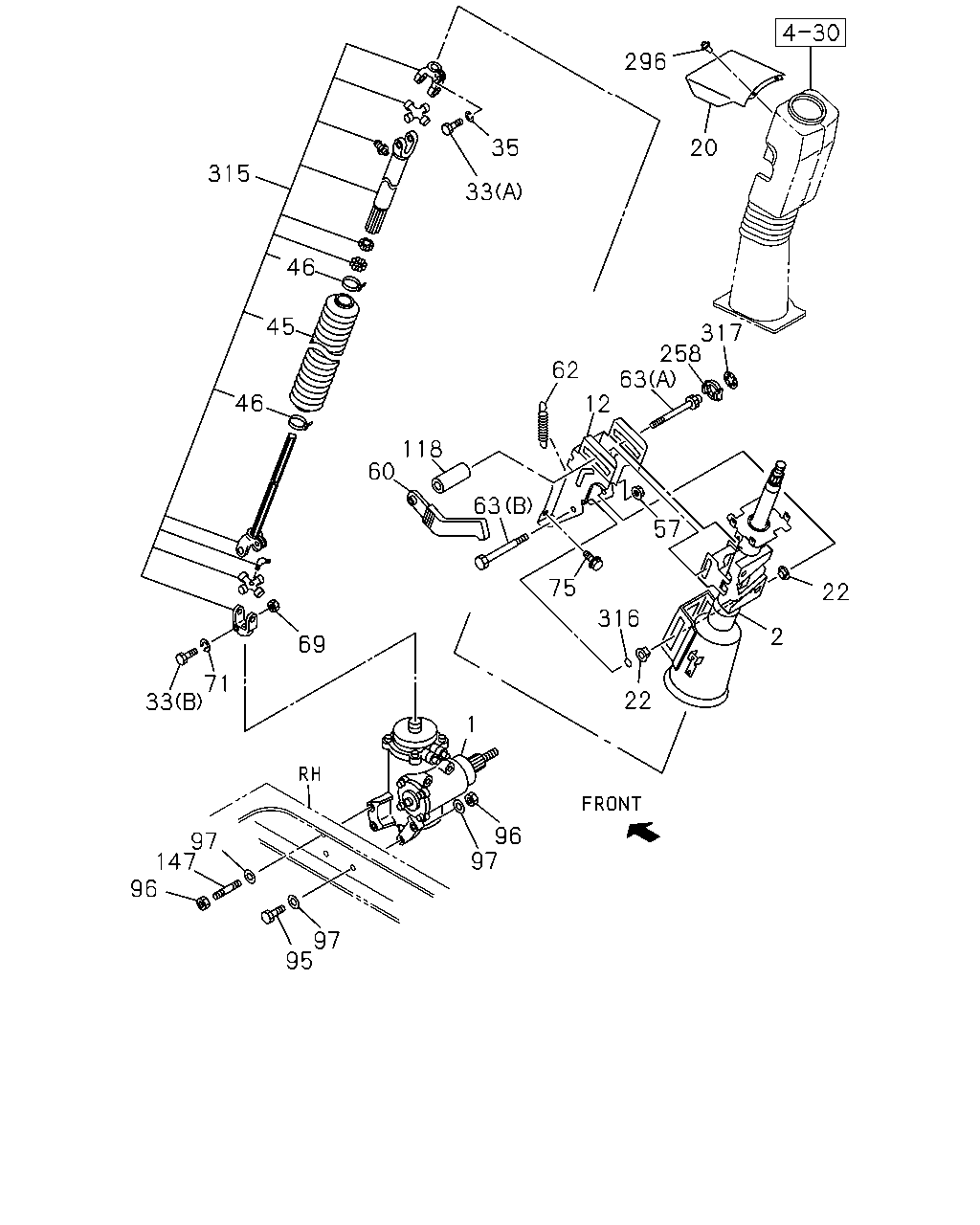

4-31 — STEERING COLUMN AND SHAFT
(#26412) — 28 parça
296
35
20
315
33
46
317
258
63
12
45
62
46
118
60
63
57
75
22
316
2
69
71
33
22
1
96
97
97
147
96
97
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-834-2
01
1
0212-
2
SHAFT ASM; STRG
1-44130-689-0
01
1
0212-
12
BRACKET; LWR,STRG COLUMN
1-44227-143-0
01
1
0212-
20
COVER; STRG SHAFT
1-72438-121-3
01
1
0212-
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
0212-
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-489-0
01
1
0212-
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-153-0
01
1
0212-
35
WASHER; LK,STRG SHAFT
1-44139-154-0
01
1
0212-
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
0212-
46
CLIP; BOOT
1-44139-156-0
02
1
0212-
57
NUT; ADJ BOLT
1-44227-151-0
01
1
0212-
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
0212-
62
SPRING; LK,LEVER
1-44227-153-0
01
1
0212-
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-145-0
01
1
0212-
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-149-0
01
1
0212-
69
NUT; TILT CENTER
M10
9-09110-510-0
01
1
0212-
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
9-09150-810-0
01
1
0212-
75
BOLT; STRG COLUMN
M8X20 FLANGE
0-28680-820-0
04
1
0212-
95
BOLT; STRG UNIT
M14X55
9-92061-455-0
05
1
0212-
96
NUT; STRG UNIT
M14
9-99110-514-0
06
1
0212-
97
WASHER; PL,STRG UNIT
ID=15 THA
9-09651-069-0
11
1
0212-
118
NUT; LEVER,TILT BOLT
1-44227-146-0
01
1
0212-
147
STUD; STRG UNIT
M14X37 L=66
1-09300-095-1
01
1
0212-
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
0212-
296
CLIP; COVER
D6X12.5
8-94146-425-0
02
1
0212-
315
JOINT; SPLINE
1-44135-342-0
01
1
0212-
316
RING
1-44227-152-0
01
1
0212-
317
NUT; PUSH
1-44227-148-0
01
1
0212-
