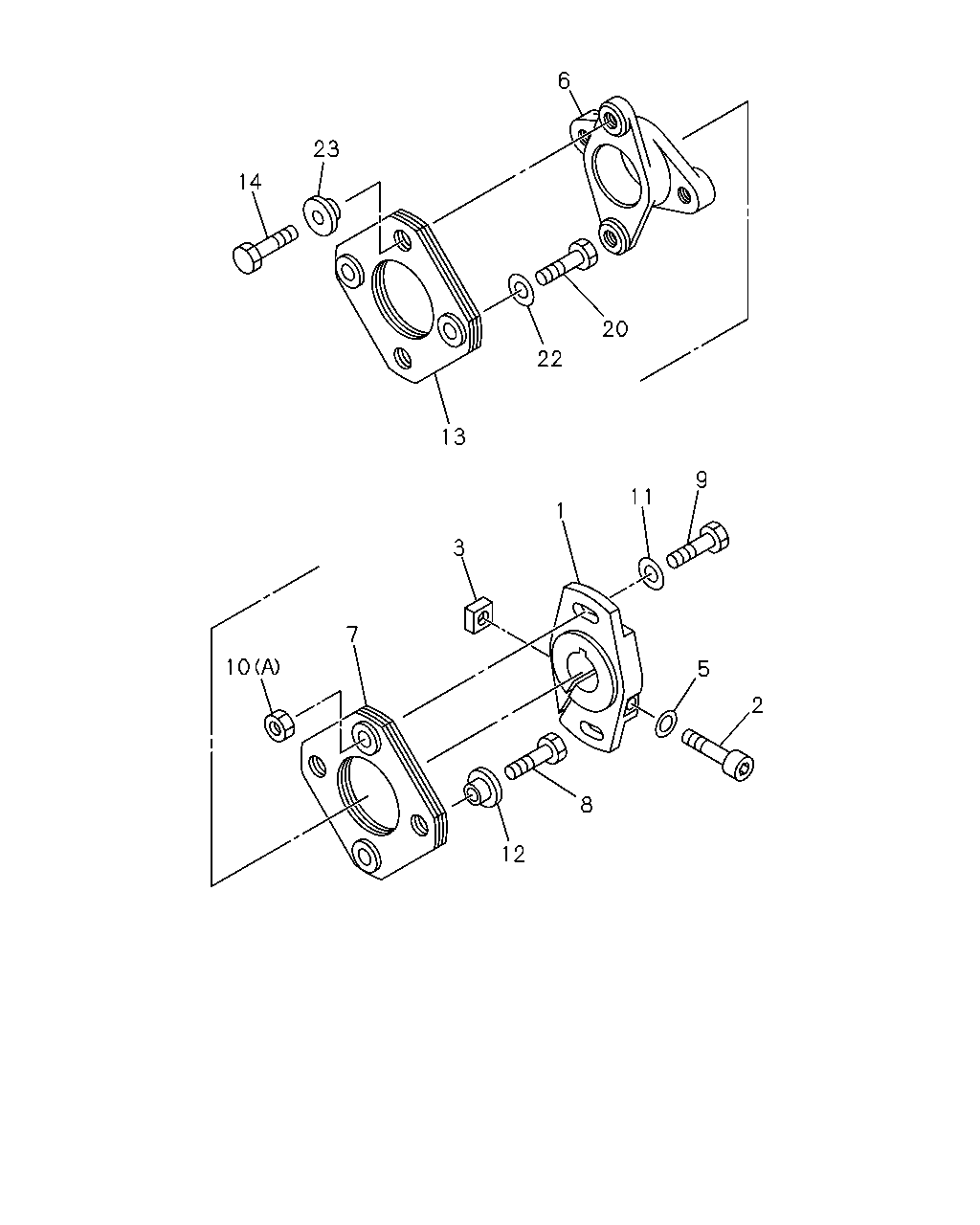

0-87A — COUPLING; INJECTION PUMP (#2641) — 77 parça

14 23 6 13 22 20 10 7 3 1 11 9 12 8 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COUPLING; INJ PUMP DRIVE	1-15782-004-0	01	1	9002-	●	●
1	COUPLING; INJ PUMP DRIVE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-004-0	01	1	9002-			●
1	COUPLING; INJ PUMP DRIVE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15781-017-0	01	1	9002-			●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-020-0	01	1	9002-	●	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-020-0	01	1	9002-			●
2	BOLT; COUPLING FIX,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-010-0	01	1	9002-			●
3	NUT; COUPLING FIX,INJ PUMP	1-15789-033-0	01	1	9002-	●	●
5	WASHER; COUPLING FIX,INJ PUMP	1-15789-021-0	01	1	9002-	●	●
5	WASHER; COUPLING FIX,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-021-0	01	1	9002-			●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15781-002-0	01	1	9002-	●	●
6	COUPLING; CROSS,INJ PUMP DRIVE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-81381-309-0	01	1	9002-			●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-100-0	01	1	9002-			●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-003-0	01	1	9002-	●	●
7	PLATE; COUPLING,COUPLING SIDE AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	9-81381-116-0	02	1	9002-			●
7	PLATE; COUPLING,COUPLING SIDE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-15789-096-0	01	1	9002-			●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-018-0	02	1	9002-	●	●
8	BOLT; PLATE TO CROSS COUPLING AIR COMPRESSOR HEAVY DUTY(E1Q)	9-81385-022-0	02	1	9002-			●
8	BOLT; PLATE TO CROSS COUPLING EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-029-0	02	1	9002-			●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-016-0	02	1	9002-	●	●
9	BOLT; PLATE TO COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	9-81385-023-0	02	1	9002-			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-15789-029-0	02	1	9002-			●
10	NUT; PLATE TO COUPLING,INJ PUMP (A)	1-15789-073-0	02	1	9002-	●	●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-15789-073-0	02	1	9002-			●
10	NUT; PLATE TO COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	9-09110-508-0	02	1	9002-			●
11	WASHER; PLATE TO COUPLING,INJ PUMP	1-15789-017-0	02	1	9002-	●	●
11	WASHER; PLATE TO COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-007-0	02	1	9002-			●
11	WASHER; PLATE TO COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-095-0	02	1	9002-			●
12	WASHER; PLATE TO CROSS COUPLING	1-15789-019-0	02	1	9002-	●	●
12	WASHER; PLATE TO CROSS COUPLING AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-014-0	02	1	9002-			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-023-0	01	1	9002-	●	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-065-0	01	1	9002-			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-018-0	02	1	9002-	●	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI AIR COMPRESSOR HEAVY DUTY(E1Q)	9-81385-022-0	02	1	9002-			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-064-0	02	1	9002-			●
20	BOLT; COUPLING TO INJ PUMP	1-15789-024-0	02	1	9002-	●	●
20	BOLT; COUPLING TO INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-040-0	02	1	9002-			●
20	BOLT; COUPLING TO INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-084-0	02	1	9002-			●
22	WASHER; PL,COUPLING TO INJ PUMP	1-15789-011-0	02	1	9002-	●	●
23	BUSHING; PLATE	1-15789-019-0	02	1	9002-	●	●

7 13 14 12 20 6 9 10 11 2 21 5 8 1 15 7 7 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COUPLING; INJ PUMP DRIVE	1-15782-004-0	01	1	9002-	●	●
1	COUPLING; INJ PUMP DRIVE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-004-0	01	1	9002-			●
1	COUPLING; INJ PUMP DRIVE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15781-017-0	01	1	9002-			●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-020-0	01	1	9002-	●	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-020-0	01	1	9002-			●
2	BOLT; COUPLING FIX,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-010-0	01	1	9002-			●
5	WASHER; COUPLING FIX,INJ PUMP	1-15789-021-0	01	1	9002-	●	●
5	WASHER; COUPLING FIX,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-021-0	01	1	9002-			●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15781-002-0	01	1	9002-	●	●
6	COUPLING; CROSS,INJ PUMP DRIVE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-81381-309-0	01	1	9002-			●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-100-0	01	1	9002-			●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-003-0	01	1	9002-	●	●
7	PLATE; COUPLING,COUPLING SIDE AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	9-81381-116-0	02	1	9002-			●
7	PLATE; COUPLING,COUPLING SIDE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-15789-096-0	01	1	9002-			●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-018-0	02	1	9002-	●	●
8	BOLT; PLATE TO CROSS COUPLING AIR COMPRESSOR HEAVY DUTY(E1Q)	9-81385-022-0	02	1	9002-			●
8	BOLT; PLATE TO CROSS COUPLING EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-029-0	02	1	9002-			●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-016-0	02	1	9002-	●	●
9	BOLT; PLATE TO COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	9-81385-023-0	02	1	9002-			●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-15789-029-0	02	1	9002-			●
10	NUT; PLATE TO COUPLING,INJ PUMP (A)	1-15789-073-0	02	1	9002-	●	●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-15789-073-0	02	1	9002-			●
10	NUT; PLATE TO COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	9-09110-508-0	02	1	9002-			●
11	WASHER; PLATE TO COUPLING,INJ PUMP	1-15789-017-0	02	1	9002-	●	●
11	WASHER; PLATE TO COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-007-0	02	1	9002-			●
11	WASHER; PLATE TO COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-095-0	02	1	9002-			●
12	WASHER; PLATE TO CROSS COUPLING	1-15789-019-0	02	1	9002-	●	●
12	WASHER; PLATE TO CROSS COUPLING AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-014-0	02	1	9002-			●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-023-0	01	1	9002-	●	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-065-0	01	1	9002-			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-018-0	02	1	9002-	●	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI AIR COMPRESSOR HEAVY DUTY(E1Q)	9-81385-022-0	02	1	9002-			●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-064-0	02	1	9002-			●
15	WASHER; PLATE TO CROSS COUPLING AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-014-0	02	1	9002-			●
20	BOLT; COUPLING TO INJ PUMP	1-15789-024-0	02	1	9002-	●	●
20	BOLT; COUPLING TO INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-040-0	02	1	9002-			●
20	BOLT; COUPLING TO INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-084-0	02	1	9002-			●
21	WASHER; LK,COUPLING TO INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-011-0	01	1	9002-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
