Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10908 - FVZ(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

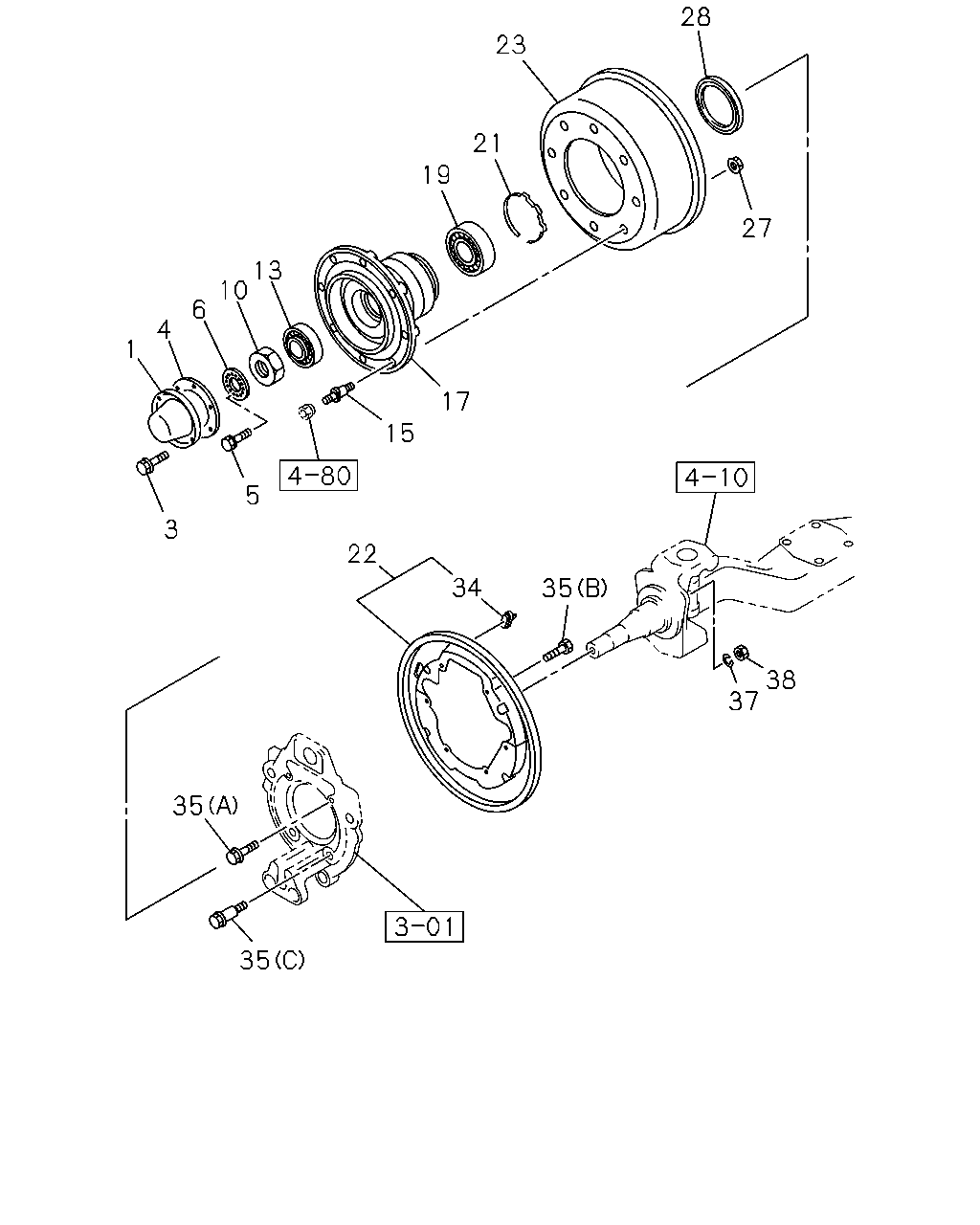

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#26408) — 23 parça
28
23
21
19
27
13
10
6
4
1
17
15
5
3
22
34
35
38
37
35
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=136
1-42313-007-1
02
1
0212-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28080-812-0
12
1
0212-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-028-0
02
1
0212-
5
BOLT; LK WASHER
M6X16 FLANGE
0-28680-616-0
04
1
0212-
6
WASHER; LK,FRT HUB
ID=39
1-09841-003-0
02
1
0212-
10
NUT; FRT HUB BRG
M39
1-09840-019-1
02
1
0212-
13
BEARING; HUB OUTER,FRT AXLE
NSK
9-00093-146-0
02
1
0212-
13
BEARING; HUB OUTER,FRT AXLE
KOYO
9-00093-147-1
02
1
0212-
15
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X51.5 RH THREAD THA
1-42332-112-0
08
1
0212-
15
PIN; WHEEL,FRT AXLE
M24X37.5,M22X51.5 RH THREAD THA
1-42331-112-0
08
1
0212-
17
HUB; FRT AXLE
1-42312-113-0
02
1
0212-
19
BEARING; HUB INNER,FRT AXLE
KOYO
9-00093-114-0
02
1
0212-
21
RING; SNAP,HUB
OD=132
9-09950-164-0
02
1
0212-
22
COVER SET; FRT BRK DRUM
THA
1-47151-458-1
02
1
0212-
23
DRUM; BRK,FRT
H=195 THA
1-42315-208-2
02
1
0212-
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE THA
1-09440-065-0
16
1
0212-
28
SEAL; OIL,FRT HUB
OD=128
1-09625-129-0
02
1
0212-
34
COVER; CHECK HOLE,DRUM COVER
THA
1-09333-151-0
04
1
0212-
35
BOLT; DRUM COVER
(B) M10X16 W/LK WASHER
0-50041-016-0
12
1
0212-
35
BOLT; DRUM COVER
(C) M16X61
1-09040-058-1
04
1
0212-
35
BOLT; DRUM COVER
(A) M16X52
1-09044-001-2
04
1
0212-
37
WASHER; LK,BACK PLATE
ID=16.2
9-09150-816-0
08
1
0212-
38
NUT; BACK PLATE
M16
9-99110-416-0
08
1
0212-
