◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10908 - FVZ(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#26405) — 32 parça

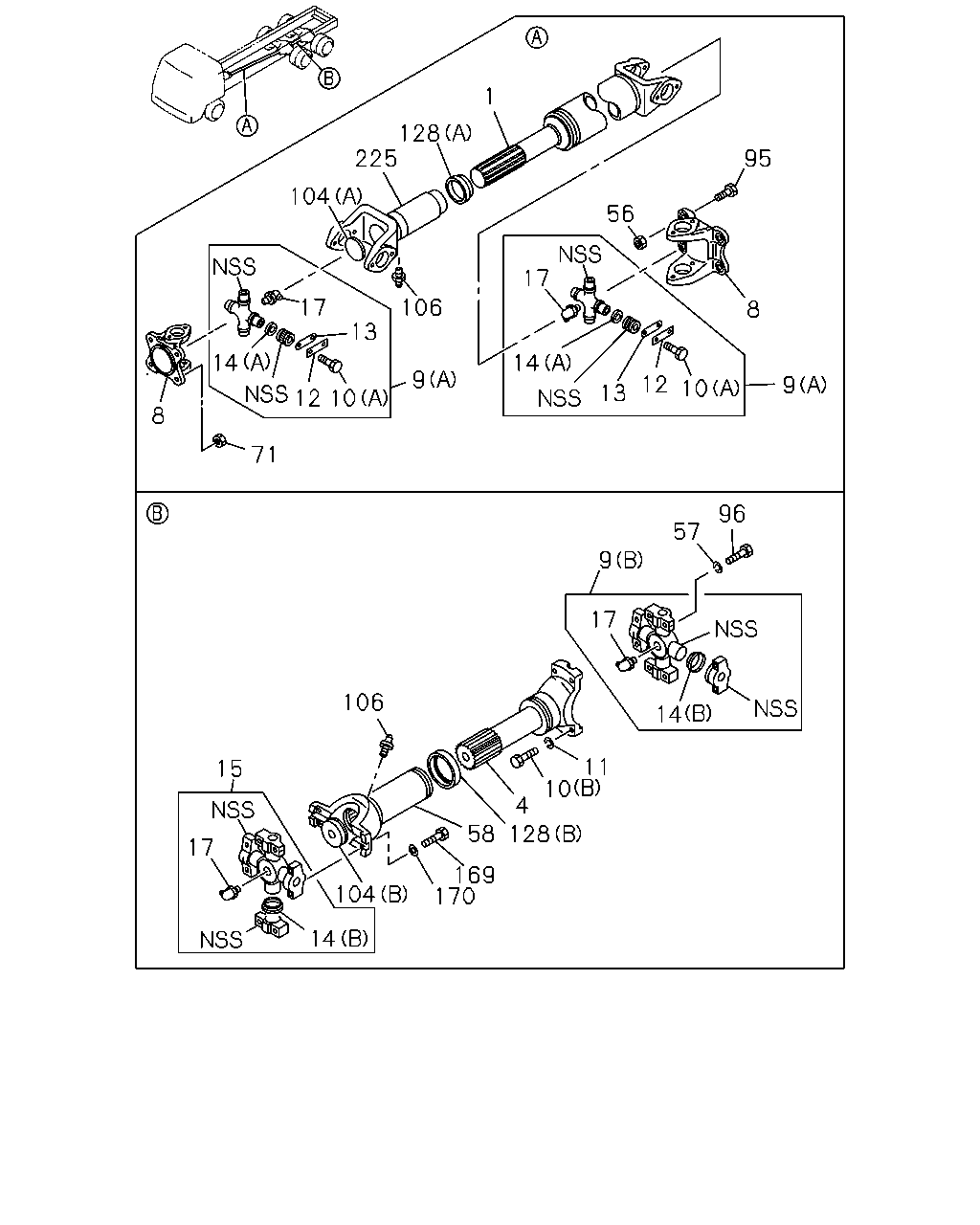

çizim 25941
1 128 225 95 104 56 17 17 106 8 13 14 9 12 9 10 13 12 10 8 71 96 57 9 17 106 11 15 4 128 58 17 169 170 104 14 10 14 14
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
FULLER FS8209HD DD M/T<Y3A> L=1389 		1-37123-903-0 01 1 0212-
1 SHAFT; PROP
ZF 9S75 DD M/T<Y1H> L=1342 		1-37124-117-0 01 1 0212-
4 SHAFT; PROP
L=348 		1-37171-127-1 01 1 0212-
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0212-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0212-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0212-
10 BOLT; UJT
(A) M10X20 		9-02061-020-0 AR 1 0212-
10 BOLT; UJT
(B) M12X45 		9-91066-245-0 04 1 0212-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0212-
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 AR 1 0212-
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 AR 1 0212-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 AR 1 0212-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0212-
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0212-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 0212-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 0212-
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0212-
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 0212-
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0212-
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0212-
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 0212-
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0212-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0212-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0212-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0212-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0212-
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0212-0312
128 SEAL; SLEEVE 8-97603-618-0 01 1 0401-
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0212-
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0212-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 0212-
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 0212-
