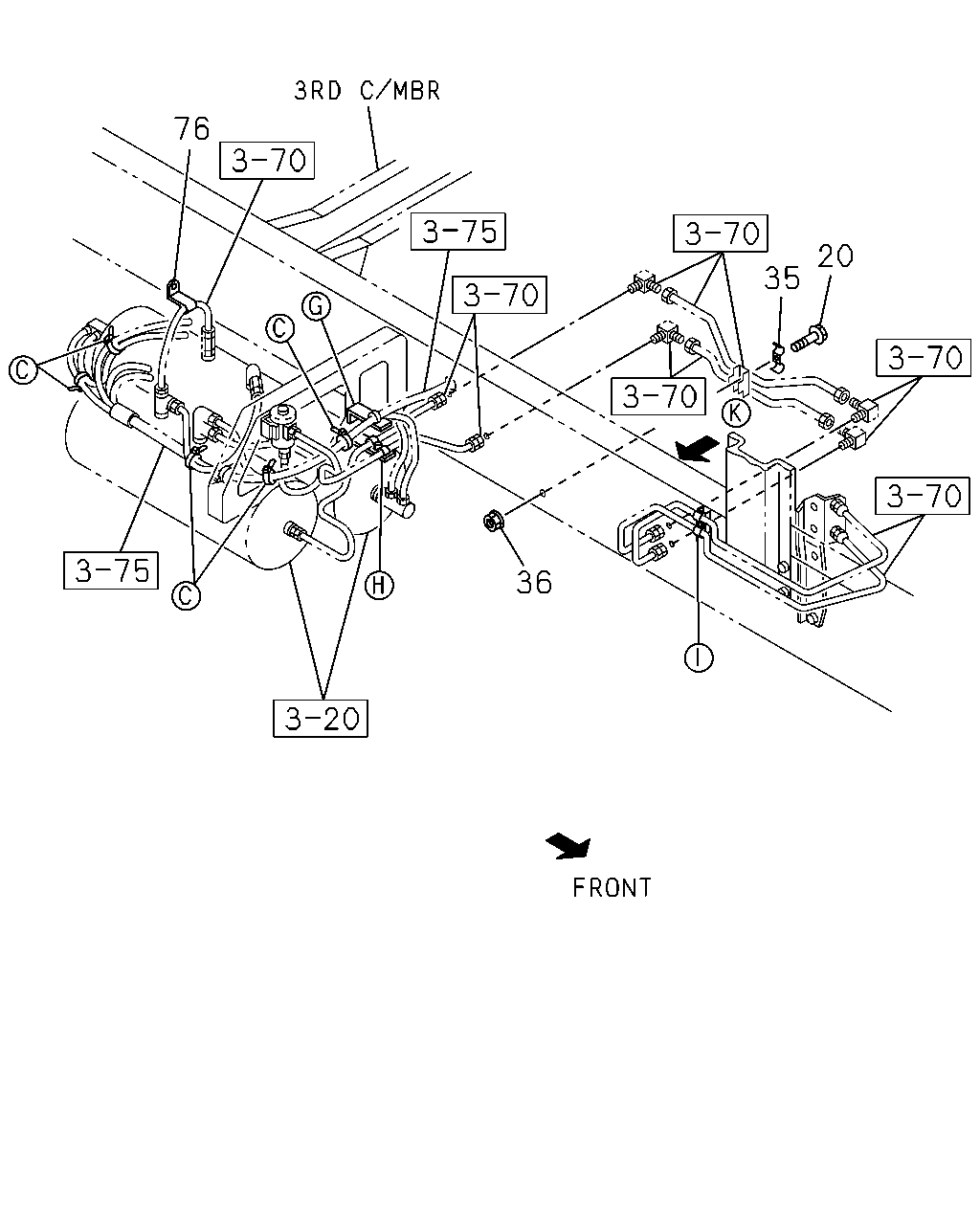

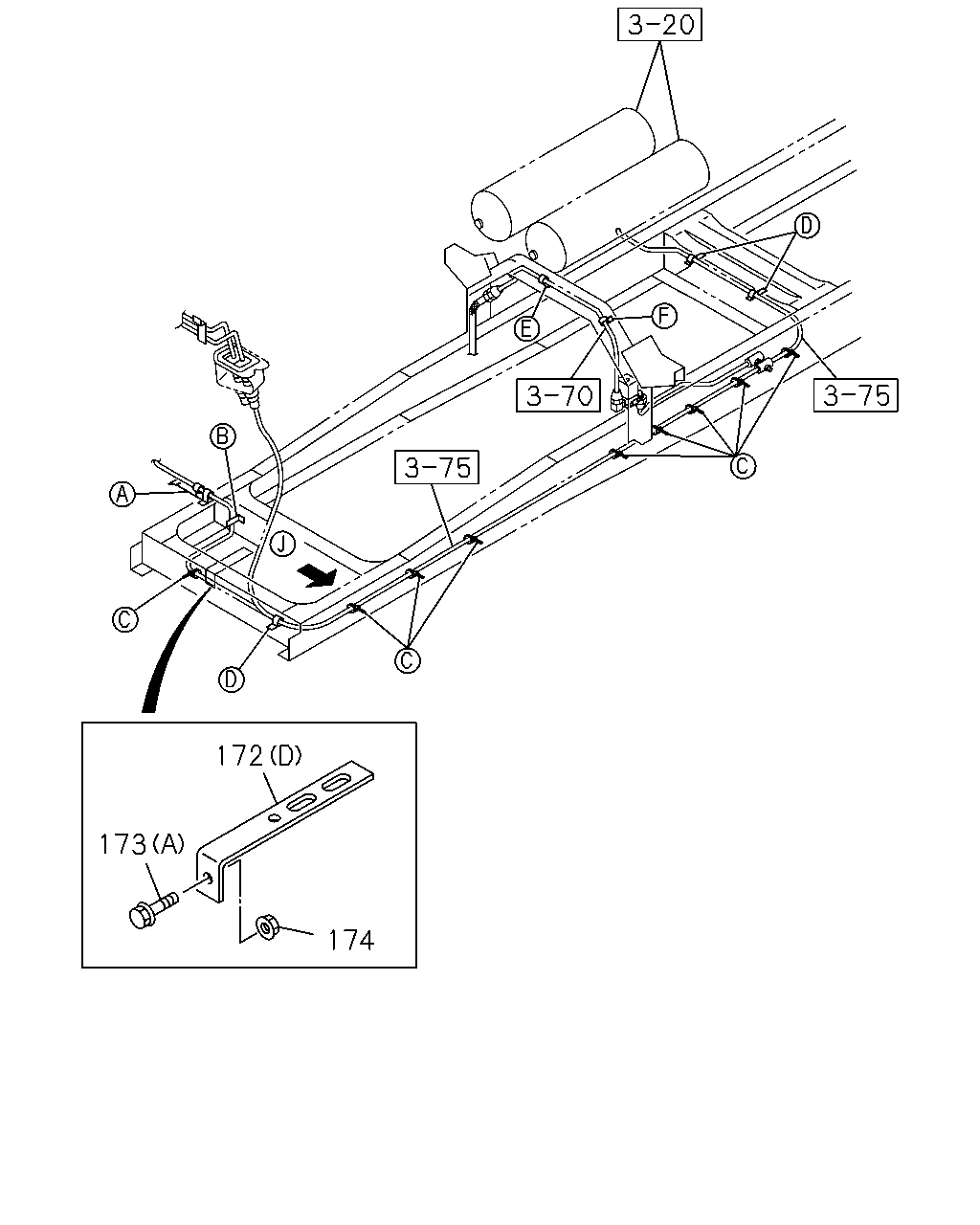

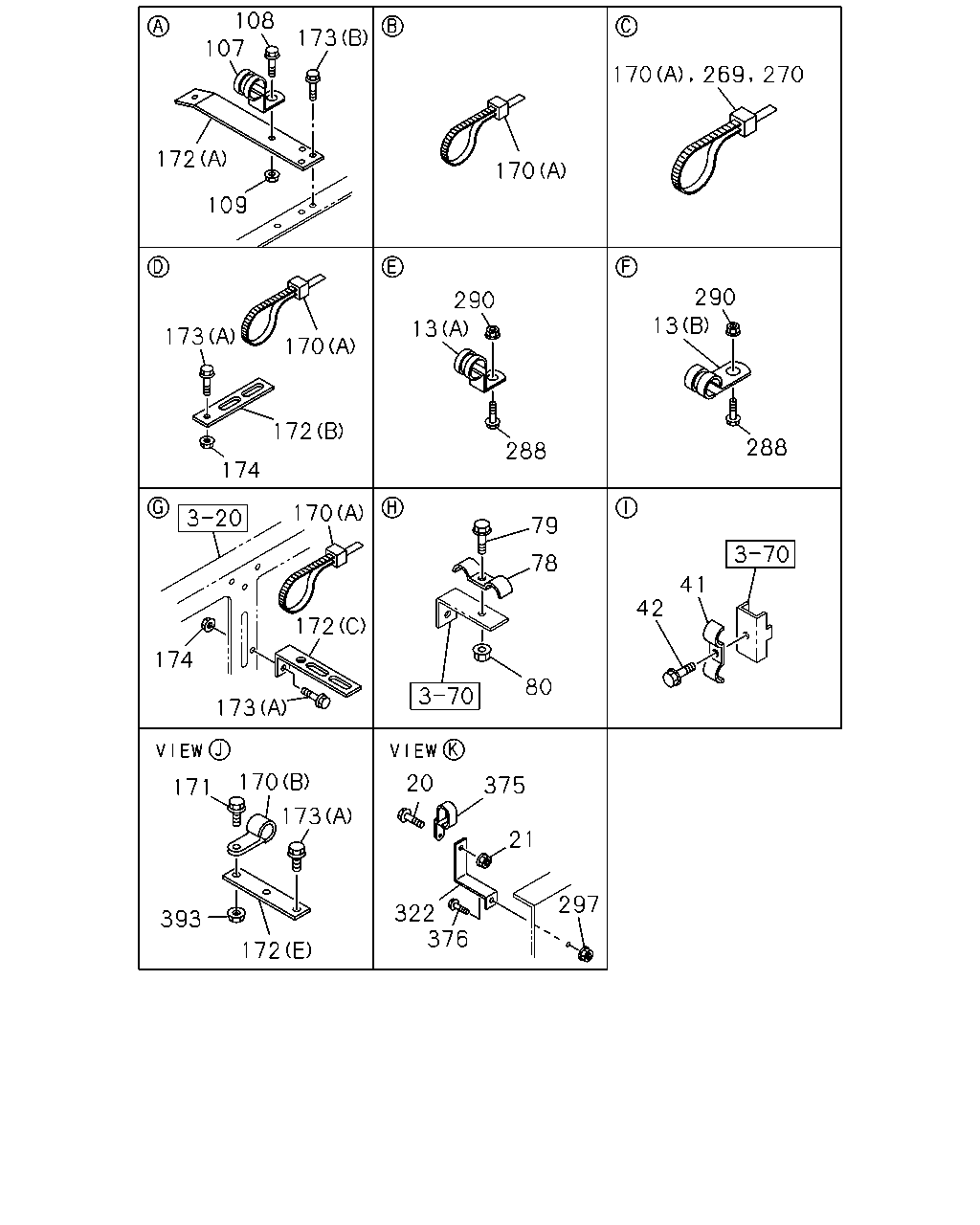

3-78 — FIXING PARTS; AIR PIPING (#26404) — 59 parça

356 300 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0212-
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0212-
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0212-

76 20 35 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	01	1	0212-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0212-
35	CLIP; AIR PIPE ID=16 & 7 L=21 & 17 THA	1-09700-675-0	01	1	0212-
36	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0212-
76	CLIP; NYLON TUBE ID=13 H=50 L=25	1-09700-529-0	01	1	0212-

108 107 173 170 172 170 109 290 290 13 13 173 170 172 288 288 174 170 79 78 41 42 172 174 80 173 170 20 375 171 173 21 297 322 376 393 172 269 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21 THA	1-09700-916-0	01	1	0212-
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0212-
20	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	01	1	0212-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0212-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0212-
41	CLIP; AIR PIPE ID=16 & 7 L=21 & 17 THA	1-09700-675-0	01	1	0212-
42	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28080-845-0	01	1	0212-
78	CLIP; AIR PIPE ID=16 & 7 L=21 & 17 THA	1-09700-675-0	01	1	0212-
79	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0212-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0212-
107	CLIP; NYLON TUBE ID=27.5 H=23 L=24	1-09700-863-0	01	1	0212-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0212-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0212-
170	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	26	1	0212-
170	CLIP; NYLON TUBE (B) ID=11 L=50	9-09525-085-0	01	1	0212-
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0212-
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0212-
172	BRACKET; TUBE CLIP (B)	1-47477-514-3	01	1	0212-
172	BRACKET; TUBE CLIP (B)	1-47477-514-3	02	1	0212-
172	BRACKET; TUBE CLIP (C) L=150	1-47477-629-2	01	1	0212-
172	BRACKET; TUBE CLIP (D) L=225	1-47477-646-3	01	1	0212-
172	BRACKET; TUBE CLIP (E) L=117	1-47478-116-0	01	1	0212-
173	BOLT; CLIP BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0212-
173	BOLT; CLIP BRKT (A) M8X25 FLANGE	0-28680-825-0	03	1	0212-0302
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0303-
173	BOLT; CLIP BRKT (B) M8X35 FLANGE	0-28680-835-0	02	1	0212-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	0303-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0212-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0212-
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	01	1	0212-
270	CLIP; NYLON TUBE L=250	1-09707-126-0	05	1	0212-
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	02	1	0212-
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0212-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0212-
322	BRACKET; CLIP	1-47479-248-0	01	1	0212-
375	CLIP; AIR PIPE ID=9	9-09524-825-0	01	1	0212-
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0212-
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	0212-

172 173 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0212-
172	BRACKET; TUBE CLIP (B)	1-47477-514-3	01	1	0212-
172	BRACKET; TUBE CLIP (B)	1-47477-514-3	02	1	0212-
172	BRACKET; TUBE CLIP (C) L=150	1-47477-629-2	01	1	0212-
172	BRACKET; TUBE CLIP (D) L=225	1-47477-646-3	01	1	0212-
172	BRACKET; TUBE CLIP (E) L=117	1-47478-116-0	01	1	0212-
173	BOLT; CLIP BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0212-
173	BOLT; CLIP BRKT (A) M8X25 FLANGE	0-28680-825-0	03	1	0212-0302
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0303-
173	BOLT; CLIP BRKT (B) M8X35 FLANGE	0-28680-835-0	02	1	0212-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	0303-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0212-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0212-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
