Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10908 - FVZ(THAI)
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶

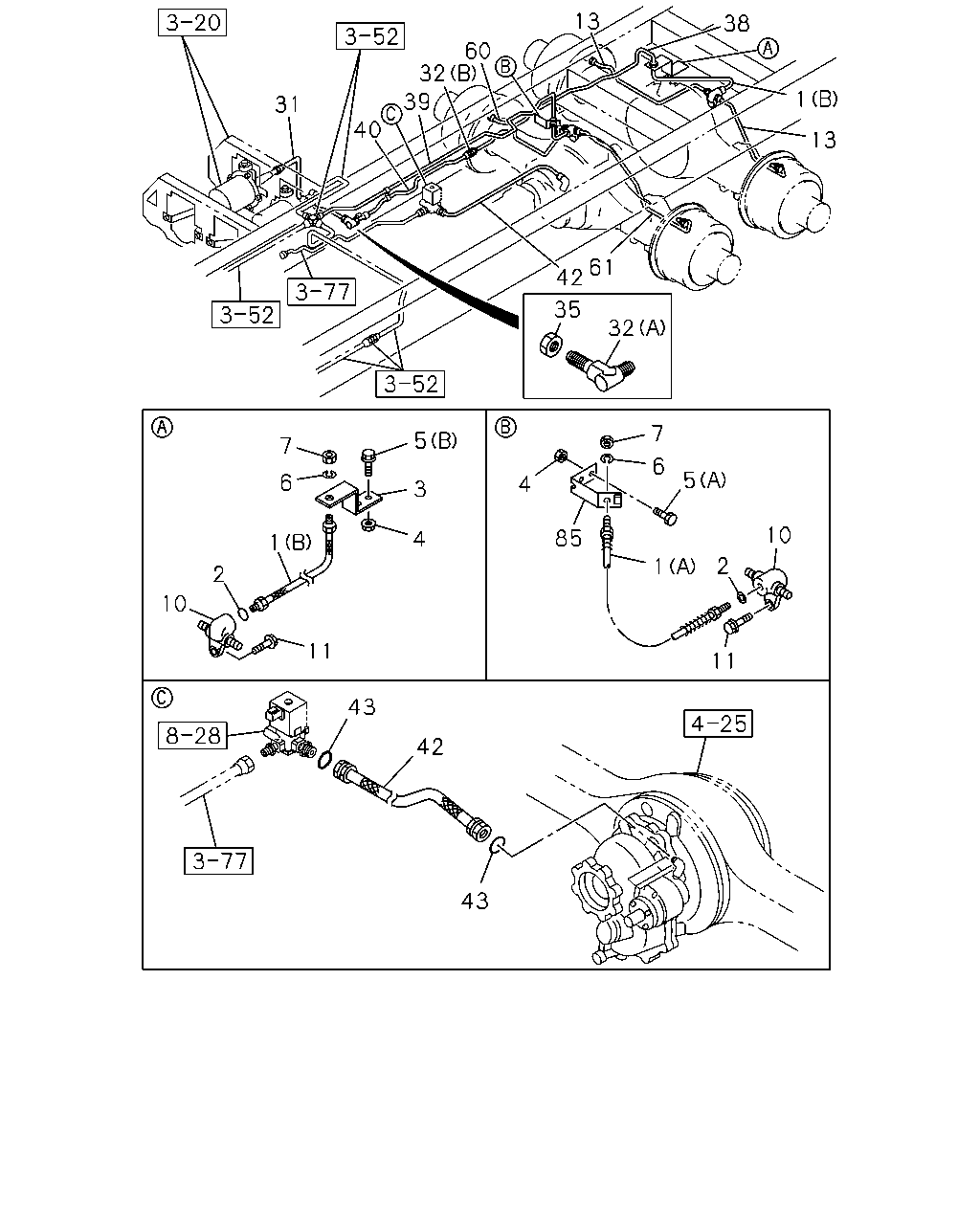

3-55 — BRAKE PIPING; OIL,REAR
(#26399) — 29 parça
13
38
60
32
1
39
40
31
13
61
42
35
32
7
5
7
6
5
6
4
3
10
85
4
1
2
1
2
10
11
11
43
42
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
(B) L=600
0-05312-600-0
01
1
0212-
1
HOSE; FLEX,RR BRK
(A) L=450
1-09364-188-0
01
1
0212-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
0212-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
0212-
3
BRACKET; FLEX HOSE,RR BRK
1-47465-608-0
01
1
0212-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91150-108-0
02
1
0212-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91150-108-0
02
1
0212-
5
BOLT; BRKT,FLEX HOSE,RR BRK
(B) M8X30 FLANGE
0-28680-830-0
02
1
0212-
5
BOLT; BRKT,FLEX HOSE,RR BRK
(A) M8X35 FLANGE
0-28680-835-0
02
1
0212-
6
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
0212-
6
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
0212-
7
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0212-
7
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0212-
10
NIPPLE; RR AXLE CASE
9-09903-668-3
01
1
0212-
11
BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER
0-50041-025-0
01
1
0212-
13
PIPE; BRK,RR AXLE
THA
8-97917-462-0
01
1
0212-
13
PIPE; BRK,RR AXLE
THA
8-97917-460-0
01
1
0212-
31
PIPE; OIL,AIR MASTER TO UNION
THA
8-97917-626-0
01
1
0212-
32
UNION; OIL PIPE
(B) M12 L=40
9-09223-006-1
01
1
0212-
32
UNION; OIL PIPE
(A) M12 ELBOW
9-09225-206-1
01
1
0212-
35
NUT; UNION
M12
9-09840-280-0
01
1
0212-
38
PIPE; OIL,UNION TO FLEX HOSE
THA
8-97917-638-0
01
1
0212-
39
PIPE; OIL,UNION TO RR FLEX HOSE
THA
8-97918-509-0
01
1
0212-
40
PIPE; BRK,UNION TO UNION
THA
8-97917-627-0
01
1
0212-
42
HOSE; FLEX,DIFF LOCK
0-07151-610-0
01
1
0212-
43
GASKET; FLEX TUBE
ID=11 OD=18
9-09572-510-0
02
1
0212-
60
PIPE ASM; BRK
THA
8-97917-459-0
01
1
0212-
61
PIPE ASM; BRK
THA
8-97917-968-0
01
1
0212-
85
BRACKET; FLEX HOSE,FWD RR
1-47475-357-2
01
1
0212-
