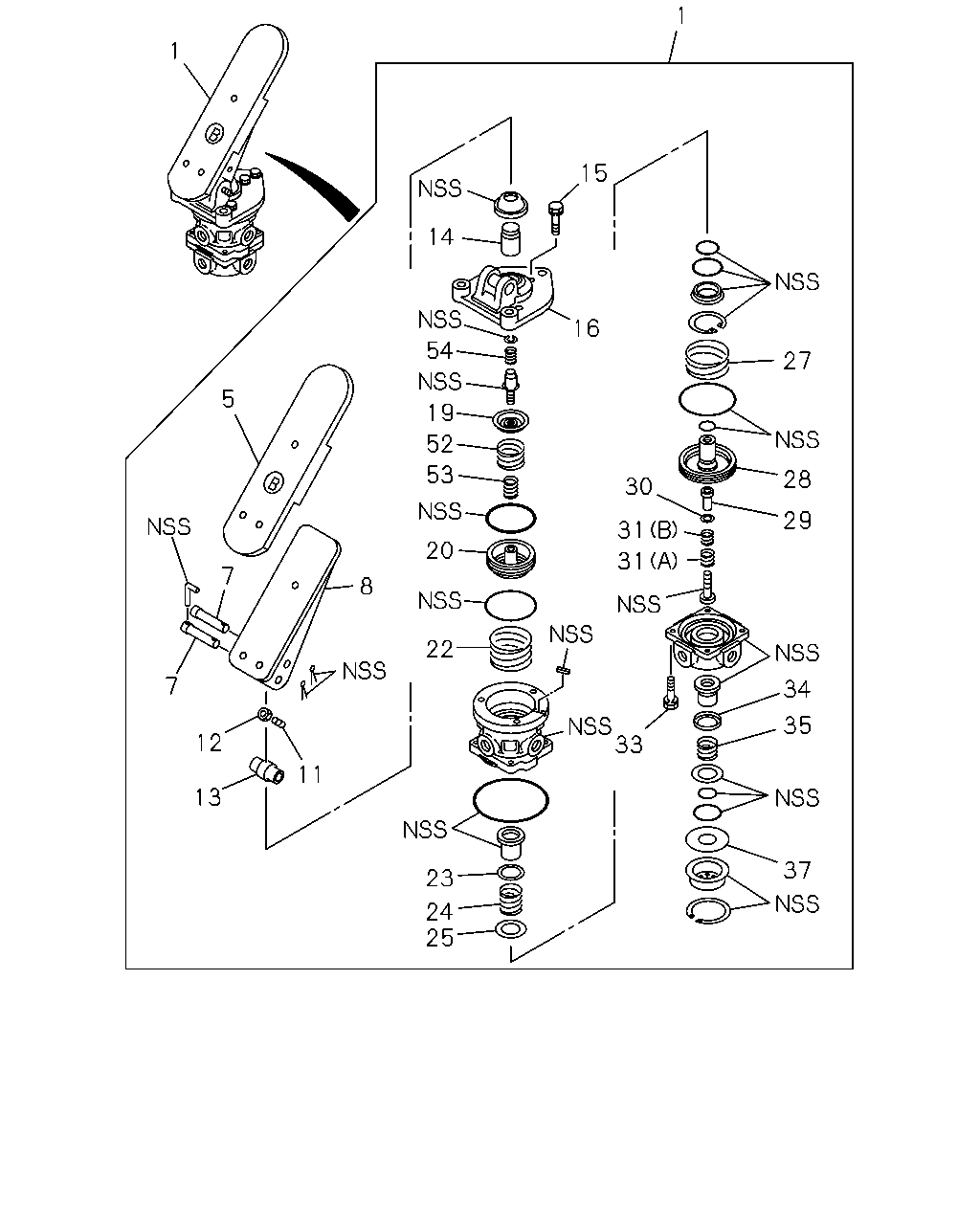

3-34 — BRAKE VALVE; AIR (#26397) — 30 parça

1 1 15 14 16 54 27 5 19 52 53 28 30 29 31 20 31 7 8 22 7 34 35 33 12 11 13 37 23 24 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; BRK	1-48100-844-0	01	1	0212-
5	COVER; PEDAL,BRK VLV	1-48119-432-0	01	1	0212-
7	PIN; PEDAL,BRK VLV	1-48119-431-0	02	1	0212-
8	PEDAL; BRK VLV	1-48119-428-0	01	1	0212-
11	SCREW; SET,BRK VLV	1-48119-003-1	01	1	0212-
12	NUT; SCREW,PEDAL,BRK VLV	9-88510-123-0	01	1	0212-
13	ROLLER; PEDAL,BRK VLV	1-48119-430-0	01	1	0212-
14	PLUNGER; BRK VLV	1-48119-561-0	01	1	0212-
15	BOLT; PLATE,BRK VLV	1-48219-039-0	03	1	0212-
16	PLATE; MTG,BRKT VLV	1-48119-547-0	01	1	0212-
19	SEAT; SPRING,BRK VLV	1-48123-041-0	01	1	0212-
20	PISTON; UPR,BRK VLV	1-48119-560-0	01	1	0212-
22	SPRING; PISTON,LWR,BRK VLV	1-48123-071-0	01	1	0212-
23	WASHER; UPR,BRK VLV	1-48129-145-0	01	1	0212-
24	SPRING; UPR,BRK VLV	1-48123-018-0	01	1	0212-
25	WASHER; PISTON,BRK VLV	1-48129-138-0	01	1	0212-
27	SPRING; PISTON,LWR,BRK VLV	1-48123-055-0	01	1	0212-
28	PISTON; LWR,BRK VLV	1-48129-313-0	01	1	0212-
29	SLEEVE; VLV,BRK VLV	1-48129-083-1	01	1	0212-
30	WASHER; SLEEVE,BRK VLV	1-48129-082-0	01	1	0212-
31	SPRING; VLV,BRK VLV (A)	1-48123-032-0	01	1	0212-
31	SPRING; VLV,BRK VLV (B)	1-48123-033-0	01	1	0212-
33	BOLT; BODY,BRK VLV	1-48119-213-0	04	1	0212-
34	RETAINER; VLV,BRK VLV	1-48129-144-0	01	1	0212-
35	SPRING; VLV,BRK VLV	1-48123-019-0	01	1	0212-
37	WASHER; VLV LWR,BRK VLV	1-48129-080-0	01	1	0212-
52	SPRING; PISTON,OUTER,BRK VLV	1-48123-074-0	01	1	0212-
53	SPRING; PISTON,INNER,BRK VLV	1-48123-068-0	01	1	0212-
54	SPRING; PISTON,UPR,BRK VLV	1-48123-067-0	01	1	0212-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

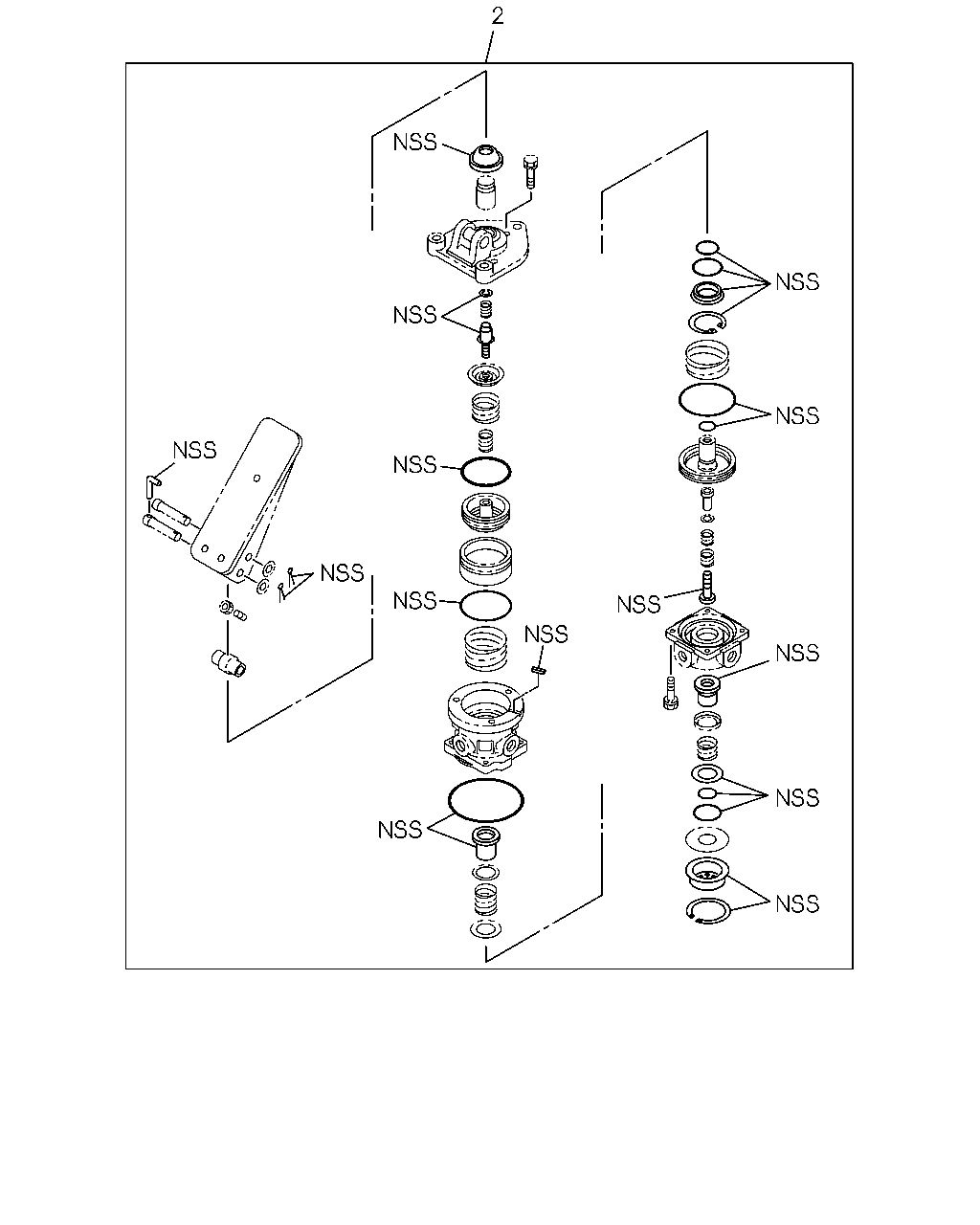

	2	REPAIR KIT; BRK VLV	1-85576-285-0	01	1	0212-
