Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10908 - FVZ(THAI)
▶
3 - Brakes, Brake System
▶
3-08B - PARKING BRAKE
▶

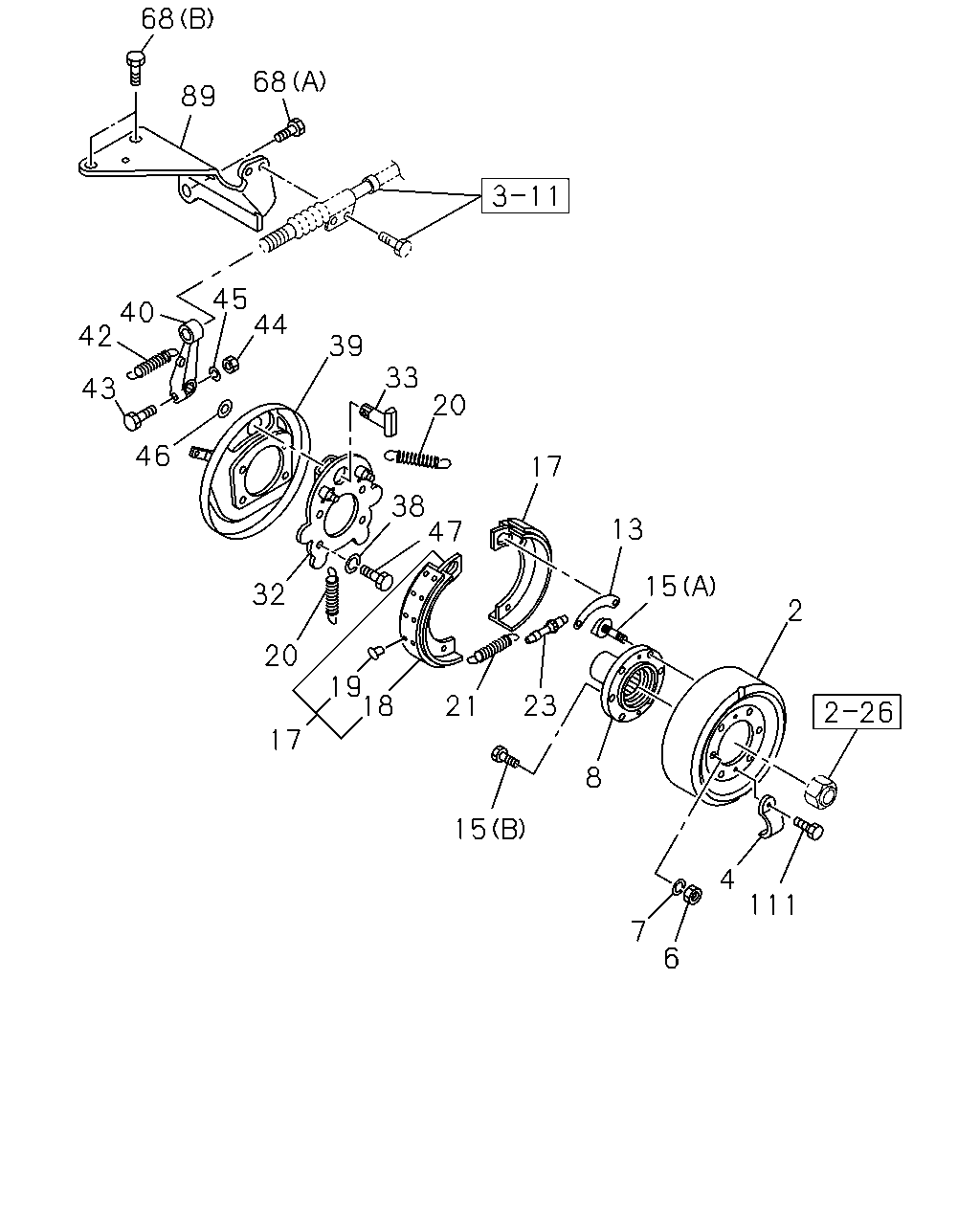

3-08B — PARKING BRAKE
(#26391) — 29 parça
68
68
89
45
44
40
42
39
33
43
20
46
17
38
47
13
15
32
2
20
19
18
23
21
17
8
15
4
111
7
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-026-1
01
1
0212-
4
COVER; ADJ HOLE
1-46219-019-0
02
1
0212-
6
NUT; FLANGE
M16
9-99110-516-0
02
1
0212-
7
WASHER; LK,FLANGE
ID=16.2
9-09150-516-0
02
1
0212-
8
FLANGE; PARKING BRK
1-37243-311-0
01
1
0212-
13
BRACE; PARKING BRK
9-46239-002-0
01
1
0212-
15
BOLT; FLANGE
(B) M16X38
1-46219-010-0
02
1
0212-
15
BOLT; FLANGE
(A) M16X55
1-46219-039-0
04
1
0212-
17
SHOE; PARKING BRK
1-46220-022-0
02
1
0212-
18
LINING; BRK,PARKING
1-46225-023-0
02
1
0212-
19
RIVET; LINING,PARKING BRK
1-09732-012-0
32
1
0212-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-434-0
02
1
0212-
21
SPRING; RETURN,PARKING BRK SHOE
9-09942-516-0
01
1
0212-
23
SCREW; ADJ,PARKING BRK SHOE
1-46240-003-0
01
1
0212-
32
PLATE; SUPPORT,PARKING BRK
1-46213-096-0
01
1
0212-
33
SHAFT; CAM,PARKING BRK
1-46251-010-0
01
1
0212-
38
WASHER; LK,SUPPORT PLATE
ID=16.2
9-09150-516-0
04
1
0212-
39
COVER; DUST,PARKING BRK
1-46213-093-0
01
1
0212-
40
LEVER; CM/SHF,PARKING BRK
1-46252-046-0
01
1
0212-
42
SPRING; RETURN,LEVER
1-09583-104-0
01
1
0212-
43
BOLT; LEVER TO CM/SHF
0-10811-040-0
01
1
0212-
44
NUT; LEVER TO CM/SHF
M10
9-09111-410-0
01
1
0212-
45
WASHER; LK,LEVER TO CM/SHF
ID=10.2
9-09150-510-0
01
1
0212-
46
WASHER; LEVER
9-09855-362-0
01
1
0212-
47
BOLT; SUPPORT PLATE
M16X40
0-23801-640-0
04
1
0212-
68
BOLT; BRKT,PARKING BRK CONT
(A) M12X25
0-28781-225-0
01
1
0212-
68
BOLT; BRKT,PARKING BRK CONT
(B) M14X25 FLANGE
0-28981-425-0
02
1
0212-
89
BRACKET; PARKING BRK CONT
1-46147-273-2
01
1
0212-
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50040-820-0
02
1
0212-
