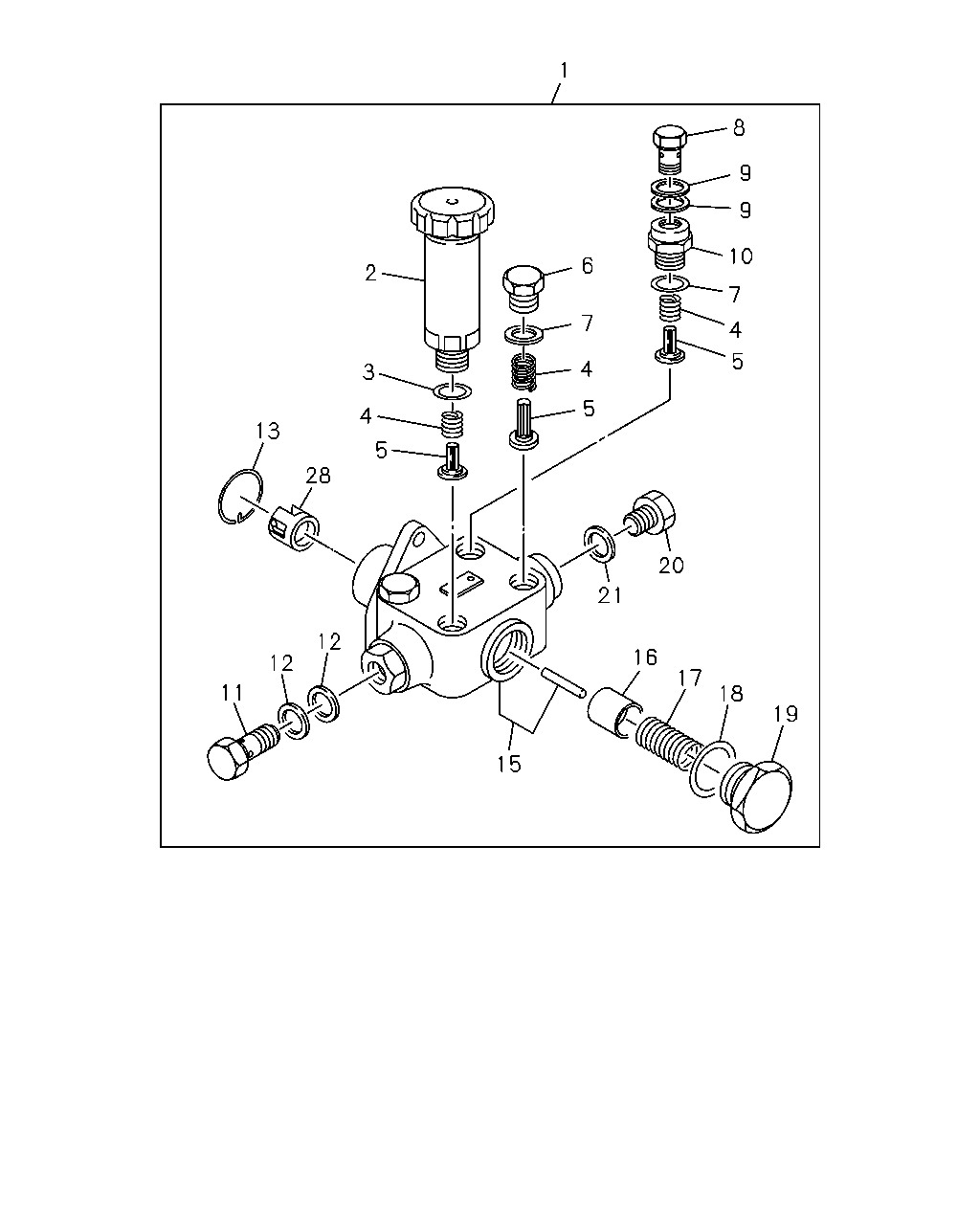

0-84 — FEED PUMP; INJECTION PUMP (#2638) — 59 parça

1 8 9 9 10 7 4 5 6 7 4 5 2 3 4 5 13 28 11 12 12 15 21 20 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2	1-15750-068-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15750-084-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: M = 1-15603-021-1	1-15750-130-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15761-006-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2	8-94131-130-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81351-602-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2	1-15759-009-0	03	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15759-009-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2	1-15759-029-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: M = 1-15603-021-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15759-012-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: M = 1-15603-021-1	1-15759-052-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-89967-393-5	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2	1-15759-011-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: M = 1-15603-021-1	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15751-011-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: M = 1-15603-021-1	1-09630-085-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15759-012-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15754-004-0	01	1	-

1 2 3 4 5 9 9 8 16 17 18 19 6 7 4 5 13 28 11 12 12 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2	1-15750-068-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15750-084-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: M = 1-15603-021-1	1-15750-130-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15761-006-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2	8-94131-130-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81351-602-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2	1-15759-009-0	03	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15759-009-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2	1-15759-029-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: M = 1-15603-021-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15759-012-0	02	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2	1-15759-011-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: M = 1-15603-021-1	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15602-434-5, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15751-011-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	8-94171-185-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-444-1, G = 1-15602-598-2, H = 1-15602-599-1, I = 1-15602-902-1, J = 1-15602-907-1, K = 1-15602-922-0, L = 1-15602-993-0, M = 1-15603-021-1	1-15754-004-0	01	1	-
