◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXJ ▶ 10910 - CXJ RHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#26374) — 107 parça

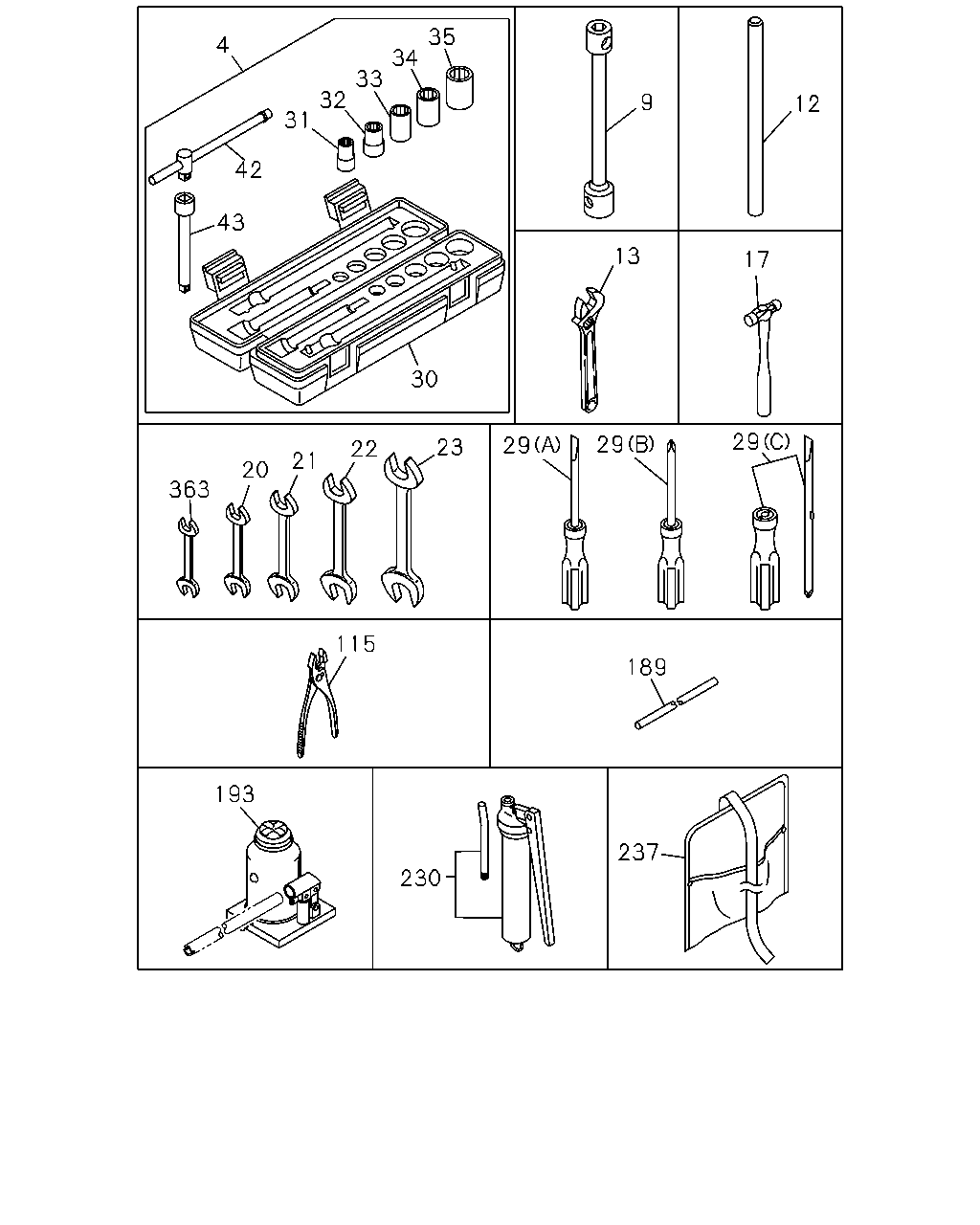

çizim 81384
35 34 33 32 4 9 12 31 42 43 13 17 30 29 29 29 23 22 21 20 363 115 189 193 237 230
BalonParca AdiParca NoAdetTipApplied Date
4 WRENCH KIT; SOCKET 1-85000-491-0 01 1 0302-
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 0302-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0302-
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0302-
17 HAMMER 9-85121-406-0 01 1 0302-
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0302-
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0302-
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0302-
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0302-
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 0302-
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0302-
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 0302-
30 BOX; SOCKET WRENCH 1-85000-492-0 01 1 0302-
31 WRENCH; 12 1-85000-495-0 01 1 0302-
32 WRENCH; 14 1-85000-496-0 01 1 0302-
33 WRENCH; 17 1-85000-497-0 01 1 0302-
34 WRENCH; 19 1-85000-498-0 01 1 0302-
35 WRENCH; 22 1-85000-499-0 01 1 0302-
42 HANDLE; SLIDING 1-85000-500-0 01 1 0302-
43 BAR; EXTENSION,SOCKET WRENCH 1-85000-501-0 01 1 0302-
115 PLIER 5-85171-002-0 01 1 0302-
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 0302-
193 JACK ASM
15TON 		1-85510-019-1 01 1 0302-
230 PUMP; GREASE 1-85556-007-3 01 1 0302-
237 BAG; TOOL 8-97130-902-0 01 1 0302-
363 WRENCH; OPEN END 8X10
8X10 		9-99592-108-0 01 1 0302-

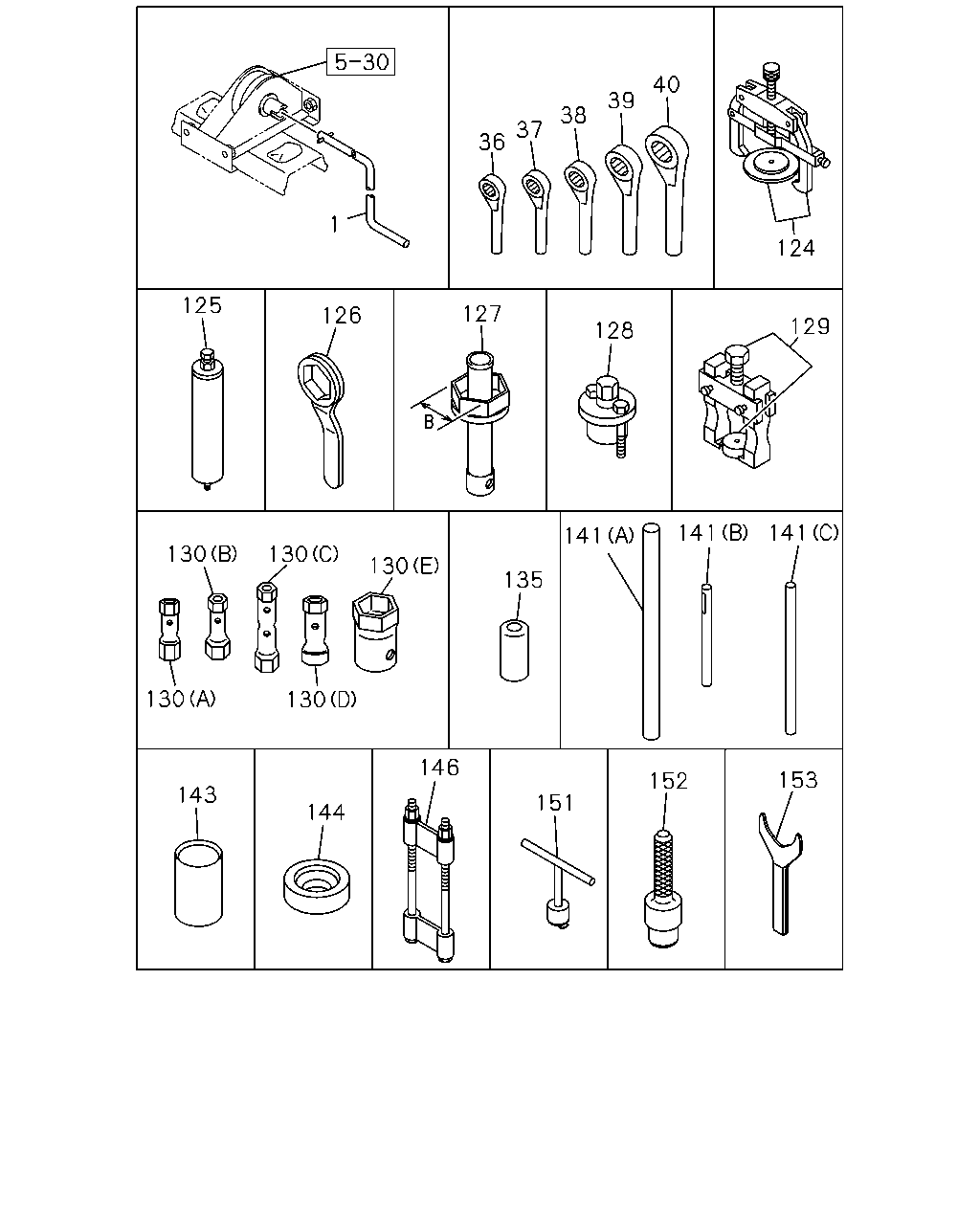

çizim 82195
40 39 38 37 36 1 124 125 127 126 129 128 141 141 141 130 130 130 135 130 130 146 153 152 143 151 144
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 0302-
36 WRENCH; 24 9-85111-377-0 01 1 0302-
37 WRENCH; 27 9-85111-375-0 01 1 0302-
38 WRENCH; 32 9-85111-358-0 01 1 0302-
39 WRENCH; 36 9-85111-374-0 01 1 0302-
40 WRENCH; 41 9-85111-356-0 01 1 0302-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0302-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0302-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-0 01 1 0302-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 0302-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 0302-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0302-
130 WRENCH; BOX
(E) B=63 		9-85111-368-0 01 1 0302-
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 0302-
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 0302-
130 WRENCH; BOX
(C) B=36 & 41 L=200 		9-85112-330-0 01 1 0302-
130 WRENCH; BOX
(B) B=41 & 46 L=165 		9-85113-401-0 01 1 0302-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0302-
141 HANDLE; WRENCH
(A) OD=25 L=480 		1-85116-011-0 01 1 0302-
141 HANDLE; WRENCH
(B) OD=16 L=200 		9-85111-934-0 01 1 0302-
141 HANDLE; WRENCH
(C) OD=19 L=400 		9-85114-306-0 01 1 0302-
141 HANDLE; WRENCH
(C) OD=16 L=300 		9-85114-307-0 01 1 0302-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0302-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0302-
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 0302-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0302-
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 0302-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0302-

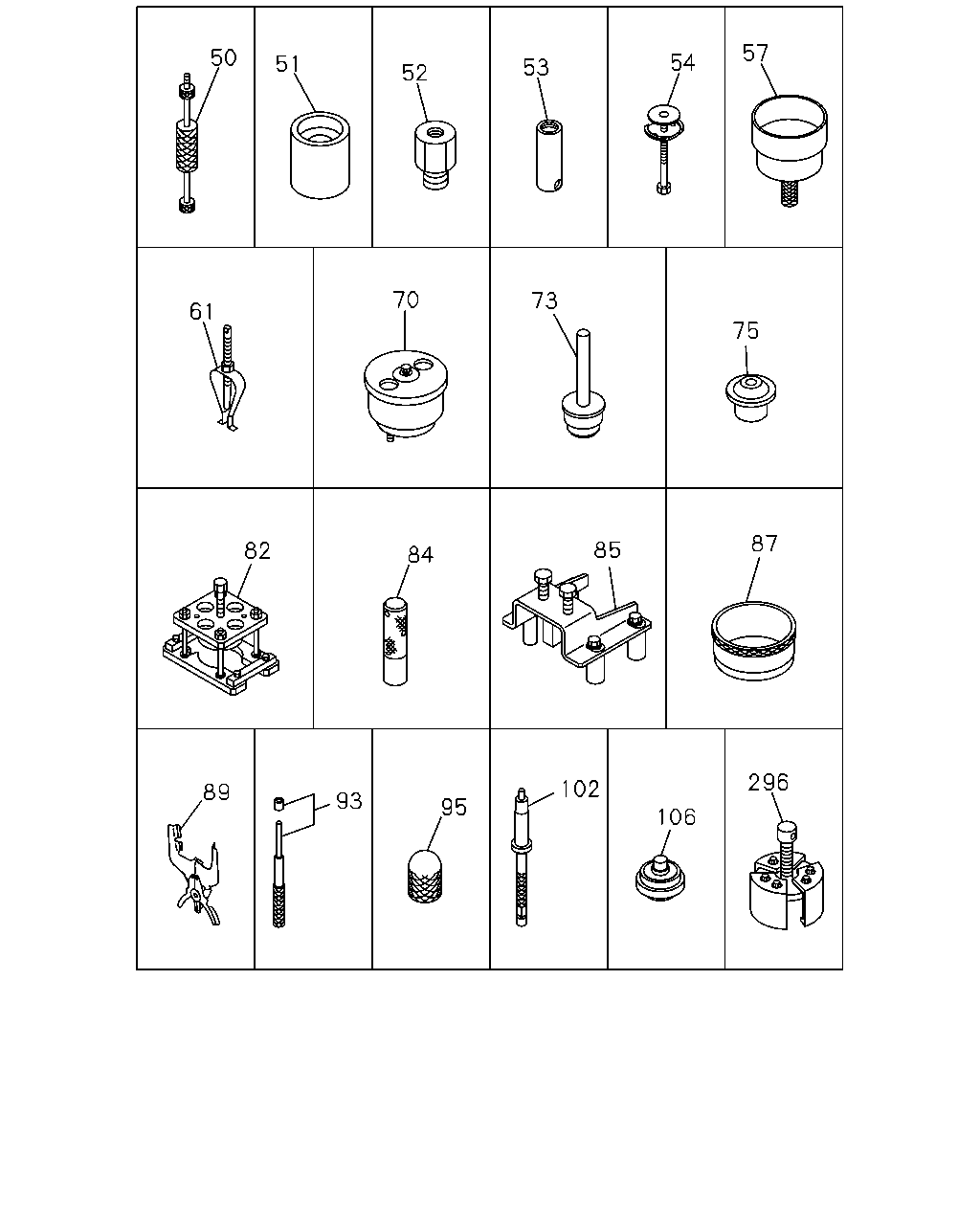

çizim 82595
57 50 54 51 53 52 70 73 61 75 87 85 82 84 296 102 89 93 95 106
BalonParca AdiParca NoAdetTipApplied Date
50 REPLACER; NOZZLE HOLDER
L=300 		1-85230-013-0 01 1 0302-
51 PULLER ASM; WATER PUMP 1-85220-047-0 01 1 0302-
52 REMOVER; WATER PUMP 1-85210-062-0 01 1 0302-
53 PULLER; TAPER BUSHING 1-85210-063-0 01 1 0302-
54 PULLER; THERMOSTAT SEAL 1-85210-067-0 01 1 0302-
57 TOOL; SETTING CRANK GEAR
OD=162 		1-85220-045-0 01 1 0302-
61 PULLER ASM; PILOT BRG 9-85210-157-0 01 1 0302-
70 TOOL; SETTING,OIL SEAL 1-85220-043-0 01 1 0302-
73 TOOL; SETTING,THERMOSTAT SEAL 1-85221-034-0 01 1 0302-
75 TOOL; SETTING,OIL SEAL 1-85220-049-0 01 1 0302-
82 PULLER ASM; CR/SHF GEAR 1-85210-064-0 01 1 0302-
84 REPLACER; VALVE SEAL
EXHAUST 		1-85221-184-0 01 1 0302-
84 REPLACER; VALVE SEAL
INLET 		1-85221-187-0 01 1 0302-
85 REPLACER ASM; VALVE SPR 1-85235-013-0 01 1 0302-
87 TOOL; PISTON 1-85220-059-0 01 1 0302-
89 TOOL; PISTON RING 1-85221-025-0 01 1 0302-
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 0302-
95 SETTING TOOL; BRIDGE GUIDE 9-85221-324-0 01 1 0302-
102 ADAPTER; COMP GAGE 1-85317-019-0 01 1 0302-
106 TOOL; SETTING PILOT BRG 1-85221-057-0 01 1 0302-
296 REPLACER; SLINGER 1-85210-027-0 01 1 0302-

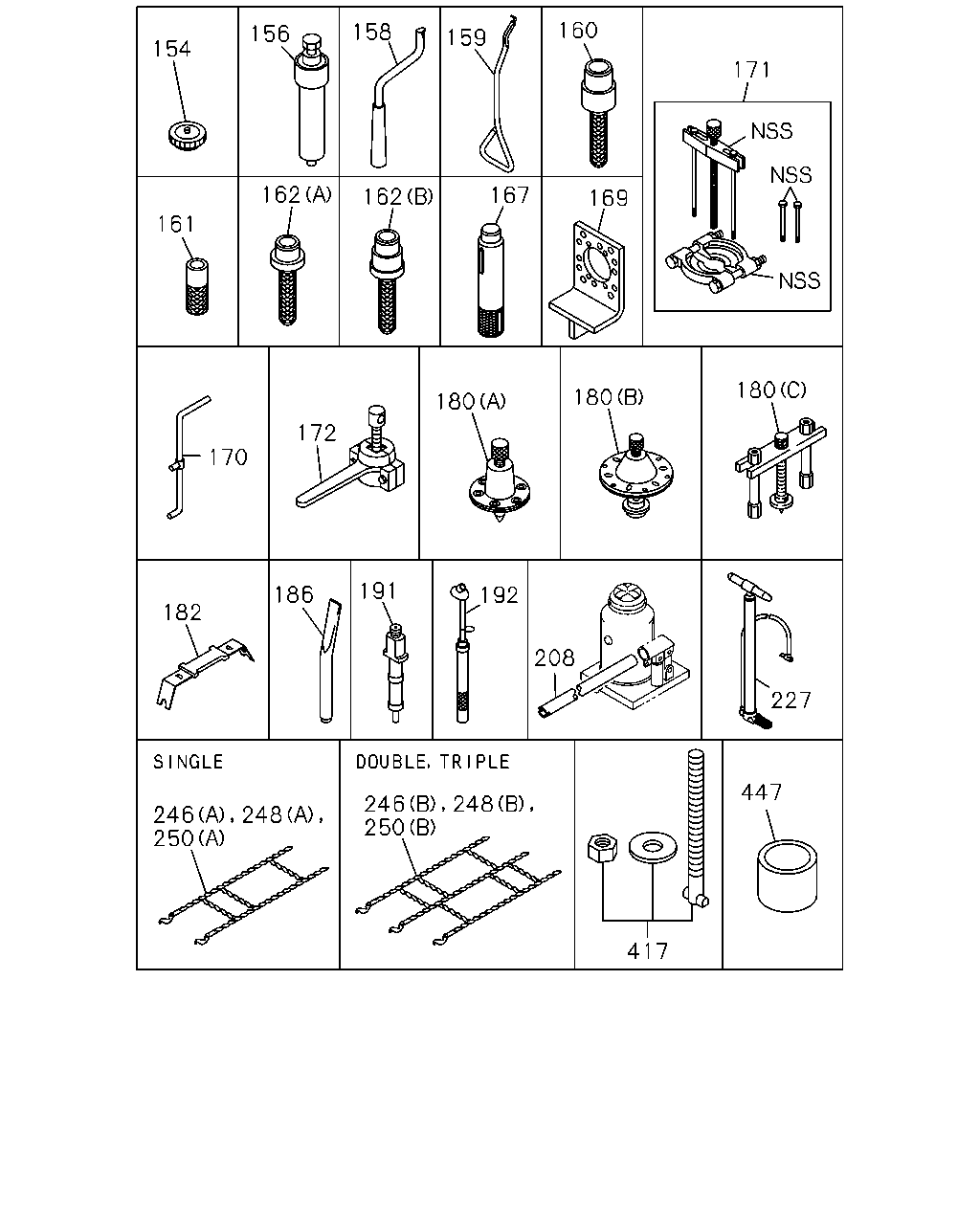

çizim 85024
160 158 156 159 154 171 162 167 162 169 161 180 180 180 172 170 191 186 192 182 208 227 447 250 246 250 248 417 246 248
BalonParca AdiParca NoAdetTipApplied Date
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0302-
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0302-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0302-
159 REMOVER; RETURN SPR 1-85237-023-0 01 1 0302-
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0302-
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 0302-
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 0302-
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 0302-
167 ALIGNER; CLU PILOT
L=300 OD=41.1 		1-85253-020-0 01 1 0302-
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 0302-
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 0302-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0302-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0302-
180 PULLER; FRT & RR HUB
(A) FRONT 		1-85210-002-0 01 1 0302-
180 PULLER; FRT & RR HUB
(B) REAR 		1-85210-003-0 01 1 0302-
180 PULLER; FRT & RR HUB
(C) FRT/RR M22 		1-85210-049-0 01 1 0302-
182 REMOVER ASM 1-85239-008-0 01 1 0302-
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 0302-
191 ADAPTER 1-85216-009-0 01 1 0302-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0302-
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0302-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0302-
246 CHAIN; TIRE,1000-20,SINGLE
(A) 10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 0302-
246 CHAIN; TIRE,1000-20,SINGLE
(B) 11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 0302-
248 CHAIN; TIRE,1000-20,DOUBLE
(A) 10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 0302-
248 CHAIN; TIRE,1000-20,DOUBLE
(B) 11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 0302-
250 CHAIN; TIRE,1000-20,TRIPLE
(A) 10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 0302-
250 CHAIN; TIRE,1000-20,TRIPLE
(B) 11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 0302-
417 BOLT; CHAMBER RELEASE
1/2-10 UNC L=133.5 		1-85576-312-0 01 1 0302-0302
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 0303-
447 REPLACER KIT; BUSH,STABILIZER BAR
ID=65 OD=90 L=65 		8-97608-200-0 01 1 0502-
447 REPLACER KIT; BUSH,STABILIZER BAR
ID=43.1 OD=48.6 L=65 		8-97608-274-0 01 1 0502-
