Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

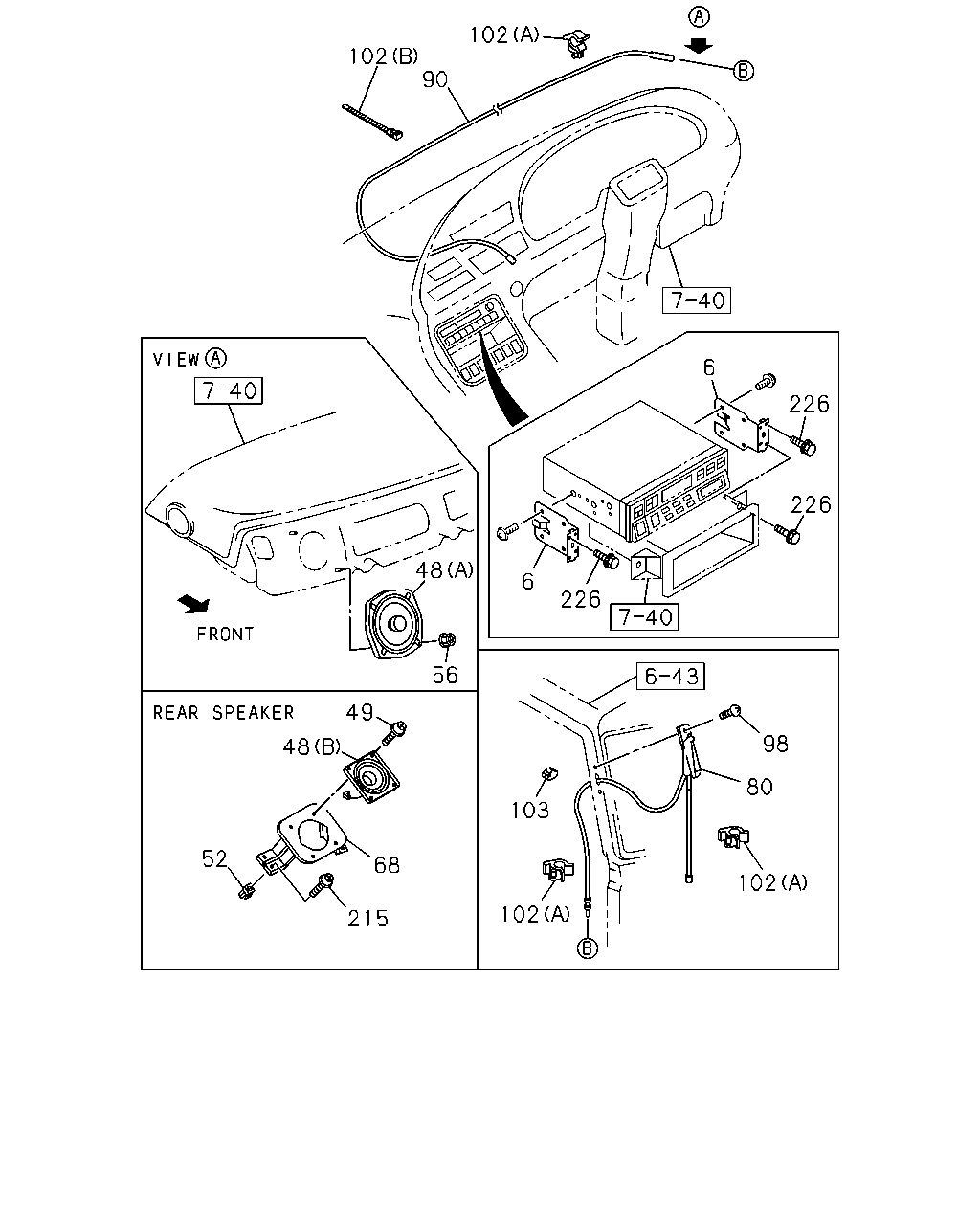

8-90 — RADIO AND TV
(#26373) — 19 parça
102
102
90
6
226
226
48
6
226
56
49
98
48
80
103
52
68
102
102
215
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
BRACKET; RADIO TO PANEL
1-65671-551-4
02
1
0302-
48
SPEAKER; AUDIO
(A) FRONT SPEAKER
1-84114-050-0
02
1
0302-0308
48
SPEAKER; AUDIO
(A) FRONT SPEAKER
1-84114-073-0
02
1
0309-
48
SPEAKER; AUDIO
(B) REAR SPEAKER
1-84114-057-0
02
1
0302-0310
48
SPEAKER; AUDIO
(B) REAR SPEAKER
1-84114-075-0
02
1
0311-
49
SCREW; SPEAKER
M5X16 W/LK&PL WASHER
8-94279-400-0
08
1
0302-
52
GROMMET; SCREW,SPEAKER
D=8.6X7.7 L=7.5
8-94279-078-0
08
1
0302-
56
NUT; SPEAKER,RADIO OR STEREO
M5 FLANGE
1-09984-170-0
04
1
0302-
68
BRACKET; RR SPEAKER
1-73347-786-2
01
1
0302-
68
BRACKET; RR SPEAKER
1-73347-785-2
01
1
0302-
80
ANTENNA
1-84115-055-2
01
1
0302-
90
CABLE; ANTENNA,FEEDER
1-84113-011-2
01
1
0302-
98
SCREW; TAP,ANTENNA
M5X11
1-09981-536-1
02
1
0302-
102
CLIP; CABLE
(A) W/PACKING ID=4.8
1-73907-618-0
05
1
0302-
102
CLIP; CABLE
(B) L=140
5-09707-031-1
01
1
0302-
102
CLIP; CABLE
(A) WO/PACKING ID=4.8
8-94128-483-0
03
1
0302-
103
GROMMET; ANTENNA HOLE,FRT
8-97027-381-0
01
1
0302-
215
SCREW; BRKT,SPEAKER
M5X16 W/PL WASHER TAPPING
8-94279-123-0
08
1
0302-
226
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
