◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXJ ▶ 10910 - CXJ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#26371) — 35 parça

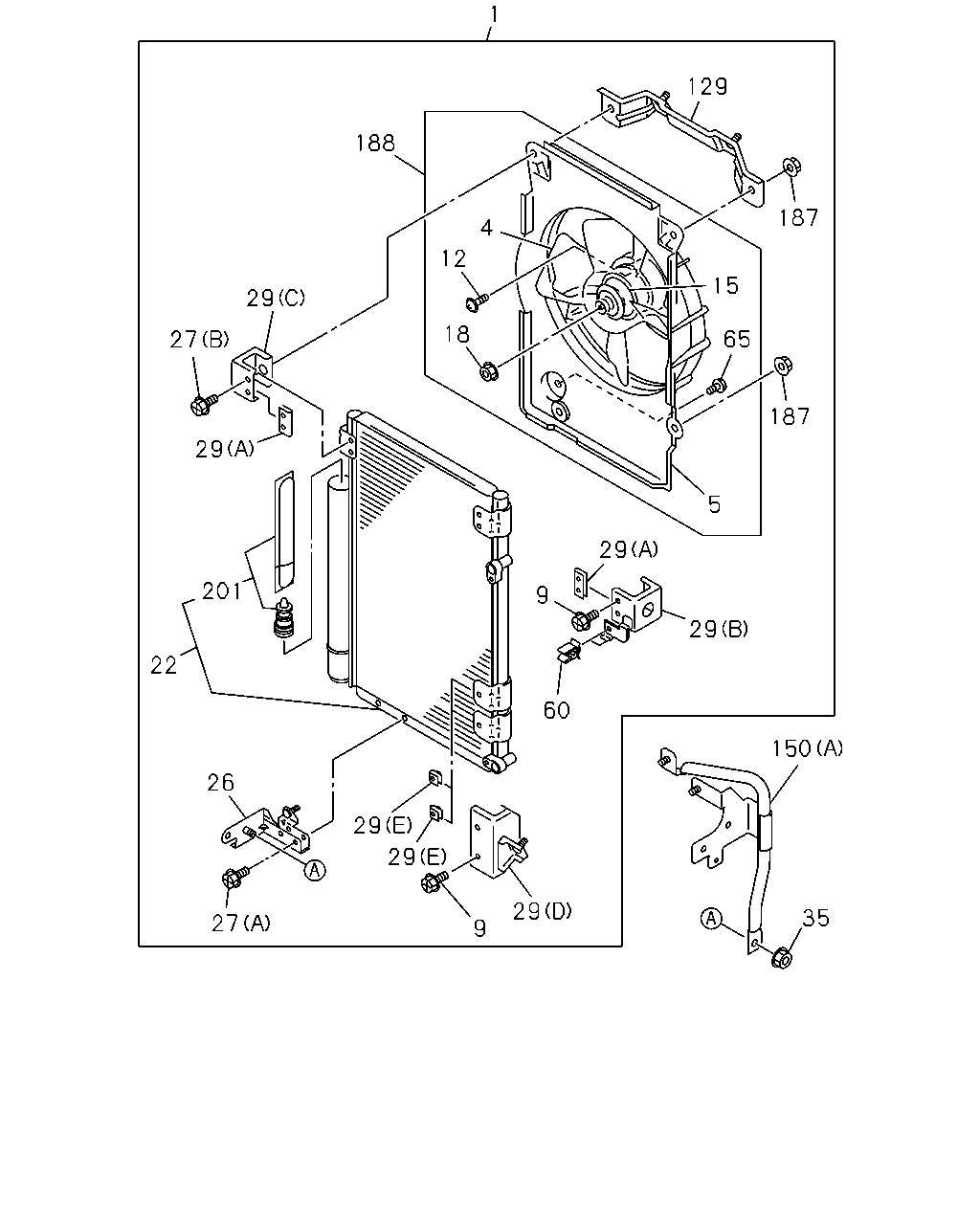

çizim 81463
1 129 188 187 4 12 15 29 18 65 27 187 29 5 29 201 9 29 22 60 150 26 29 29 29 35 27 9
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 1-83534-206-2 01 1 0302-0509
1 CONDENSER; A/C 8-98024-412-1 01 1 0510-
4 MOTOR ASM; FAN 1-83561-139-3 01 1 0302-0509
4 MOTOR ASM; FAN 8-98014-458-0 01 1 0510-
5 SHROUD; FAN MOTOR 1-83539-362-1 01 1 0302-
9 BOLT; BRKT
M6X16 		8-97096-525-0 04 1 0302-
12 BOLT; FAN MOTOR 1-83539-314-0 03 1 0302-
15 FAN; MOTOR 1-83561-140-0 01 1 0302-
18 NUT; FAN,CENTER 1-83539-313-0 01 1 0302-
22 CONDENSER ASM; A/C 1-83534-231-1 01 1 0302-
26 BRACKET; LOW 1-83573-128-1 01 1 0302-
27 BOLT; BRKT,LOW SIDE
(B) M6X16 		8-97096-525-0 02 1 0302-
27 BOLT; BRKT,LOW SIDE
(A) M5X25 		8-97178-770-0 02 1 0302-
29 BRACKET; SIDE
(A) 		1-83573-010-0 02 1 0302-
29 BRACKET; SIDE
(B) 		1-83573-125-0 01 1 0302-
29 BRACKET; SIDE
(C) 		1-83573-126-0 01 1 0302-
29 BRACKET; SIDE
(D) 		1-83573-127-1 01 1 0302-
29 BRACKET; SIDE
(E) 		8-97180-263-0 02 1 0302-
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91150-108-0 05 1 0302-
60 CLIP; PIPE 1-83574-266-0 01 1 0302-
65 BOLT; SHROUD
M6X16 		8-97096-525-0 01 1 0302-
129 BRACKET; UPR 1-83573-129-1 01 1 0302-
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-984-0 01 1 0302-
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-985-0 01 1 0302-
150 BRACKET; CONDENSER,MTG
(A) 		1-83573-242-1 01 1 0302-
187 NUT; SHROUD
M6 		1-83539-354-0 04 1 0302-
188 BLOWER ASM; SHROUD 1-83561-162-2 01 1 0302-
201 DRYER ASM; CONDENSER 1-83535-097-0 01 1 0302-

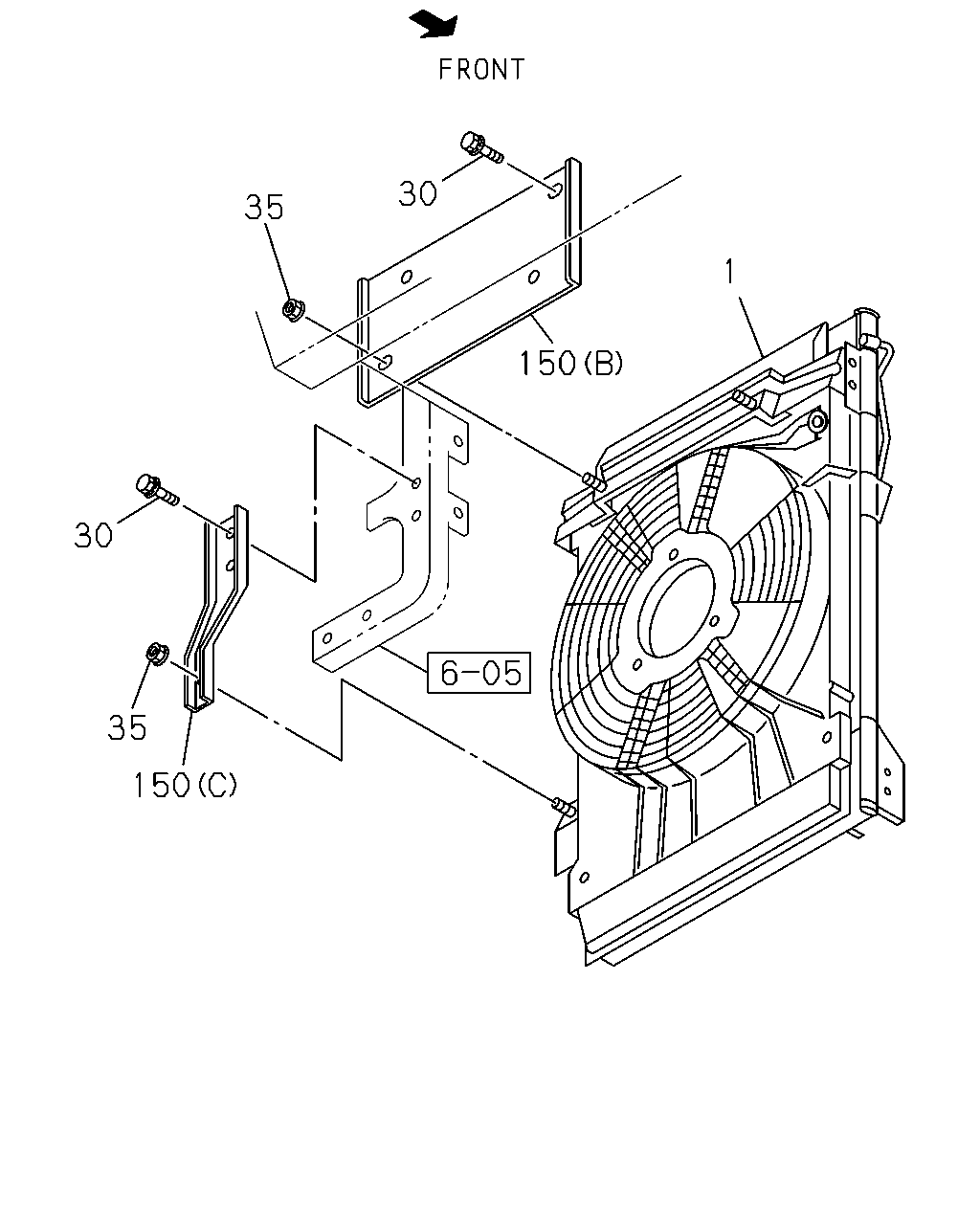

çizim 81768
30 35 1 150 30 35 150
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 1-83534-206-2 01 1 0302-0509
1 CONDENSER; A/C 8-98024-412-1 01 1 0510-
30 BOLT; CONDENSER,A/C
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0302-
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91150-108-0 05 1 0302-
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-984-0 01 1 0302-
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-985-0 01 1 0302-
150 BRACKET; CONDENSER,MTG
(A) 		1-83573-242-1 01 1 0302-
