8-50 — AIR CONDITIONING SYSTEM; FRONT (#26365) — 20 parça

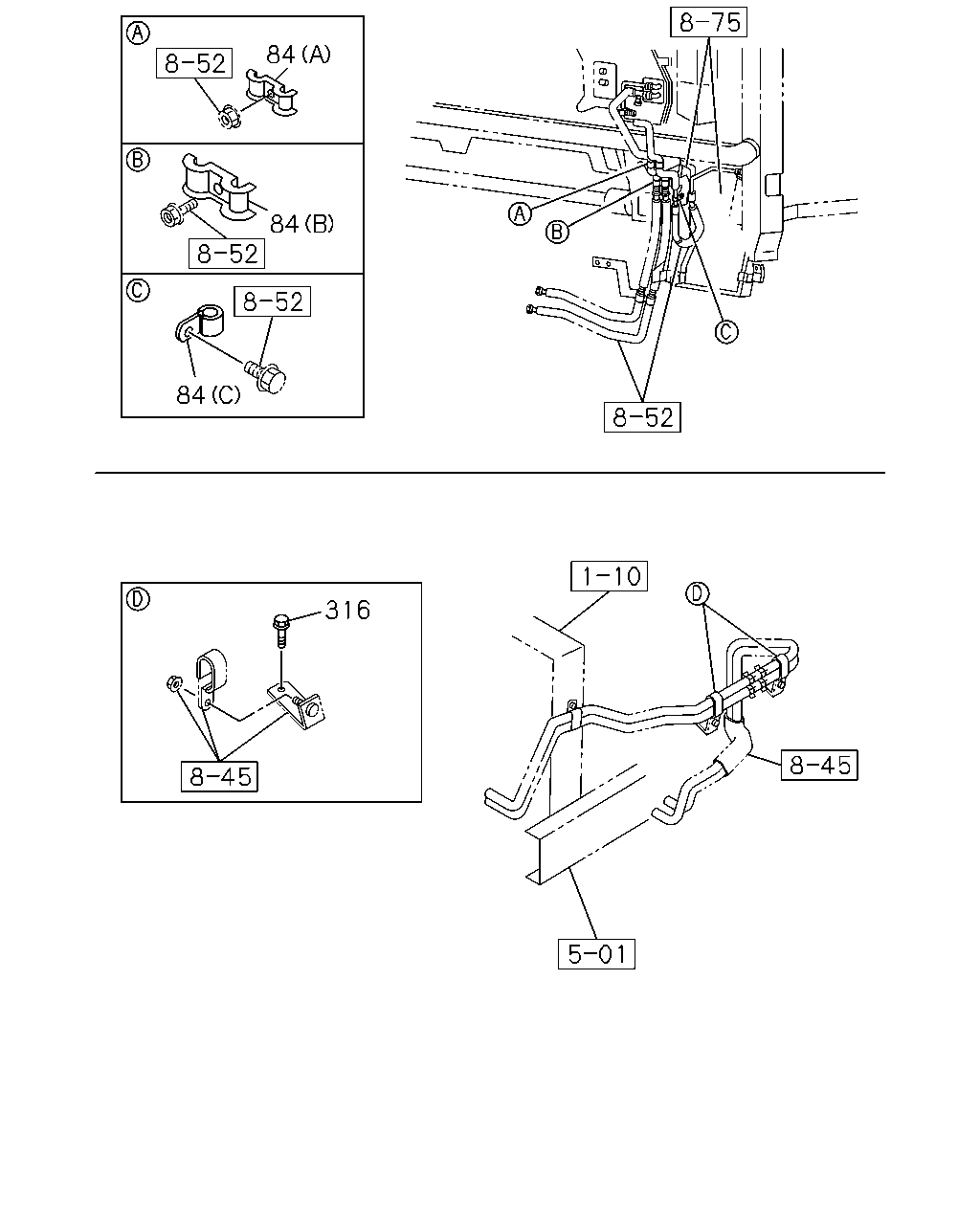

84 84 84 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	CLIP; PIPE (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0302-
84	CLIP; PIPE (B) ID=20 & 20	1-83574-195-1	01	1	0302-
84	CLIP; PIPE (C) ID=9 L=20	9-09524-835-0	01	1	0302-
316	BOLT; BRKT FIX M8X30 FLANGE	0-28680-830-0	02	1	0302-

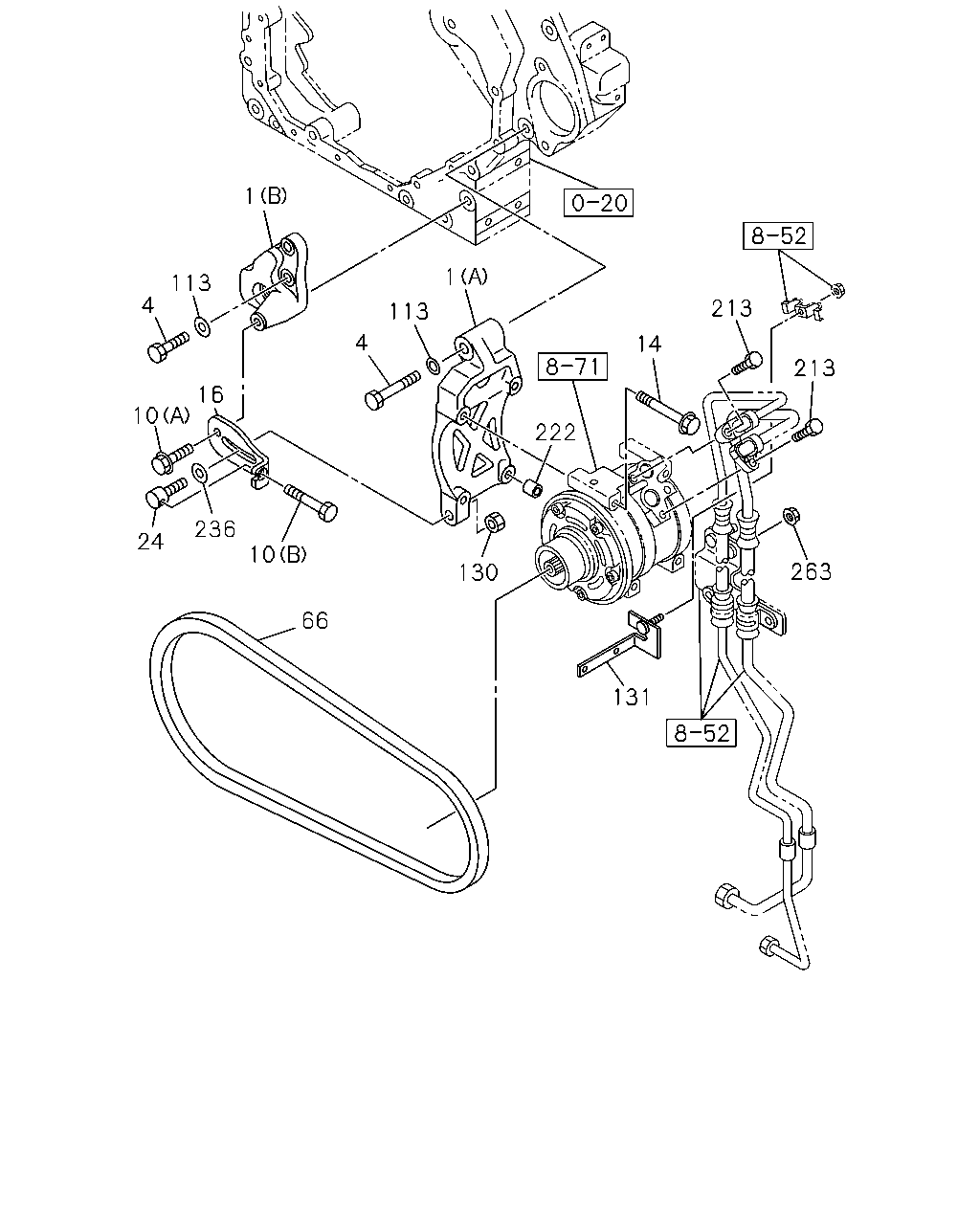

1 1 113 4 213 113 4 14 213 16 10 222 236 24 10 263 130 66 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; A/C (A)	1-83573-095-2	01	1	0302-
1	BRACKET; A/C (B)	1-83573-119-0	01	1	0302-
4	BOLT; A/C CMPR BRKT M14X135	1-09020-055-0	03	1	0302-
10	BOLT; ADJ PLATE (A) M12X40 FLANGE	0-28181-240-0	01	1	0302-
10	BOLT; ADJ PLATE (B) M10X90	1-09009-151-0	01	1	0302-
14	BOLT; CMPR M8X80 FLANGE	0-28080-880-0	04	1	0302-
16	PLATE; ADJ,CMPR	1-13674-293-1	01	1	0302-
24	PIECE; SLIDING M12X45	1-13674-160-0	01	1	0302-
66	BELT; A/C CMPR L=1196	1-13671-464-1	01	1	0302-
113	WASHER; PL,BRKT ID=15 OD=26	9-09164-514-0	03	1	0302-
130	NUT; ADJ BRKT M12 FLANGE	0-91150-112-0	01	1	0302-
131	STAY; CMPR BRKT	1-83573-244-0	01	1	0302-
213	BOLT; FLEX HOSE TO CMPR M6X25 FLANGE	0-28080-625-0	02	1	0302-
222	GASKET; CONNECTOR ID=8.4 OD=19	5-11779-001-0	02	1	0302-
236	WASHER; PL,ADJ BOLT ID=12.5 OD=32	9-09160-712-0	01	1	0302-
263	NUT; FLEX HOSE M8 FLANGE	0-91150-108-0	02	1	0302-
