Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

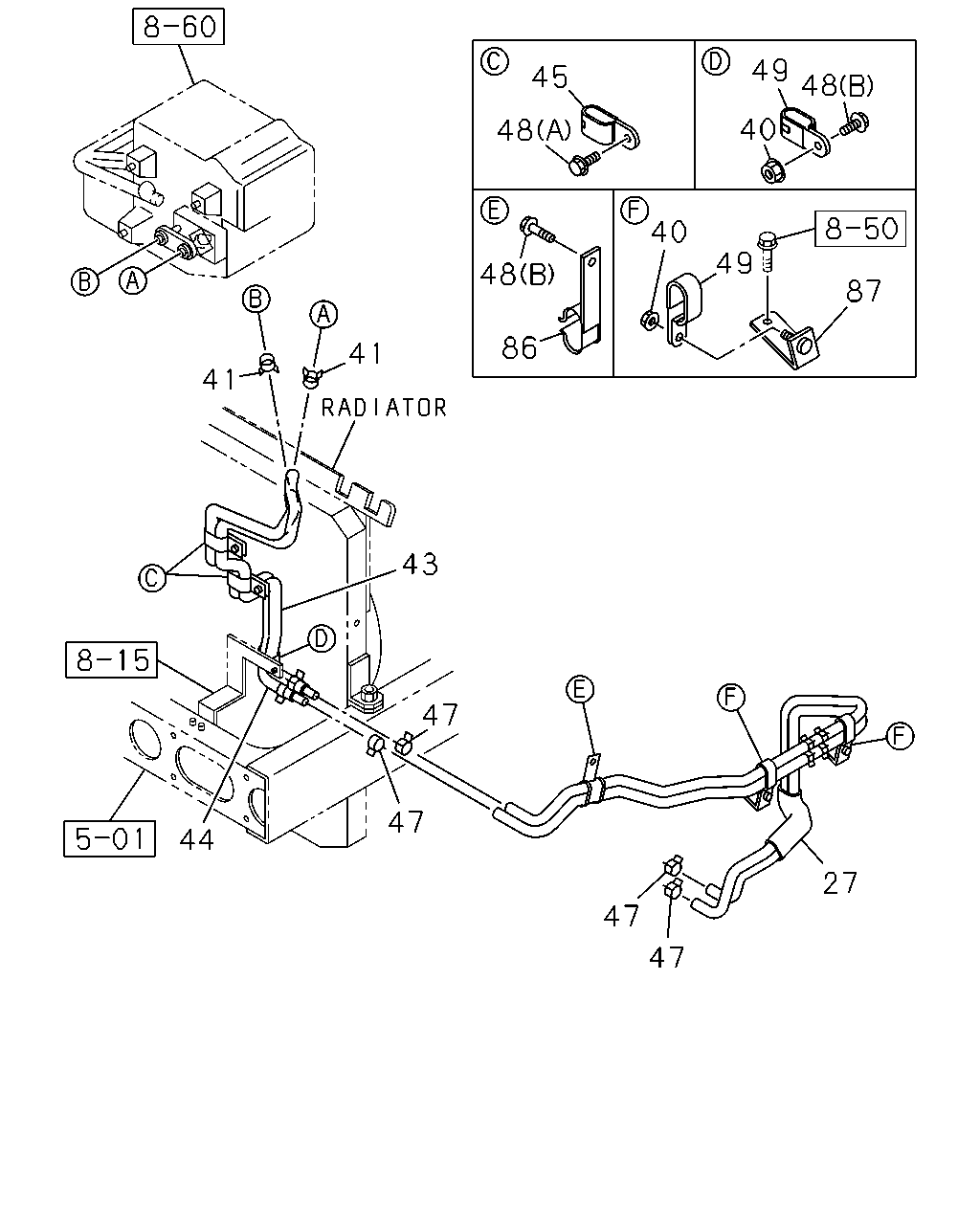

8-45 — HEATER PIPING
(#26364) — 15 parça
49
45
40
48
40
49
48
87
86
41
41
43
47
47
44
27
47
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-801-0
01
1
0302-
40
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
0302-0302
40
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
0303-
41
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
02
1
0302-
43
HOSE; WATER,OUTLET,HTR
1-83565-570-3
01
1
0302-
44
HOSE; WATER,HTR,INL
1-83565-569-4
01
1
0302-
45
CLIP; WATER PIPE
1-09701-238-0
02
1
0302-
47
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
04
1
0302-
48
BOLT; CLIP FIX
(B) M8X20 FLANGE
0-28680-820-0
02
1
0302-0302
48
BOLT; CLIP FIX
(B) M8X20 FLANGE
0-28680-820-0
03
1
0303-
48
BOLT; CLIP FIX
(A) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0302-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
0302-0302
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
04
1
0303-
86
CLIP; HTR HOSE
1-83573-076-0
01
1
0302-
87
BRACKET; HTR HOSE CLIP
1-83573-251-1
02
1
0302-
