Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#26363) — 46 parça
◀
[840A] FIXING;HTR UNIT,BLOWER UNIT,SENSOR BRKT (8 parça)
[840A] CONTROL ASM (6 parça)
[840A] SEAL;DUCT HOLE (1 parça)
[840A] DUCT NO.2 (17 parça)
[840A] DUCT NO.1 (14 parça)
▶

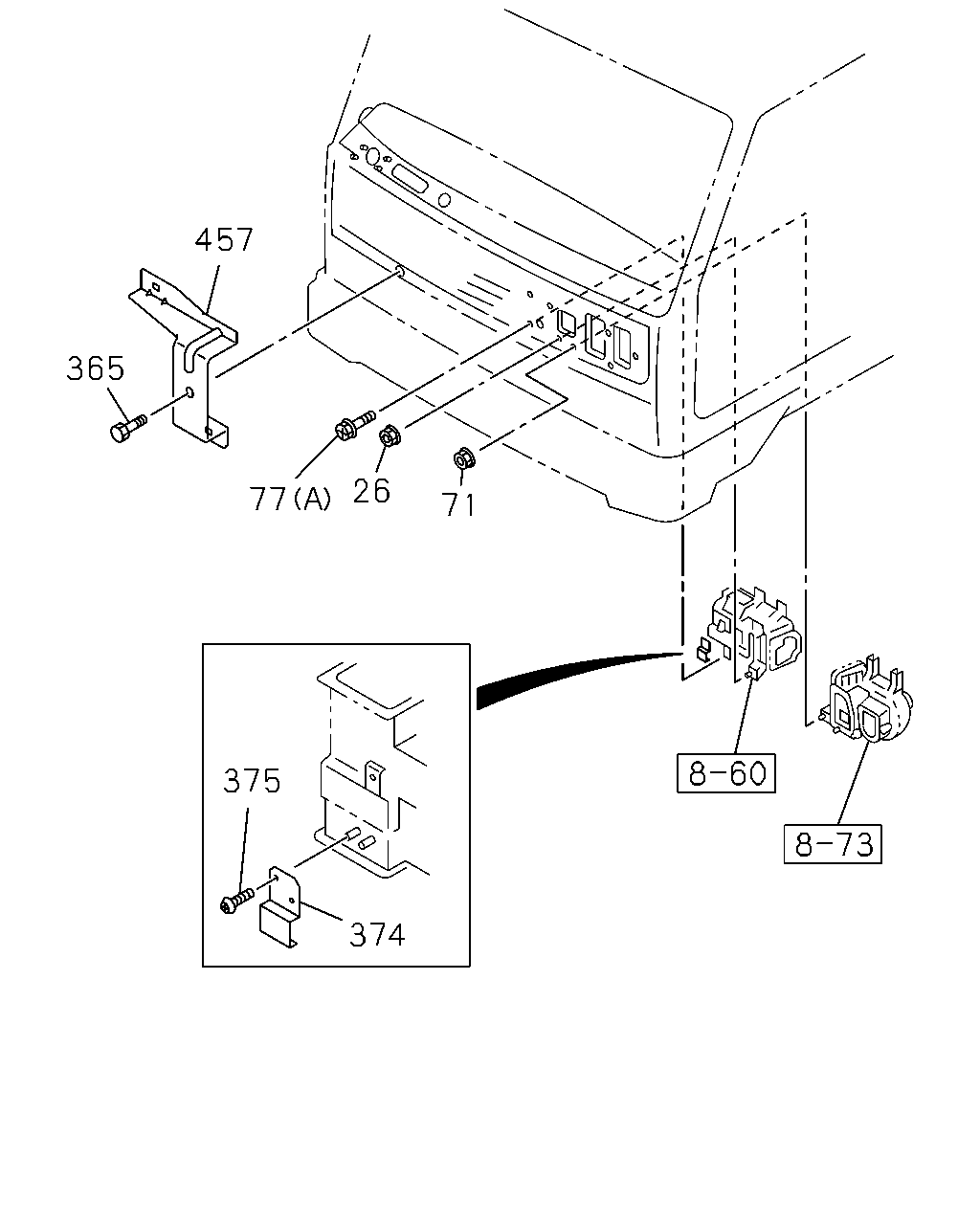

457
365
26
77
71
375
374
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; HTR
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0302-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0302-
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0302-
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0302-
365
BOLT; SENSOR
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0302-
374
HOLDER; DUCT
1-76398-012-1
01
1
0302-
375
SCREW; HOLDER
M5X14
8-94279-325-0
02
1
0302-
457
BRACKET; SENSOR
1-71907-603-1
01
1
0302-

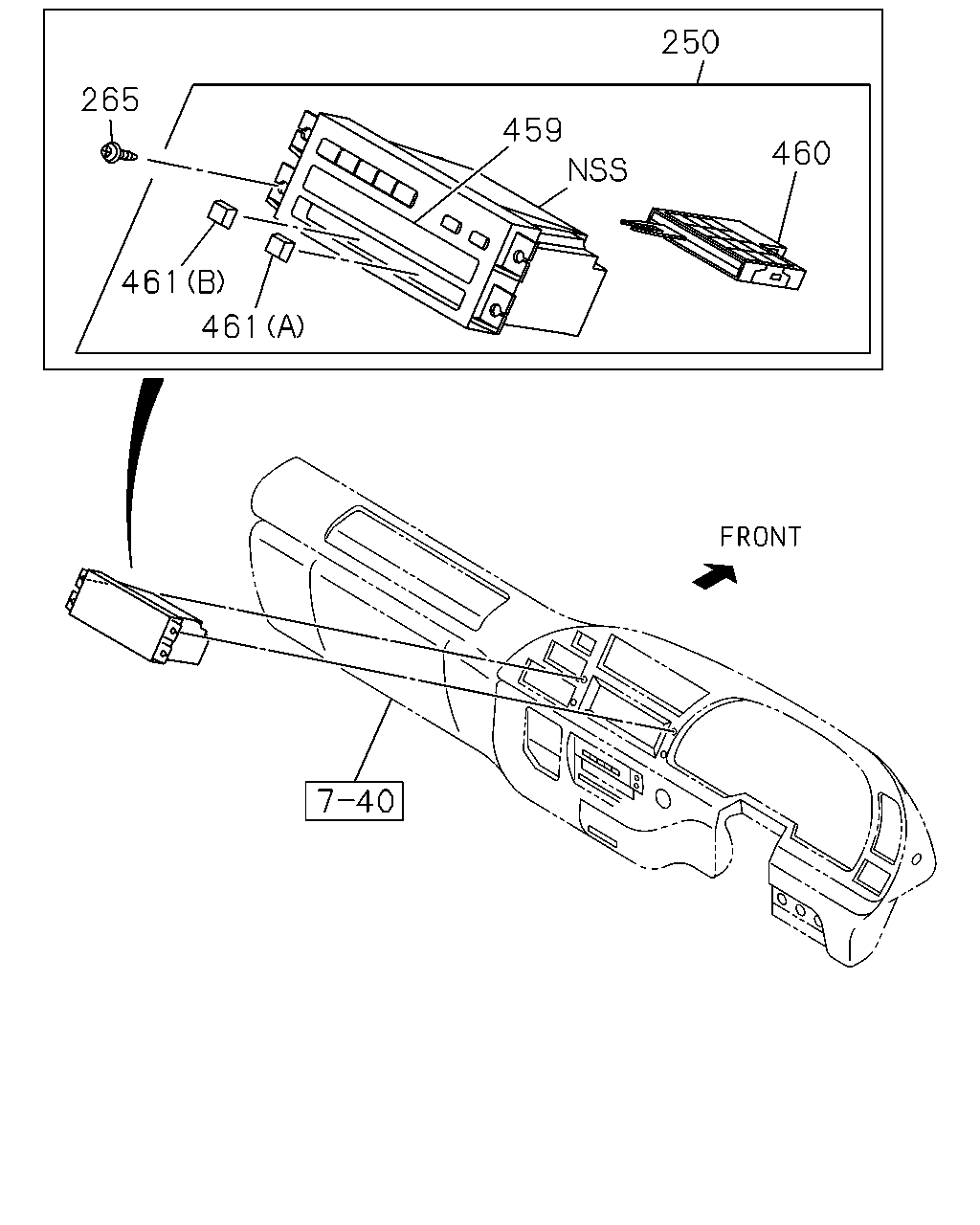

250
265
459
460
461
461
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
250
CONTROL ASM; A/C
1-83543-050-0
01
1
0302-
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74110-620-0
01
1
0302-
459
PANEL; CONTROL ASM,A/C
1-83549-013-0
01
1
0302-
460
SWITCH; CONTROL ASM,A/C
1-82489-006-0
01
1
0302-
461
KNOB; CONTROL ASM,A/C
(B)
1-83549-015-0
01
1
0302-
461
KNOB; CONTROL ASM,A/C
(A)
1-83549-016-0
01
1
0302-

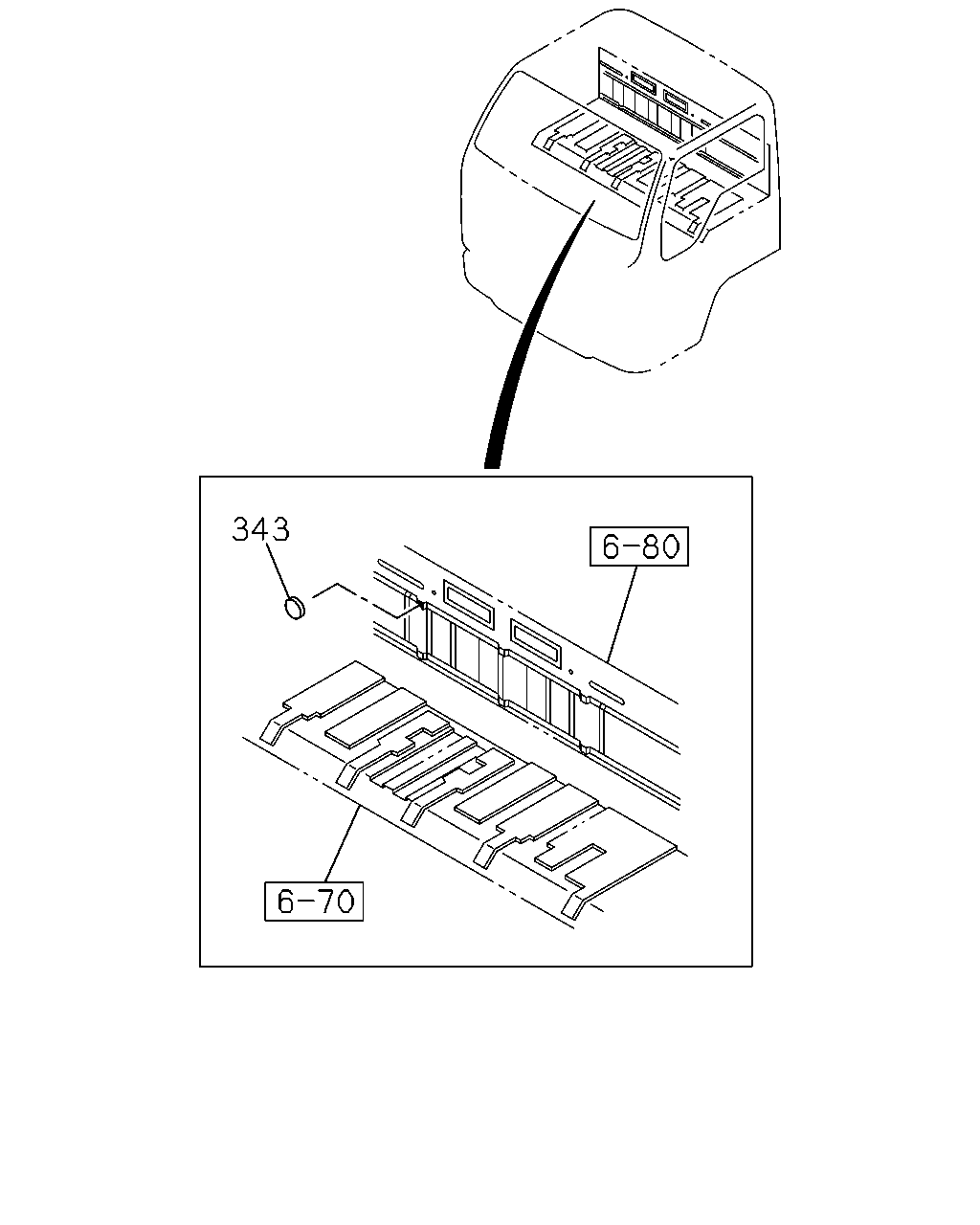

343
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
343
SEAL; AIR DUCT
OD=25 BLACK
1-76798-019-0
05
1
0302-

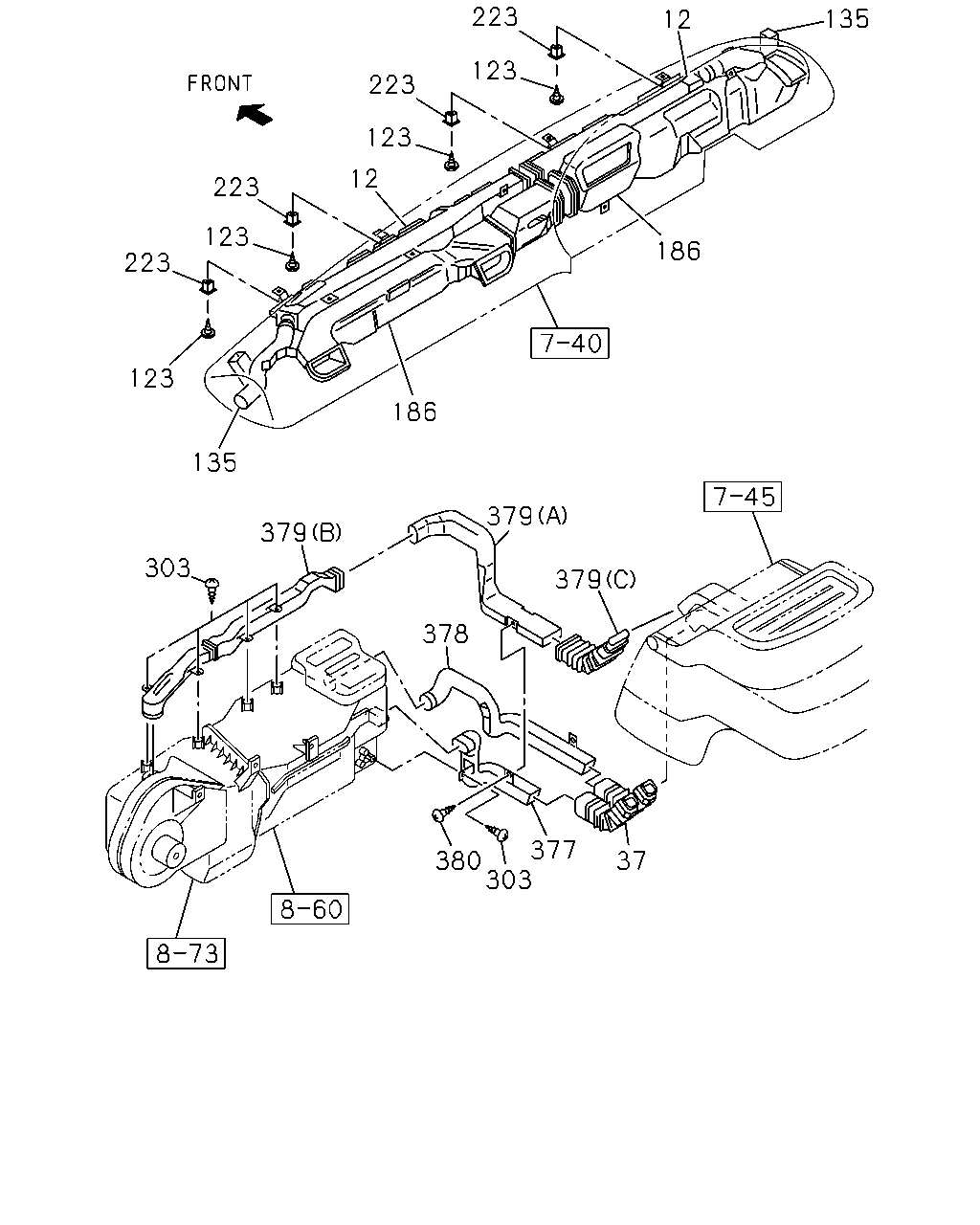

223
135
12
123
223
123
12
223
123
186
223
123
186
135
379
379
303
379
378
377
380
303
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NOZZLE; DEFROSTER
1-76377-153-5
01
1
0302-
12
NOZZLE; DEFROSTER
1-76377-172-6
01
1
0302-
37
HOSE; AIR,HTR
1-76377-193-3
01
1
0302-
123
SCREW; DUCT
M5X14
8-94279-325-0
04
1
0302-
123
SCREW; DUCT
M5X14
8-94279-325-0
08
1
0302-
135
HOSE; DEFROSTER
1-76378-253-4
01
1
0302-
135
HOSE; DEFROSTER
1-76378-252-7
01
1
0302-
186
DUCT; VENTILATOR
1-76377-155-9
01
1
0302-
186
DUCT; VENTILATOR
1-76377-173-6
01
1
0302-
223
GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL
8-94279-084-2
04
1
0302-
303
SCREW; HOSE
M5X14
8-94279-325-0
05
1
0302-
377
HOSE; BOX,INLET,COOL
1-76377-159-5
01
1
0302-
378
HOSE; BOX,INLET,HOT
1-76377-161-6
01
1
0302-
379
HOSE; BOX,OUTLET
(A)
1-76377-163-5
01
1
0302-
379
HOSE; BOX,OUTLET
(B)
1-76377-164-3
01
1
0302-
379
HOSE; BOX,OUTLET
(C)
1-76377-192-4
01
1
0302-
380
FASTENER; HOSE
D4.6X14.7 BLACK
1-09983-104-0
03
1
0302-

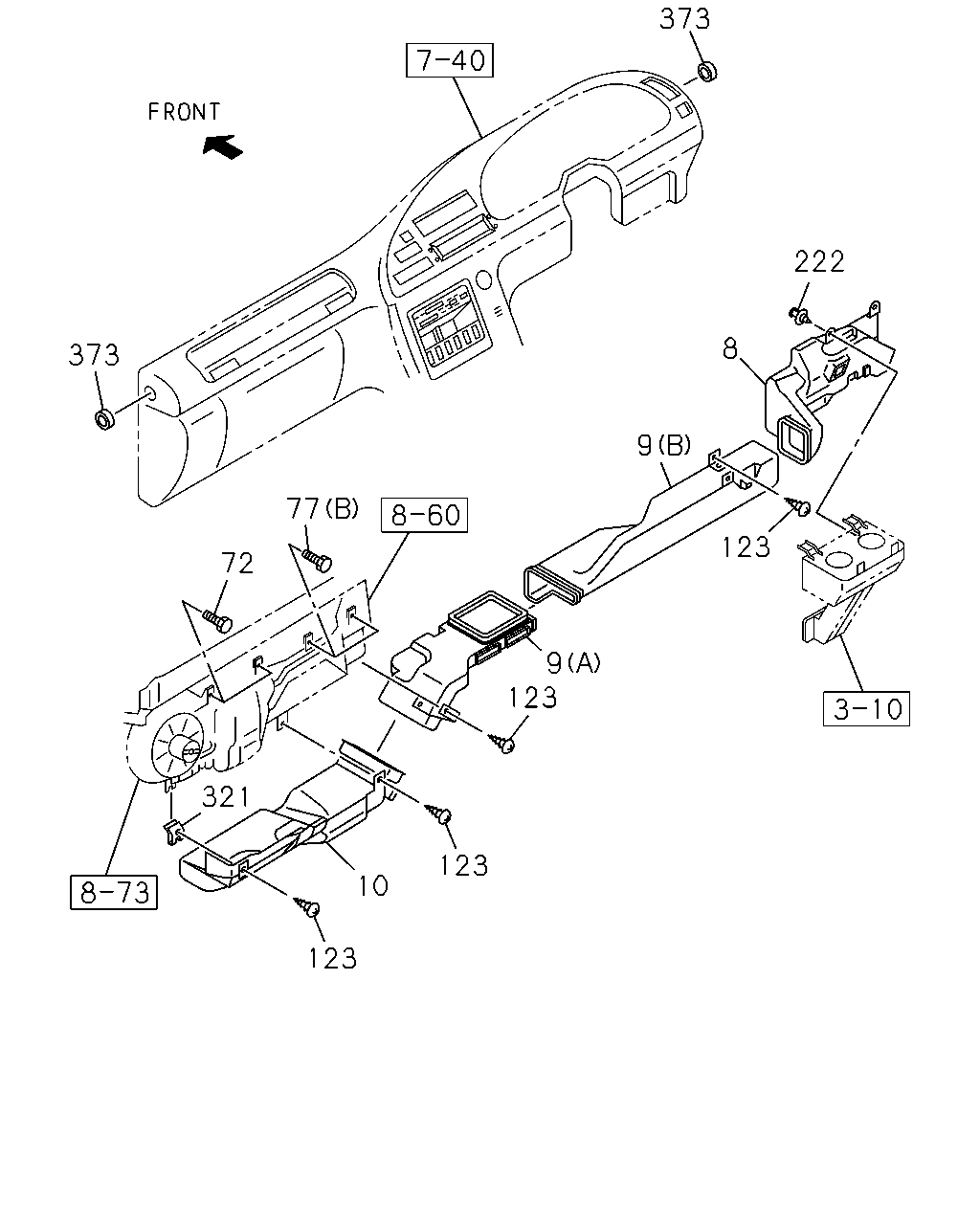

373
222
8
373
9
77
123
72
9
123
321
123
10
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
DUCT; HTR AIR,DRIVER FOOT
1-76377-208-0
01
1
0302-
9
DUCT; HTR AIR,FOOT CENTER
(B)
1-76377-210-1
01
1
0302-
9
DUCT; HTR AIR,FOOT CENTER
(A)
1-76377-227-2
01
1
0302-0404
9
DUCT; HTR AIR,FOOT CENTER
(A)
1-76377-226-2
01
1
0405-
10
DUCT; HTR AIR,ASSIST FOOT
1-76377-204-2
01
1
0302-
72
BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0302-
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0302-
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0302-
123
SCREW; DUCT
M5X14
8-94279-325-0
04
1
0302-
123
SCREW; DUCT
M5X14
8-94279-325-0
08
1
0302-
222
FASTENER; DUCT
D6X12.5
8-94146-425-0
02
1
0302-
321
NUT; DUCT FIX
M5
1-09984-150-0
01
1
0302-0409
321
NUT; DUCT FIX
M5
1-09984-196-0
01
1
0410-
373
RUBBER; JOINT
1-76378-291-0
02
1
0302-
