Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#26360) — 42 parça
◀

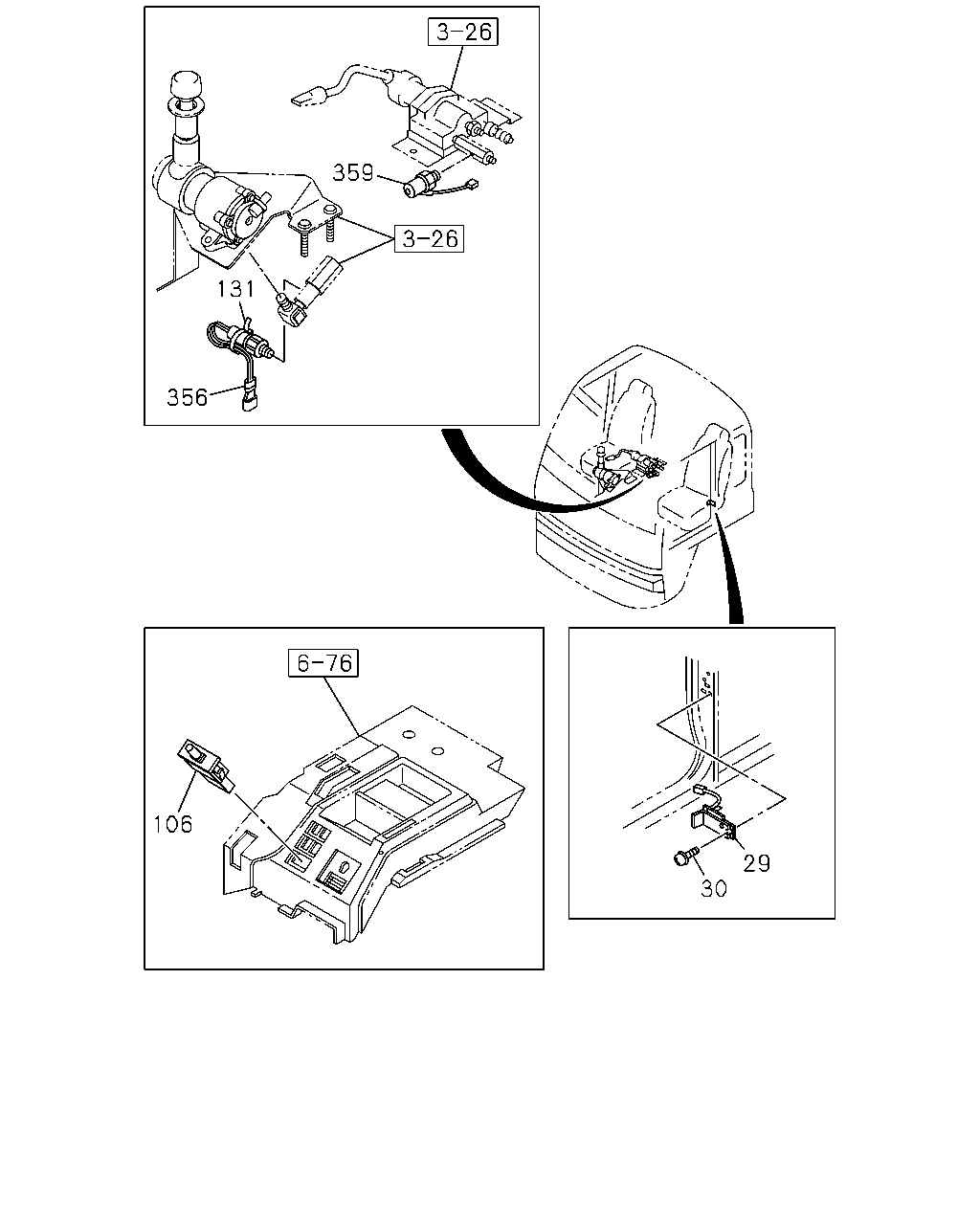

[825A] TRAILER LOW PRESSURE AND DOOR SW (7 parça)

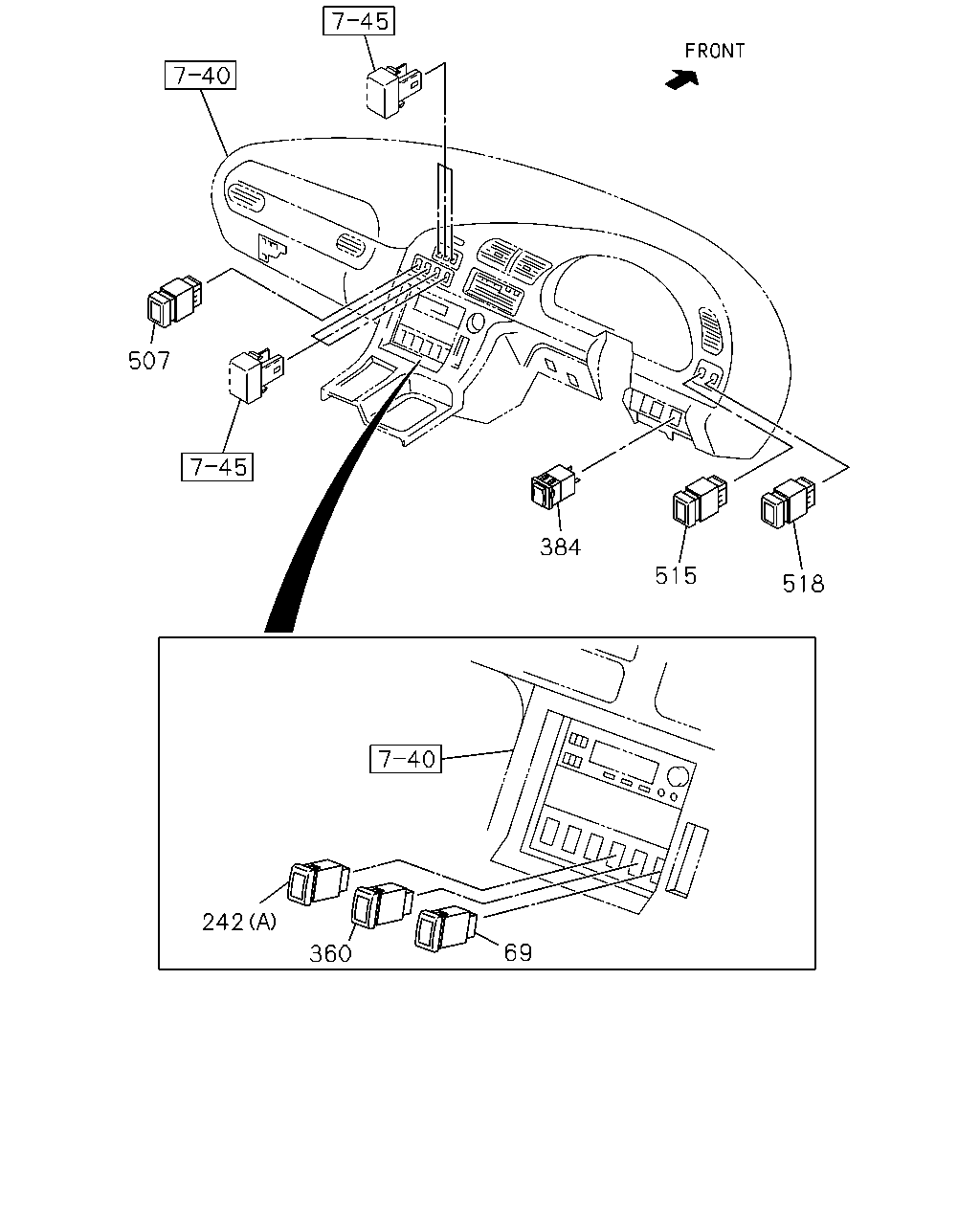

[825A] SWITCH;CLUSTER METER SIDE (8 parça)

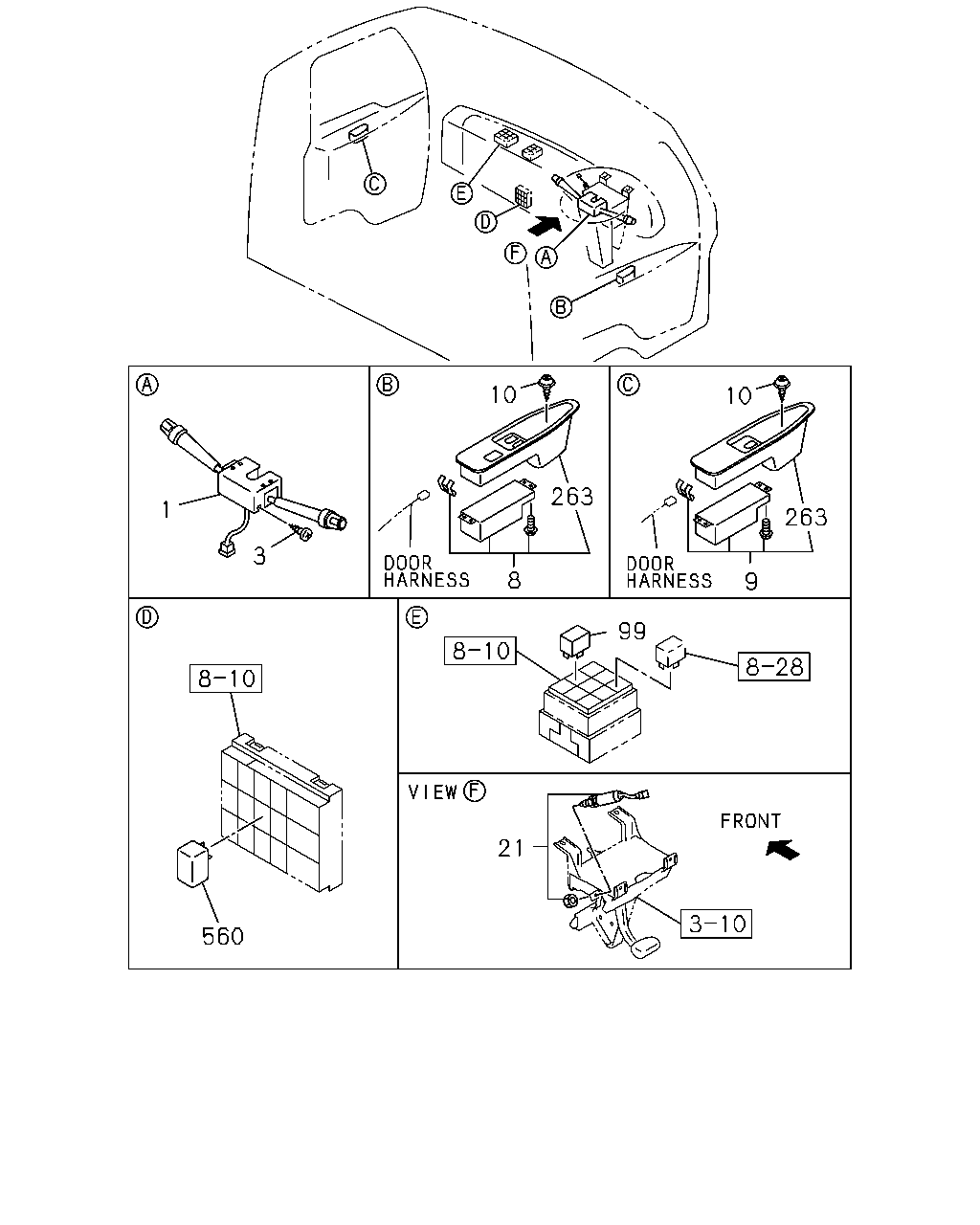

[825A] FIXING;COMB,PWR WINDOW,CLU SW AND RELA (13 parça)

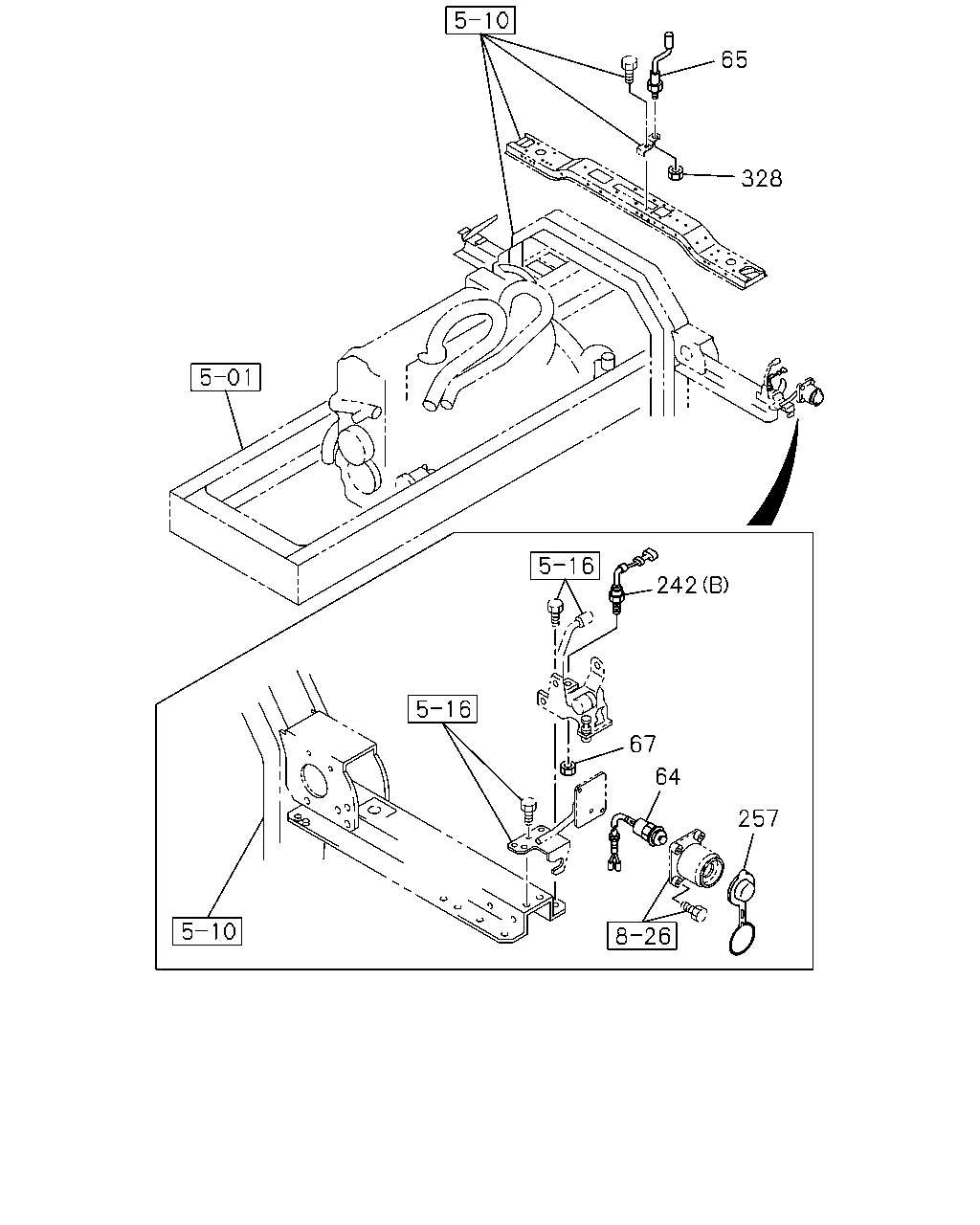

[825A] CAB TILT SWITCH (7 parça)

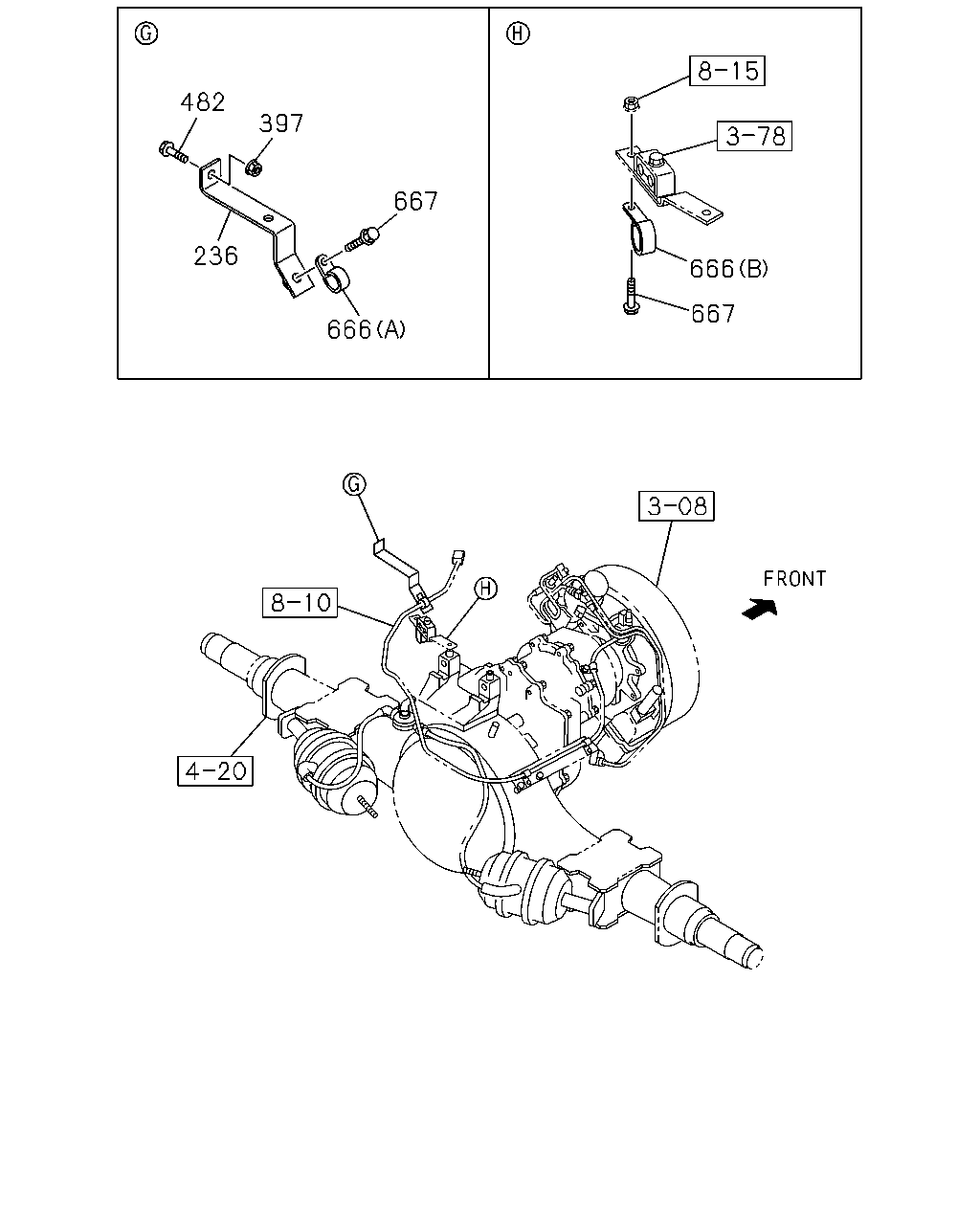

[825A] BRACKET;AXLE HARNESS (7 parça)
▶
359
131
356
106
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
02
1
0302-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
02
1
0302-
106
SWITCH; REMOTE CONT MIRROR
1-82350-223-0
01
1
0302-
131
CLIP; BAND
L=180
1-09707-162-1
01
1
0302-
356
SWITCH; TRAILER,LOW PRESS
1-48340-057-1
01
1
0302-0312
356
SWITCH; TRAILER,LOW PRESS
1-48340-068-0
01
1
0401-
359
SWITCH; TRAILER BRAKE
GREEN
1-82410-176-1
01
1
0302-
507
384
515
518
242
69
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
69
SWITCH; AUTO CRUISE
1-82340-412-2
01
1
0302-
242
SWITCH
(A)
1-82340-553-0
01
1
0302-
242
SWITCH
(B) STAMP NO
1-82380-126-0
01
1
0302-
360
SWITCH ASM; DIFF LK
1-82340-677-0
01
1
0302-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0302-
507
SWITCH; MIRROR HEATER
1-82340-423-0
01
1
0302-
515
SWITCH; FLUORESCENT LAMP
1-82350-230-0
01
1
0302-
518
SWITCH; RADIO TUNE
RADIO SEEK SW<NBN>
1-82350-231-0
01
1
0302-
10
10
263
1
263
3
8
9
99
21
560
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-547-0
01
1
0302-0312
1
SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-708-1
01
1
0401-
1
SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-640-0
01
1
0302-0312
1
SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-724-1
01
1
0401-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0302-
8
SWITCH; POWER WINDOW
DRIVER SIDE
1-82380-166-1
01
1
0302-
9
SWITCH; POWER WINDOW
PASSENGER SIDE
1-82380-167-1
01
1
0302-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0302-
21
SWITCH; CLU
1-82380-114-3
01
1
0302-
99
RELAY; FOG LAMP
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0302-
263
COVER; SW
DRIVER SIDE
1-82385-005-2
01
1
0302-
263
COVER; SW
PASSENGER SIDE
1-82385-006-3
01
1
0302-
560
RELAY; DIFF LOCK
24V 10A MATSUSHITA
8-97173-035-1
01
1
0302-
65
328
242
67
64
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-108-0
01
1
0302-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0302-
67
NUT; SW,CAB TILT
M16 H=18.5
1-09409-013-0
01
1
0302-
242
SWITCH
(A)
1-82340-553-0
01
1
0302-
242
SWITCH
(B) STAMP NO
1-82380-126-0
01
1
0302-
257
COVER; HOLE,SW
1-82389-008-0
01
1
0302-
328
NUT; SW
M16
9-99110-416-0
01
1
0302-
482
397
667
236
666
667
666
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
236
BRACKET; AXLE HARNESS,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82699-996-1
01
1
0302-
397
NUT; BRKT FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE
0-91150-108-0
01
1
0302-
482
BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE
0-28680-830-0
01
1
0302-
666
CLIP; AXLE HARNESS
(B) ID=22X11 L=20
1-09700-871-0
04
1
0302-
666
CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16
9-09525-025-0
01
1
0302-
667
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
03
1
0302-
667
BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE
0-28680-820-0
01
1
0302-
