0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#2636) — 21 parça

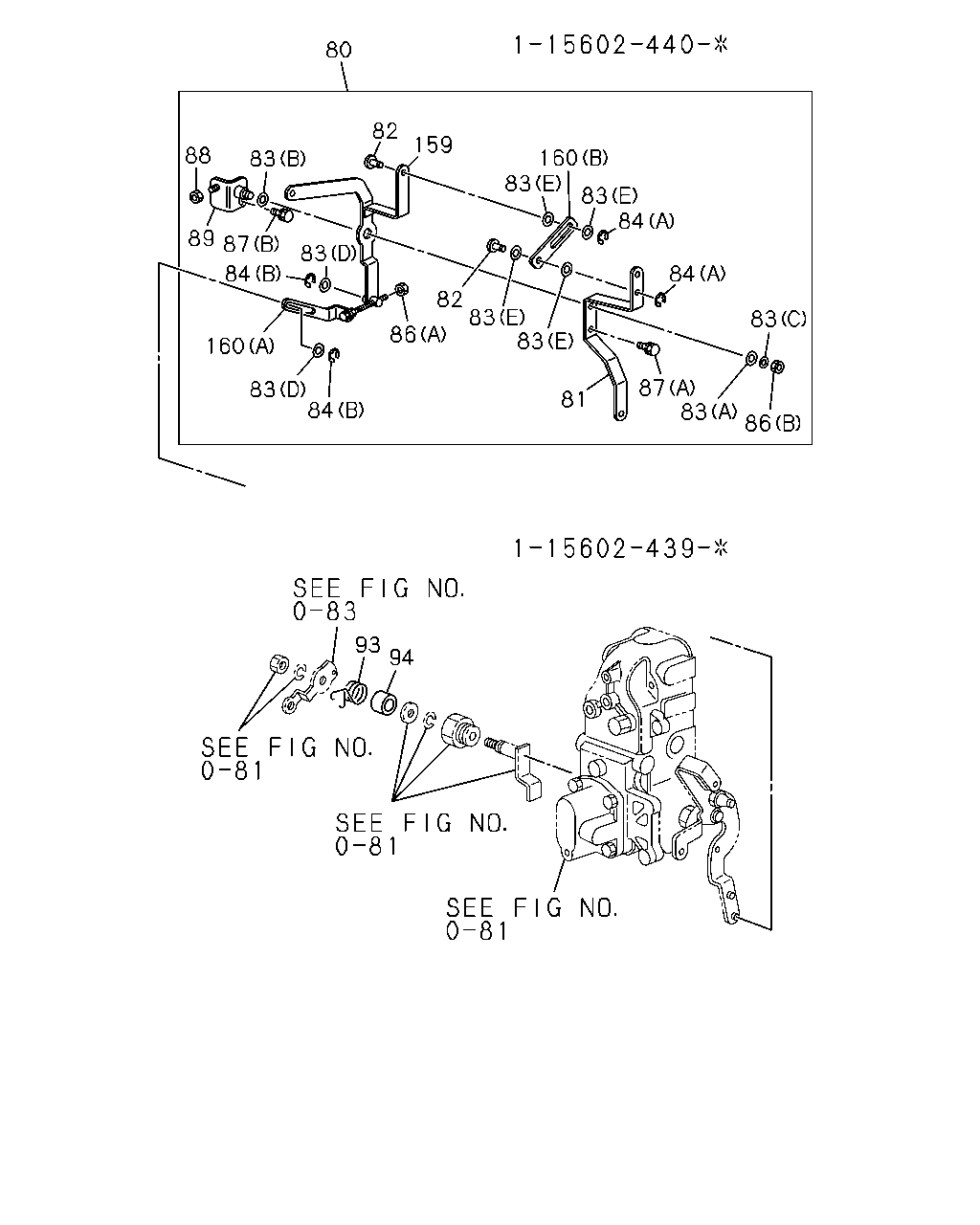

çizim 93655
80 88 83 89 87 84 83 160 83 84 82 159 86 82 83 83 81 83 160 83 84 83 87 83 86 93 94
BalonParca AdiParca NoAdetTipApplied Date
80 LEVER KIT
ASM PART: B = 1-15602-440-3 		1-15725-573-0 01 1 -
81 LEVER; INNER
ASM PART: B = 1-15602-440-3 		1-15725-574-0 01 1 -
82 PIN; LEVER TO LEVER
ASM PART: B = 1-15602-440-3 		1-15729-722-0 02 1 -
83 WASHER; LEVER
(A), ID=8 ASM PART: B = 1-15602-440-3 		1-14319-034-0 01 1 -
83 WASHER; LEVER
(B) ASM PART: B = 1-15602-440-3 		1-15729-941-0 01 1 -
83 WASHER; LEVER
(C), ID=8.2 ASM PART: B = 1-15602-440-3 		9-09150-608-0 01 1 -
83 WASHER; LEVER
(D), ID=6.4 OD=14 ASM PART: B = 1-15602-440-3 		9-09160-606-0 02 1 -
83 WASHER; LEVER
(E), ID=10.5 OD=22 ASM PART: B = 1-15602-440-3 		9-09160-610-0 04 1 -
84 RING; SNAP
(A) ASM PART: B = 1-15602-440-3 		1-15729-723-0 02 1 -
84 RING; SNAP
(B) ASM PART: B = 1-15602-440-3 		8-94244-599-0 02 1 -
86 NUT; LINK LEVER
(A) ASM PART: B = 1-15602-440-3 		1-15729-006-0 01 1 -
86 NUT; LINK LEVER
(B) ASM PART: B = 1-15602-440-3 		1-15729-236-0 01 1 -
87 BOLT; LEVER
(A), M6X16 W/LK WASHER ASM PART: B = 1-15602-440-3 		9-01900-616-0 02 1 -
87 BOLT; LEVER
(B), M8X30 W/LK WASHER ASM PART: B = 1-15602-440-3 		9-01900-830-0 01 1 -
88 NUT; CONN PIN LOCK,LOAD SENSOR
M8 ASM PART: B = 1-15602-440-3 		9-09110-408-0 01 1 -
89 BRACKET; LEVER
ASM PART: B = 1-15602-440-3 		1-15729-949-0 01 1 -
93 SPRING; LEVER
ASM PART: A = 1-15602-439-2 		1-15723-129-0 01 1 -
94 COLLAR; LEVER
ASM PART: A = 1-15602-439-2 		1-15729-364-0 01 1 -
159 LEVER; OUTER
ASM PART: B = 1-15602-440-3 		1-15725-563-0 01 1 -
160 LINK; LEVER
(A) ASM PART: B = 1-15602-440-3 		1-15725-541-0 01 1 -
160 LINK; LEVER
(B) ASM PART: B = 1-15602-440-3 		1-15725-575-0 01 1 -
