8-21 — METER ASM (#26359) — 44 parça

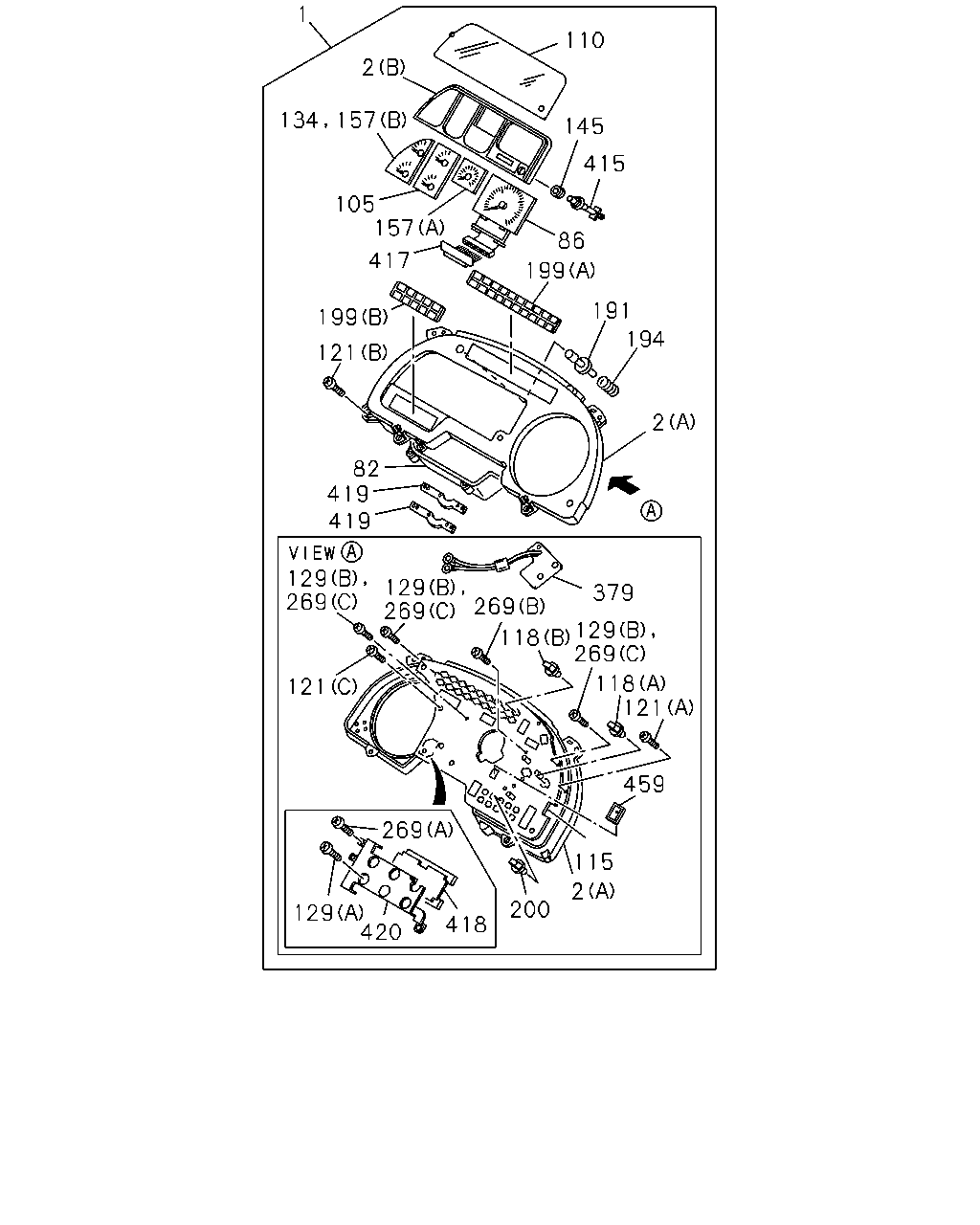

çizim 25796
1 110 2 157 134 145 415 105 157 86 417 199 191 199 194 121 2 82 419 419 129 269 129 269 269 379 129 118 269 118 121 121 459 269 115 2 200 129 420 418
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83116-109-0 01 1 0302-0511
1 METER COMPL; CLUSTER 1-82116-012-0 01 1 0512-
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 0302-
2 PANEL; CLUSTER
(B) 		1-83119-652-0 01 1 0302-
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 0302-
86 TACHOMETER; CLUSTER METER 1-83120-921-0 01 1 0302-
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 0302-
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 0302-
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-460-0 01 1 0302-
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0302-
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 26 1 0302-
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-084-0 01 1 0302-
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 05 1 0302-
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-676-0 02 1 0302-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-657-0 09 1 0302-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-675-0 06 1 0302-
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-290-0 01 1 0302-0511
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 0302-
157 METER; AIR PRESSURE,CLUSTER METER
(B) 		1-83150-272-0 01 1 0512-
157 METER; AIR PRESSURE,CLUSTER METER
(A) 		1-83150-264-0 01 1 0302-
191 KNOB; BULB CHECK 1-83119-672-0 01 1 0302-
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 0302-
199 LENS; WARNING LAMP
(A) 		1-83119-795-1 01 1 0302-
199 LENS; WARNING LAMP
(B) 		1-83119-796-0 01 1 0302-
200 BULB; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 01 1 0302-
269 SCREW; METER CLUSTER
(C) M3 TAPPING 		1-83119-657-0 03 1 0302-
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 0302-
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 06 1 0302-
379 CIRCUIT; DROP 1-83189-369-0 01 1 0302-
415 KNOB; TRIP,METER 1-83119-674-0 01 1 0302-
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 0302-
418 CIRCUIT; CONTROL,METER 1-83189-442-0 01 1 0302-
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 0302-
420 HEAT SINK; METER 1-83119-679-0 01 1 0302-
459 POWER SUPPLY ASM 1-83119-783-0 01 1 0302-0511
459 POWER SUPPLY ASM 1-83119-925-0 01 1 0512-

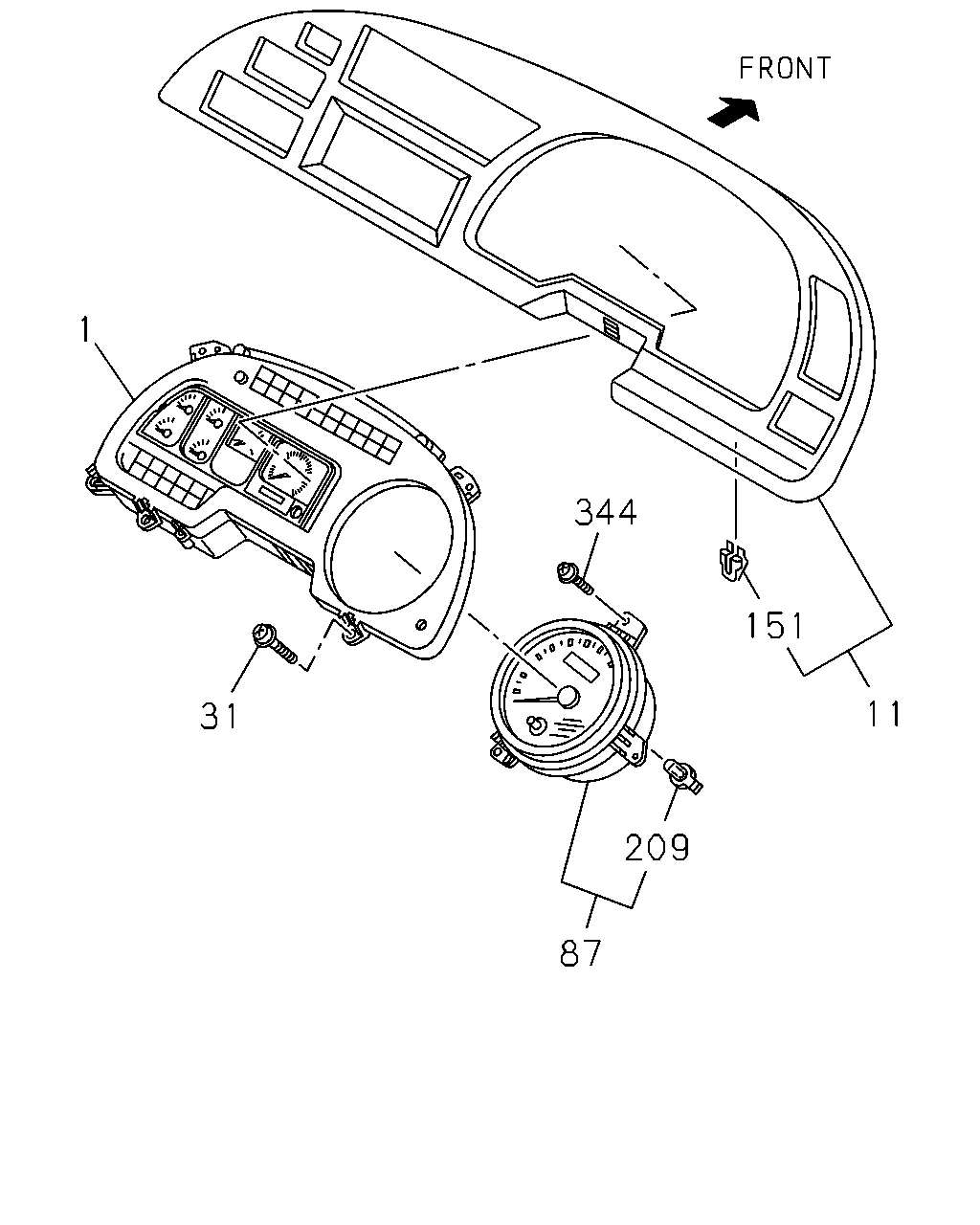

çizim 81795
1 344 151 11 31 209 87
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83116-109-0 01 1 0302-0511
1 METER COMPL; CLUSTER 1-82116-012-0 01 1 0512-
11 CLUSTER ASM; METER 1-72418-014-9 01 1 0302-
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0302-
87 SPEEDOMETER 1-83120-844-0 01 1 0302-
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0302-
209 BULB; SPEEDOMETER
24V 3W GREEN SOCKET 		1-82194-061-0 01 1 0302-
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0302-
