◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXJ ▶ 10910 - CXJ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#26357) — 391 parça
çizim 24715
14 16 48 102 194 212 194 212 16 48 102 194 212 425 14 16 81 104 142 171 194 206 212 305 14 16 48 111 171 212 369 16 51 142 162 194 425
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=250 		1-09707-126-0 01 1 0305-
14 CLIP; BAND,HARNESS
(C) L=250 		1-09707-126-0 02 1 0302-
14 CLIP; BAND,HARNESS
(C) L=250 		1-09707-126-0 02 1 0302-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		5-09707-030-1 01 1 0302-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140 		5-09707-031-1 01 1 0302-
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0303-0407
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 0302-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 0302-
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0302-
16 CLIP; HARNESS
(J) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0302-0402
16 CLIP; HARNESS
(J) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(J) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0302-
16 CLIP; HARNESS
(J) ID=28 L=32 		1-09701-107-1 02 1 0302-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0302-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0302-
16 CLIP; HARNESS
(N) L=250 		1-09707-126-0 07 1 0302-0304
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 07 1 0305-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 07 1 0305-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0302-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0302-
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0302-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 08 1 0302-
16 CLIP; HARNESS
(S) ID=13-18 L=18 		1-09709-291-0 01 1 0302-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0302-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 08 1 0302-
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0302-
16 CLIP; HARNESS
(R) ID=21 L=24 		8-94176-807-1 01 1 0302-
16 CLIP; HARNESS
(W) ID=11 L=16 		9-09525-025-0 02 1 0302-
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0302-
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 02 1 0302-
16 CLIP; HARNESS
(Y) ID=16 L=40 		9-09525-576-0 01 1 0302-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0302-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 10 1 0302-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0302-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=20 		9-09525-035-0 02 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (A) ID=22 L=32 		1-09700-126-1 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (E) ID=20 L=50 		1-09700-679-1 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) ID=25 L=54 		1-09700-392-0 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (K) ID=28 L=40 		1-09701-261-0 01 1 0302-
48 CLIP; FRAME HARNESS
(G) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0302-0302
48 CLIP; FRAME HARNESS
(I) ID=26 L=26 		1-09701-236-0 01 1 0303-
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0302-
48 CLIP; FRAME HARNESS
(B) L=250 		1-09707-126-0 18 1 0302-0304
48 CLIP; FRAME HARNESS
(J) L=350 		1-09707-183-0 18 1 0305-
48 CLIP; FRAME HARNESS
(J) L=350 		1-09707-183-0 18 1 0305-
48 CLIP; FRAME HARNESS
(C) ID=5-12 L=18 		1-09709-287-0 08 1 0302-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=22 		1-09709-288-0 02 1 0302-
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0302-
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 07 1 0302-
48 CLIP; FRAME HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 0302-
51 CLIP; COOLER CMPR
L=180 		1-09707-162-1 01 1 0302-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0302-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		9-09525-025-0 02 1 0302-
102 CLIP; BAND
(A) L=250 		1-09707-126-0 01 1 0302-0304
102 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 0305-
102 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 0305-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0302-
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 02 1 0302-
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0302-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0302-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0302-
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0302-
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0302-0404
162 CLIP; SW HARNESS
(B) L=180 		1-09707-162-1 01 1 0405-
162 CLIP; SW HARNESS
(B) L=180 		1-09707-162-1 01 1 0405-
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 02 1 0302-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 07 1 0302-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0302-0504
194 CLIP; BAND
(B) L=250 		1-09707-126-0 03 1 0302-0304
194 CLIP; BAND
(E) L=350 		1-09707-183-0 03 1 0305-0504
194 CLIP; BAND
(E) L=350 		1-09707-183-0 03 1 0305-0504
194 CLIP; BAND
(E) L=350 		1-09707-183-0 04 1 0505-
194 CLIP; BAND
(E) L=350 		1-09707-183-0 04 1 0505-
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0302-
194 CLIP; BAND
(D) L=140 		5-09707-031-1 01 1 0302-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0302-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0302-
212 CLIP; HORN HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0302-
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0302-
212 CLIP; HORN HARNESS
(D) L=250 		1-09707-126-0 01 1 0302-0304
212 CLIP; HORN HARNESS
(I) L=350 		1-09707-183-0 01 1 0305-
212 CLIP; HORN HARNESS
(I) L=350 		1-09707-183-0 01 1 0305-
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0302-
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0302-
212 CLIP; HORN HARNESS
(G) ID=21 L=24 		8-94176-807-1 01 1 0302-
212 CLIP; HORN HARNESS
(H) ID=20 L=50 		9-09917-430-0 02 1 0302-
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0302-
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 04 1 0303-
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 02 1 0302-0302
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 02 1 0302-0302
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 02 1 0303-
425 CLIP; MODULATOR
(C) L=250 		1-09707-126-0 01 1 0303-0304
425 CLIP; MODULATOR
(D) L=350 		1-09707-183-0 01 1 0305-
425 CLIP; MODULATOR
(D) L=350 		1-09707-183-0 01 1 0305-
425 CLIP; MODULATOR
(A) ID=11 H=34 L=27 		1-09701-023-0 03 1 0302-0302
425 CLIP; MODULATOR
(B) ID=11 L=41 		1-09700-403-0 03 1 0303-
çizim 24878
503 292 292
BalonParca AdiParca NoAdetTipApplied Date
292 CAP; RUBBER
(A) 		1-82690-667-0 01 1 0302-
292 CAP; RUBBER
(B) 		1-82691-239-0 02 1 0302-
503 CONNECTOR 1-82690-666-0 01 1 0302-

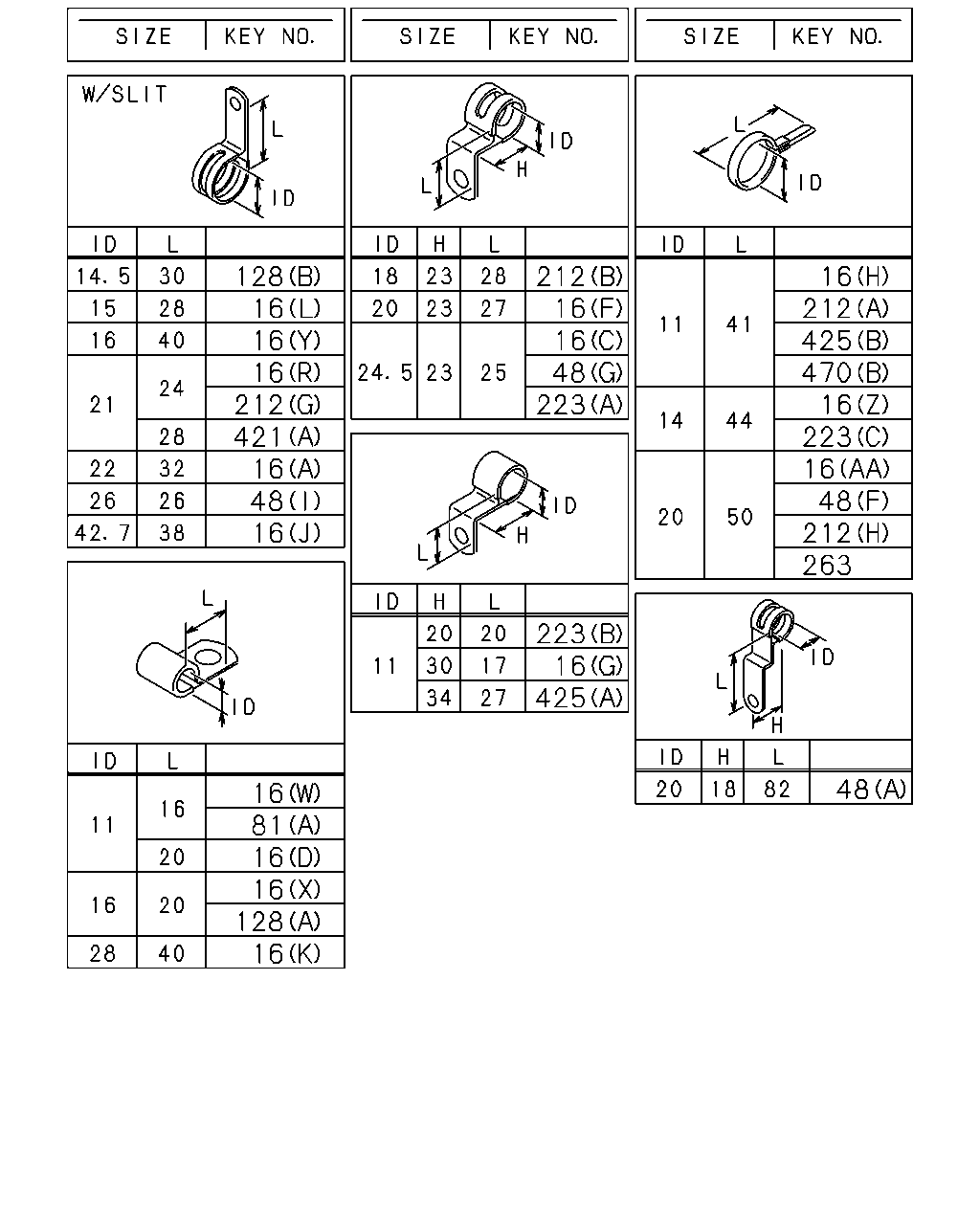

çizim 25746
128 16 16 16 212 421 16 48 16 212 16 16 48 223 16 212 425 470 16 223 16 48 212 263 223 16 425 48 16 81 16 16 128 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0303-0407
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 0302-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 0302-
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0302-
16 CLIP; HARNESS
(J) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0302-0402
16 CLIP; HARNESS
(J) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(J) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0302-
16 CLIP; HARNESS
(J) ID=28 L=32 		1-09701-107-1 02 1 0302-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0302-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0302-
16 CLIP; HARNESS
(N) L=250 		1-09707-126-0 07 1 0302-0304
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 07 1 0305-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 07 1 0305-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0302-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0302-
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0302-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 08 1 0302-
16 CLIP; HARNESS
(S) ID=13-18 L=18 		1-09709-291-0 01 1 0302-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0302-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 08 1 0302-
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0302-
16 CLIP; HARNESS
(R) ID=21 L=24 		8-94176-807-1 01 1 0302-
16 CLIP; HARNESS
(W) ID=11 L=16 		9-09525-025-0 02 1 0302-
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0302-
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 02 1 0302-
16 CLIP; HARNESS
(Y) ID=16 L=40 		9-09525-576-0 01 1 0302-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0302-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 10 1 0302-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0302-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=20 		9-09525-035-0 02 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (A) ID=22 L=32 		1-09700-126-1 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (E) ID=20 L=50 		1-09700-679-1 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) ID=25 L=54 		1-09700-392-0 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (K) ID=28 L=40 		1-09701-261-0 01 1 0302-
48 CLIP; FRAME HARNESS
(G) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0302-0302
48 CLIP; FRAME HARNESS
(I) ID=26 L=26 		1-09701-236-0 01 1 0303-
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0302-
48 CLIP; FRAME HARNESS
(B) L=250 		1-09707-126-0 18 1 0302-0304
48 CLIP; FRAME HARNESS
(J) L=350 		1-09707-183-0 18 1 0305-
48 CLIP; FRAME HARNESS
(J) L=350 		1-09707-183-0 18 1 0305-
48 CLIP; FRAME HARNESS
(C) ID=5-12 L=18 		1-09709-287-0 08 1 0302-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=22 		1-09709-288-0 02 1 0302-
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0302-
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 07 1 0302-
48 CLIP; FRAME HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 0302-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0302-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		9-09525-025-0 02 1 0302-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0302-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0302-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0302-
212 CLIP; HORN HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0302-
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0302-
212 CLIP; HORN HARNESS
(D) L=250 		1-09707-126-0 01 1 0302-0304
212 CLIP; HORN HARNESS
(I) L=350 		1-09707-183-0 01 1 0305-
212 CLIP; HORN HARNESS
(I) L=350 		1-09707-183-0 01 1 0305-
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0302-
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0302-
212 CLIP; HORN HARNESS
(G) ID=21 L=24 		8-94176-807-1 01 1 0302-
212 CLIP; HORN HARNESS
(H) ID=20 L=50 		9-09917-430-0 02 1 0302-
223 CLIP; AIR TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0302-
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		5-09700-351-0 03 1 0302-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0302-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0302-
421 CLIP; FLOOR HARNESS
(A) ID=21 L=28 		1-09700-673-1 02 1 0302-
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 05 1 0302-0302
421 CLIP; FLOOR HARNESS
(C) 180X40 		1-72498-019-0 05 1 0303-
425 CLIP; MODULATOR
(C) L=250 		1-09707-126-0 01 1 0303-0304
425 CLIP; MODULATOR
(D) L=350 		1-09707-183-0 01 1 0305-
425 CLIP; MODULATOR
(D) L=350 		1-09707-183-0 01 1 0305-
425 CLIP; MODULATOR
(A) ID=11 H=34 L=27 		1-09701-023-0 03 1 0302-0302
425 CLIP; MODULATOR
(B) ID=11 L=41 		1-09700-403-0 03 1 0303-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0302-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0302-
çizim 80294
119 64 524 219 294 515 255 423 127
BalonParca AdiParca NoAdetTipApplied Date
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0302-
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0302-
127 SCREW; FACIA HARNESS CLIP
M3X10 		9-93490-310-0 04 1 0405-
127 SCREW; FACIA HARNESS CLIP
M3X10 		9-93490-310-0 04 1 0405-
219 NUT
M8 FLANGE 		0-91150-108-0 22 1 0302-0302
219 NUT
M8 FLANGE 		0-91150-108-0 19 1 0303-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0302-0302
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0302-
294 NUT
M8 FLANGE 		0-91150-108-0 20 1 0302-0302
294 NUT
M8 FLANGE 		0-91150-108-0 18 1 0303-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0302-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 0302-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 07 1 0302-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0302-
çizim 80553
150 150 38 242 38 150 242 313 38 38 242 480 38 139 242 313 86 139 242 139 516 139 88 38 358 239 38 358 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0302-0403
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0404-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0404-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28080-820-0 02 1 0302-0308
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28080-820-0 03 1 0309-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28080-820-0 03 1 0309-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 12 1 0302-0302
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 13 1 0303-0303
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 10 1 0303-0308
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 11 1 0309-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 11 1 0309-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 01 1 0302-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0302-
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0302-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE 		0-28080-816-0 02 1 0302-
38 BOLT; CLIP,HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) M6X8 		0-20800-608-0 01 1 0302-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0302-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0302-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0302-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 14 1 0302-
139 BOLT; BRKT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0302-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0302-0302
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0303-
139 BOLT; BRKT
(C) M8X35 FLANGE 		0-28680-835-0 01 1 0302-0302
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28080-612-0 01 1 0302-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X10 FLANGE 		0-28080-810-0 02 1 0302-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X16 FLANGE 		0-28080-816-0 01 1 0302-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0302-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0302-
242 BOLT; BRKT,HARNESS
(D) M8X18 FLANGE 		0-28080-818-0 02 1 0302-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 04 1 0302-
242 BOLT; BRKT,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0302-0303
242 BOLT; BRKT,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0304-
242 BOLT; BRKT,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 01 1 0302-0302
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0302-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 11 1 0302-
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0302-
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0302-
480 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0302-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302-

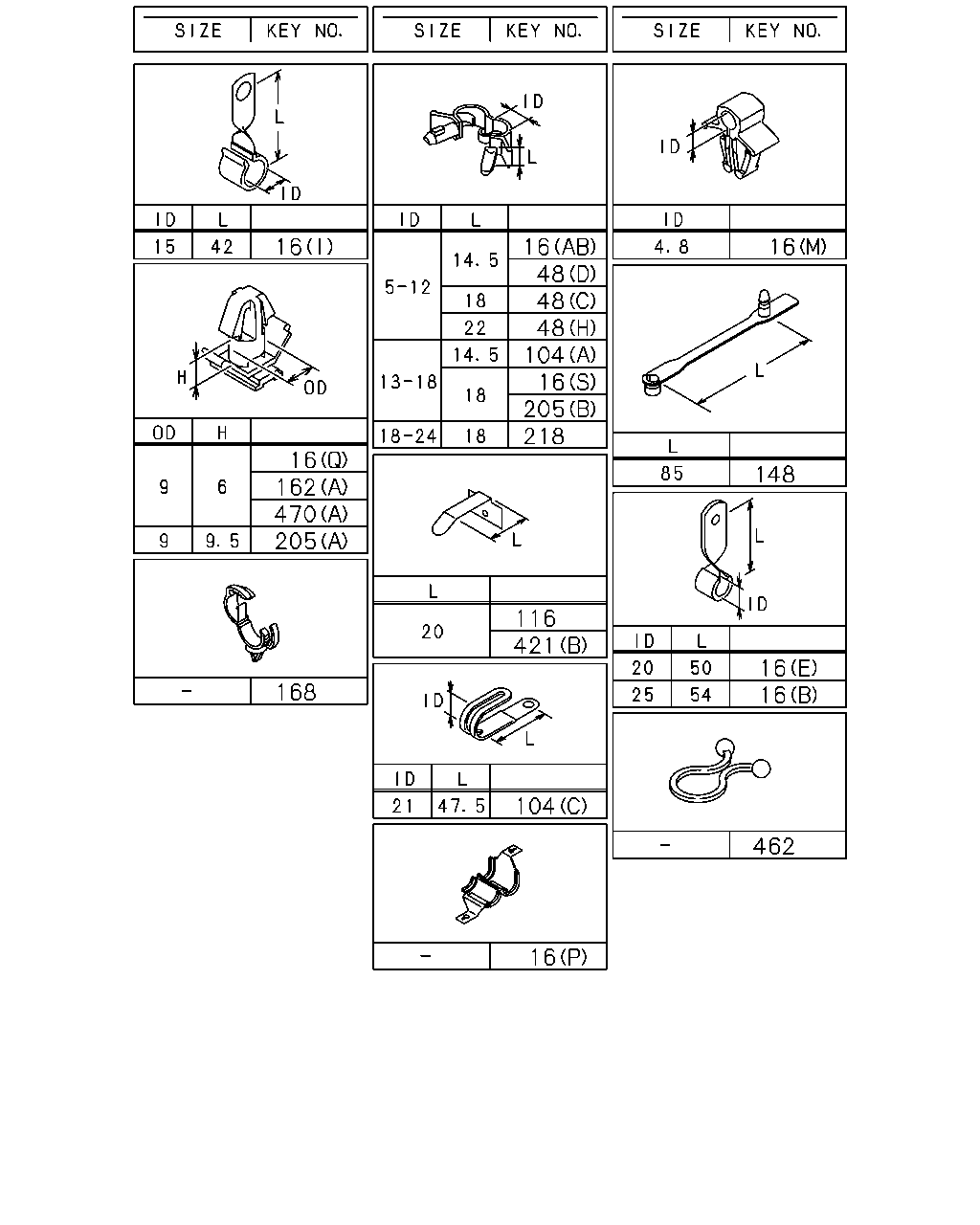

çizim 80555
16 16 48 48 48 104 16 205 218 16 16 162 470 205 148 116 421 16 16 168 104 462 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0303-0407
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 0302-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 0302-
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0302-
16 CLIP; HARNESS
(J) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0302-0402
16 CLIP; HARNESS
(J) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(J) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0302-
16 CLIP; HARNESS
(J) ID=28 L=32 		1-09701-107-1 02 1 0302-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0302-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0302-
16 CLIP; HARNESS
(N) L=250 		1-09707-126-0 07 1 0302-0304
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 07 1 0305-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 07 1 0305-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0302-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0302-
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0302-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 08 1 0302-
16 CLIP; HARNESS
(S) ID=13-18 L=18 		1-09709-291-0 01 1 0302-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0302-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 08 1 0302-
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0302-
16 CLIP; HARNESS
(R) ID=21 L=24 		8-94176-807-1 01 1 0302-
16 CLIP; HARNESS
(W) ID=11 L=16 		9-09525-025-0 02 1 0302-
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0302-
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 02 1 0302-
16 CLIP; HARNESS
(Y) ID=16 L=40 		9-09525-576-0 01 1 0302-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0302-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 10 1 0302-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0302-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=20 		9-09525-035-0 02 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (A) ID=22 L=32 		1-09700-126-1 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (E) ID=20 L=50 		1-09700-679-1 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) ID=25 L=54 		1-09700-392-0 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0302-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (K) ID=28 L=40 		1-09701-261-0 01 1 0302-
48 CLIP; FRAME HARNESS
(G) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0302-0302
48 CLIP; FRAME HARNESS
(I) ID=26 L=26 		1-09701-236-0 01 1 0303-
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0302-
48 CLIP; FRAME HARNESS
(B) L=250 		1-09707-126-0 18 1 0302-0304
48 CLIP; FRAME HARNESS
(J) L=350 		1-09707-183-0 18 1 0305-
48 CLIP; FRAME HARNESS
(J) L=350 		1-09707-183-0 18 1 0305-
48 CLIP; FRAME HARNESS
(C) ID=5-12 L=18 		1-09709-287-0 08 1 0302-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=22 		1-09709-288-0 02 1 0302-
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0302-
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 07 1 0302-
48 CLIP; FRAME HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 0302-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0302-
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 02 1 0302-
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0302-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0302-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0302-
162 CLIP; SW HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0302-0404
162 CLIP; SW HARNESS
(B) L=180 		1-09707-162-1 01 1 0405-
162 CLIP; SW HARNESS
(B) L=180 		1-09707-162-1 01 1 0405-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 06 1 0302-
205 CLIP; BACK LAMP HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 02 1 0302-
205 CLIP; BACK LAMP HARNESS
(B) ID=13-18 L=18 		1-09709-291-0 01 1 0302-
218 CLIP; BAND,RR COMB
ID=18-24 L=18 		1-09709-294-0 04 1 0302-
421 CLIP; FLOOR HARNESS
(A) ID=21 L=28 		1-09700-673-1 02 1 0302-
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 05 1 0302-0302
421 CLIP; FLOOR HARNESS
(C) 180X40 		1-72498-019-0 05 1 0303-
462 CLIP; HARNESS,HTR
ID=20 		1-09709-068-0 02 1 0302-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0302-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0302-

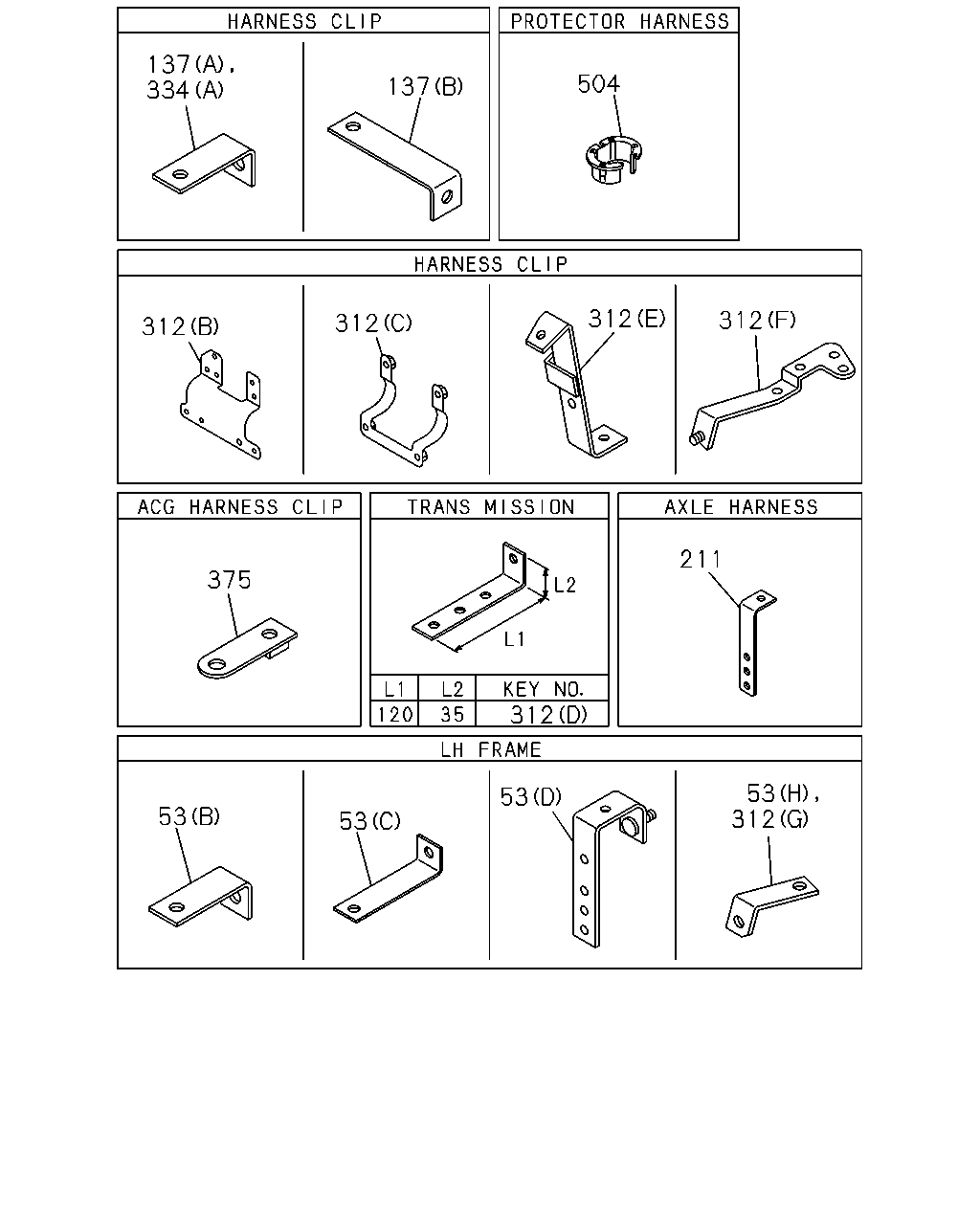

çizim 81971
137 334 504 137 312 312 312 312 211 375 312 53 312 53 53 53
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 0302-
53 BRACKET; HARNESS
(C) L=59 B=20 		1-47479-048-0 02 1 0302-
53 BRACKET; HARNESS
(D) 		1-47479-333-0 01 1 0302-
53 BRACKET; HARNESS
(E) L=30 		1-47479-481-0 04 1 0302-
53 BRACKET; HARNESS
(F) 		1-47479-537-0 09 1 0302-
53 BRACKET; HARNESS
(G) 		1-82698-401-0 01 1 0302-0303
53 BRACKET; HARNESS
(H) 		1-82698-440-0 01 1 0302-
53 BRACKET; HARNESS
(I) 		1-82698-450-1 01 1 0302-
53 BRACKET; HARNESS
(J) 		1-82698-451-2 01 1 0302-
53 BRACKET; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42129-495-0 01 1 0302-
137 BRACKET; HARNESS CLAMP
(A) L=55 		1-47475-304-0 01 1 0302-0302
137 BRACKET; HARNESS CLAMP
(B) 		1-47479-386-0 02 1 0302-0302
137 BRACKET; HARNESS CLAMP
(B) 		1-47479-386-1 01 1 0303-
211 BRACKET; AXLE HARNESS
L=120 H=35 		1-82699-970-0 02 1 0302-
312 BRACKET; CLIP HARNESS
(D) L=120 H=35 		1-82698-088-0 01 1 0302-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-284-0 01 1 0302-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-285-0 01 1 0302-
312 BRACKET; CLIP HARNESS
(A) 		1-38329-061-0 01 1 0302-0311
312 BRACKET; CLIP HARNESS
(G) 		1-82698-440-0 01 1 0312-
312 BRACKET; CLIP HARNESS
(G) 		1-82698-440-0 01 1 0312-
312 BRACKET; CLIP HARNESS
(E) 		1-82698-442-0 01 1 0302-0302
312 BRACKET; CLIP HARNESS
(E) L=135.5 		1-82698-501-0 01 1 0303-
312 BRACKET; CLIP HARNESS
(F) 		1-82698-443-0 01 1 0302-
334 BRACKET
(A) L=55 		1-47476-177-0 02 1 0302-
334 BRACKET
(B) 		1-53458-932-0 01 1 0302-0302
334 BRACKET
(D) 		1-53457-106-0 01 1 0303-0407
334 BRACKET
(D) 		1-53458-362-0 01 1 0408-
334 BRACKET
(D) 		1-53458-362-0 01 1 0408-
334 BRACKET
(C) L=95 		1-82699-085-0 01 1 0302-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0302-
504 PROTECTOR; HARNESS 1-82698-391-0 02 1 0302-
çizim 83601
27 1 224 1 224 1 510 421 530 178 178 178 178 178 5
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(A) ID=23 OD=27 L=40 		1-09337-015-0 01 1 0302-0302
1 SLEEVE; RUBBER
(A) ID=23 OD=27 L=40 		1-09337-015-0 02 1 0303-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0302-
1 SLEEVE; RUBBER
(C) ID=6 L=30 		5-09360-352-0 01 1 0302-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0303-
27 PROTECTOR; EDGE
L=80 		1-82698-374-0 01 1 0302-0407
178 GROMMET; HARNESS
(E) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0303-0304
178 GROMMET; HARNESS
(E) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0305-
178 GROMMET; HARNESS
(C) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0302-0305
178 GROMMET; HARNESS
(C) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 02 1 0306-
178 GROMMET; HARNESS
(C) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 02 1 0306-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 02 1 0302-0305
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0306-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0306-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0302-0309
178 GROMMET; HARNESS
(C) WO/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0310-
178 GROMMET; HARNESS
(C) WO/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0310-
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=17 		9-09956-256-1 02 1 0302-0302
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=17 		9-09956-256-1 01 1 0303-0304
224 SLEEVE; RUBBER,HARNESS
(B) ID=6 L=30 		5-09360-352-0 01 1 0302-
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0302-
421 CLIP; FLOOR HARNESS
(A) ID=21 L=28 		1-09700-673-1 02 1 0302-
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 05 1 0302-0302
421 CLIP; FLOOR HARNESS
(C) 180X40 		1-72498-019-0 05 1 0303-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0302-
530 SEAL; HARNESS
180X40 		1-72498-019-0 03 1 0302-
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 0302-
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0302-
530 SEAL; HARNESS
100X40 		1-72498-022-0 01 1 0302-
çizim 84833
53 53 53 334 334 53 53 312 334 59 59 53 342 342
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 0302-
53 BRACKET; HARNESS
(C) L=59 B=20 		1-47479-048-0 02 1 0302-
53 BRACKET; HARNESS
(D) 		1-47479-333-0 01 1 0302-
53 BRACKET; HARNESS
(E) L=30 		1-47479-481-0 04 1 0302-
53 BRACKET; HARNESS
(F) 		1-47479-537-0 09 1 0302-
53 BRACKET; HARNESS
(G) 		1-82698-401-0 01 1 0302-0303
53 BRACKET; HARNESS
(H) 		1-82698-440-0 01 1 0302-
53 BRACKET; HARNESS
(I) 		1-82698-450-1 01 1 0302-
53 BRACKET; HARNESS
(J) 		1-82698-451-2 01 1 0302-
53 BRACKET; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42129-495-0 01 1 0302-
59 BRACKET; FRAME HARNESS
(A) 		1-82698-402-1 01 1 0302-0311
59 BRACKET; FRAME HARNESS
(B) 		1-82698-531-0 01 1 0312-
59 BRACKET; FRAME HARNESS
(B) 		1-82698-531-0 01 1 0312-
312 BRACKET; CLIP HARNESS
(D) L=120 H=35 		1-82698-088-0 01 1 0302-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-284-0 01 1 0302-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-285-0 01 1 0302-
312 BRACKET; CLIP HARNESS
(A) 		1-38329-061-0 01 1 0302-0311
312 BRACKET; CLIP HARNESS
(G) 		1-82698-440-0 01 1 0312-
312 BRACKET; CLIP HARNESS
(G) 		1-82698-440-0 01 1 0312-
312 BRACKET; CLIP HARNESS
(E) 		1-82698-442-0 01 1 0302-0302
312 BRACKET; CLIP HARNESS
(E) L=135.5 		1-82698-501-0 01 1 0303-
312 BRACKET; CLIP HARNESS
(F) 		1-82698-443-0 01 1 0302-
334 BRACKET
(A) L=55 		1-47476-177-0 02 1 0302-
334 BRACKET
(B) 		1-53458-932-0 01 1 0302-0302
334 BRACKET
(D) 		1-53457-106-0 01 1 0303-0407
334 BRACKET
(D) 		1-53458-362-0 01 1 0408-
334 BRACKET
(D) 		1-53458-362-0 01 1 0408-
334 BRACKET
(C) L=95 		1-82699-085-0 01 1 0302-
342 BRACKET; HARNESS CAB MTG
(B) 		1-47479-643-0 01 1 0302-0302
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
