◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXJ ▶ 10910 - CXJ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#26355) — 31 parça

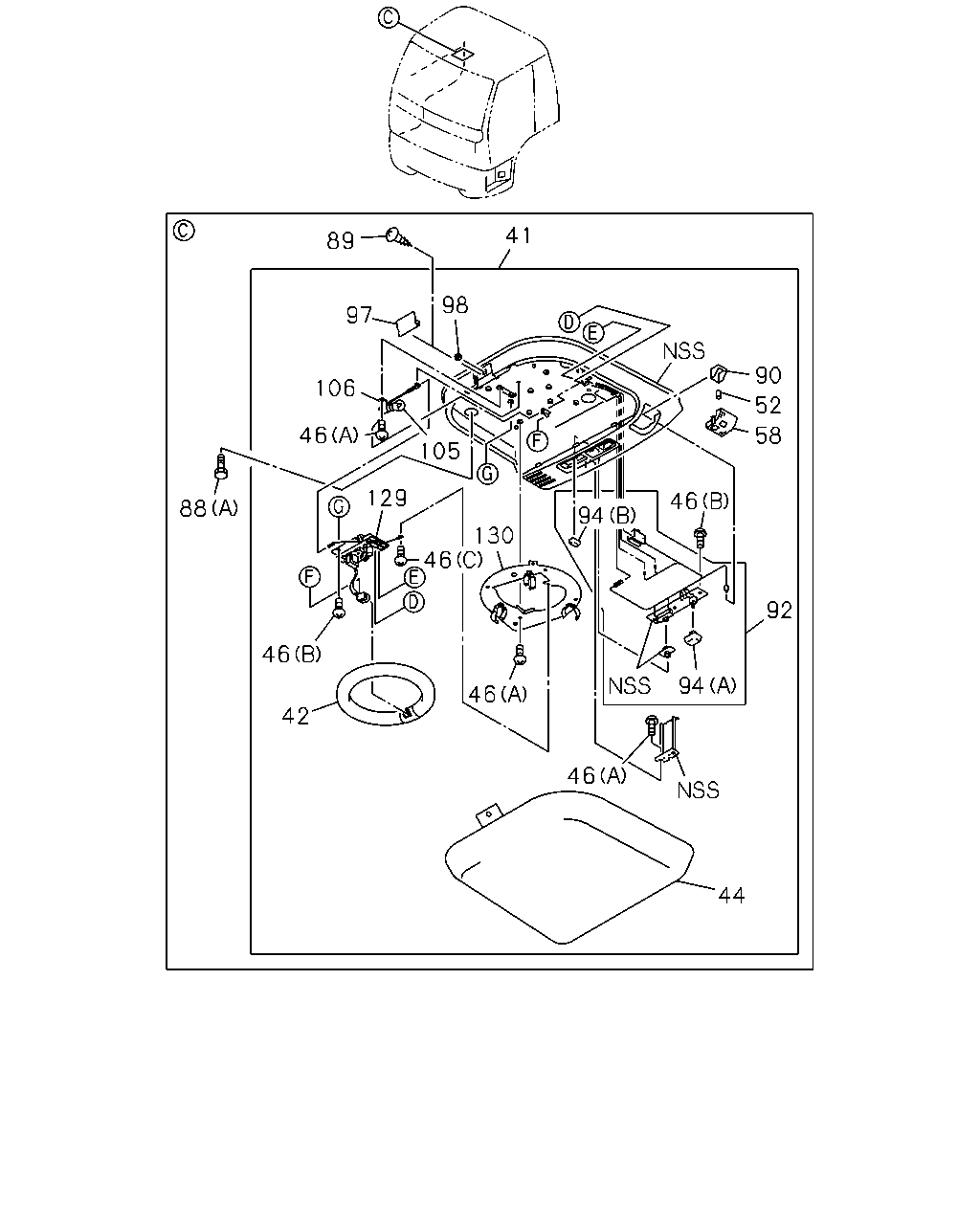

çizim 83783
41 89 98 97 90 106 52 46 58 105 129 46 88 94 130 46 92 46 94 46 42 46 44
BalonParca AdiParca NoAdetTipApplied Date
41 LAMP ASM; FLUORESCENT 1-86830-309-2 01 1 0302-
42 LAMP; FLUORESCENT 1-86830-094-1 01 1 0302-
44 LENS; FLUORESCENT LAMP 1-86830-092-0 01 1 0302-
46 SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING 		1-86830-095-0 08 1 0302-
46 SCREW; FLUORESCENT LAMP
(B) M4X12 		1-86830-202-0 07 1 0302-
46 SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING 		1-86830-336-0 01 1 0302-
52 BULB; SPOT LAMP
28V 6W 		1-86830-090-0 01 1 0302-
58 LENS; SPOT LAMP 1-86830-089-0 01 1 0302-
88 BOLT; LAMP
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0302-
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0302-
89 SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING 		9-07076-510-0 01 1 0302-
90 BASE; LAMP 1-86830-091-0 01 1 0302-
92 SWITCH ASM; FLUORESCENT 1-86830-341-0 01 1 0302-
94 KNOB; ROOM LAMP SW
(A) 		1-86830-312-0 01 1 0302-
94 KNOB; ROOM LAMP SW
(B) 		1-86830-313-0 01 1 0302-
97 CAP; LENS FIX 1-86830-311-0 01 1 0302-
98 GROMMET; SCREW,LENS FIX 1-86830-102-0 01 1 0302-
105 BULB; FLUORESCENT LAMP
28V 20W 		1-86830-200-0 01 1 0302-
106 SOCKET; BULB 1-86830-201-0 01 1 0302-
129 INVERTER ASM; FLUORESCENT LAMP 1-86830-338-0 01 1 0302-
130 PLATE ASM; FLUORESCENT LAMP 1-86830-339-0 01 1 0302-
çizim 85328
56 33 88 24 33 33 15 25 27 35
BalonParca AdiParca NoAdetTipApplied Date
15 LAMP; INSPECTION 1-82140-052-1 01 1 0302-
24 LAMP; STEP 1-82140-052-1 01 1 0302-
25 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 0302-
27 LENS; STEP LAMP 1-82145-019-0 01 1 0302-
33 GROMMET; SCREW,LAMP
(B) 		1-09983-182-0 02 1 0302-
33 GROMMET; SCREW,LAMP
(A) M4 		5-09470-002-0 02 1 0302-
35 SCREW; STEP LAMP
M4X20 		1-82149-006-0 02 1 0302-
56 BRACKET; LAMP 1-86830-302-1 01 1 0302-
88 BOLT; LAMP
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0302-
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
