Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶
7-70 — SEPARATER AND BED
(#26352) — 19 parça
◀
[770A] CABIN CENTER CURTAIN (2 parça)

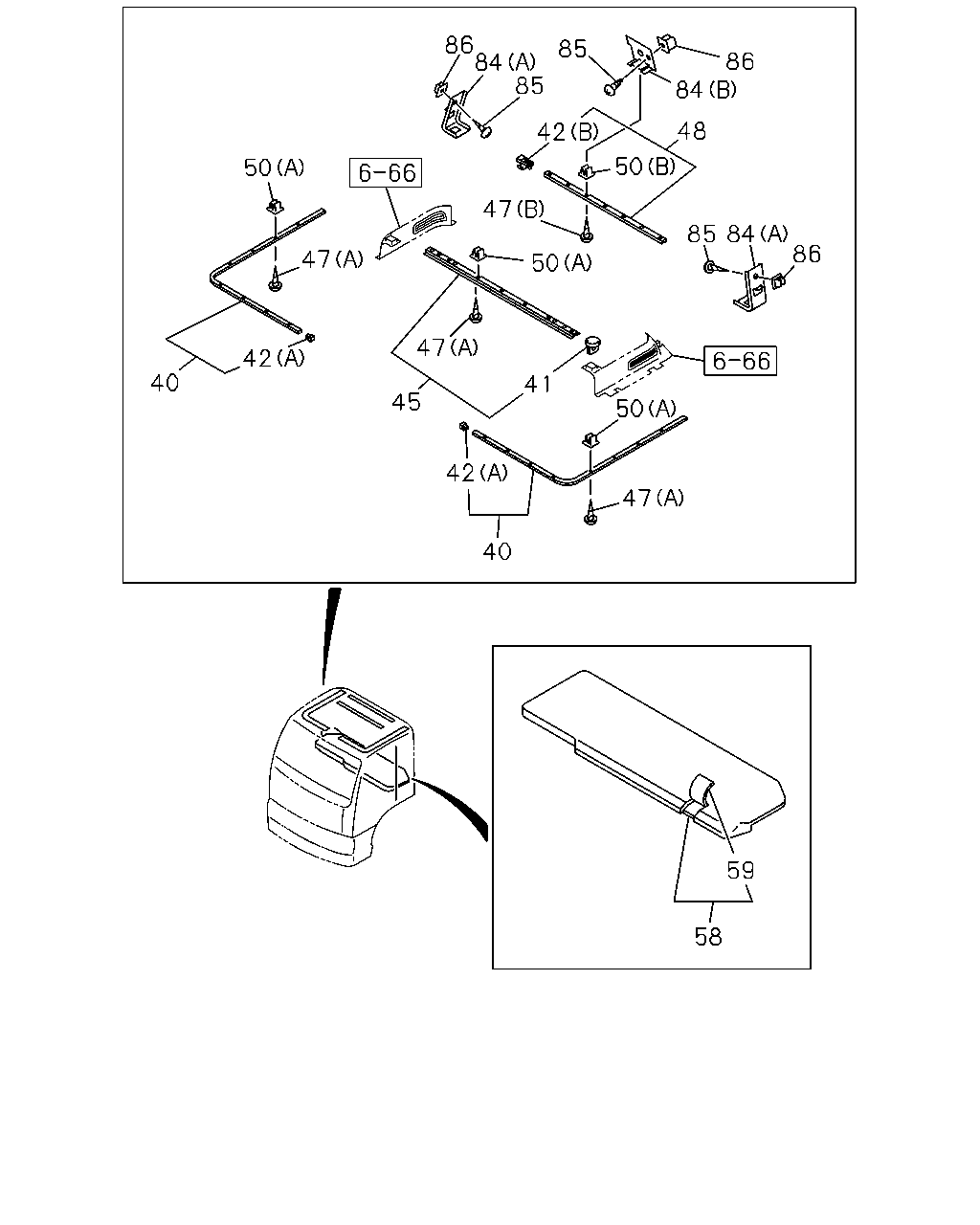

[770A] CURTAIN RAIL AND BED (17 parça)
▶
44
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
CURTAIN ASM; CABIN CENTER
1-73907-481-1
01
1
0302-
44
CURTAIN ASM; CABIN CENTER
1-73907-480-1
01
1
0302-
86
84
85
85
86
84
48
42
50
50
47
85
84
86
47
50
47
42
40
41
45
50
42
47
40
59
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
40
RAIL; CURTAIN,SIDE
1-73907-536-0
01
1
0302-
40
RAIL; CURTAIN,SIDE
1-73907-535-0
01
1
0302-
41
HOOK; CURTAIN RAIL
H=14.5 WHITE
1-73996-398-0
14
1
0302-
42
STOPPER; CURTAIN RAIL
(A)
1-73996-393-0
02
1
0302-
42
STOPPER; CURTAIN RAIL
(B)
1-73996-399-0
01
1
0302-
45
RAIL; CURTAIN,FRT
1-73907-546-3
01
1
0302-
47
SCREW; CURTAIN RAIL
(A) M5X20
5-09981-059-0
27
1
0302-
47
SCREW; CURTAIN RAIL
(B) M5X25
5-09981-093-0
07
1
0302-
48
RAIL; CURTAIN,BACK
1-73996-385-1
01
1
0302-
50
GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5
1-09983-159-0
07
1
0302-
50
GROMMET; SCREW,CURTAIN RAIL
(A) D=8.6X7.7 L=7.5
8-94279-078-0
27
1
0302-
58
BED; MAT
1-75127-018-2
01
1
0302-
59
COVER ASM; TRIM,BED MAT
1-75127-132-1
01
1
0302-
84
BRACKET; CURTAIN RAIL
(A)
1-73998-986-2
02
1
0302-
84
BRACKET; CURTAIN RAIL
(B)
1-73998-987-4
07
1
0302-
85
SCREW; BRKT
M5X20
5-09981-059-0
09
1
0302-
86
GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5
8-94279-078-0
09
1
0302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
