Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#26350) — 41 parça
◀

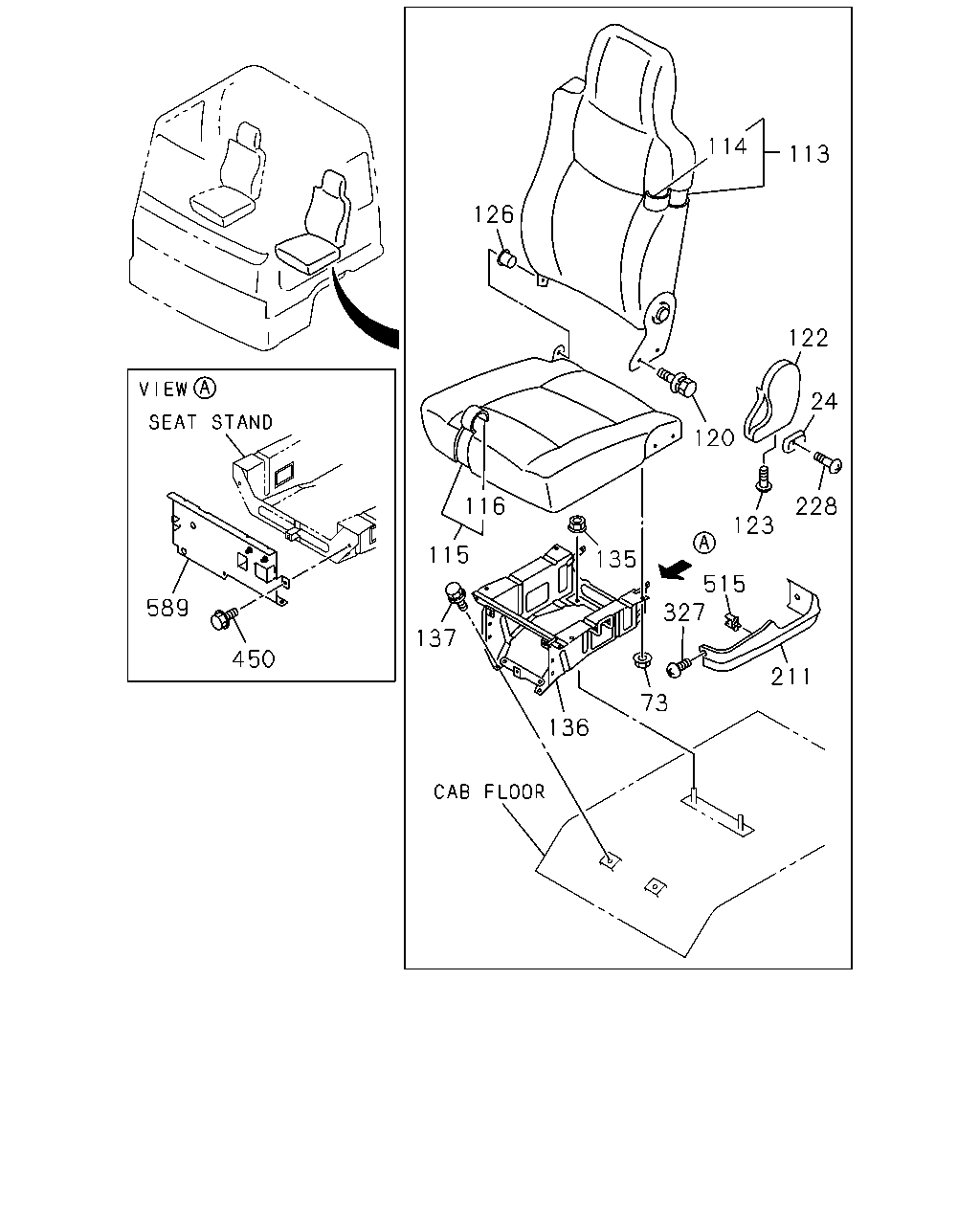

[750A] PASSENGER (19 parça)
[750A] DRIVER (22 parça)
▶
114
113
126
122
24
120
116
228
123
135
115
515
327
589
137
450
211
73
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
KNOB; RECLINING,FRT,SEAT
DARK GRAY
8-97859-019-0
01
1
0302-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
04
1
0302-
113
BACK ASM; SEAT
1-75208-191-4
01
1
0302-
114
COVER; TRIM,PASSENGER SEAT,BACK
1-75116-709-2
01
1
0302-
115
CUSHION ASM; PASSENGER SEAT
1-75026-784-2
01
1
0302-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
1-75116-691-2
01
1
0302-
120
BOLT; RECLINING ADJ
M8X20
8-97255-906-0
02
1
0302-
122
COVER; ADJ,RECLINING
DARK GRAY
8-97859-018-0
01
1
0302-
123
SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER
0-74310-516-0
01
1
0302-
126
BUSHING; HINGE,RECLINING
8-97854-087-0
01
1
0302-
135
NUT; SEAT STAND
M10 FLANGE
1-09984-153-0
02
1
0302-
136
STAND; PASSENGER SEAT
1-75558-602-3
01
1
0302-
137
BOLT; STAND
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
0302-
211
COVER; FRT SEAT
1-72538-274-0
01
1
0302-
228
SCREW; KNOB
M4X6
8-97042-273-0
01
1
0302-
327
CLIP; COVER
1-09987-273-0
02
1
0302-
450
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0302-
515
CLIP; PIPE
BLACK
8-94227-248-1
01
1
0302-
589
BRACKET; SEAT STAND
1-75557-469-3
01
1
0302-
27
1
2
12
13
336
590
336
587
16
336
325
336
63
55
46
81
76
582
582
582
581
582
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
1-75027-941-0
01
1
0302-
2
COVER; TRIM,FRT SEAT,BACK
1-75117-965-0
01
1
0302-
12
CUSHION; SEAT,FRT
1-75027-939-0
01
1
0302-
13
COVER; TRIM,FRT SEAT,CUSHION
1-75117-964-0
01
1
0302-
16
ADJUSTER ASM; RECLINING
1-75417-602-0
01
1
0302-
27
REST; HD,FRT SEAT
1-75657-029-0
01
1
0302-
46
BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
0302-
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
1-09984-153-0
02
1
0302-
63
ADJUSTER; SEAT SLIDE
1-75517-953-0
01
1
0302-
76
DAMPER; AIR SUSP
1-75537-276-0
01
1
0302-
81
SPRING; AIR
1-75537-275-0
01
1
0302-
325
COVER; SUSPENSION DEVICE
1-75537-274-0
01
1
0302-
336
COVER; DRIVER SEAT
(A)
1-72537-208-0
01
1
0302-
336
COVER; DRIVER SEAT
(B)
1-72537-210-0
01
1
0302-
336
COVER; DRIVER SEAT
(C)
1-72537-212-0
01
1
0302-
336
COVER; DRIVER SEAT
(D)
1-72537-213-0
01
1
0302-
581
PIPE; SEAT
1-73907-605-2
01
1
0302-
582
BOLT; PIPE,SEAT
(B)
1-09980-619-1
02
1
0302-
582
BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0302-
582
BOLT; PIPE,SEAT
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
01
1
0302-
587
VALVE; LUMBAR SUPPORT
1-75197-007-0
01
1
0302-
590
KNOB KIT; DRIVER SEAT
1-75417-600-0
01
1
0302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
