◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXJ ▶ 10910 - CXJ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#26349) — 51 parça

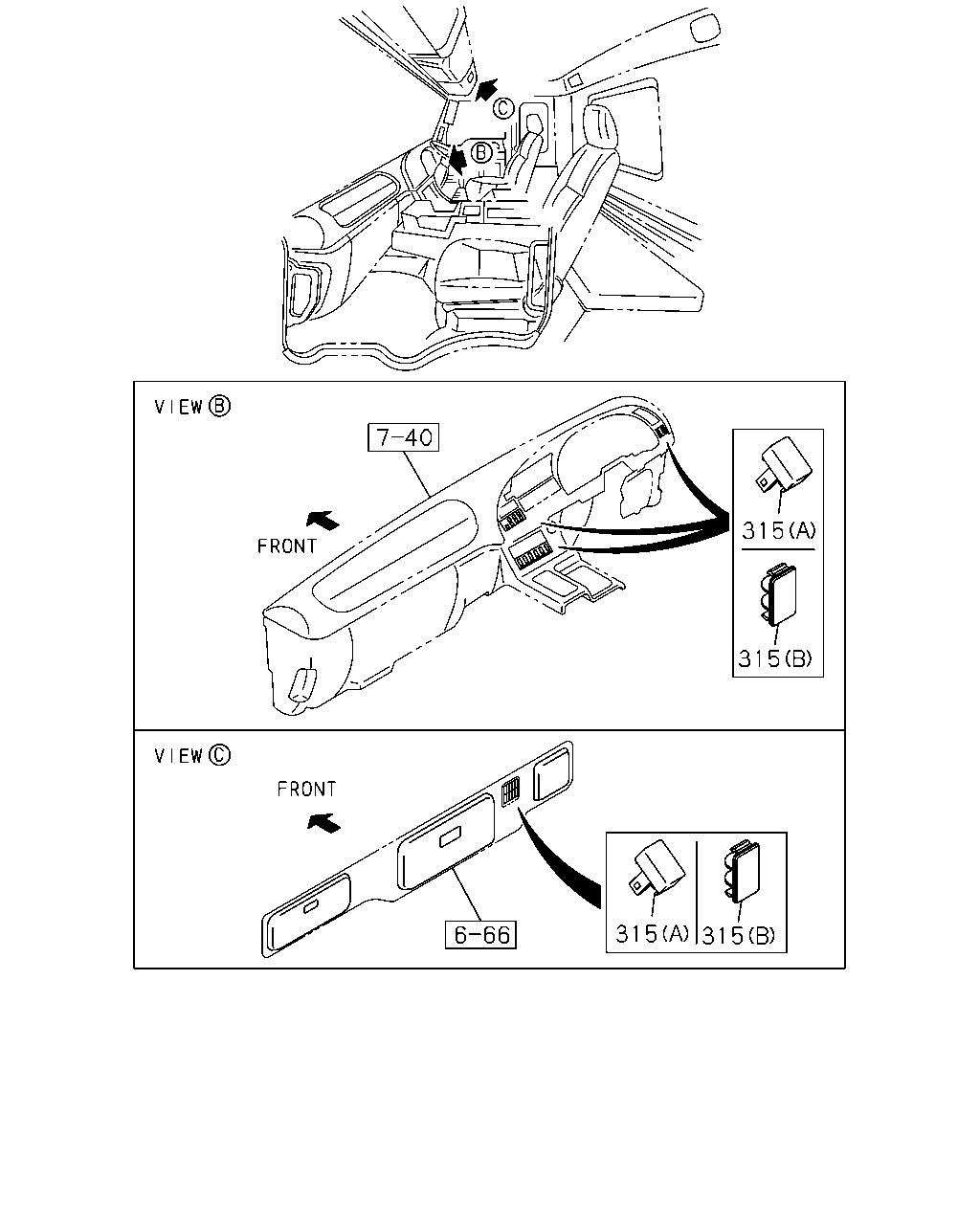

çizim 24617
315 315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0302-
315 COVER; HOLE,SW
RADIO SEEK SW<NBN> (A) 		1-82359-069-2 18 1 0302-
315 COVER; HOLE,SW
EXC. RADIO SEEK SW<NBN> (A) 		1-82359-069-2 19 1 0302-

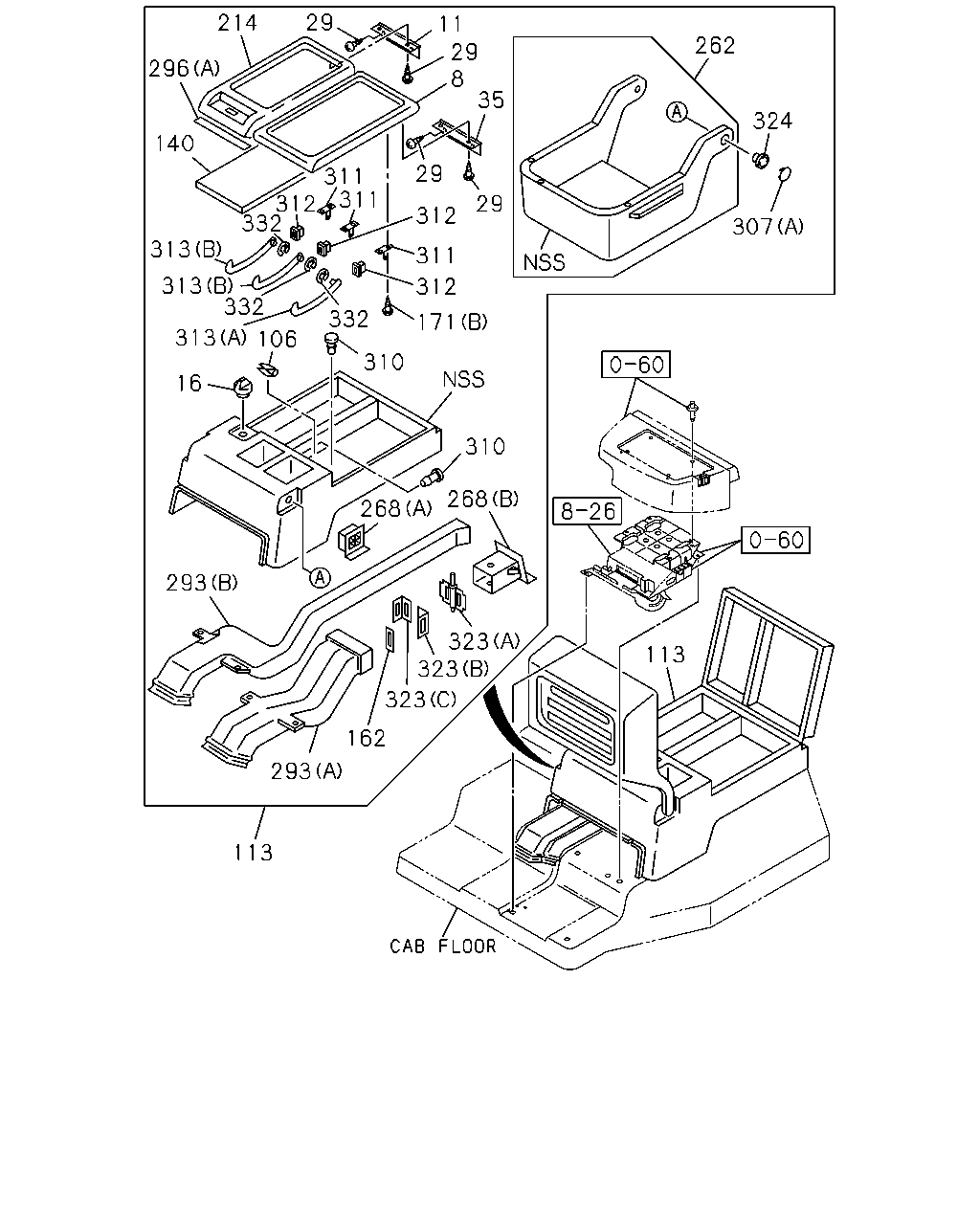

çizim 25295
29 214 11 262 29 8 296 35 324 140 29 311 312 311 332 29 312 307 313 311 313 332 312 332 171 313 106 310 16 310 268 268 293 323 323 113 323 162 293 113
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE 1-72537-185-0 01 1 0302-
11 HINGE; CONSOLE LID 1-72537-070-2 01 1 0302-
16 KNOB ASM 1-72537-189-0 01 1 0302-
29 SCREW; HINGE
M5X14 BINDING HEAD 		1-72537-168-0 08 1 0302-
35 HINGE; CENTER CONSOLE 1-72538-182-1 01 1 0302-
106 LOCK; CONSOLE LID 1-72537-079-0 02 1 0302-
113 BOX; CONSOLE 1-72537-180-0 01 1 0302-0404
113 BOX; CONSOLE 1-72537-240-3 01 1 0405-0507
113 BOX; CONSOLE 1-72537-285-3 01 1 0508-
140 SHEET 1-72537-093-1 01 1 0302-
162 CUSHION; PARCEL BOX 1-72537-128-0 03 1 0302-
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0302-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0302-
214 LID; CONSOLE 1-72537-186-0 01 1 0302-
262 TABLE ASM 1-72537-187-1 01 1 0302-
268 COVER; DUCT
(B) 		1-72537-183-0 01 1 0302-
268 COVER; DUCT
(A) 		1-72537-184-0 01 1 0302-
293 DUCT
(A) 		1-72537-081-3 01 1 0302-
293 DUCT
(B) 		1-72537-083-2 01 1 0302-
296 SEAL
(A) 		1-72537-094-1 01 1 0302-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0302-0303
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0304-
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0302-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0302-
310 CUSHION; CTR CONSOLE 1-72538-187-0 02 1 0302-
311 HOLDER; CONSOLE 1-72538-188-2 03 1 0302-
312 STOPPER; CONSOLE 1-72538-186-1 03 1 0302-
313 ARM; CTR CONSOLE
(A) 		1-72538-184-3 01 1 0302-
313 ARM; CTR CONSOLE
(B) 		1-72538-185-3 02 1 0302-
323 SHUTTER
(A) 		1-72537-084-1 01 1 0302-
323 SHUTTER
(B) 		1-72537-126-0 01 1 0302-
323 SHUTTER
(C) 		1-72537-127-0 01 1 0302-
324 BUSHING 1-72537-116-0 02 1 0302-
332 RING; SNAP,CONSOLE BOX 1-72537-170-0 03 1 0302-

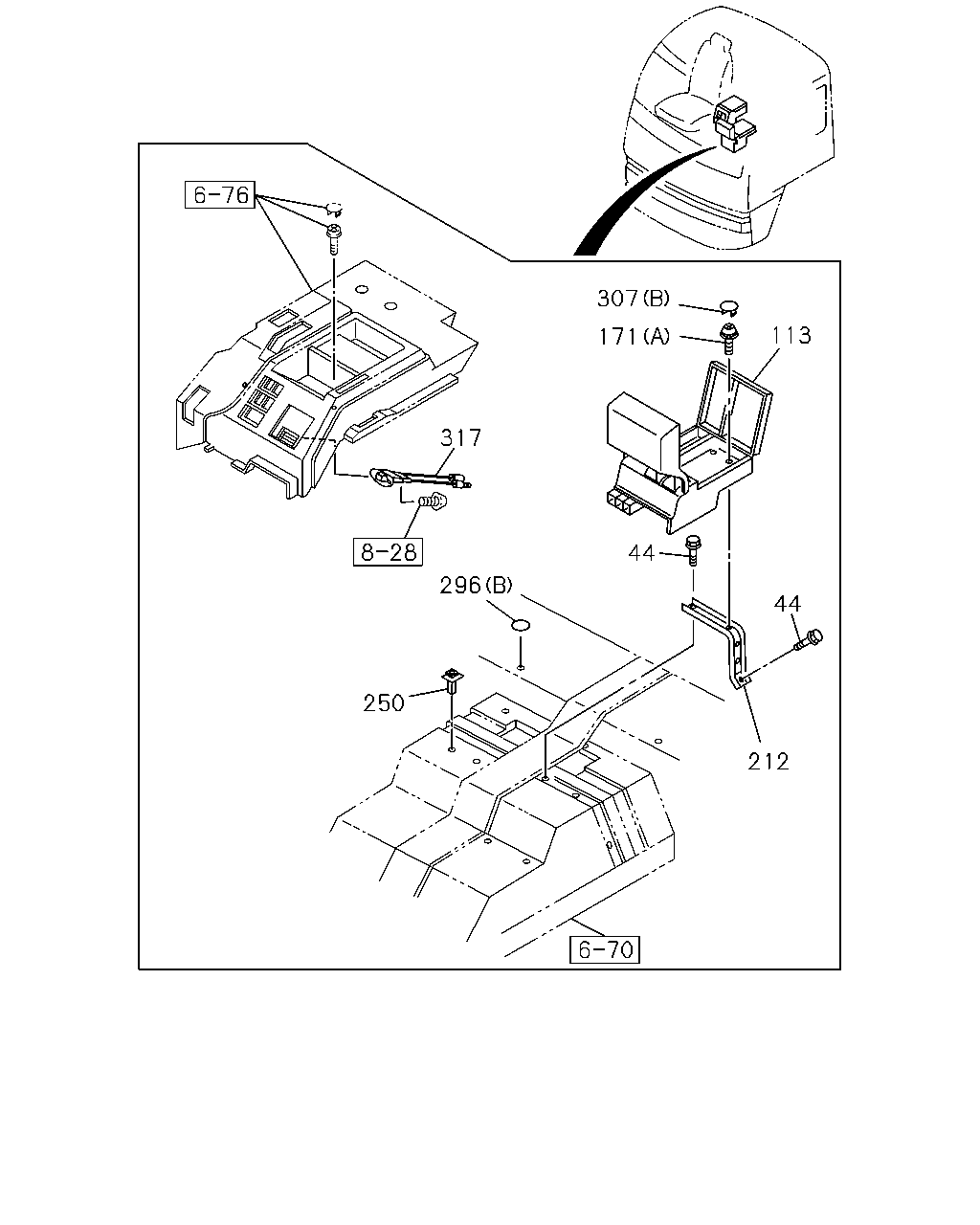

çizim 85299
307 113 171 317 44 296 44 250 212
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0302-
113 BOX; CONSOLE 1-72537-180-0 01 1 0302-0404
113 BOX; CONSOLE 1-72537-240-3 01 1 0405-0507
113 BOX; CONSOLE 1-72537-285-3 01 1 0508-
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0302-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0302-
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 0302-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0302-
296 SEAL
(A) 		1-72537-094-1 01 1 0302-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0302-0303
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0304-
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0302-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0302-
317 CONSENT 1-82523-020-2 01 1 0302-
