7-43 — SUN VISOR AND ASSIST GRIP (#26348) — 64 parça

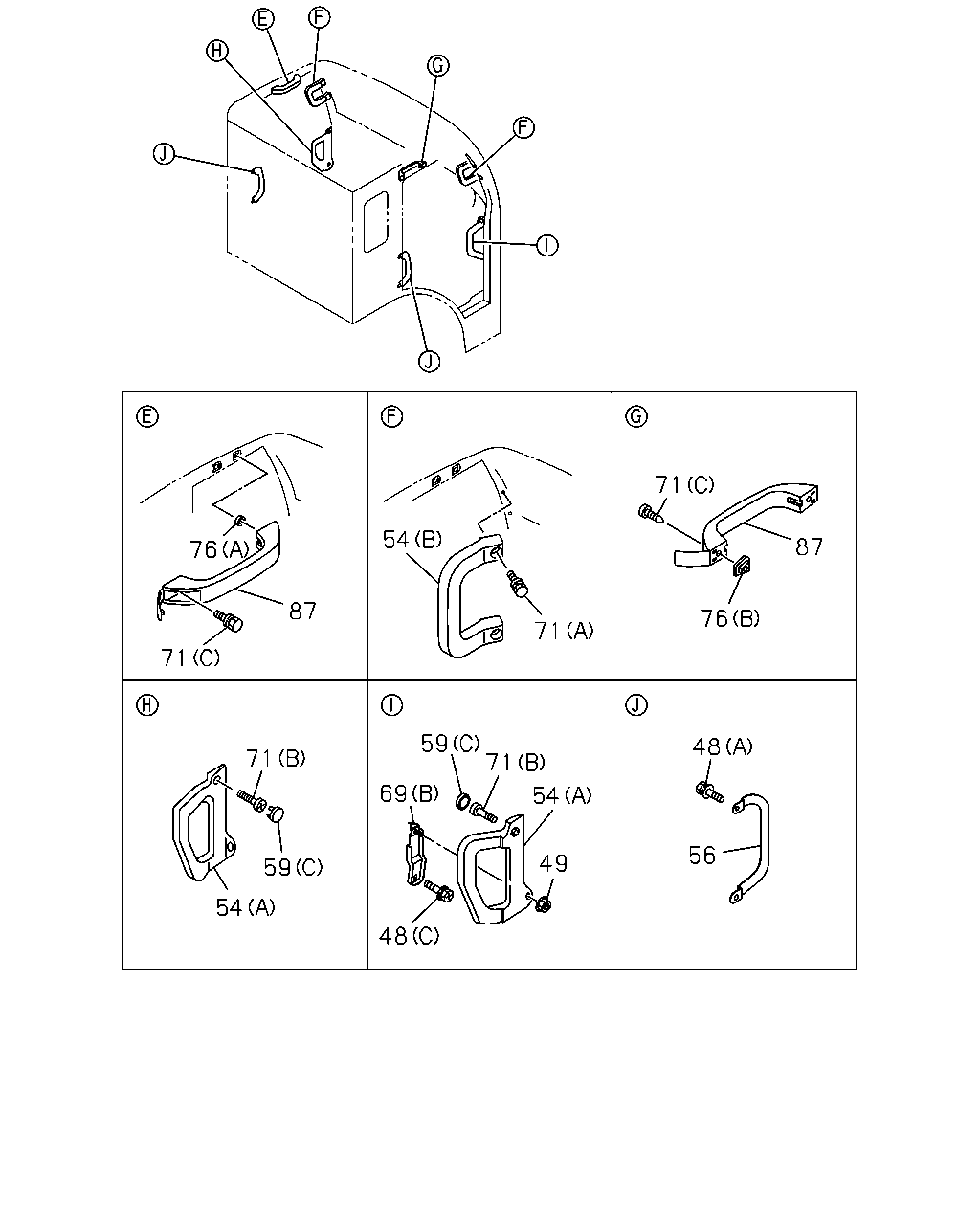

71 54 87 76 87 76 71 71 59 71 48 71 69 54 56 49 59 54 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0302-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0302-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0302-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0302-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0302-
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	0302-
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-1	02	1	0302-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0302-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0302-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0302-0402
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0302-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0302-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0302-
69	BRACKET; ASSIST GRIP (B)	1-73618-178-2	01	1	0302-
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	0302-
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	0302-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0302-
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0302-0310
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0311-
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0302-
76	SPACER; ASSIST GRIP (A) SQUARE TYPE	1-73618-180-0	02	1	0302-
76	SPACER; ASSIST GRIP (B) ROUND TYPE OD=13 T=4.5	8-94230-464-1	02	1	0302-
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	0302-

64 64 64 62 64 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0302-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0302-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0302-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0302-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0302-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0302-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0302-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0302-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0302-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0302-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0302-
69	BRACKET; ASSIST GRIP (B)	1-73618-178-2	01	1	0302-
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	0302-
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	0302-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0302-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0302-
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0302-

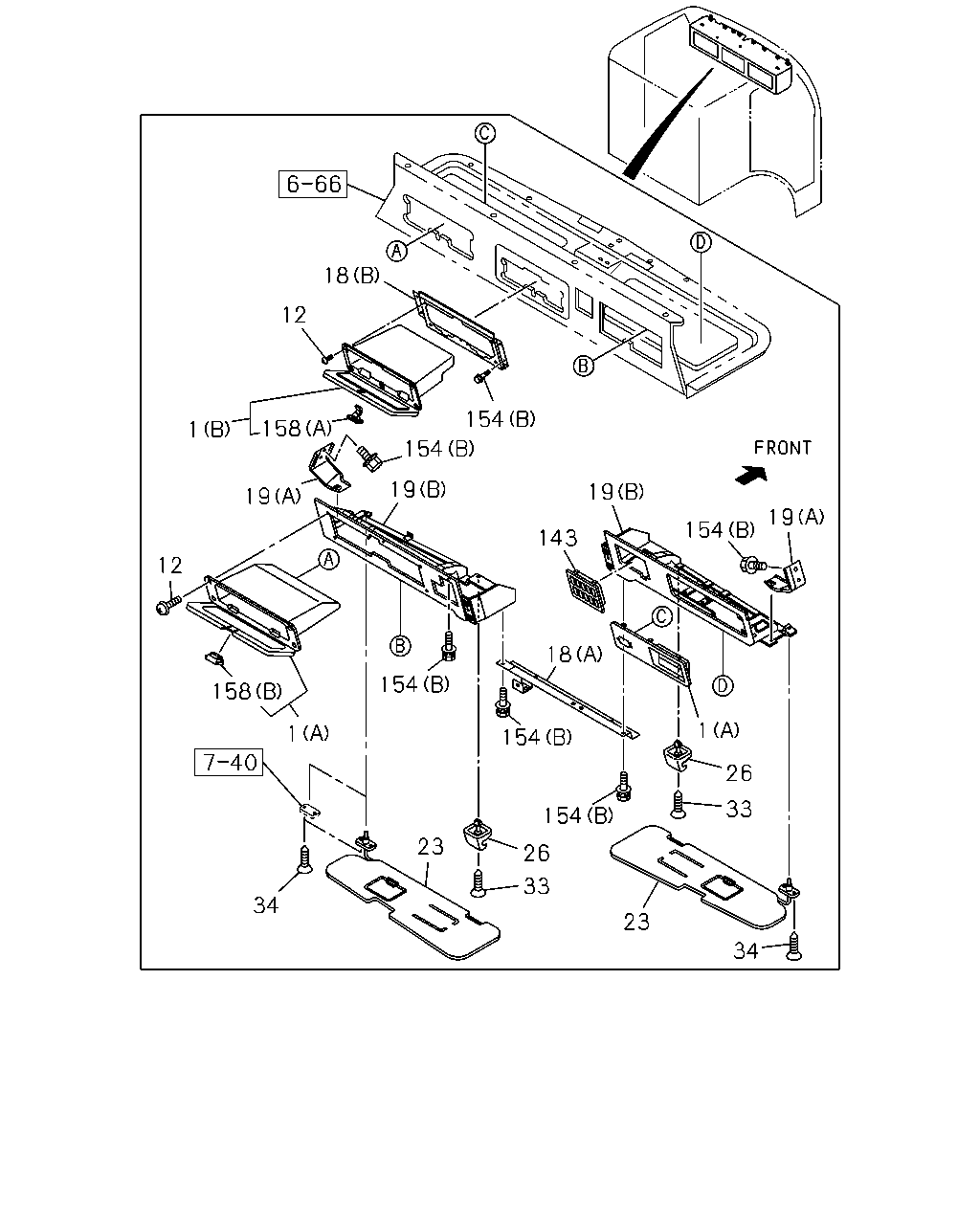

18 12 154 158 1 154 19 19 19 19 154 143 12 18 154 158 1 1 154 26 33 154 23 26 33 34 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0302-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0302-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0302-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0302-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0302-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0302-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0302-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0302-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0302-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0302-
23	SUN VISOR	1-73138-157-1	01	1	0302-
23	SUN VISOR	1-73138-156-1	01	1	0302-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0302-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0302-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0302-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0302-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0302-
143	BEZEL	1-72447-768-2	01	1	0302-
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0302-
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0302-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0302-
