◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXJ ▶ 10910 - CXJ RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#26331) — 219 parça

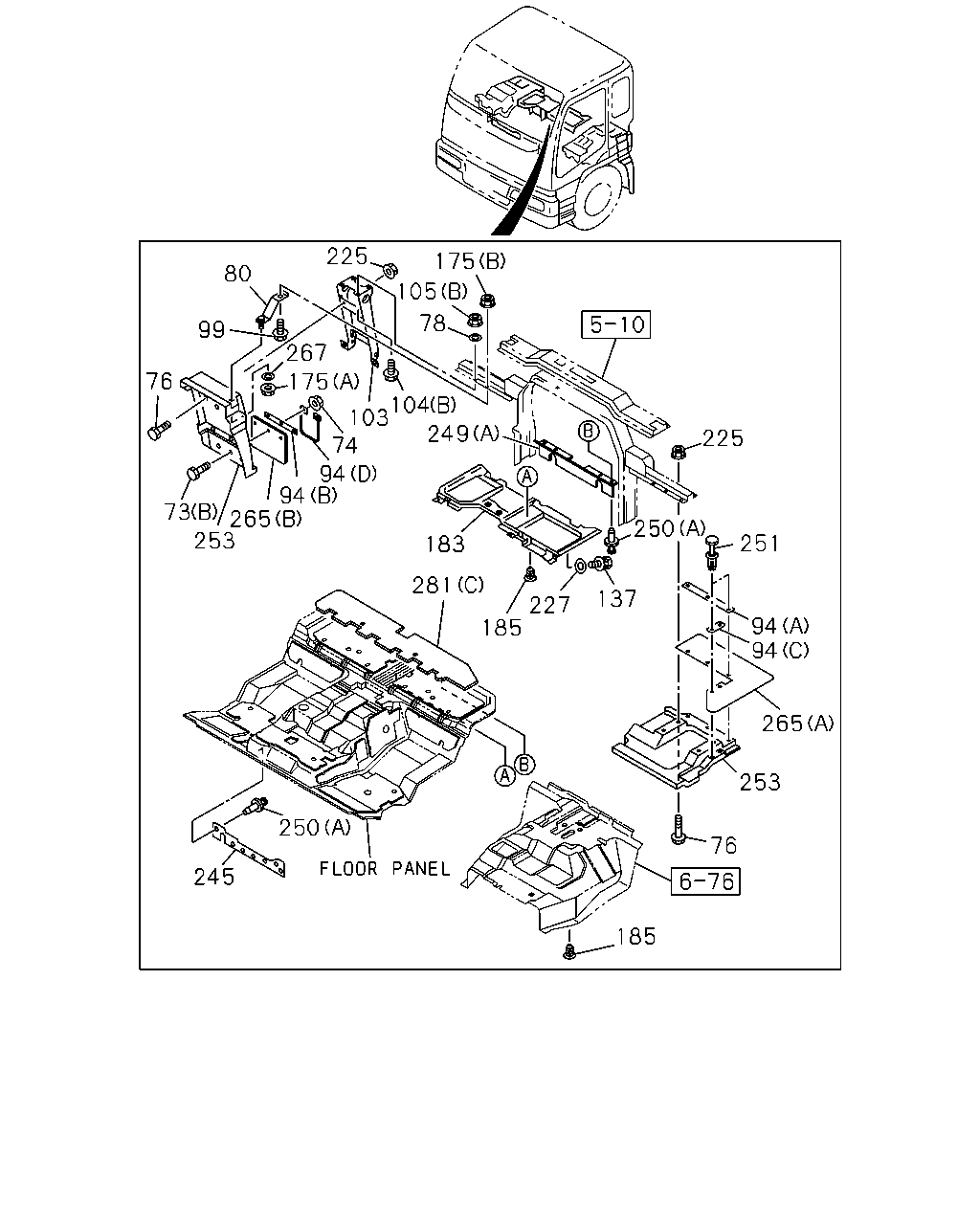

çizim 23976
225 105 175 80 78 99 267 76 175 104 103 74 249 225 94 94 265 253 250 73 251 183 281 137 94 94 227 185 265 253 250 76 245 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X16 FLANGE 		0-28280-816-0 05 1 0302-
73 BOLT; MUD COVER BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0302-0302
73 BOLT; MUD COVER BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0303-
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0302-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0302-0302
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0303-0410
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0411-
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 06 1 0411-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0302-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0302-
76 BOLT; MUD GUARD
M10X25 FLANGE 		0-28681-025-0 04 1 0302-0302
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 0302-0302
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0303-
78 WASHER; PL,MUD GUARD
ID=10.5 OD=26 		9-09164-710-0 04 1 0302-0302
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0303-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-036-0 01 1 0302-0302
94 RETAINER; FLAP RUBBER
(C) 		1-79931-146-0 01 1 0302-0302
94 RETAINER; FLAP RUBBER
(B) 		1-79931-091-2 01 1 0302-0302
94 RETAINER; FLAP RUBBER
(B) 		1-79931-091-2 02 1 0303-
94 RETAINER; FLAP RUBBER
(D) 		1-79931-194-0 01 1 0302-0302
94 RETAINER; FLAP RUBBER
(D) 		1-79931-194-0 02 1 0303-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0303-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 01 1 0302-0302
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 0303-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28680-820-0 04 1 0306-
104 BOLT; BRKT
(B) M10X25 FLANGE 		0-28681-025-0 08 1 0302-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0302-0410
105 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 08 1 0302-
105 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0305
105 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 08 1 0306-0410
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0302-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0303-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0302-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0302-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0302-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 28 1 0401-
225 NUT; MUD GUARD
M10 FLANGE 		0-91150-210-0 04 1 0302-0302
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 04 1 0302-0302
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0303-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0302-
245 RUBBER; SHUTTER,RAD 1-79937-982-1 01 1 0302-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0302-
249 RUBBER; SHUTTER
(C) 		1-79937-975-1 01 1 0302-
249 RUBBER; SHUTTER
(B) 		1-79937-902-3 01 1 0302-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 13 1 0302-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0302-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 0302-
251 CLIP; NOISE INSULATOR 5-09987-033-0 05 1 0302-0302
253 GUARD; MUD 1-79931-144-1 01 1 0302-0302
253 GUARD; MUD 1-79931-066-7 01 1 0303-
253 GUARD; MUD 1-79931-064-7 01 1 0302-
265 RUBBER; FLAP,REAR
(A) 		1-79931-272-0 01 1 0302-0302
265 RUBBER; FLAP,REAR
(B) 		1-79930-978-0 01 1 0302-0302
265 RUBBER; FLAP,REAR
(B) 		1-79930-978-0 02 1 0303-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0303-
281 INSULATOR; NOISE
(C) 		1-73237-445-4 01 1 0302-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0302-
281 INSULATOR; NOISE
(B) 		1-71907-307-0 01 1 0302-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0302-

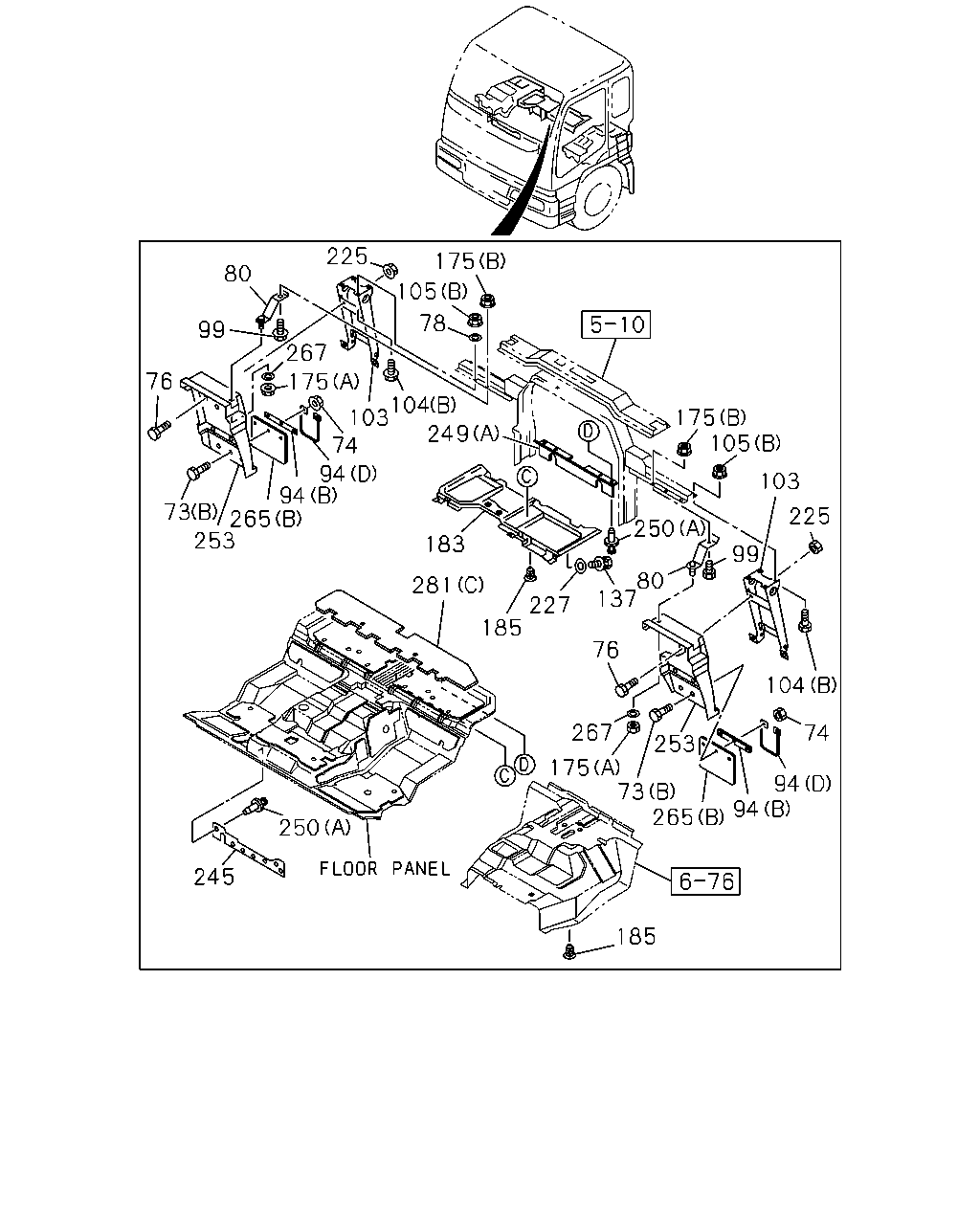

çizim 25670
225 105 175 80 78 99 267 76 175 104 103 74 175 105 249 94 94 265 253 103 73 225 250 183 99 80 137 281 227 185 76 104 267 74 253 175 94 73 94 265 250 245 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X16 FLANGE 		0-28280-816-0 05 1 0302-
73 BOLT; MUD COVER BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0302-0302
73 BOLT; MUD COVER BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0303-
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0302-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0302-0302
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0303-0410
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0411-
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 06 1 0411-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0302-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0302-
76 BOLT; MUD GUARD
M10X25 FLANGE 		0-28681-025-0 04 1 0302-0302
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 0302-0302
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0303-
78 WASHER; PL,MUD GUARD
ID=10.5 OD=26 		9-09164-710-0 04 1 0302-0302
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0303-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-036-0 01 1 0302-0302
94 RETAINER; FLAP RUBBER
(C) 		1-79931-146-0 01 1 0302-0302
94 RETAINER; FLAP RUBBER
(B) 		1-79931-091-2 01 1 0302-0302
94 RETAINER; FLAP RUBBER
(B) 		1-79931-091-2 02 1 0303-
94 RETAINER; FLAP RUBBER
(D) 		1-79931-194-0 01 1 0302-0302
94 RETAINER; FLAP RUBBER
(D) 		1-79931-194-0 02 1 0303-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0303-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 01 1 0302-0302
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 0303-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28680-820-0 04 1 0306-
104 BOLT; BRKT
(B) M10X25 FLANGE 		0-28681-025-0 08 1 0302-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0302-0410
105 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 08 1 0302-
105 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0305
105 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 08 1 0306-0410
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0302-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0303-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0302-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0302-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0302-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 28 1 0401-
225 NUT; MUD GUARD
M10 FLANGE 		0-91150-210-0 04 1 0302-0302
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 04 1 0302-0302
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0303-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0302-
245 RUBBER; SHUTTER,RAD 1-79937-982-1 01 1 0302-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0302-
249 RUBBER; SHUTTER
(C) 		1-79937-975-1 01 1 0302-
249 RUBBER; SHUTTER
(B) 		1-79937-902-3 01 1 0302-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 13 1 0302-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0302-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 0302-
253 GUARD; MUD 1-79931-144-1 01 1 0302-0302
253 GUARD; MUD 1-79931-066-7 01 1 0303-
253 GUARD; MUD 1-79931-064-7 01 1 0302-
265 RUBBER; FLAP,REAR
(A) 		1-79931-272-0 01 1 0302-0302
265 RUBBER; FLAP,REAR
(B) 		1-79930-978-0 01 1 0302-0302
265 RUBBER; FLAP,REAR
(B) 		1-79930-978-0 02 1 0303-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0303-
281 INSULATOR; NOISE
(C) 		1-73237-445-4 01 1 0302-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0302-
281 INSULATOR; NOISE
(B) 		1-71907-307-0 01 1 0302-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0302-

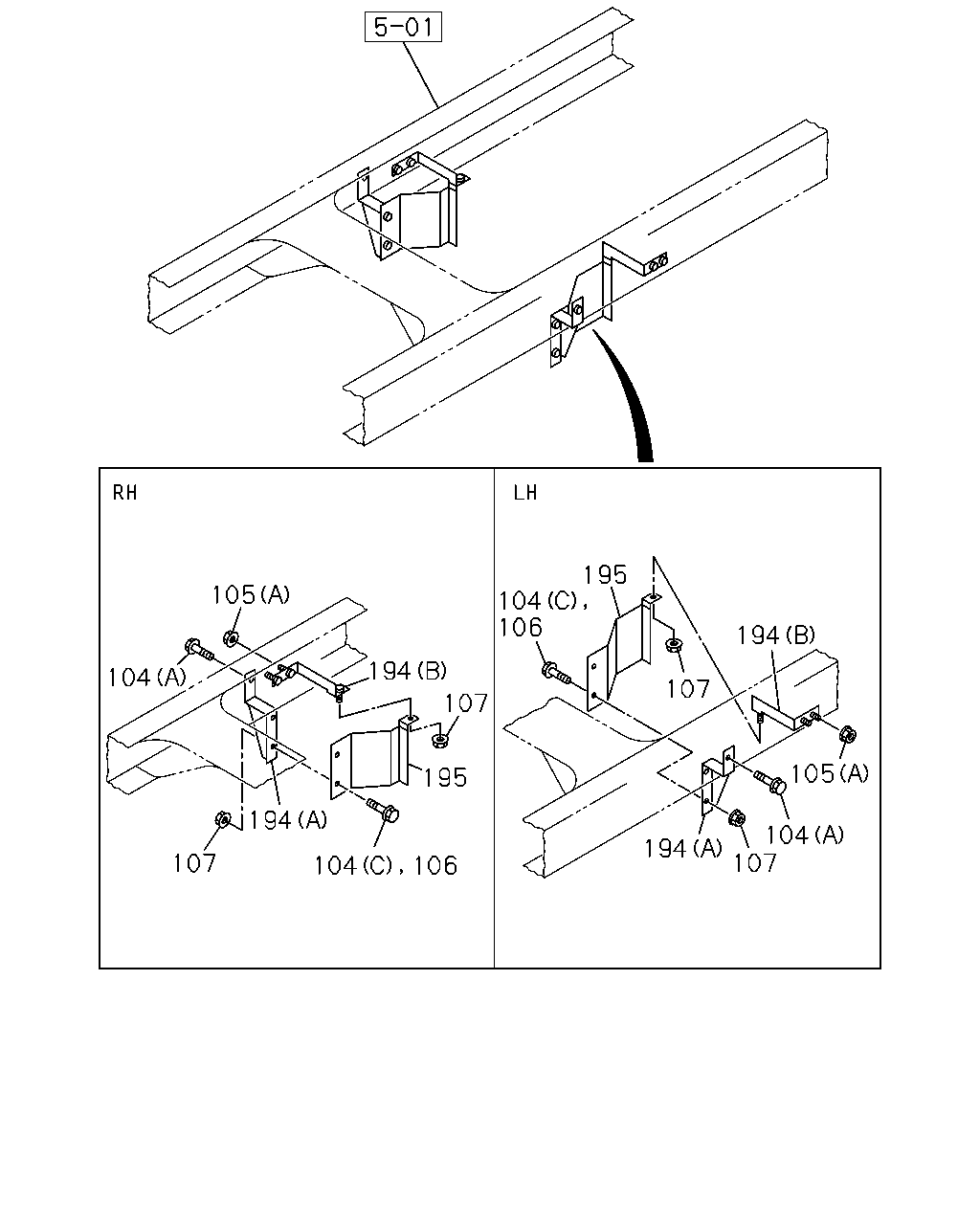

çizim 80158
195 104 106 105 194 194 104 107 107 105 195 194 104 107 194 107 104 106
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28680-820-0 04 1 0306-
104 BOLT; BRKT
(B) M10X25 FLANGE 		0-28681-025-0 08 1 0302-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0302-0410
105 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 08 1 0302-
105 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 04 1 0302-0305
105 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 08 1 0306-0410
106 BOLT; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE 		0-28680-820-0 04 1 0302-0305
107 NUT; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 06 1 0302-0305
107 NUT; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 02 1 0306-0410
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-374-0 01 1 0506-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-375-0 01 1 0506-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-22159-373-0 02 1 0302-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-374-0 01 1 0302-0410
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-375-0 01 1 0302-0410
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-543-1 01 1 0302-
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-545-0 01 1 0302-

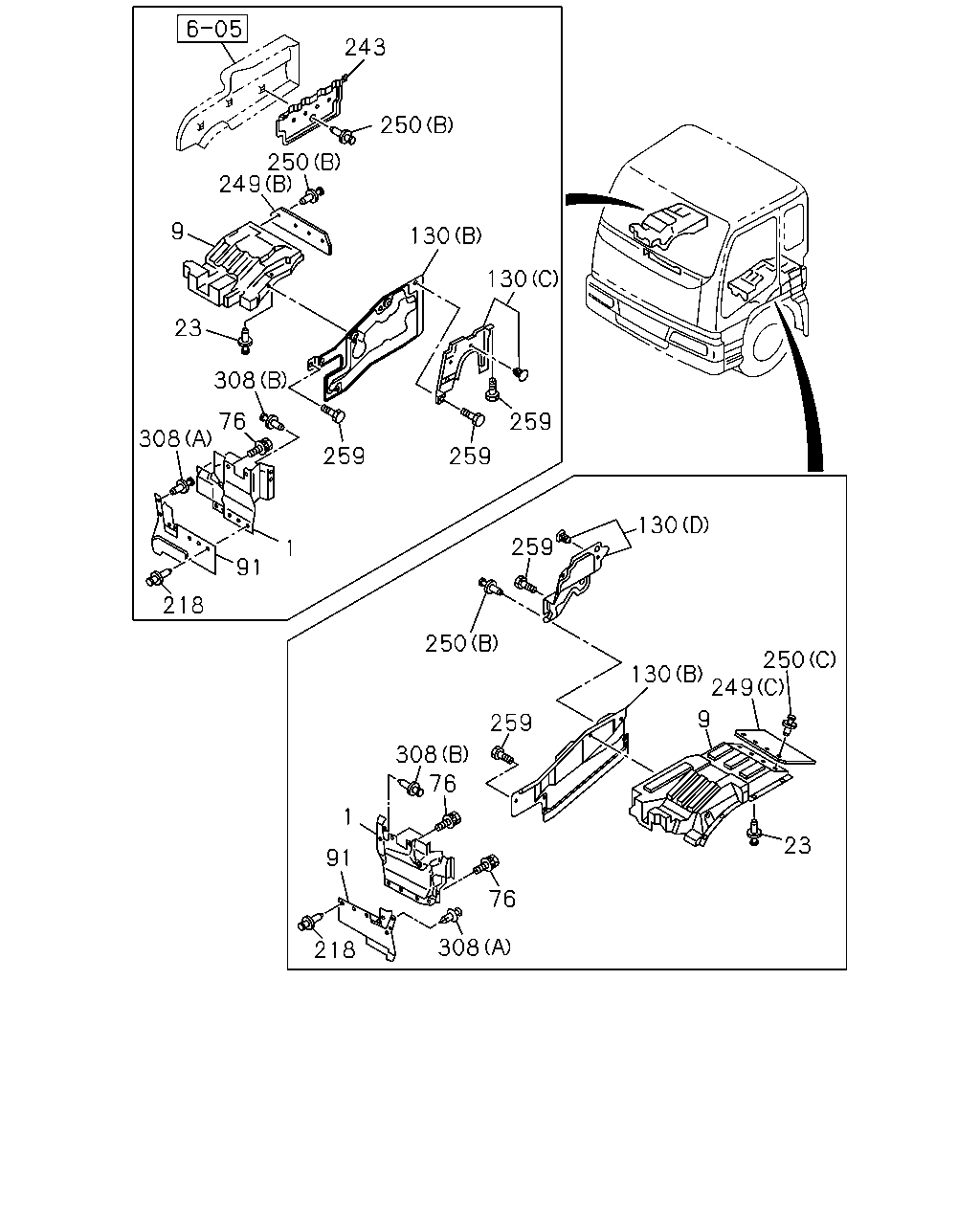

çizim 81731
243 250 250 249 9 130 130 23 308 76 259 308 259 259 130 259 1 91 218 250 250 130 249 9 259 308 76 1 23 91 76 308 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0302-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0302-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0302-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0302-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0302-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0302-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0302-
76 BOLT; MUD GUARD
M10X25 FLANGE 		0-28681-025-0 04 1 0302-0302
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 0302-0302
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0303-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0302-0302
91 COVER; MUD,FRT 1-79931-241-1 01 1 0303-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0302-0302
91 COVER; MUD,FRT 1-79931-240-1 01 1 0303-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-339-0 01 1 0302-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0302-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-928-3 01 1 0302-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-340-2 01 1 0302-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 0302-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-919-2 01 1 0302-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0302-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0302-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0302-
249 RUBBER; SHUTTER
(C) 		1-79937-975-1 01 1 0302-
249 RUBBER; SHUTTER
(B) 		1-79937-902-3 01 1 0302-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 13 1 0302-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0302-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 0302-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0302-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0302-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0302-
çizim 81732
74 130 73 130 167 167 160 122 162 167 160 122
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X16 FLANGE 		0-28280-816-0 05 1 0302-
73 BOLT; MUD COVER BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0302-0302
73 BOLT; MUD COVER BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0303-
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0302-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0302-0302
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0303-0410
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0411-
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 06 1 0411-
122 BOLT
M8X30 FLANGE 		0-28680-830-0 04 1 0302-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-339-0 01 1 0302-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0302-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-928-3 01 1 0302-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-340-2 01 1 0302-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 0302-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-919-2 01 1 0302-
160 COVER ASM; EXH
(A) 		1-79931-260-0 01 1 0302-0303
160 COVER ASM; EXH
(B) 		1-79931-416-1 01 1 0304-0408
160 COVER ASM; EXH
(B) 		1-79931-443-0 01 1 0409-
160 COVER ASM; EXH
(B) 		1-79931-409-0 01 1 0302-0303
160 COVER ASM; EXH
(A) 		1-79931-418-1 01 1 0304-
162 BRACKET
(A) 		1-53441-520-0 02 1 0302-
162 BRACKET
(B) 		1-53441-552-1 01 1 0302-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 04 1 0302-

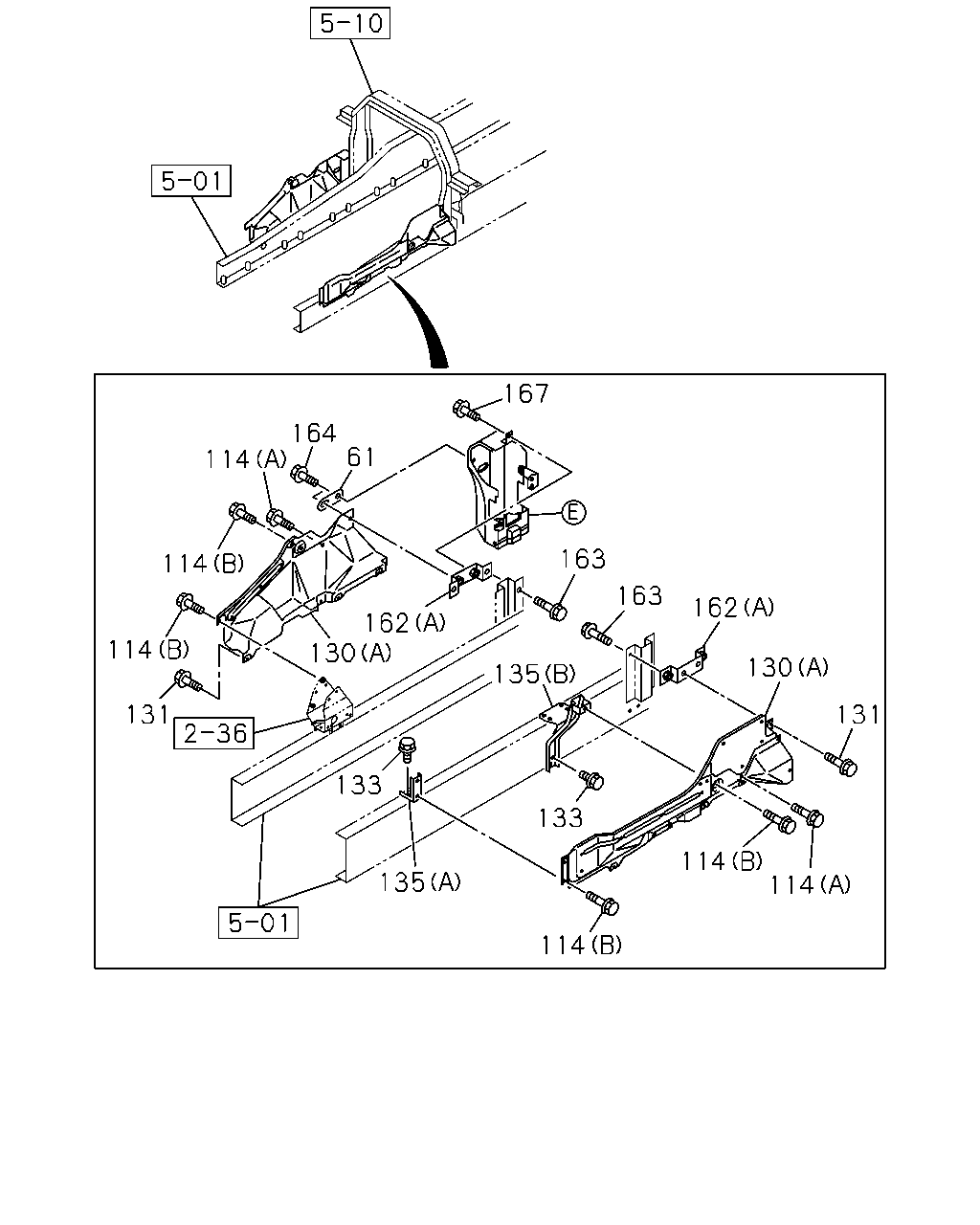

çizim 83526
167 164 61 114 163 114 163 162 162 130 114 130 135 131 131 133 133 114 114 135 114
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 01 1 0302-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0302-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 0302-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-339-0 01 1 0302-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0302-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-928-3 01 1 0302-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-340-2 01 1 0302-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 0302-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-919-2 01 1 0302-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0302-0302
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0302-
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 04 1 0302-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0302-
135 BRACKET; SIDE PANEL
(B) 		1-53441-598-1 01 1 0302-
162 BRACKET
(A) 		1-53441-520-0 02 1 0302-
162 BRACKET
(B) 		1-53441-552-1 01 1 0302-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0302-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28680-820-0 02 1 0302-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 04 1 0302-
çizim 83527
130 130 185 185 281 281 130 130 185 281 185
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(A) 		1-53194-339-0 01 1 0302-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0302-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-928-3 01 1 0302-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-340-2 01 1 0302-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 0302-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-919-2 01 1 0302-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0302-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 28 1 0401-
281 INSULATOR; NOISE
(C) 		1-73237-445-4 01 1 0302-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0302-
281 INSULATOR; NOISE
(B) 		1-71907-307-0 01 1 0302-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
