6-20 — SIDE PANEL AND STEP (#26324) — 96 parça

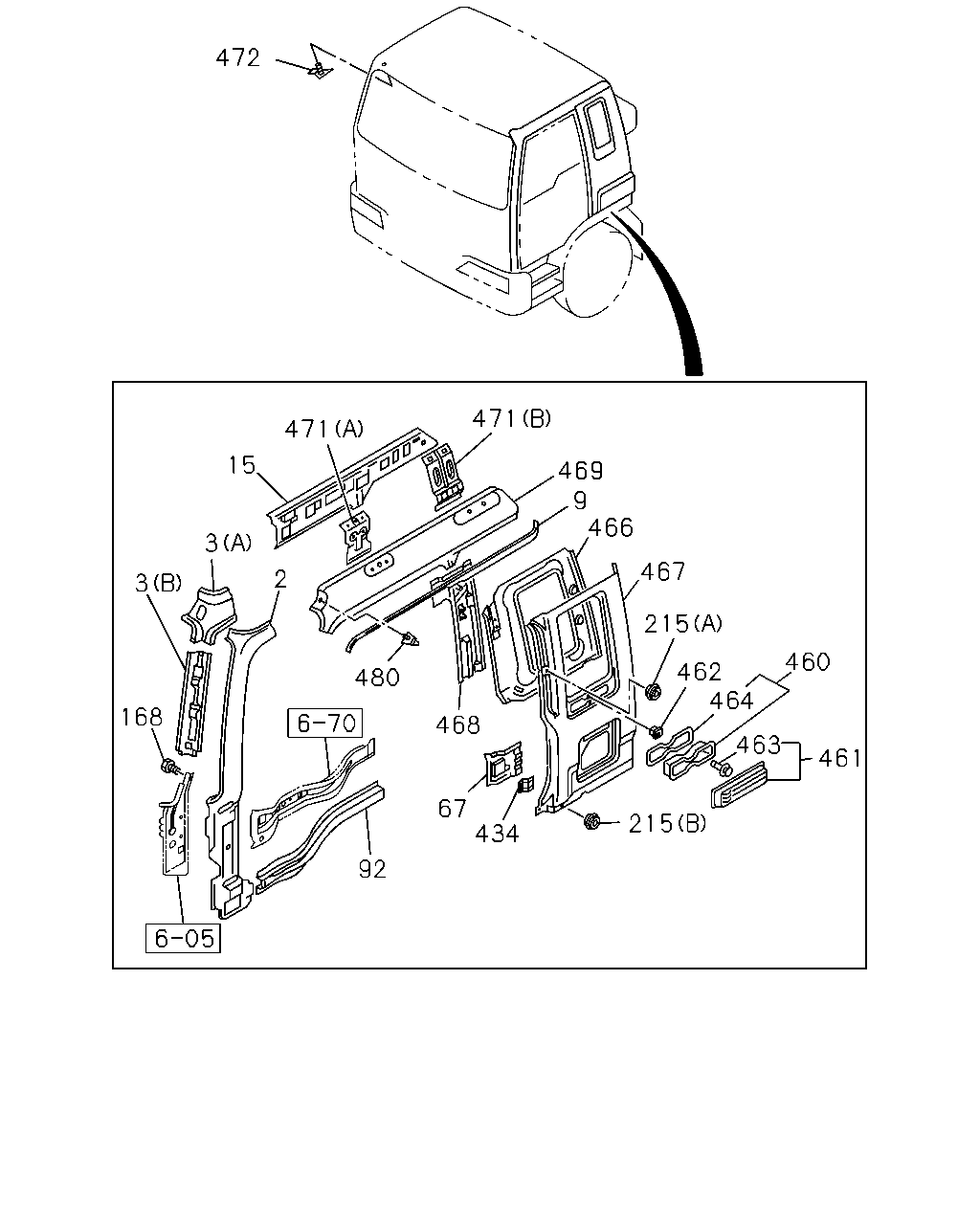

çizim 79969
472 471 471 15 469 9 466 3 467 2 3 215 460 462 464 480 168 468 463 461 67 434 215 92
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-156-4 01 1 0302-
2 PILLAR; FRT 1-61281-155-4 01 1 0302-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 0302-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 0302-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 0302-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 0302-
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 0302-
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 0302-
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0302-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0302-
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0302-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0302-
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0302-
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0302-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0302-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0302-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0302-
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0302-
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0302-
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0302-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0302-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0302-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0302-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0302-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0302-
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0302-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0302-
467 PANEL; OUTER,BACK CORNER 1-61270-773-2 01 1 0302-
467 PANEL; OUTER,BACK CORNER 1-61281-203-3 01 1 0302-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0302-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0302-
469 ROOF; SIDE 1-61281-199-8 01 1 0302-
469 ROOF; SIDE 1-61281-198-8 01 1 0302-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 0302-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 0302-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-201-3 01 1 0302-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 0302-
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0302-
480 REINFORCEMENT ASM; STAY ROOF 1-61281-233-4 01 1 0302-

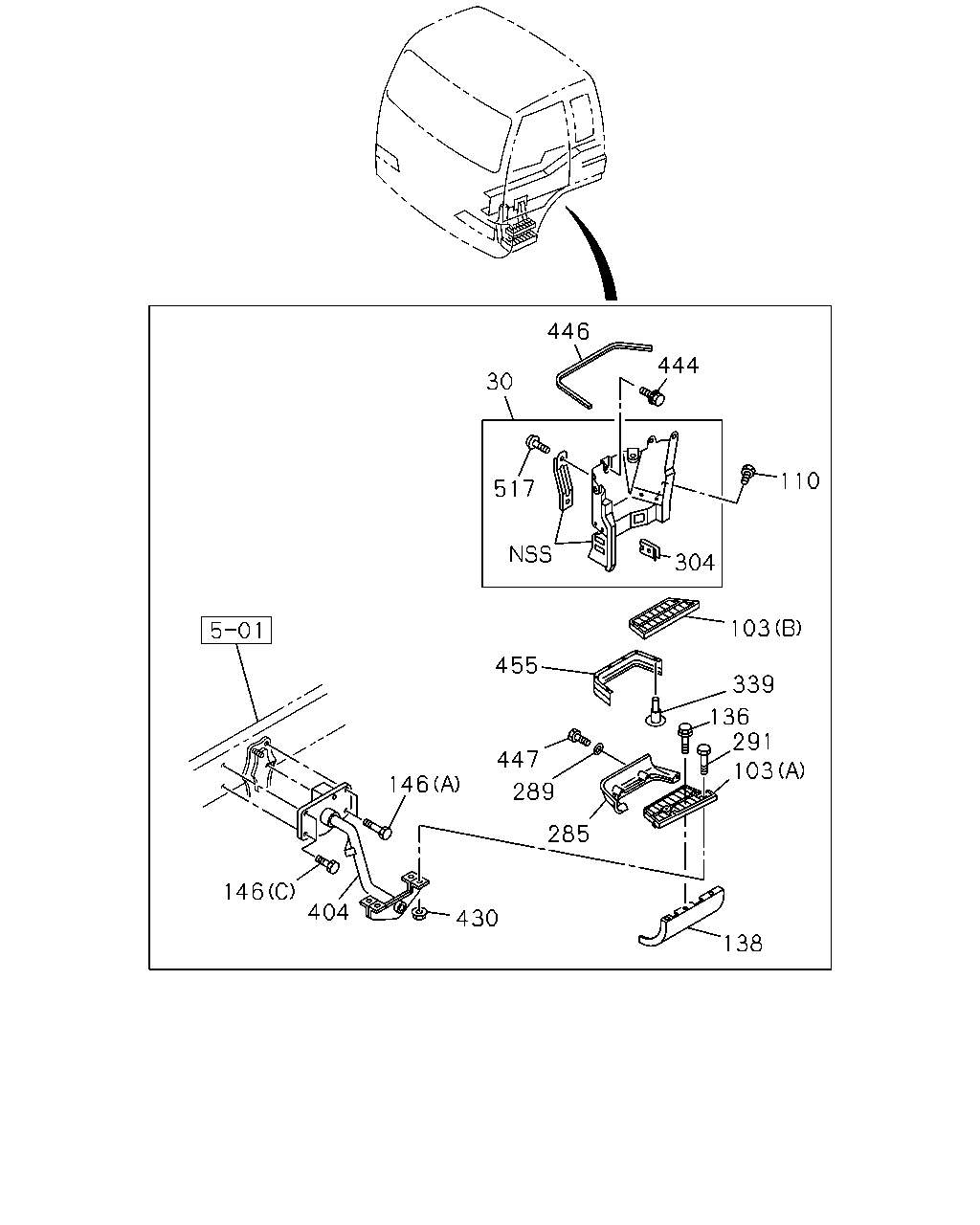

çizim 81613
446 444 30 110 517 304 103 455 339 136 291 447 103 146 289 285 146 404 430 138
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0302-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0302-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0302-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0302-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0302-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0302-
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0302-
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 0302-0302
138 FENDER; OVER 1-79931-264-0 01 1 0302-0302
138 FENDER; OVER 1-79931-263-0 01 1 0302-0302
146 BOLT; STEP BRKT
(C) M12X70 FLANGE 		0-28081-270-0 02 1 0302-
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28081-230-0 02 1 0302-
146 BOLT; STEP BRKT
(B) M12X35 FLANGE 		0-28081-235-0 02 1 0302-
285 PLATE; STEP,1ST STEP 1-53414-183-0 01 1 0302-
285 PLATE; STEP,1ST STEP 1-53414-100-2 01 1 0302-
289 WASHER; PL,STEP
ID=6.4 OD=18 		9-09160-706-0 08 1 0302-
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28080-835-0 08 1 0302-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0302-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0302-
404 BRACKET 1-53414-159-3 01 1 0302-
404 BRACKET 1-53414-250-3 01 1 0302-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 0302-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0302-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0302-
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 0302-
455 PROTECTOR; STEP 1-71907-187-1 01 1 0302-
455 PROTECTOR; STEP 1-71907-186-1 01 1 0302-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0302-
çizim 85279
446 444 30 110 517 304 103 339 455 291 136 447 103 289 149 285 146 404 430 138
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0302-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0302-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0302-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0302-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0302-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0302-
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0302-
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 0302-0302
138 FENDER; OVER 1-79931-264-0 01 1 0302-0302
138 FENDER; OVER 1-79931-263-0 01 1 0302-0302
146 BOLT; STEP BRKT
(C) M12X70 FLANGE 		0-28081-270-0 02 1 0302-
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28081-230-0 02 1 0302-
146 BOLT; STEP BRKT
(B) M12X35 FLANGE 		0-28081-235-0 02 1 0302-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 02 1 0302-
285 PLATE; STEP,1ST STEP 1-53414-183-0 01 1 0302-
285 PLATE; STEP,1ST STEP 1-53414-100-2 01 1 0302-
289 WASHER; PL,STEP
ID=6.4 OD=18 		9-09160-706-0 08 1 0302-
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28080-835-0 08 1 0302-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0302-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0302-
404 BRACKET 1-53414-159-3 01 1 0302-
404 BRACKET 1-53414-250-3 01 1 0302-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 0302-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0302-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0302-
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 0302-
455 PROTECTOR; STEP 1-71907-187-1 01 1 0302-
455 PROTECTOR; STEP 1-71907-186-1 01 1 0302-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0302-
