Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-05 - FRONT PANEL
▶
6-05 — FRONT PANEL
(#26322) — 154 parça
◀

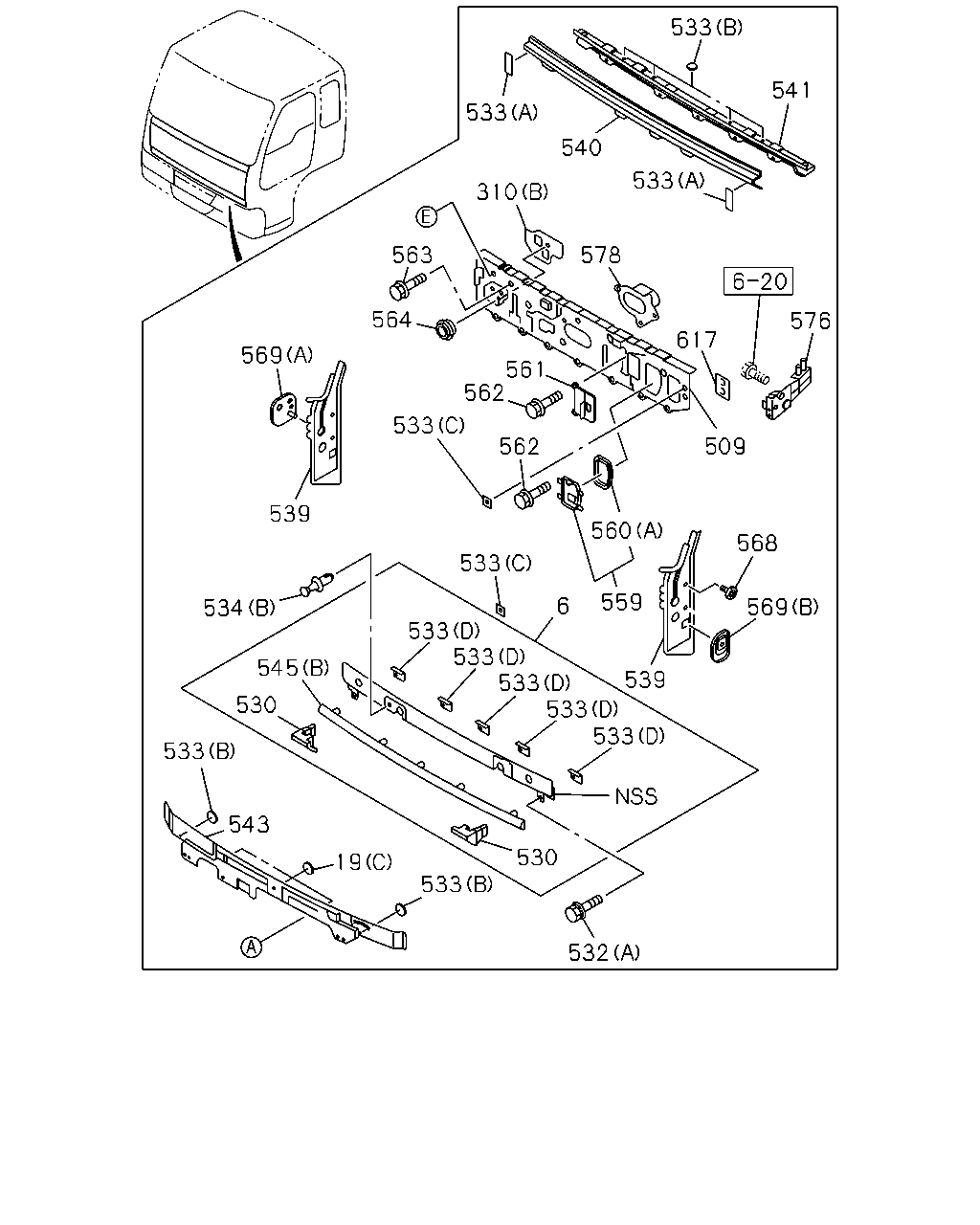

[605A] DASH PANEL (46 parça)

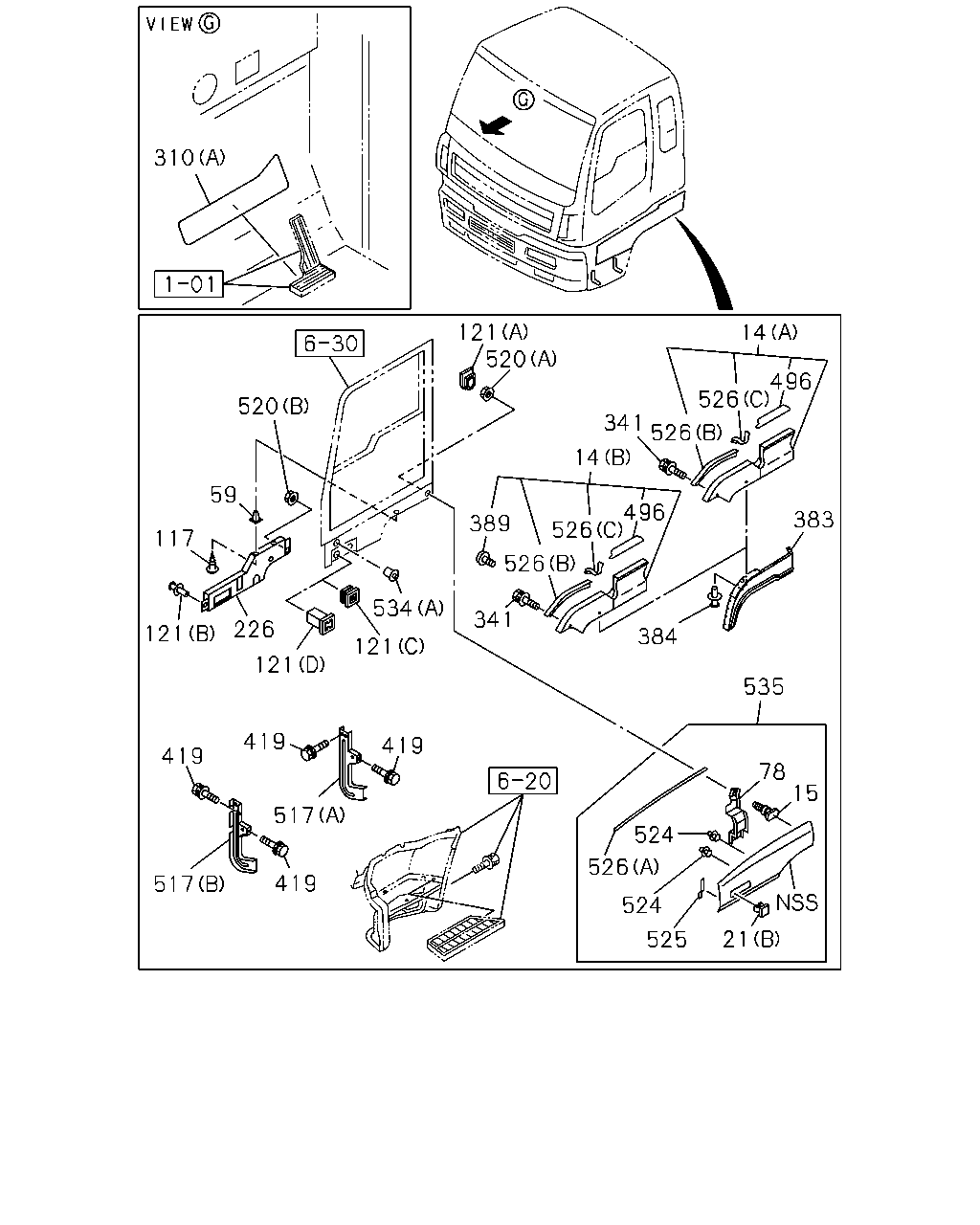

[605A] FENDER (46 parça)

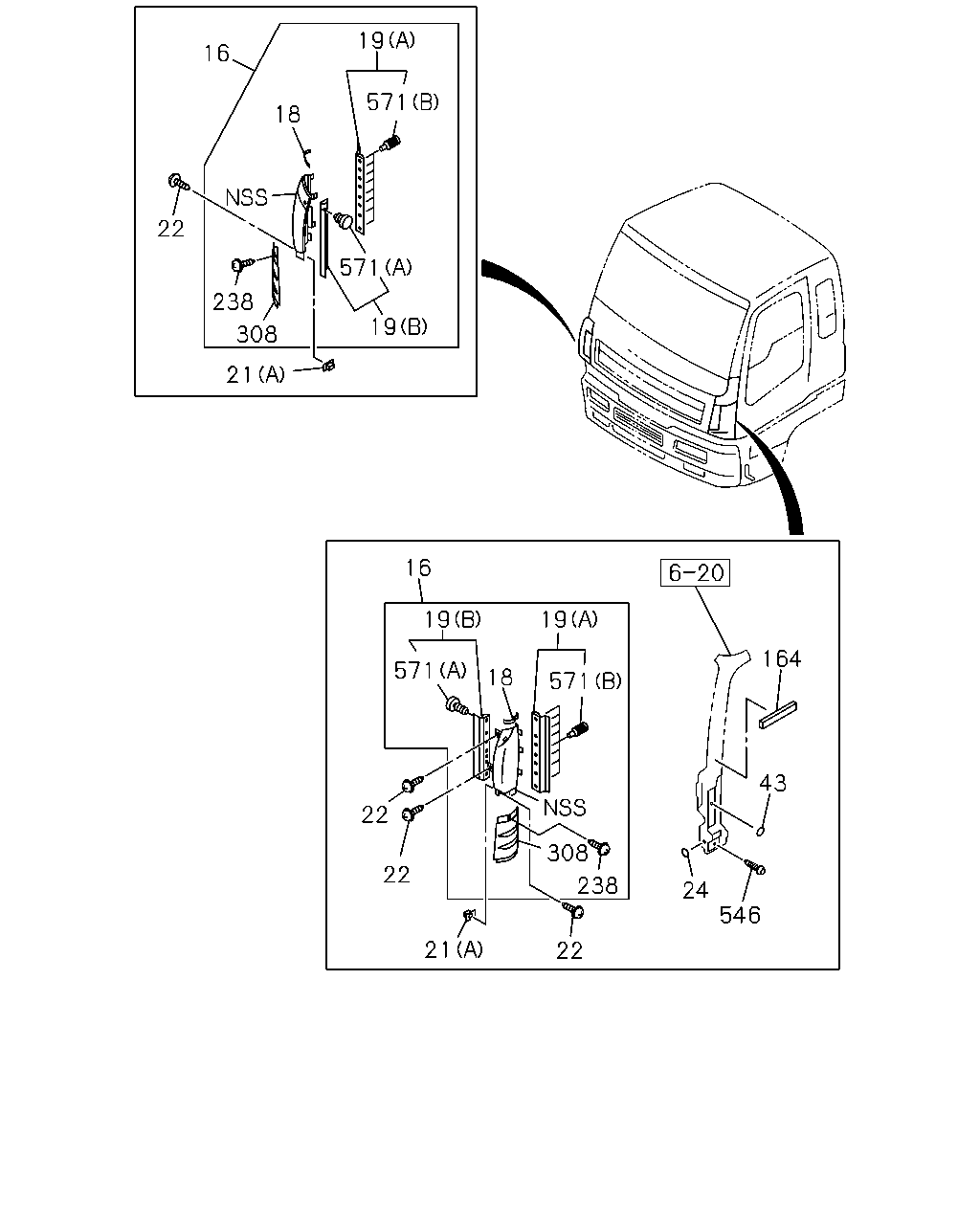

[605A] FRONT SIDE PANEL (22 parça)
[605A] FRONT LID (13 parça)

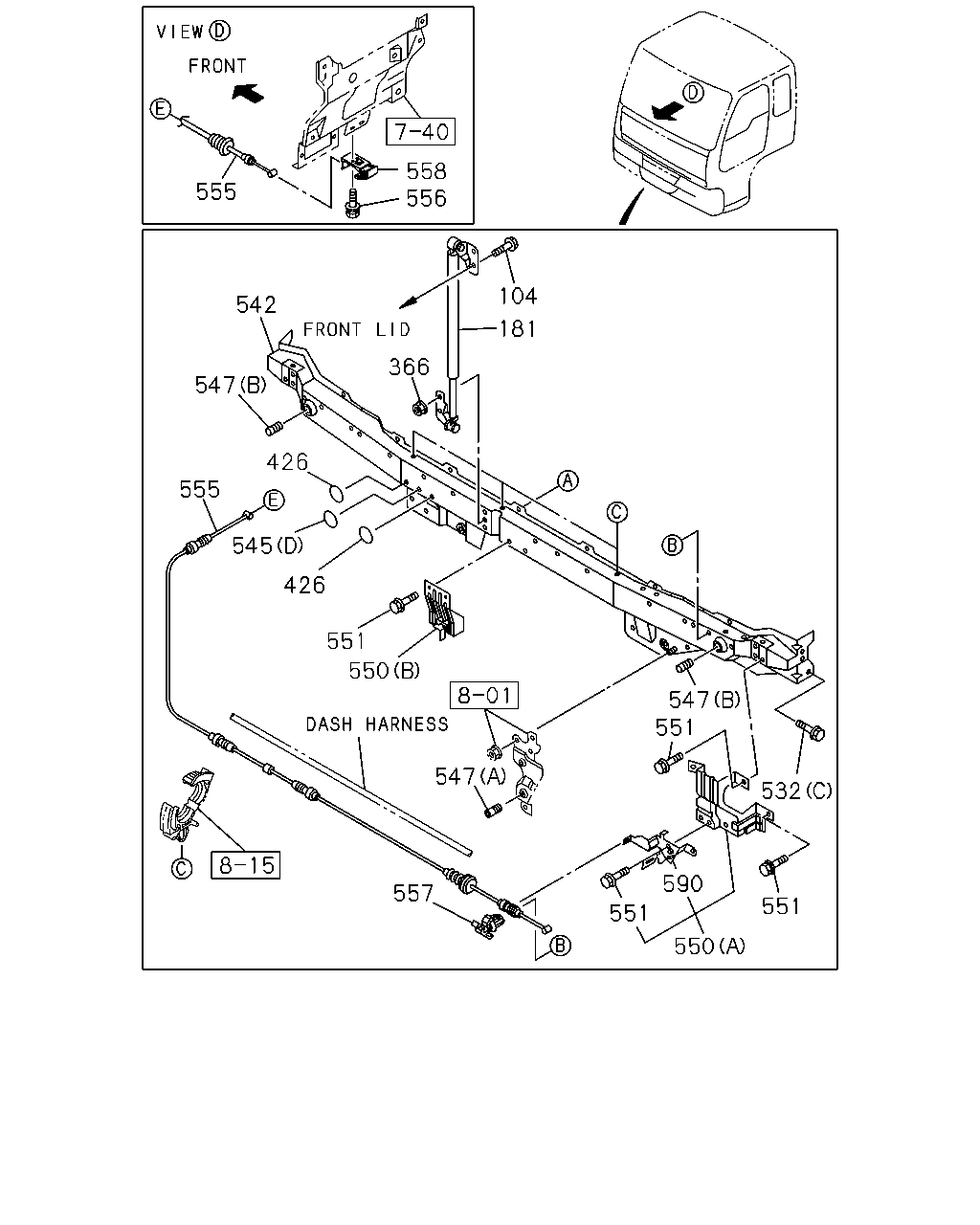

[605A] LID LOCK AND CABLE (27 parça)
▶
533
541
533
540
533
310
563
578
564
576
617
569
561
562
533
509
562
539
560
568
533
559
6
569
534
533
533
533
533
533
545
539
530
533
543
530
19
533
532
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
PANEL; FRONT
1-65472-549-4
01
1
0302-
19
SEAL; FRT SIDE PANEL
(C) OD=45 BLACK
1-76798-017-0
03
1
0302-
19
SEAL; FRT SIDE PANEL
(A)
1-71907-411-0
01
1
0302-
19
SEAL; FRT SIDE PANEL
(B)
1-71907-580-1
01
1
0302-
19
SEAL; FRT SIDE PANEL
(A)
1-71907-410-0
01
1
0302-
19
SEAL; FRT SIDE PANEL
(B)
1-71907-579-1
01
1
0302-
310
SILENCER; FRT PANEL
(A)
1-72377-007-1
01
1
0302-
310
SILENCER; FRT PANEL
(B)
1-72377-008-1
01
1
0302-
509
PANEL; DASH
1-62270-478-5
01
1
0302-
530
STOPPER; FRT PANEL,SIDE
1-71907-487-0
01
1
0302-
530
STOPPER; FRT PANEL,SIDE
1-71907-482-1
01
1
0302-
532
BOLT; FRT PANEL
(A) M8X20
1-79198-002-0
02
1
0302-
532
BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
0302-
532
BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0302-
533
SEAL; FRT PANEL
(D) L=30
1-71996-079-2
07
1
0302-
533
SEAL; FRT PANEL
(A) 20X65
1-76778-046-2
02
1
0302-
533
SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK
5-76777-035-0
12
1
0302-
533
SEAL; FRT PANEL
(C) 25X25
8-94272-533-0
02
1
0302-
534
FASTENER
(A) ID=5.4 OD=6.8
1-09989-021-0
08
1
0302-
534
FASTENER
(B) D6X12.5
8-94146-425-0
02
1
0302-
539
CLOSING; PILLAR
1-61480-674-6
01
1
0302-
539
CLOSING; PILLAR
1-61480-673-6
01
1
0302-
540
PANEL; FRONT,OUTER
1-61470-688-2
01
1
0302-
541
PANEL; FRONT,INNER
1-61470-690-0
01
1
0302-
543
CLOSING; FRT MTG RAIL
1-61470-716-1
01
1
0302-0505
543
CLOSING; FRT MTG RAIL
1-61470-727-0
01
1
0506-
545
SEAL; FRT LID
(A)
1-71907-472-0
02
1
0302-
545
SEAL; FRT LID
(B) L=2038
1-71907-481-1
01
1
0302-
545
SEAL; FRT LID
(C)
1-71907-578-0
02
1
0302-
545
SEAL; FRT LID
(D) OD=25 BLACK
1-76798-019-0
01
1
0302-
559
COVER; EVAPOLATOR
1-71996-194-1
01
1
0302-
560
SEAL; COVER
(A)
1-71998-827-1
01
1
0302-
560
SEAL; COVER
(B) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0302-
560
SEAL; COVER
(B) OD=20 T=0.05 BLACK
5-76777-036-0
02
1
0302-
561
COVER; HEATER CORE
1-71998-829-1
01
1
0302-
562
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
0302-
563
BOLT; DASH PANEL
M8X20
1-79198-002-0
16
1
0302-
563
BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER
8-94279-209-0
02
1
0302-
564
GROMMET; DASH PANEL
OD=23.5
1-09983-101-0
02
1
0302-
568
PATCH; INST REINF
1-61480-675-2
02
1
0302-
569
PATCH; LWR GRIP
(B)
1-61480-736-2
01
1
0302-
569
PATCH; LWR GRIP
(A)
1-61480-689-2
01
1
0302-
576
FRAME; INST SIDE
1-62280-177-7
01
1
0302-
576
FRAME; INST SIDE
1-62280-176-6
01
1
0302-
578
COVER; WIPER MOTOR
1-62280-254-1
01
1
0302-
617
SEAL; DASH
1-61281-497-0
02
1
0302-
310
121
520
14
496
526
520
341
526
14
59
496
526
383
389
117
526
534
341
226
21
384
121
121
535
419
419
419
78
15
517
524
526
419
517
524
21
525
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
FENDER; FRT
(A)
1-65472-467-3
01
1
0302-0503
14
FENDER; FRT
(B)
1-65472-875-9
01
1
0504-
14
FENDER; FRT
(A)
1-65472-466-3
01
1
0302-0503
14
FENDER; FRT
(B)
1-65472-874-9
01
1
0504-
15
BOLT; FENDER
M6X7
1-71268-294-0
04
1
0302-
21
GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5
1-09983-160-3
14
1
0302-
21
GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5
8-94279-078-0
02
1
0302-
59
GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
10
1
0302-
78
BRACKET; FENDER
1-71267-215-0
01
1
0302-
78
BRACKET; FENDER
1-71267-214-0
01
1
0302-
117
SCREW; COVER
M5X16 W/PL WASHER TAPPING
8-94279-123-0
10
1
0302-
121
GROMMET; FENDER
(A)
1-09983-162-0
02
1
0302-
121
GROMMET; FENDER
(B) D8X13.5
1-09987-248-1
08
1
0302-
121
GROMMET; FENDER
(C) 14.5X14.5 BLACK
8-94279-714-0
02
1
0302-0304
121
GROMMET; FENDER
(D) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0305-
226
PROTECTOR; FRT
1-71267-269-1
01
1
0302-
226
PROTECTOR; FRT
1-71267-268-1
01
1
0302-
310
SILENCER; FRT PANEL
(A)
1-72377-007-1
01
1
0302-
310
SILENCER; FRT PANEL
(B)
1-72377-008-1
01
1
0302-
341
BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER
1-09980-492-0
18
1
0302-0503
341
BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER
1-09980-492-0
16
1
0504-
383
GUARD; MUD,FENDER LWR
1-71907-416-2
01
1
0302-
383
GUARD; MUD,FENDER LWR
1-71907-415-2
01
1
0302-
384
CLIP; FENDER LWR
D8X13.5
1-09987-248-1
13
1
0302-
389
SCREW; STAND,FENDER
M6X22
1-65481-386-0
06
1
0504-
419
BOLT; STEP
M8X24.5 W/LK&PL WASHER
8-94279-208-0
10
1
0302-
496
RUBBER; STEP
1-71998-862-2
01
1
0302-
496
RUBBER; STEP
1-71998-861-2
01
1
0302-
517
SUPPORT; STEP PANEL
(A)
1-65671-531-1
01
1
0302-
517
SUPPORT; STEP PANEL
(B)
1-65671-781-0
01
1
0302-0302
517
SUPPORT; STEP PANEL
(B)
1-65671-774-0
01
1
0303-
517
SUPPORT; STEP PANEL
(A)
1-65671-530-1
01
1
0302-
517
SUPPORT; STEP PANEL
(B)
1-65671-766-1
01
1
0302-
520
NUT; FENDER
(A) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0302-
520
NUT; FENDER
(B) M6
8-94343-366-1
02
1
0302-
524
CLIP; FENDER COVER
D5.4X8
1-09983-154-0
08
1
0302-
525
SEAL; FENDER
10X145
1-71268-281-1
02
1
0302-0409
525
SEAL; FENDER
10X145
1-71267-342-0
02
1
0410-
526
FINISHER; FENDER
(A)
1-71268-275-1
02
1
0302-
526
FINISHER; FENDER
(B)
1-71907-641-0
02
1
0302-
526
FINISHER; FENDER
(C)
1-71907-643-0
01
1
0302-
526
FINISHER; FENDER
(C)
1-71907-642-0
01
1
0302-
534
FASTENER
(A) ID=5.4 OD=6.8
1-09989-021-0
08
1
0302-
534
FASTENER
(B) D6X12.5
8-94146-425-0
02
1
0302-
535
FENDER; BLISTER
1-71267-294-1
01
1
0302-
535
FENDER; BLISTER
1-71267-293-1
01
1
0302-
19
16
571
18
22
571
238
19
308
21
16
19
19
164
571
18
571
43
22
308
22
238
24
546
21
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
PANEL; FRONT,SIDE
WHITE
1-65472-649-3
01
1
0302-
16
PANEL; FRONT,SIDE
WHITE
1-65472-648-3
01
1
0302-
18
SEAL; A-POST UPR,FRT SIDE PANEL
1-71998-899-2
01
1
0302-
18
SEAL; A-POST UPR,FRT SIDE PANEL
1-71998-898-2
01
1
0302-
19
SEAL; FRT SIDE PANEL
(C) OD=45 BLACK
1-76798-017-0
03
1
0302-
19
SEAL; FRT SIDE PANEL
(A)
1-71907-411-0
01
1
0302-
19
SEAL; FRT SIDE PANEL
(B)
1-71907-580-1
01
1
0302-
19
SEAL; FRT SIDE PANEL
(A)
1-71907-410-0
01
1
0302-
19
SEAL; FRT SIDE PANEL
(B)
1-71907-579-1
01
1
0302-
21
GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5
1-09983-160-3
14
1
0302-
21
GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5
8-94279-078-0
02
1
0302-
22
SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING
8-97893-344-0
14
1
0302-
24
SEAL; FRT PANEL LWR
OD=25 BLACK
1-76798-019-0
06
1
0302-
43
GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK
1-76798-017-0
02
1
0302-
164
SEAL; FRT PILLAR
1-71907-414-0
02
1
0302-
238
SCREW
M5X16 W/PL WASHER TAPPING
8-94279-123-0
06
1
0302-
308
PLATE; FRT PANEL
1-65472-569-1
01
1
0302-
308
PLATE; FRT PANEL
1-65472-568-1
01
1
0302-
546
PLUG; DUMMY HOLE
OD=16 L=11
1-76378-155-0
02
1
0302-
571
CLIP; SEAL
(A)
1-09987-228-0
16
1
0302-
571
CLIP; SEAL
(B) PINK
1-09987-256-0
08
1
0302-
571
CLIP; SEAL
(B) NATURAL
1-09987-257-0
08
1
0302-
544
544
560
548
545
545
545
548
532
548
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
532
BOLT; FRT PANEL
(A) M8X20
1-79198-002-0
02
1
0302-
532
BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
0302-
532
BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0302-
544
LID; FRT
WHITE
1-71107-367-2
01
1
0302-
545
SEAL; FRT LID
(A)
1-71907-472-0
02
1
0302-
545
SEAL; FRT LID
(B) L=2038
1-71907-481-1
01
1
0302-
545
SEAL; FRT LID
(C)
1-71907-578-0
02
1
0302-
545
SEAL; FRT LID
(D) OD=25 BLACK
1-76798-019-0
01
1
0302-
548
STRIKER; FRT LID PANEL
(A)
1-79317-003-0
01
1
0302-
548
STRIKER; FRT LID PANEL
(B)
1-79318-008-1
02
1
0302-
560
SEAL; COVER
(A)
1-71998-827-1
01
1
0302-
560
SEAL; COVER
(B) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0302-
560
SEAL; COVER
(B) OD=20 T=0.05 BLACK
5-76777-036-0
02
1
0302-
558
556
555
104
542
181
366
547
426
555
545
426
551
550
547
551
547
532
590
557
551
551
550
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
104
BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER
8-94279-203-0
02
1
0302-
181
SUPPORT ASM; DOOR CHECK,FRT
1-71107-261-0
01
1
0302-0412
181
SUPPORT ASM; DOOR CHECK,FRT
1-71107-864-0
01
1
0501-
366
NUT; SUPPORT
M8 CUTTING NUT W/FLANGE
1-09985-340-0
02
1
0302-
426
GASKET
OD=25 BLACK
1-76798-019-0
02
1
0302-
532
BOLT; FRT PANEL
(A) M8X20
1-79198-002-0
02
1
0302-
532
BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
0302-
532
BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0302-
542
RAIL; FRT MOUNTING
1-61470-705-4
01
1
0302-0505
542
RAIL; FRT MOUNTING
1-61470-721-0
01
1
0506-
545
SEAL; FRT LID
(A)
1-71907-472-0
02
1
0302-
545
SEAL; FRT LID
(B) L=2038
1-71907-481-1
01
1
0302-
545
SEAL; FRT LID
(C)
1-71907-578-0
02
1
0302-
545
SEAL; FRT LID
(D) OD=25 BLACK
1-76798-019-0
01
1
0302-
547
RUBBER; CUSHION
(A) OD=22 L=39
1-71907-419-0
02
1
0302-
547
RUBBER; CUSHION
(B) OD=22 L=29
8-94324-556-2
02
1
0302-
550
LOCK ASM; FRT LID
(B)
1-79317-013-1
01
1
0302-
550
LOCK ASM; FRT LID
(A)
1-79317-012-1
01
1
0302-
550
LOCK ASM; FRT LID
(A)
1-79317-011-1
01
1
0302-
551
BOLT; LOCK
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
0302-
551
BOLT; LOCK
M8X20.5 W/LK&PL WASHER
8-94279-207-0
06
1
0302-
555
CABLE; FRT LID
L=2512
1-79347-007-3
01
1
0302-
556
BOLT; CABLE
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
0302-
557
CLIP; CABLE
ID=4.8
8-94128-483-0
01
1
0302-
558
LEVER; FRT LID
1-79338-007-0
01
1
0302-
590
LOCK; FRT LID
1-79318-010-2
01
1
0302-
590
LOCK; FRT LID
1-79318-009-4
01
1
0302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
