0-65 — STARTER (#2632) — 33 parça

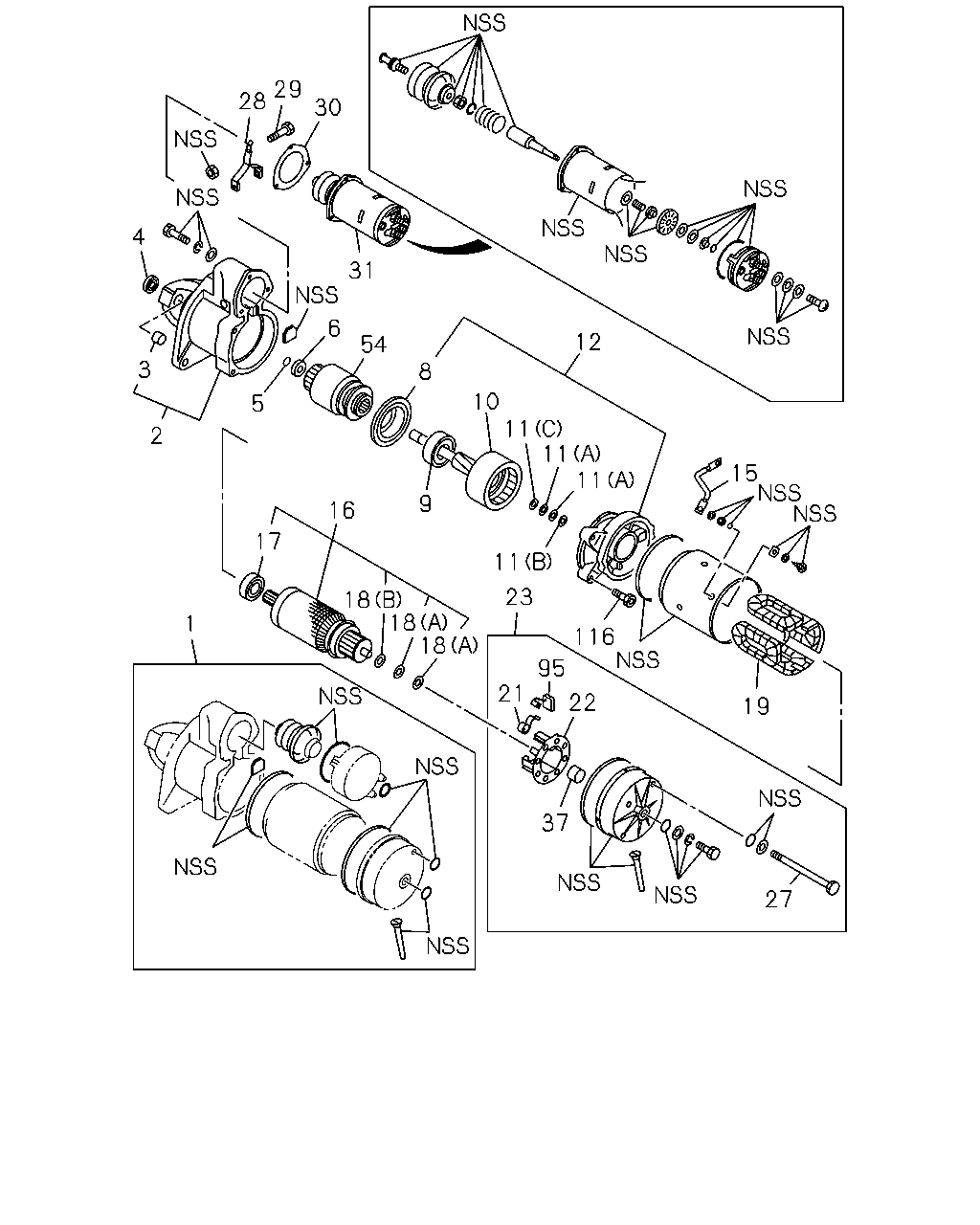

çizim 93929
29 28 30 4 31 6 12 54 3 8 10 11 11 11 5 2 15 9 16 17 11 23 18 18 18 1 116 95 21 22 19 37 27
BalonParca AdiParca NoAdetTipApplied Date
1 SEAL KIT; STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-601-0 01 1 -
2 CASE; PINION,STARTER
ASM PART: A = 1-81100-274-1 		1-81113-113-0 01 1 -
2 CASE; PINION,STARTER
ASM PART: B = 1-81100-275-1 		1-81113-115-0 01 1 -
3 METAL; PINION CASE STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-286-0 01 1 -
4 COVER; PINION CASE STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-305-0 01 1 -
5 CLIP; PINION STOPPER STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-189-0 01 1 -
6 STOPPER; PINION STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-190-0 01 1 -
8 BRACKET; CENTER STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81113-084-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-298-0 01 1 -
10 SHAFT; GEAR STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81123-042-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
(B) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-297-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
(A) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		5-81129-159-0 02 1 -
11 WASHER; GEAR SHAFT STARTER
(C) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		5-81129-160-0 01 1 -
12 BRACKET; CENTER RR STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81113-083-0 01 1 -
15 WIRE; LEAD STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81116-034-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81121-056-0 01 1 -
17 BEARING; ARMATURE,STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-294-0 01 1 -
18 WASHER; THRUST,ARMATURE,STARTER
(B) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-289-0 01 1 -
18 WASHER; THRUST,ARMATURE,STARTER
(A) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-290-0 02 1 -
19 COIL; FIELD,STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81112-028-0 01 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81117-016-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81118-032-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81115-180-0 01 1 -
27 BOLT; THROUGH,STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-292-0 02 1 -
28 LEVER; SHIFT,STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81127-040-0 01 1 -
29 PIN; SHIFT LEVER STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-185-0 01 1 -
30 PLATE; ENGAGE SW STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-598-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81151-090-0 01 1 -
37 METAL; RR COVER STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-291-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 1-81100-274-1 		1-81122-057-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: B = 1-81100-275-1 		1-81122-058-0 01 1 -
95 BRUSH ASM; STARTER
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81116-035-0 04 1 -
116 BOLT; BRKT
ASM PART: A = 1-81100-274-1, B = 1-81100-275-1 		1-81129-293-0 03 1 -
