Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#26319) — 21 parça
◀

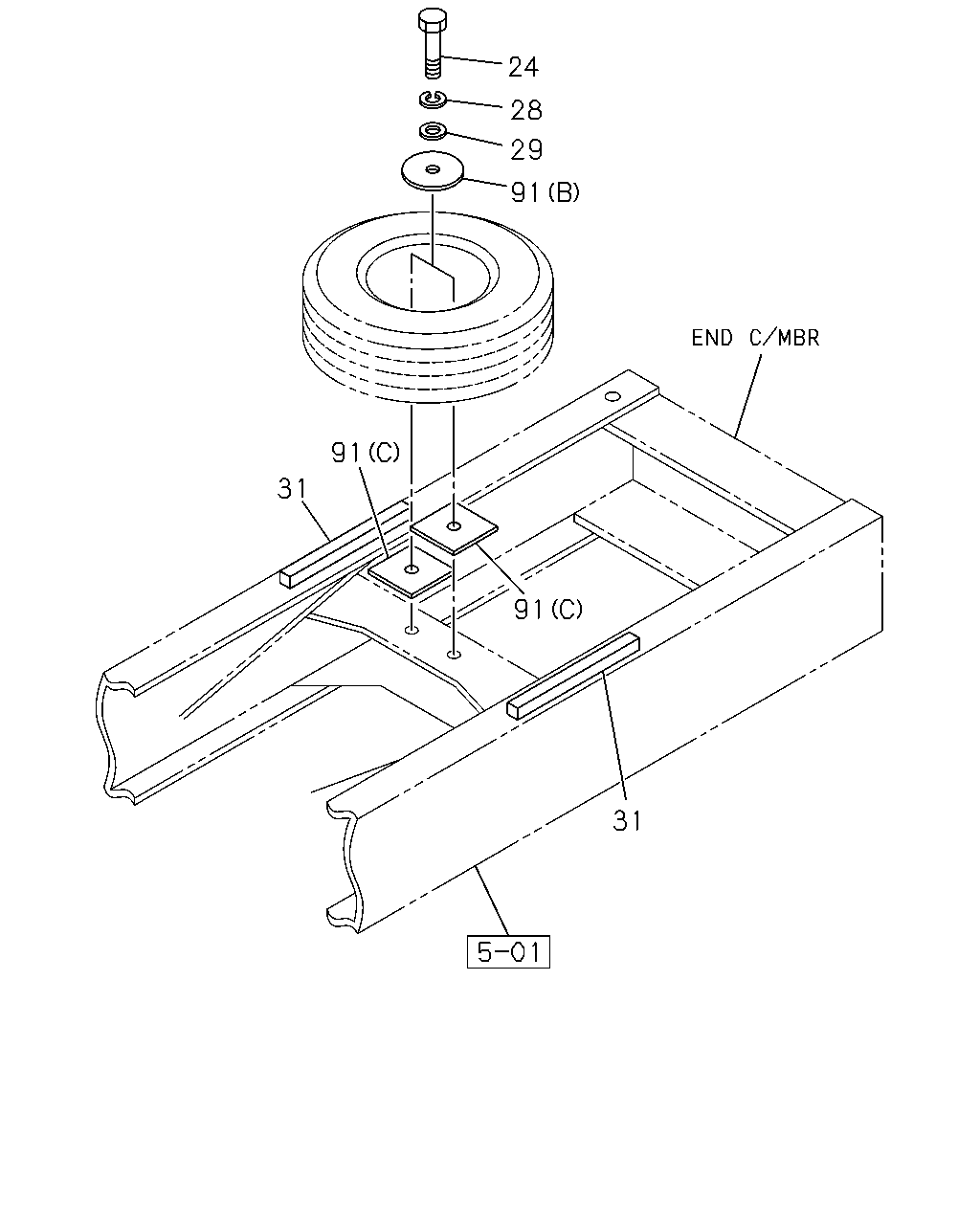

[530A] SPARE TIRE FIXING (7 parça)

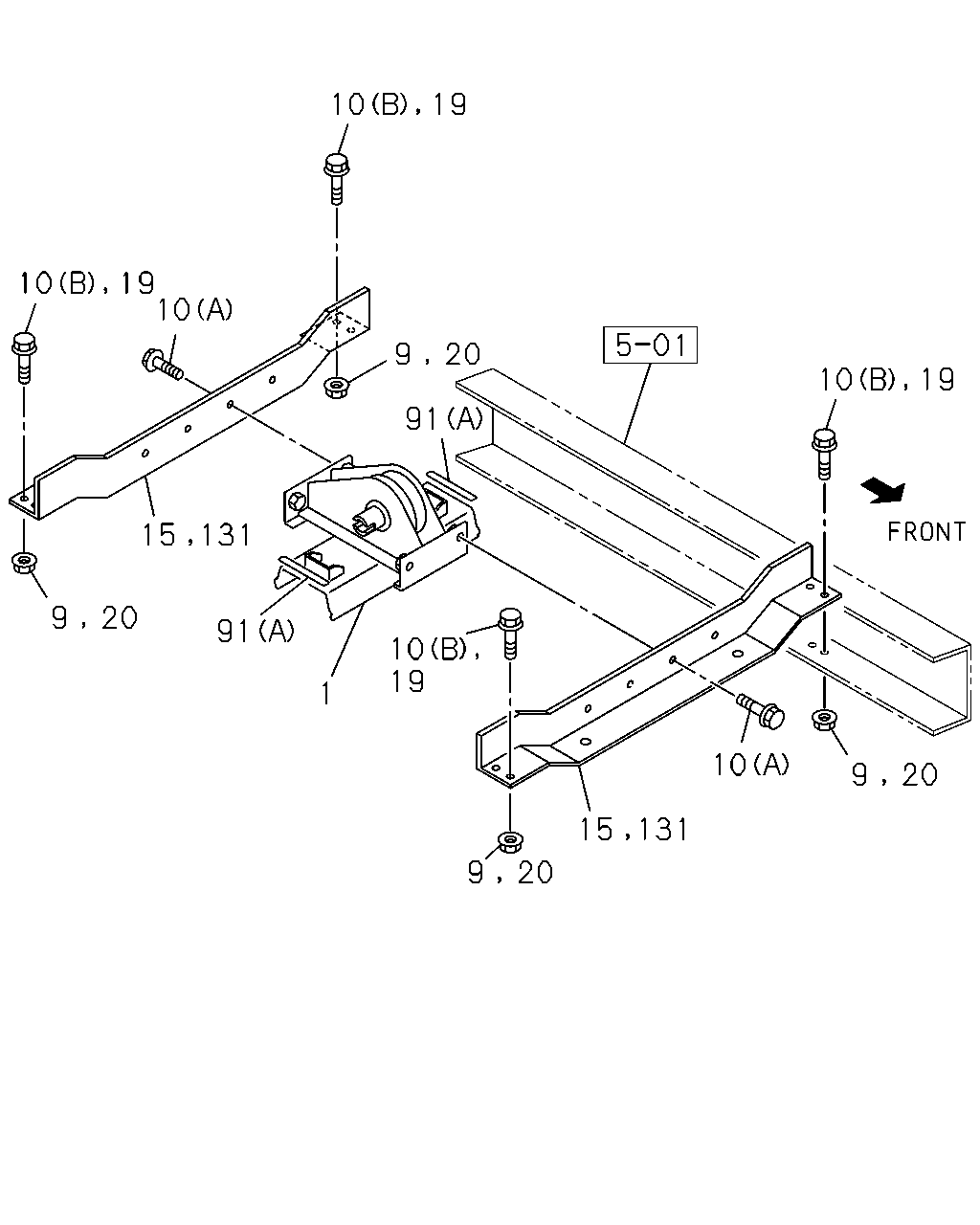

[530A] FRAME SIDE;REAR (14 parça)
▶
24
28
29
91
91
31
91
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BOLT; SPARE TIRE
M14X100
0-20801-400-0
02
1
0305-
28
WASHER; LK,SPARE TIRE
ID=14.2
9-09150-614-0
02
1
0305-
29
WASHER; PL,BRKT,HANGER
ID=15 OD=52
9-09164-814-0
02
1
0305-
31
SPACER; HANGER BRKT
1-53637-007-0
02
1
0305-
91
PAD; TIRE CARRIER
DISC WHEEL AL<SDM> (B)
1-53639-039-0
02
1
0305-
91
PAD; TIRE CARRIER
DISC WHEEL AL<SDM> (C)
1-53639-040-0
02
1
0305-
91
PAD; TIRE CARRIER
DISC WHEEL AL<SDM> (A)
1-53639-042-0
02
1
0302-
10
19
10
19
10
9
20
10
19
91
9
20
91
10
19
1
10
9
20
9
20
15
131
15
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
1-53630-210-1
01
1
0302-
9
NUT; BRKT TO FRAME
M10 FLANGE
0-91150-210-0
08
1
0305-
10
BOLT; TIRE HANGER
(B) M10X40 FLANGE
0-28081-040-0
08
1
0305-
10
BOLT; TIRE HANGER
(A) M12X40 FLANGE
0-28681-240-0
04
1
0302-
15
MEMBER; CROSS,SPARE TIRE
DISC WHEEL AL<SDM>
1-53631-455-0
02
1
0302-0304
15
MEMBER; CROSS,SPARE TIRE
EXC. DISC WHEEL AL<SDM>
1-53631-395-1
02
1
0302-0304
19
BOLT; C/MBR
M10X30 FLANGE
0-28081-030-0
08
1
0302-0302
19
BOLT; C/MBR
M10X40 FLANGE
0-28081-040-0
08
1
0303-0304
20
NUT; C/MBR
M10 FLANGE
0-91150-210-0
08
1
0302-0304
91
PAD; TIRE CARRIER
DISC WHEEL AL<SDM> (B)
1-53639-039-0
02
1
0305-
91
PAD; TIRE CARRIER
DISC WHEEL AL<SDM> (C)
1-53639-040-0
02
1
0305-
91
PAD; TIRE CARRIER
DISC WHEEL AL<SDM> (A)
1-53639-042-0
02
1
0302-
131
CROSSMEMBER; SPARE TIRE
DISC WHEEL AL<SDM>
1-53631-455-0
02
1
0305-
131
CROSSMEMBER; SPARE TIRE
EXC. DISC WHEEL AL<SDM>
1-53631-395-1
02
1
0305-
