Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
5 - Frame, Cab Mounting
▶

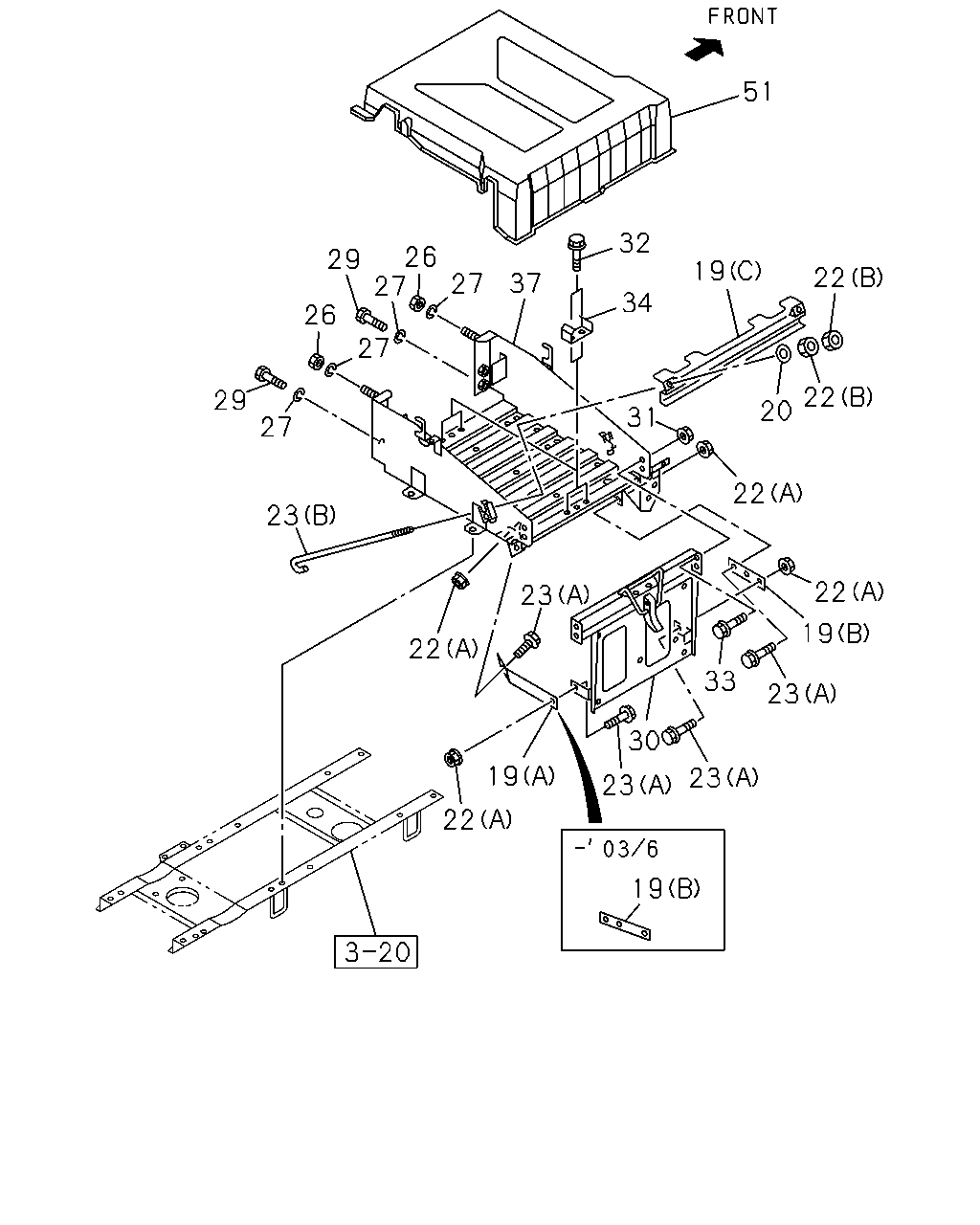

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#26318) — 22 parça
51
32
26
27
29
19
22
37
27
34
26
27
22
20
29
31
27
22
23
22
23
33
19
22
23
30
19
23
23
22
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(A) REAR
1-47479-874-0
01
1
0307-
19
STAY; BATTERY
(B) FRONT/REAR
1-47479-118-0
02
1
0302-0306
19
STAY; BATTERY
(B) FRONT
1-47479-118-0
01
1
0307-
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0302-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
0302-
22
NUT; STAY
(A) M8 FLANGE
0-91150-108-0
04
1
0302-
22
NUT; STAY
(B) M8
9-09110-408-0
04
1
0302-
23
BOLT; STAY
(A) M8X20 FLANGE
0-28680-820-0
04
1
0302-
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0302-
26
NUT; BRKT
M14
1-09440-072-0
02
1
0302-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
0302-
29
BOLT; BRKT TO FRAME
M14X45
1-09000-764-0
02
1
0302-
30
PLATE; BATTERY
1-53619-132-1
01
1
0302-0306
30
PLATE; BATTERY
1-53619-148-0
01
1
0307-
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
04
1
0302-
32
BOLT; PLATE TO SPACER
M8X16 FLANGE
0-28080-816-0
04
1
0302-
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28680-825-0
04
1
0302-
34
SPACER; BATTERY BRKT
1-53619-084-0
02
1
0302-
37
BRACKET; BATTERY
1-53610-154-7
01
1
0302-0304
37
BRACKET; BATTERY
1-53610-158-0
01
1
0305-0306
37
BRACKET; BATTERY
1-53610-161-1
01
1
0307-
51
COVER; BATTERY
1-53612-068-0
01
1
0302-
