5-16 — OIL PUMP; CAB TILT (#26316) — 73 parça

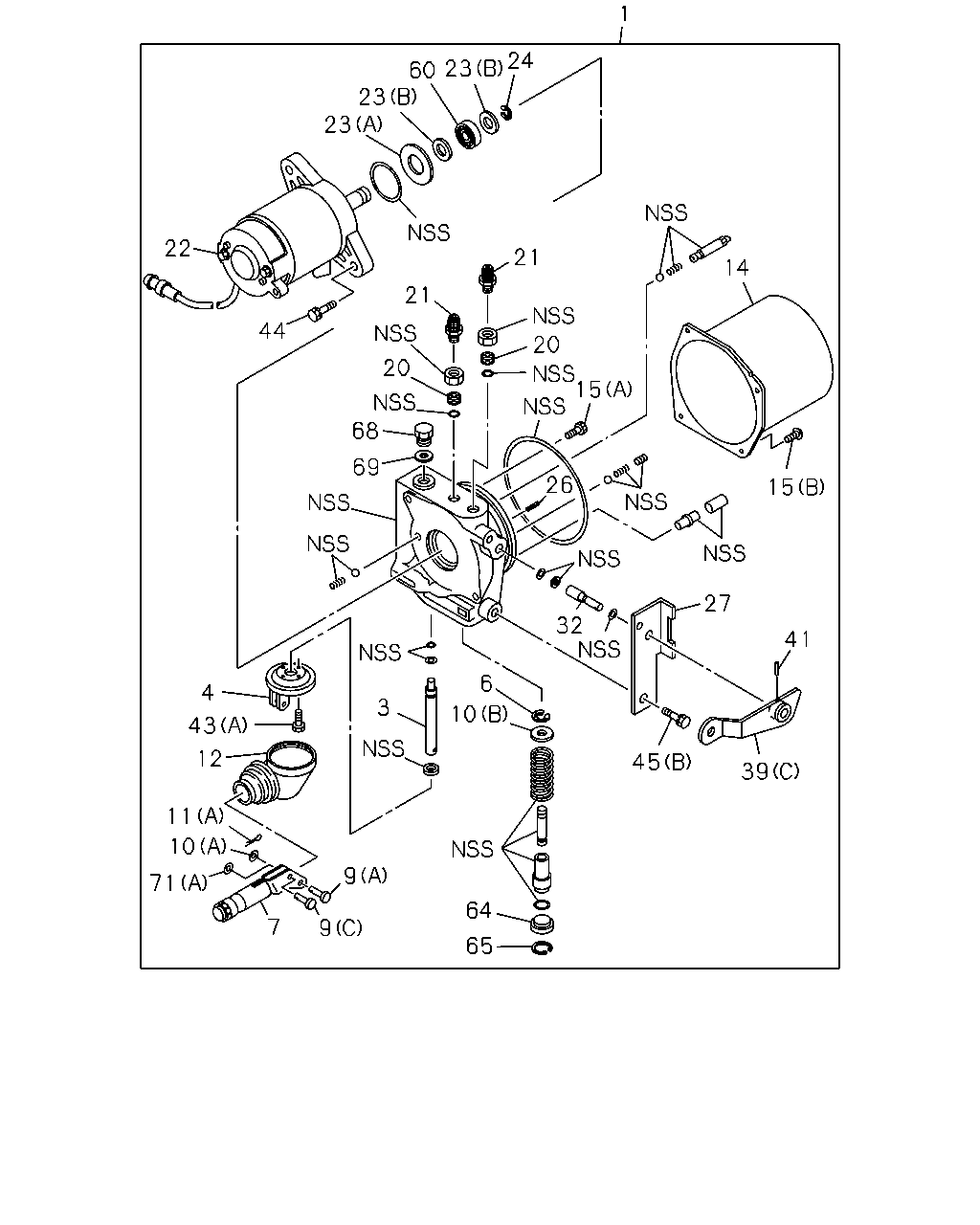

çizim 24704
1 24 23 23 22 21 14 21 44 20 20 15 68 69 26 15 27 32 41 6 4 3 10 43 12 45 39 11 10 9 71 64 7 9 65 60 23
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53457-064-0 01 1 0302-
3 PISTON; MANUAL 1-53458-842-0 01 1 0302-
4 BRACKET; OIL PUMP 1-53458-566-0 01 1 0302-
6 RING; SNAP 1-53458-411-0 01 1 0302-
7 SOCKET; OIL PUMP 1-53458-565-1 01 1 0302-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 0302-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 0302-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 0302-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 0302-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 0302-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 0302-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 0302-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 0302-
12 BOOT; OIL PUMP 1-53458-560-0 01 1 0302-
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 0302-
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 0302-
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 0302-
20 FILTER; OIL PUMP 1-53457-081-0 02 1 0302-
21 CONNECTOR; OIL PUMP
M12 		1-53458-941-0 02 1 0302-
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 0302-
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 0302-
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 0302-
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 0302-
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 0302-
27 COVER; OIL PUMP 1-53458-568-0 01 1 0302-
32 VALVE; OIL PUMP 1-53458-569-0 01 1 0302-
39 LEVER; OIL PUMP
(C) 		1-53458-567-0 01 1 0302-
39 LEVER; OIL PUMP
(A) 		1-53458-775-1 01 1 0302-
39 LEVER; OIL PUMP
(B) 		1-53458-870-0 01 1 0302-
41 PIN; SPR,LEVER 1-53458-019-0 01 1 0302-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0302-
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28681-020-0 01 1 0302-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 0302-
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 0302-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0302-
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 0302-
60 BEARING; OIL PUMP 1-53458-423-0 01 1 0302-
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 0302-
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 0302-
68 PLUG; FILLER 1-53458-428-0 01 1 0302-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0302-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 0302-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0302-

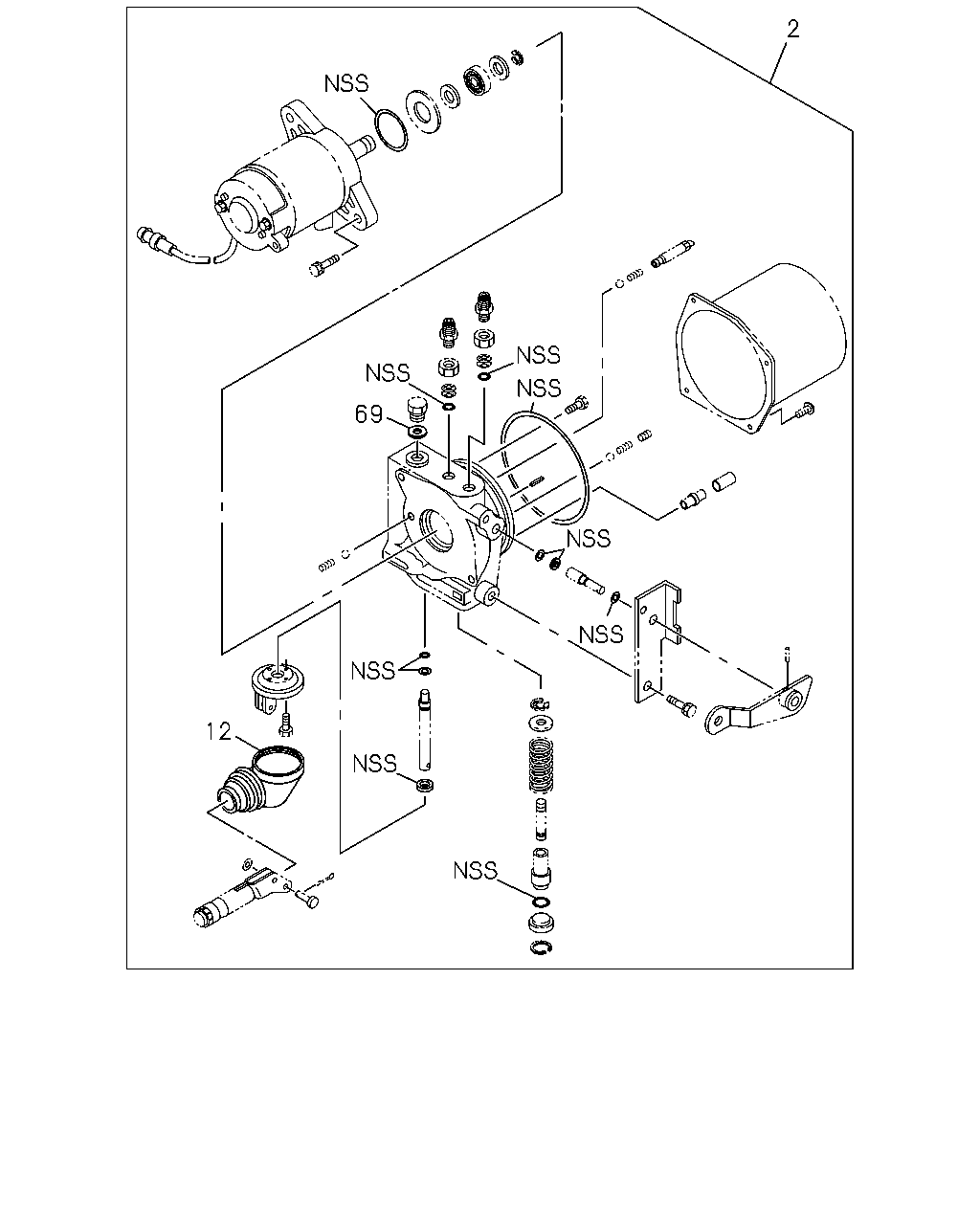

çizim 24785
2 69 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP 1-85579-058-0 01 1 0302-
12 BOOT; OIL PUMP 1-53458-560-0 01 1 0302-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0302-

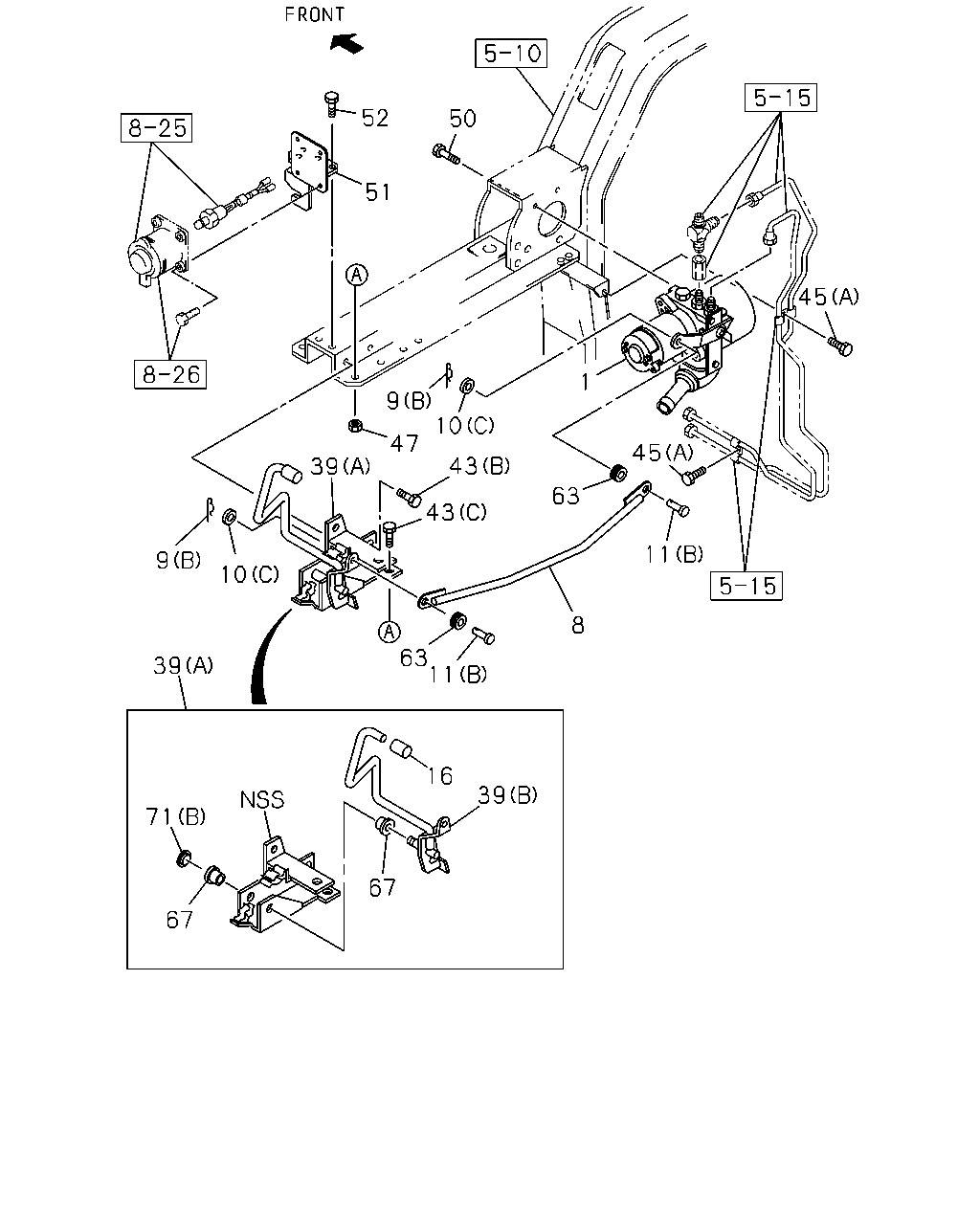

çizim 84777
52 50 51 45 1 9 10 47 45 43 39 63 43 11 9 10 8 63 11 39 16 39 71 67 67
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53457-064-0 01 1 0302-
8 LINK; OIL PUMP 1-53458-726-0 01 1 0302-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 0302-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 0302-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 0302-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 0302-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 0302-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 0302-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 0302-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 0302-
16 CAP
ID=9.0 		8-94207-303-0 01 1 0302-
39 LEVER; OIL PUMP
(C) 		1-53458-567-0 01 1 0302-
39 LEVER; OIL PUMP
(A) 		1-53458-775-1 01 1 0302-
39 LEVER; OIL PUMP
(B) 		1-53458-870-0 01 1 0302-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0302-
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28681-020-0 01 1 0302-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 0302-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0302-
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 0302-
47 NUT; LEVER
M10 FLANGE 		0-91150-210-0 01 1 0302-
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28081-016-0 02 1 0302-
51 BRACKET; OIL PUMP 1-53458-690-0 01 1 0302-
52 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0302-
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 0302-
67 BUSHING
T=6 OD=17.5 		9-33659-249-0 02 1 0302-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 0302-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0302-
