◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXJ ▶ 10910 - CXJ RHD ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#26314) — 224 parça

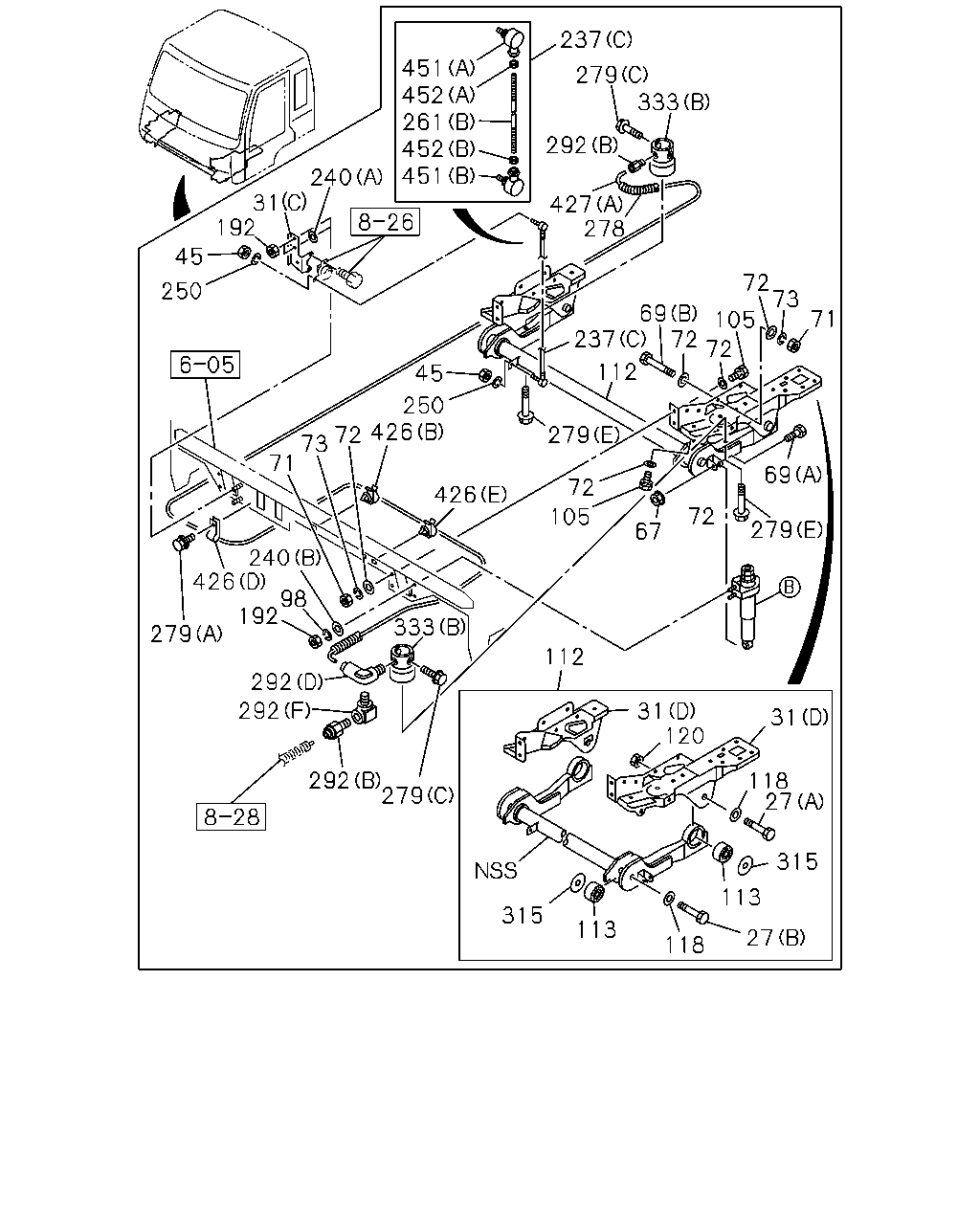

çizim 24706
237 451 452 261 452 451 279 333 292 240 31 192 427 278 45 72 73 250 69 72 71 105 112 45 250 72 426 73 71 279 69 72 426 72 105 279 67 240 426 98 192 333 279 112 292 292 31 120 31 292 279 118 27 315 113 315 113 27 118 237 72
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 0302-
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 0302-
31 BRACKET; CAB
(A) 		1-44226-164-0 01 1 0302-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0302-
31 BRACKET; CAB
(C) 		1-81549-016-0 01 1 0302-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0302-
31 BRACKET; CAB
(D) 		1-53453-224-4 01 1 0302-
45 NUT
M5 		9-99110-405-0 02 1 0302-
45 NUT
M5 		9-99110-405-0 02 1 0302-
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91150-212-0 02 1 0302-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0302-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0302-
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 0302-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 24 1 0302-
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 0302-
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 0302-
105 BOLT; BRKT TO CAB FRAME
M10X30 		1-09980-546-0 08 1 0302-
112 ARM ASM; LINK,CAB FRT SUSP 1-53450-647-2 01 1 0302-
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 0302-
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 0302-
120 NUT; STOPPER RUBBER,LINK ARM
M18 		9-99110-518-0 02 1 0302-
192 NUT; BRKT FIX
M10 		1-09984-142-0 06 1 0302-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0302-
237 ROD ASM; LATERAL
(C) 		1-33670-773-0 01 1 0302-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0302-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0302-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0302-
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 0302-
250 WASHER; LK
ID=5.1 		9-09150-505-0 02 1 0302-
250 WASHER; LK
ID=5.1 		9-09150-505-0 02 1 0302-
261 ROD; LINK
(B) 		9-08410-507-0 01 1 0302-
261 ROD; LINK
(A) 		9-08410-514-0 01 1 0302-
278 COVER
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0302-
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0302-
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 0302-
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 0302-
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0302-
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0302-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0302-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0302-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0302-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0302-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0302-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0302-
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 0302-
333 SPRING
(B) 		1-52110-142-1 02 1 0302-
333 SPRING
(A) 		1-52110-143-1 02 1 0302-
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0302-
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0302-
426 CLIP
(E) ID=5.8 L=8 		8-94155-681-0 02 1 0302-
426 CLIP
(C) ID=7 L=32 		9-09524-665-0 01 1 0302-
426 CLIP
(D) ID=11 L=16 		9-09525-025-0 01 1 0302-
427 TUBE
(A) L=1300 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0302-
427 TUBE
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0302-
451 JOINT; BALL
(A) 		1-09760-103-1 01 1 0302-
451 JOINT; BALL
(A) 		1-09760-103-1 01 1 0302-
451 JOINT; BALL
(B) 		1-09760-104-1 01 1 0302-
451 JOINT; BALL
(B) 		1-09760-104-1 01 1 0302-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0302-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0302-
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 01 1 0302-
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 01 1 0302-
çizim 25279
202 69 72 204 205 70 65 204 203 202 203
BalonParca AdiParca NoAdetTipApplied Date
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-0 02 1 0302-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0302-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0302-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 0302-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 0302-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 24 1 0302-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0302-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0302-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0302-
203 WASHER; RUBBER,SHOCK
(A) 		1-51631-005-0 10 1 0302-
203 WASHER; RUBBER,SHOCK
(B) 		1-51631-104-0 02 1 0302-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0302-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0302-

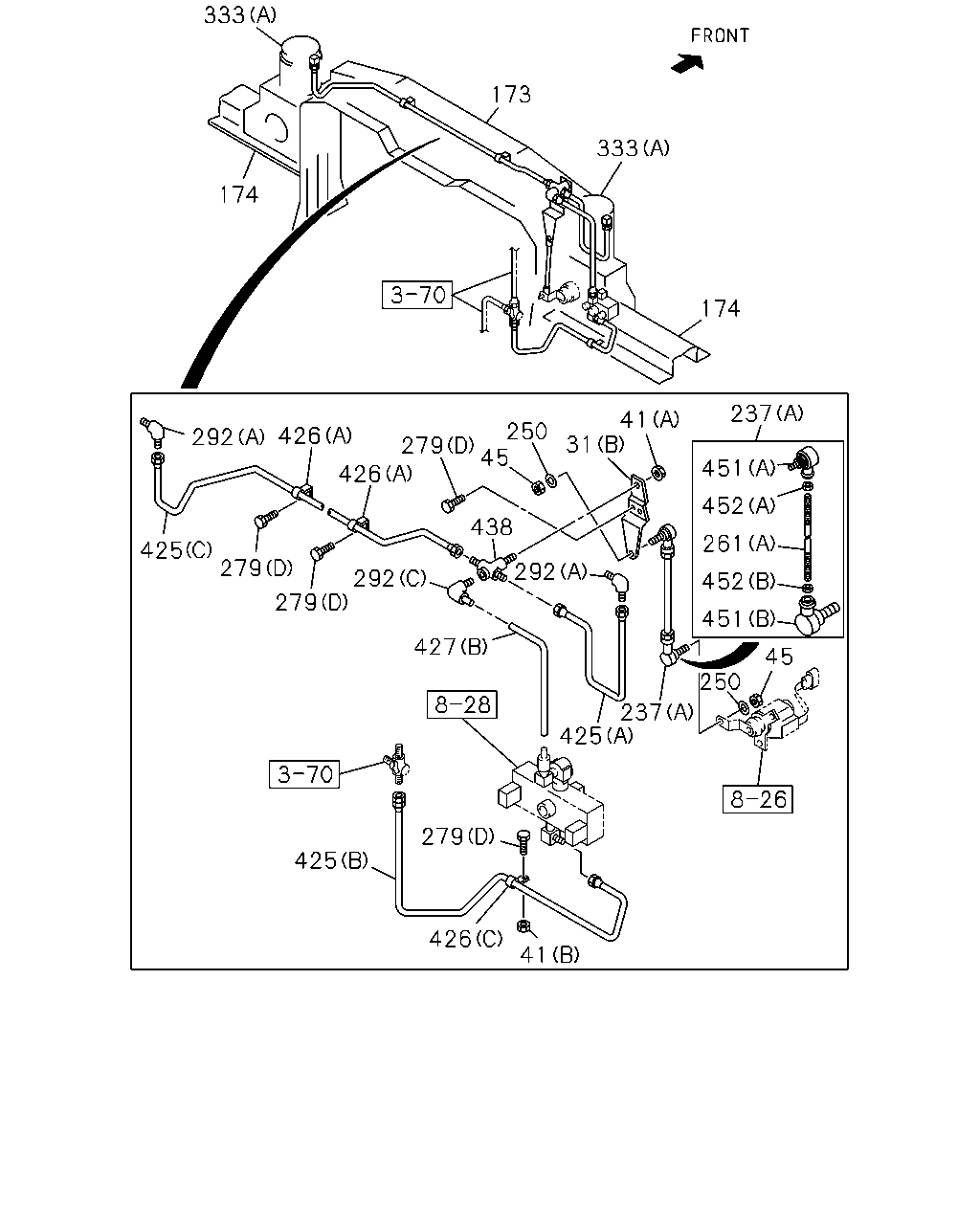

çizim 25555
333 173 333 174 174 237 41 31 250 279 45 426 292 451 426 452 438 261 425 279 292 292 279 452 451 427 45 250 237 425 279 425 426 41
BalonParca AdiParca NoAdetTipApplied Date
31 BRACKET; CAB
(A) 		1-44226-164-0 01 1 0302-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0302-
31 BRACKET; CAB
(C) 		1-81549-016-0 01 1 0302-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0302-
31 BRACKET; CAB
(D) 		1-53453-224-4 01 1 0302-
41 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0302-
41 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0302-
45 NUT
M5 		9-99110-405-0 02 1 0302-
45 NUT
M5 		9-99110-405-0 02 1 0302-
173 MEMBER; CAB MTG RR 1-53450-587-2 01 1 0302-0406
173 MEMBER; CAB MTG RR 1-53450-664-0 01 1 0407-
174 OUTRIGGER 1-53456-277-3 01 1 0302-
174 OUTRIGGER 1-53456-278-3 01 1 0302-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0302-
237 ROD ASM; LATERAL
(C) 		1-33670-773-0 01 1 0302-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0302-
250 WASHER; LK
ID=5.1 		9-09150-505-0 02 1 0302-
250 WASHER; LK
ID=5.1 		9-09150-505-0 02 1 0302-
261 ROD; LINK
(B) 		9-08410-507-0 01 1 0302-
261 ROD; LINK
(A) 		9-08410-514-0 01 1 0302-
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0302-
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 0302-
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 0302-
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0302-
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0302-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0302-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0302-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0302-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0302-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0302-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0302-
333 SPRING
(B) 		1-52110-142-1 02 1 0302-
333 SPRING
(A) 		1-52110-143-1 02 1 0302-
425 PIPE ASM; AIR
(C) L=1149 SERVICED BY L=1200 		1-47428-816-0 01 1 0302-
425 PIPE ASM; AIR
(A) L=298 		1-47494-961-1 01 1 0302-
425 PIPE ASM; AIR
(B) L=510 		1-49122-367-0 01 1 0302-
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0302-
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0302-
426 CLIP
(E) ID=5.8 L=8 		8-94155-681-0 02 1 0302-
426 CLIP
(C) ID=7 L=32 		9-09524-665-0 01 1 0302-
426 CLIP
(D) ID=11 L=16 		9-09525-025-0 01 1 0302-
427 TUBE
(A) L=1300 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0302-
427 TUBE
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0302-
438 UNION
M12X2 & PT1/8 3WAY 		1-09656-655-0 01 1 0302-
451 JOINT; BALL
(A) 		1-09760-103-1 01 1 0302-
451 JOINT; BALL
(A) 		1-09760-103-1 01 1 0302-
451 JOINT; BALL
(B) 		1-09760-104-1 01 1 0302-
451 JOINT; BALL
(B) 		1-09760-104-1 01 1 0302-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0302-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0302-
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 01 1 0302-
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 01 1 0302-

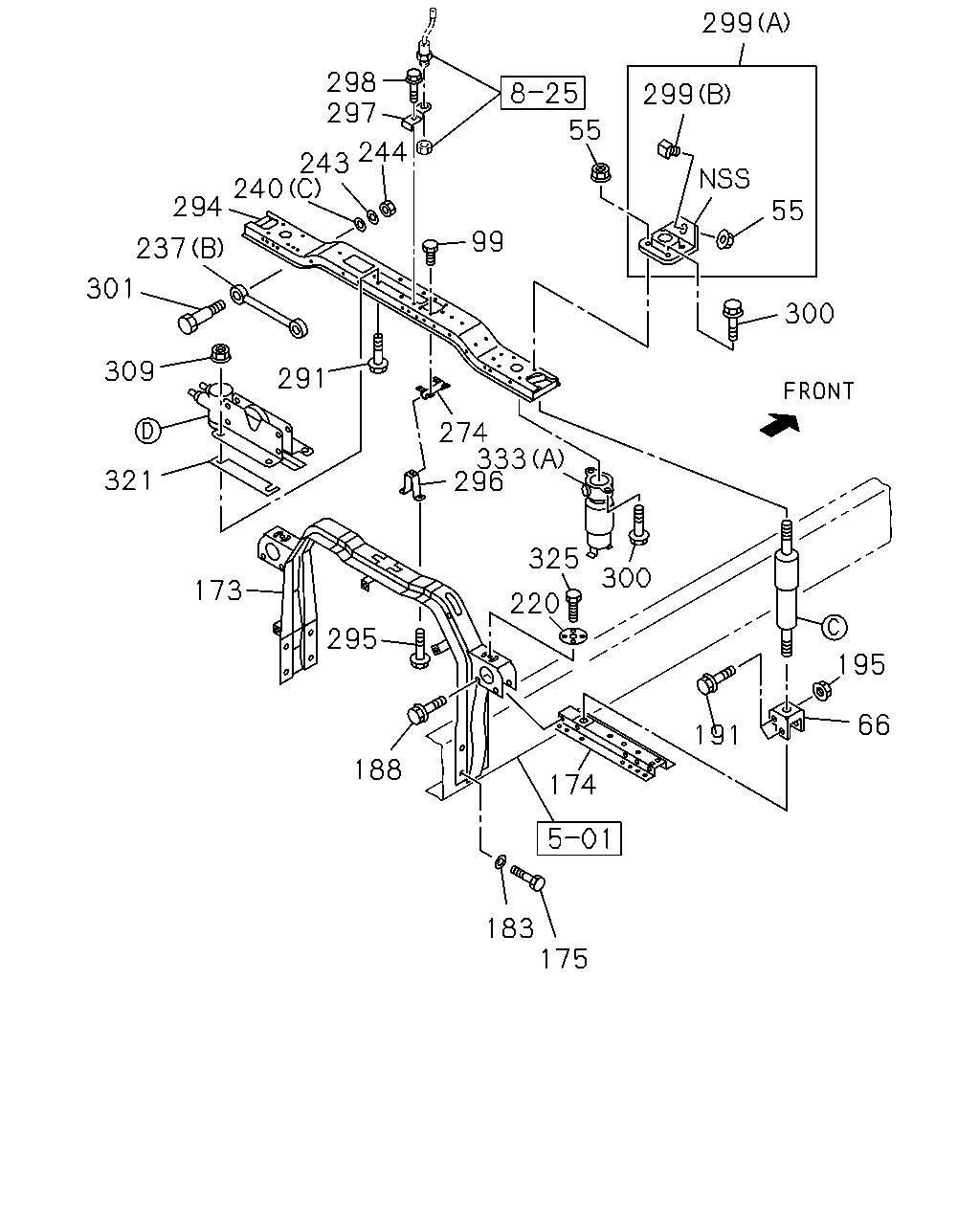

çizim 81735
299 298 297 299 55 244 243 240 294 55 99 237 301 300 309 291 274 333 296 321 325 300 173 220 295 195 66 188 174 183 175 191
BalonParca AdiParca NoAdetTipApplied Date
55 NUT; RUBBER
M8 FLANGE 		0-91150-108-0 06 1 0302-
66 BRACKET; S/ABS 1-53458-753-0 01 1 0302-
66 BRACKET; S/ABS 1-53458-754-0 01 1 0302-
99 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0302-
173 MEMBER; CAB MTG RR 1-53450-587-2 01 1 0302-0406
173 MEMBER; CAB MTG RR 1-53450-664-0 01 1 0407-
174 OUTRIGGER 1-53456-277-3 01 1 0302-
174 OUTRIGGER 1-53456-278-3 01 1 0302-
175 BOLT; MEMBER TO FRAME
M14X40 		9-92061-440-0 08 1 0302-
183 WASHER; PL,MEMBER
ID=15 		9-09651-069-0 08 1 0302-
188 BOLT; OUTRIGGER
M10X25 FLANGE 		0-28681-025-0 08 1 0302-
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28681-025-0 07 1 0302-
195 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 04 1 0302-
220 GUIDE; SPR 1-53458-648-1 02 1 0302-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0302-
237 ROD ASM; LATERAL
(C) 		1-33670-773-0 01 1 0302-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0302-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0302-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0302-
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 0302-
243 WASHER; LK,LATERAL ROD
ID=12.2 		9-09150-512-0 02 1 0302-
244 NUT; LATERAL ROD
M12 		9-99110-512-0 02 1 0302-
274 PIN 1-53458-996-0 01 1 0302-
291 BOLT; RATCH
M10X25 FLANGE 		0-28681-025-0 04 1 0302-
294 MEMBER; FLOATING 1-53454-828-1 01 1 0302-0302
294 MEMBER; FLOATING 1-53454-918-1 01 1 0303-0311
294 MEMBER; FLOATING 1-53454-949-1 01 1 0312-
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28681-020-0 02 1 0302-
296 STOPPER; UPR 1-53458-973-0 01 1 0302-
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 0302-
298 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0302-
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 0302-
299 RUBBER; MTG
(A) 		1-53366-156-0 02 1 0302-
300 BOLT; MTG RUBBER
M8X16 FLANGE 		0-28080-816-0 04 1 0302-
300 BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0302-
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 0302-
309 NUT
M10 FLANGE 		0-91150-210-0 04 1 0302-
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 0302-
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28680-820-0 02 1 0302-
333 SPRING
(B) 		1-52110-142-1 02 1 0302-
333 SPRING
(A) 		1-52110-143-1 02 1 0302-

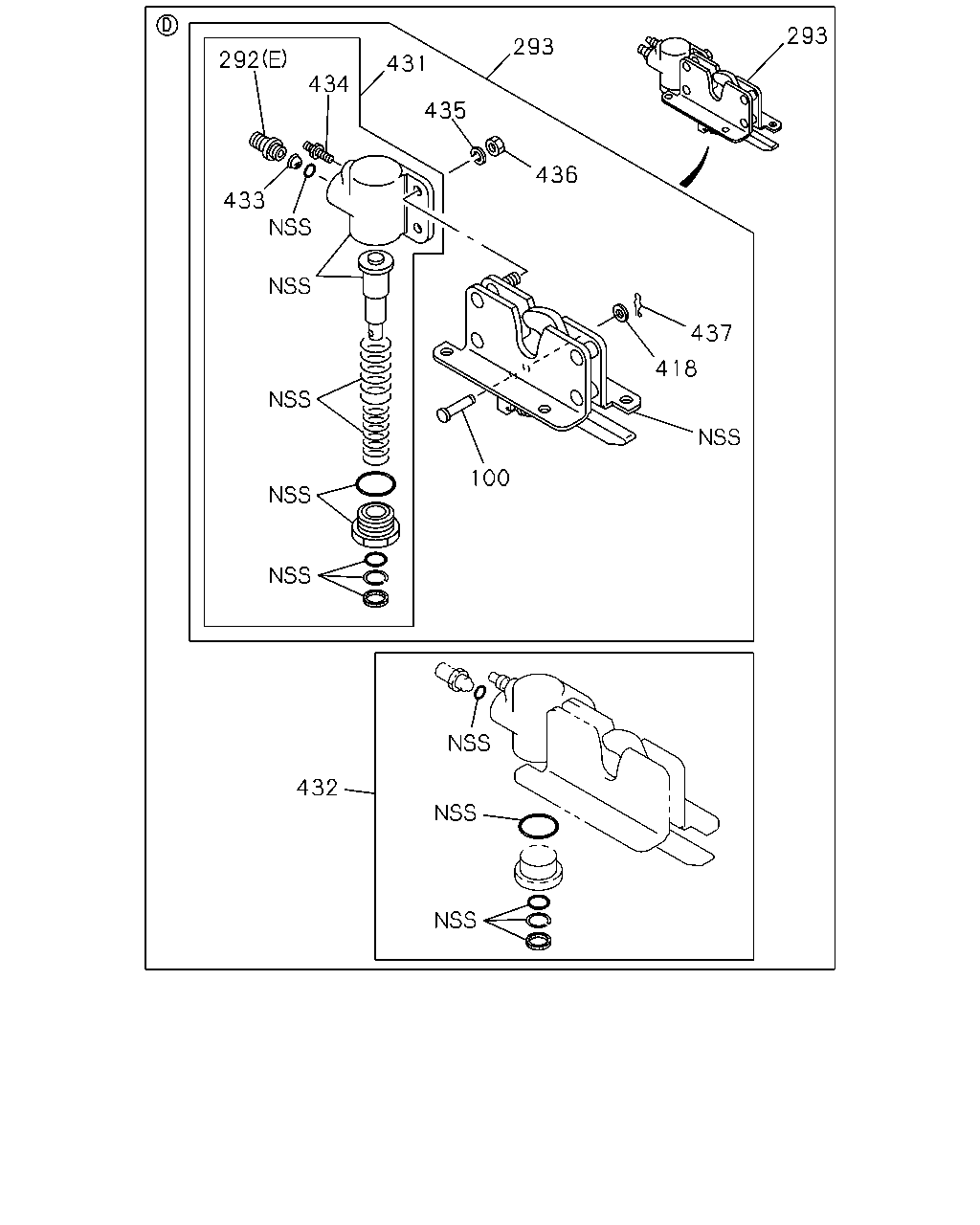

çizim 82000
293 293 292 431 434 435 436 433 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date
100 PIN; JOINT 1-53458-831-0 01 1 0302-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0302-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0302-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0302-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0302-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0302-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0302-
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 0302-
418 WASHER; PL,PIN 1-53458-059-0 01 1 0302-
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 0302-
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 0302-
433 FILTER; AIR CYL 1-53458-048-0 01 1 0302-
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 0302-
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 0302-
436 NUT; AIR CYL 1-53458-528-0 02 1 0302-
437 PIN; SNAP 1-53458-526-0 01 1 0302-
çizim 85101
202 202 294 203 204 205 204 203 201 173 203 204 205 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date
173 MEMBER; CAB MTG RR 1-53450-587-2 01 1 0302-0406
173 MEMBER; CAB MTG RR 1-53450-664-0 01 1 0407-
174 OUTRIGGER 1-53456-277-3 01 1 0302-
174 OUTRIGGER 1-53456-278-3 01 1 0302-
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-0 02 1 0302-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0302-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0302-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0302-
203 WASHER; RUBBER,SHOCK
(A) 		1-51631-005-0 10 1 0302-
203 WASHER; RUBBER,SHOCK
(B) 		1-51631-104-0 02 1 0302-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0302-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0302-
294 MEMBER; FLOATING 1-53454-828-1 01 1 0302-0302
294 MEMBER; FLOATING 1-53454-918-1 01 1 0303-0311
294 MEMBER; FLOATING 1-53454-949-1 01 1 0312-

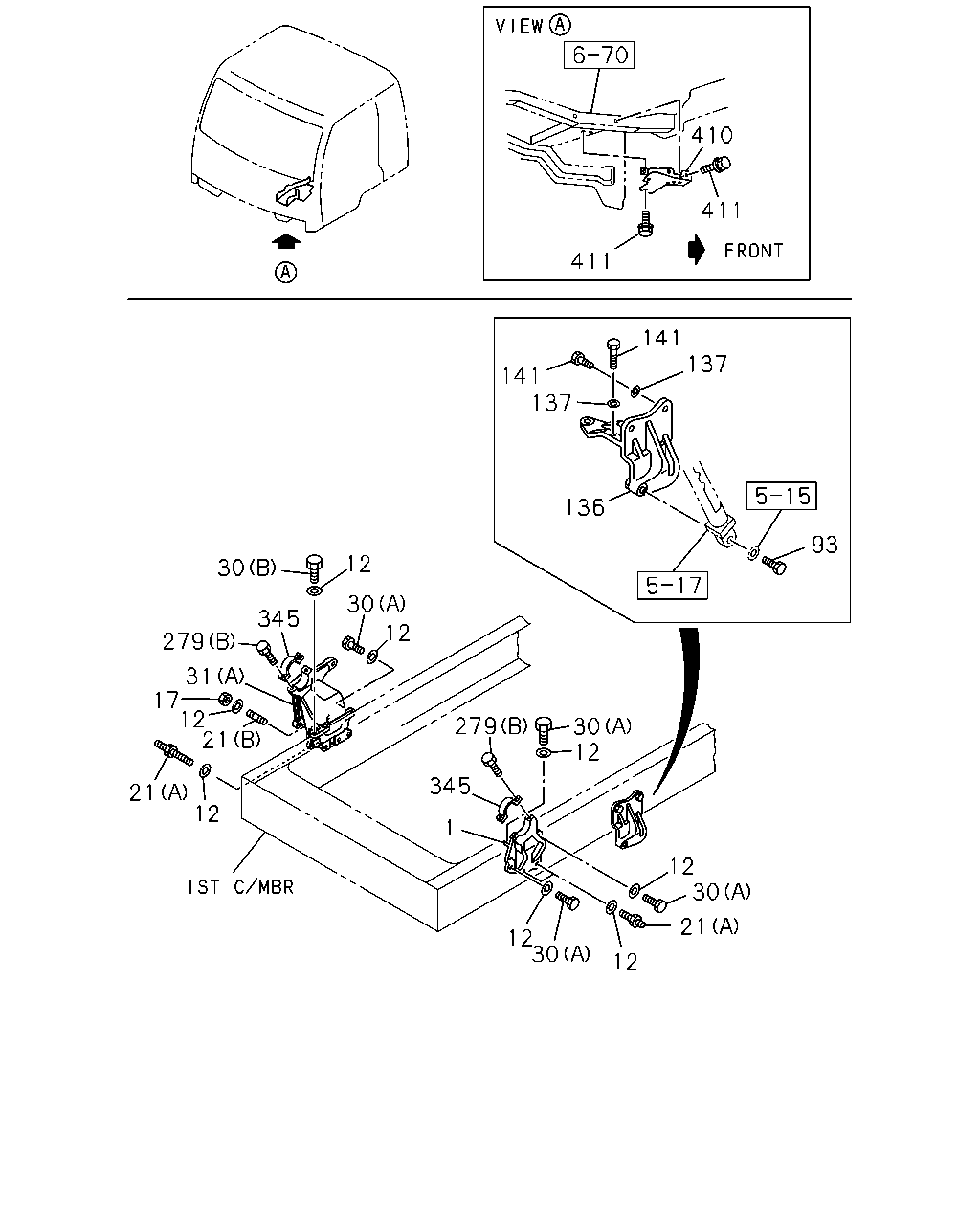

çizim 85348
410 411 411 141 137 141 137 136 93 12 30 30 345 12 279 31 17 12 21 279 30 12 345 21 12 1 12 30 21 12 30 12
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 1-53453-335-0 01 1 0302-
12 WASHER; LK,BRKT
ID=15 		9-09651-069-0 15 1 0302-
17 NUT; BRKT,CAB TILT
M14 		9-99110-514-0 01 1 0302-
21 STUD; BRKT,CAB TILT
(A) M12X25,M14X45 L=81 		1-09029-103-0 04 1 0302-
21 STUD; BRKT,CAB TILT
(B) M14X48 L=75 		1-09300-094-0 01 1 0302-
30 BOLT; CAB FRT FOOT
(A) M14X45 		9-92061-445-0 08 1 0302-
30 BOLT; CAB FRT FOOT
(B) M14X60 		9-92061-460-0 02 1 0302-
31 BRACKET; CAB
(A) 		1-44226-164-0 01 1 0302-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0302-
31 BRACKET; CAB
(C) 		1-81549-016-0 01 1 0302-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0302-
31 BRACKET; CAB
(D) 		1-53453-224-4 01 1 0302-
93 BOLT; PIN
M10X20 FLANGE 		0-28681-020-0 01 1 0302-
136 BRACKET; OIL CYL 1-53458-854-0 01 1 0302-
137 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 0302-
141 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 0302-
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0302-
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 0302-
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 0302-
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0302-
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0302-
345 CAP; CAB 1-53458-336-3 02 1 0302-
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 0302-
411 BOLT; REINFORCEMENT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0302-
411 BOLT; REINFORCEMENT
M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 0302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
