◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXJ ▶ 10910 - CXJ RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#26312) — 27 parça

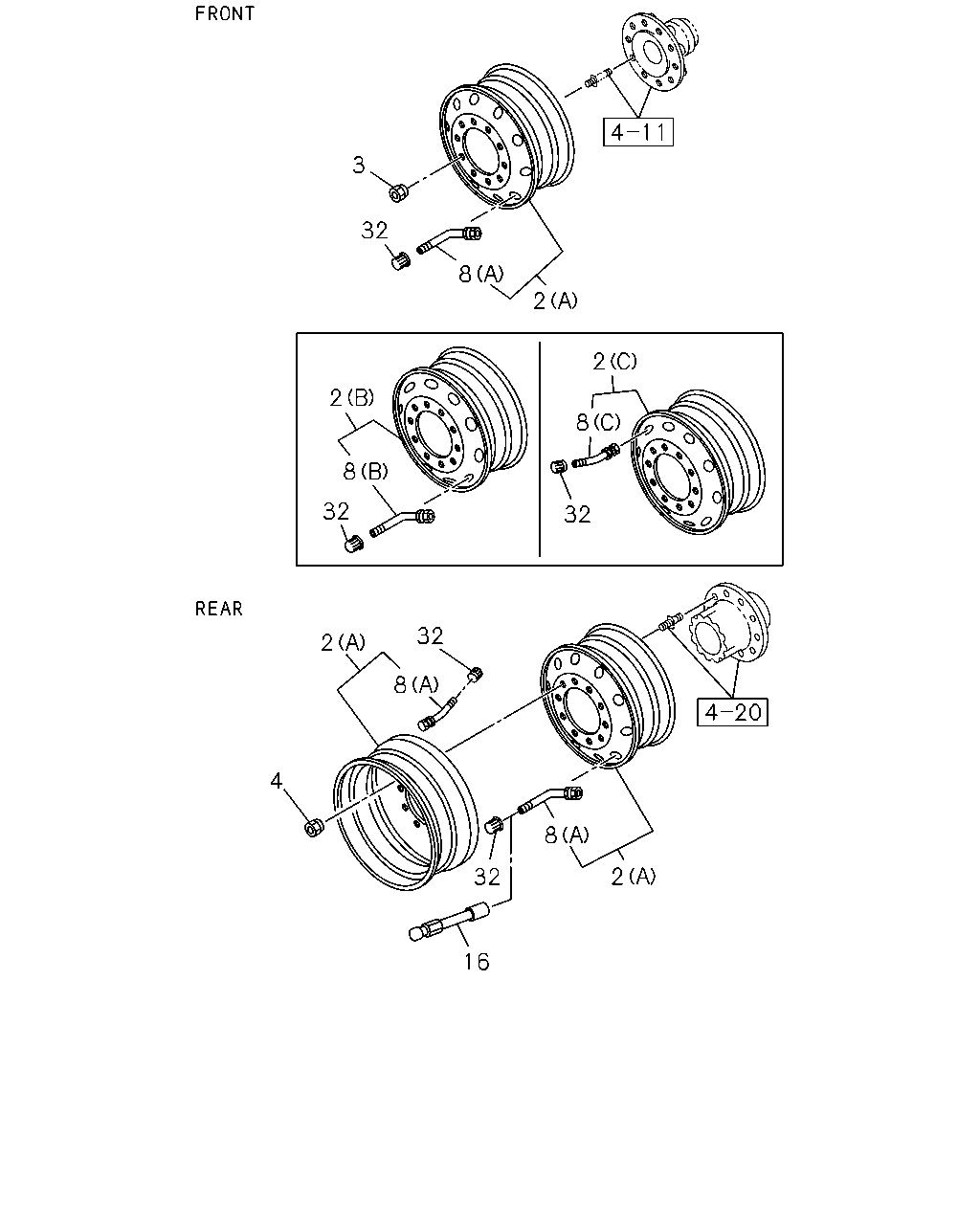

çizim 81908
3 32 8 2 2 2 8 8 32 32 32 2 8 4 8 2 32 16
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) SPARE 		1-42350-646-0 01 1 0302-0503
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) SPARE 		1-42350-638-1 01 1 0504-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) 		1-42350-646-0 12 1 0302-0503
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) 		1-42350-638-1 12 1 0504-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (A) SPARE 		1-42350-211-0 01 1 0302-0304
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) SPARE 		1-42350-661-0 01 1 0305-0407
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) SPARE 		1-42350-694-0 01 1 0408-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (A) 		1-42350-211-0 12 1 0302-0304
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) 		1-42350-661-0 12 1 0305-0407
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) 		1-42350-694-0 12 1 0408-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-050-1 40 1 0302-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 40 1 0302-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) SPARE 		1-42370-020-3 01 1 0302-0503
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) SPARE 		1-42370-041-1 01 1 0504-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) 		1-42370-020-3 12 1 0302-0503
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) 		1-42370-041-1 12 1 0504-
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (A) SPARE 		1-42370-008-0 01 1 0302-0304
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) SPARE 		1-42370-040-0 01 1 0305-0407
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) SPARE 		1-42370-044-0 01 1 0408-
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (A) 		1-42370-008-0 12 1 0302-0304
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) 		1-42370-040-0 12 1 0305-0407
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) 		1-42370-044-0 12 1 0408-
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) L=115 		1-42370-015-2 04 1 0305-
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 04 1 0302-0304
16 HOLDER; TIRE VALVE,DISC WHEEL
EXC. WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) L=170 		1-42370-024-0 04 1 0305-
16 HOLDER; TIRE VALVE,DISC WHEEL
EXC. DISC WHEEL AL<SDM> L=115 		1-42370-015-2 01 1 0302-0302
32 CAP; VALVE 1-42374-001-0 09 1 0302-0503
