0-61B — BATTERY AND ENGINE ELECTRICAL PARTS (#2631) — 83 parça

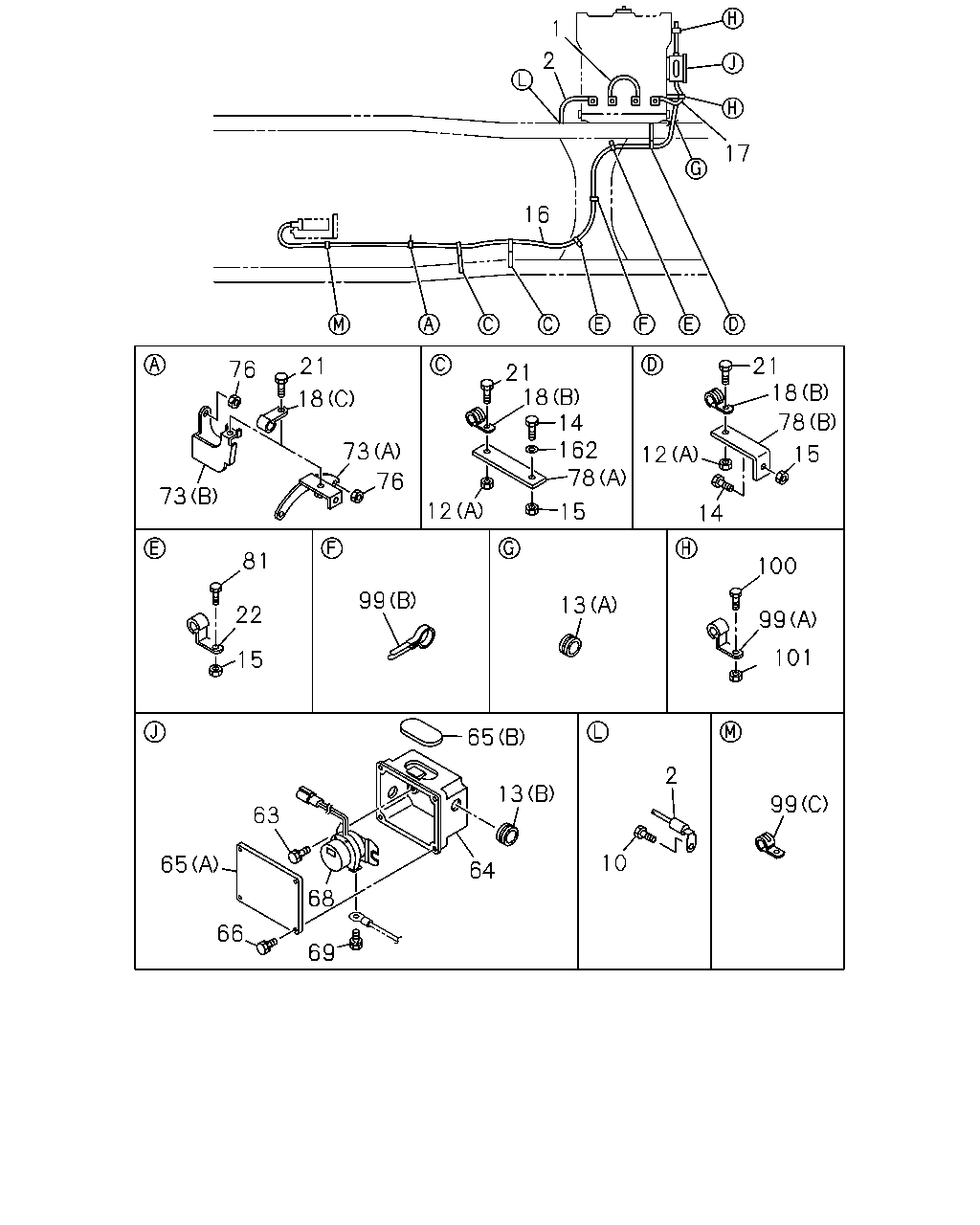

1 2 17 16 21 18 21 76 21 18 14 162 78 18 78 73 15 12 76 73 12 15 14 81 100 99 13 22 99 101 15 65 2 13 99 63 10 65 64 68 66 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=500	1-82650-130-0	01	1	9002-9003	●
1	CABLE; BATTERY L=500	1-82650-124-0	01	1	9004-	●	●
2	CABLE; BATTERY L=290	1-82650-151-0	01	1	9002-	●	●
10	BOLT; BATTERY CABLE CLIP M10X20 W/LK WASHER	9-01911-020-0	01	1	9002-9002	●
10	BOLT; BATTERY CABLE CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-	●	●
12	NUT; BATTERY CABLE CLIP (A) M8	9-09110-408-0	01	1	9002-	●	●
12	NUT; BATTERY CABLE CLIP (A) M8	9-09110-408-0	02	1	9002-	●	●
13	GROMMET; BATTERY CABLE (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	9002-	●	●
13	GROMMET; BATTERY CABLE (A) ID=26	1-09333-140-0	01	1	9002-	●	●
14	BOLT; BRKT CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
14	BOLT; BRKT CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●
14	BOLT; BRKT CLIP M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●
14	BOLT; BRKT CLIP M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●
14	BOLT; BRKT CLIP M8X30 FLANGE	0-28080-830-0	03	1	9303-9306	●
14	BOLT; BRKT CLIP M8X30 FLANGE	0-28080-830-0	02	1	9307-9411	●	●
14	BOLT; BRKT CLIP M8X40 FLANGE	0-28080-840-0	02	1	9412-	●	●
14	BOLT; BRKT CLIP M8X25 FLANGE	0-28080-825-0	01	1	9307-	●	●
15	NUT; BRKT CLIP M8	9-09110-408-0	03	1	9002-	●	●
16	CABLE; STARTER TO RELAY L=4100	1-82652-524-0	01	1	9002-	●	●
17	CABLE; BATTERY (+) TO RELAY L=250	1-82652-510-0	01	1	9002-	●	●
18	CLIP; BATTERY CABLE (B) ID=18 L=40	1-09701-111-0	03	1	9002-9002	●
18	CLIP; BATTERY CABLE (B) ID=18 L=40	1-09701-111-0	01	1	9003-	●	●
18	CLIP; BATTERY CABLE (B) ID=18 L=50	1-09701-072-0	02	1	9003-9504	●	●
18	CLIP; BATTERY CABLE ISUZU M/T<X9A> (B) ID=18 L=50	1-09701-072-0	02	1	9505-	●	●
18	CLIP; BATTERY CABLE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	02	1	9505-	●
18	CLIP; BATTERY CABLE (C) ID=24 L=32	1-09700-766-1	01	1	9002-9306	●
18	CLIP; BATTERY CABLE (C) ID=19 L=28	9-09525-856-0	01	1	9307-	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9201	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	0-50040-820-0	03	1	9202-9302	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	03	1	9303-9306	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	02	1	9307-	●	●
22	CLIP; BATTERY CABLE ID=18 L=28 H=30	1-09701-110-0	02	1	9002-9002	●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	02	1	9003-9306	●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	04	1	9307-	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9002-	●	●
64	BOX; BATTERY RELAY	1-82699-352-2	01	1	9002-	●	●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9002-	●	●
65	COVER; BATTERY RELAY (B)	1-82699-354-2	01	1	9002-	●	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	9-01960-616-0	04	1	9002-9204	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9205-	●	●
68	RELAY; BATTERY	1-82550-228-2	01	1	9002-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
69	BOLT; CABLE BATTERY M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●
69	BOLT; CABLE BATTERY M8X20 FLANGE	0-28080-820-0	02	1	9303-9401	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9402-	●	●
73	BRACKET; BATTERY CABLE (B)	1-82699-371-0	01	1	9002-9106	●
73	BRACKET; BATTERY CABLE (B)	1-82699-542-0	01	1	9107-9306	●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A> (B)	1-82699-542-0	01	1	9307-9410	●
73	BRACKET; BATTERY CABLE (B)	1-82699-542-0	01	1	9307-9410		●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A> (B)	1-82699-822-0	01	1	9411-9504	●
73	BRACKET; BATTERY CABLE (B)	1-82699-822-0	01	1	9411-9504		●
73	BRACKET; BATTERY CABLE (B)	1-82699-822-0	01	1	9505-	●	●
73	BRACKET; BATTERY CABLE FULLER M/T<X9B> (A)	1-82699-358-0	01	1	9307-9504	●
76	NUT; BATTERY CABLE M8	9-09110-408-0	02	1	9307-	●	●
76	NUT; BATTERY CABLE M10 FLANGE	5-09440-006-0	02	1	9002-	●
78	BRACKET; CLIP BATTERY (A)	1-22133-053-0	02	1	9002-	●	●
78	BRACKET; CLIP BATTERY (B)	1-82699-085-0	01	1	9002-	●	●
81	BOLT; BATTERY CABLE M8X22	9-01900-822-0	02	1	9002-9204	●
81	BOLT; BATTERY CABLE M8X22 W/LK WASHER	0-50040-822-0	02	1	9205-9302	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28080-820-0	02	1	9307-	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28080-820-0	04	1	9307-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	9002-	●	●
99	CLIP; BATTERY CABLE (B) ID=16 L=46	9-09917-428-0	01	1	9002-	●	●
99	CLIP; BATTERY CABLE (C) ID=18 L=50	1-09701-072-0	01	1	9002-9002	●
99	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	01	1	9003-	●
100	BOLT; BATTERY CABLE CLIP M6X20 W/LK WASHER	9-01900-620-0	02	1	9002-9009	●
100	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9010-9204	●
100	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
100	BOLT; BATTERY CABLE CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
100	BOLT; BATTERY CABLE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9303-	●
101	NUT; BATTERY CABLE CLIP M6	9-09110-406-0	02	1	9002-9009	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	02	1	9010-	●	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	01	1	9002-	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=22	9-09160-708-0	02	1	9002-9401	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9402-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
