◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11037 - EXR RHD EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#26286) — 72 parça

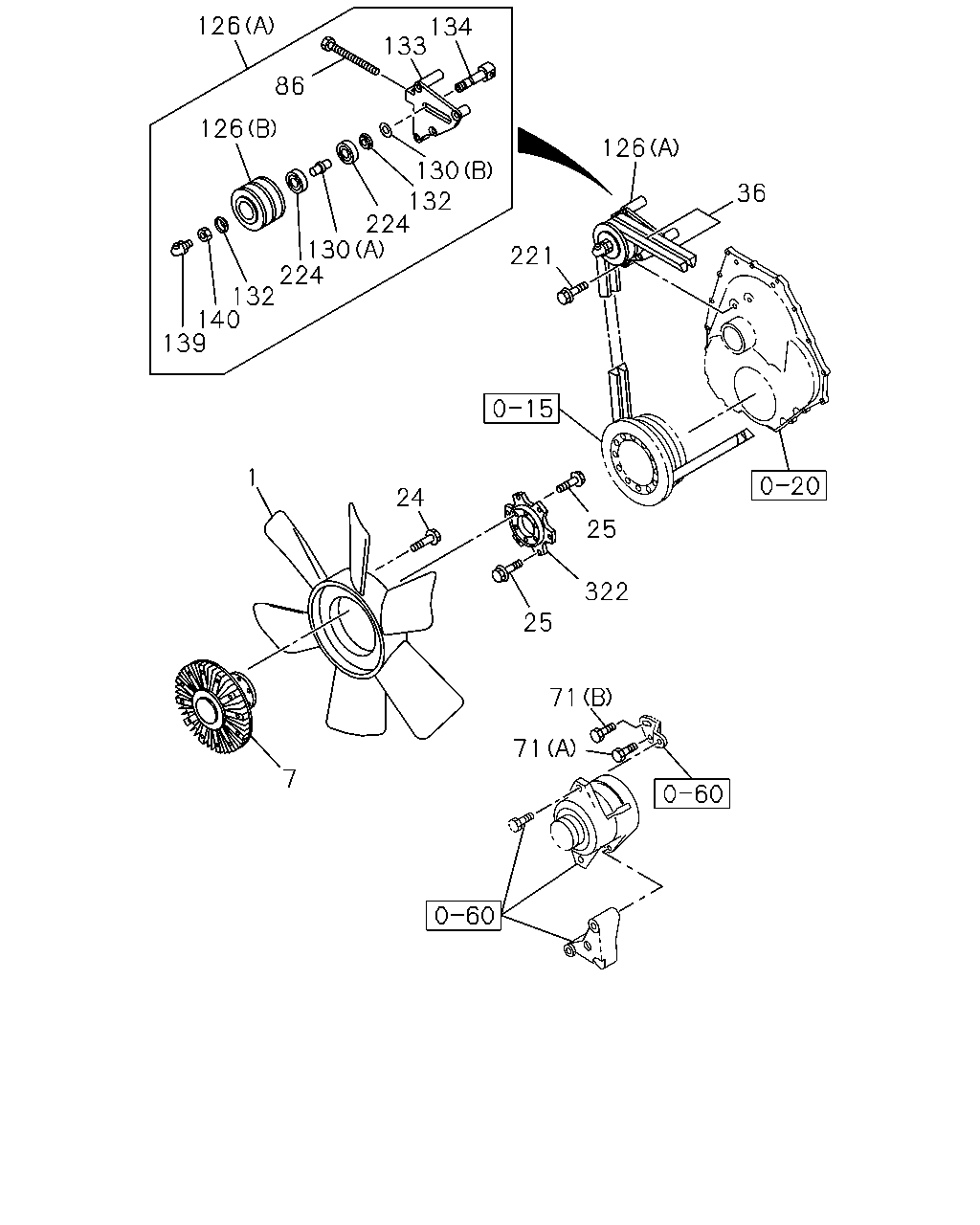

çizim 90649
126 134 133 86 126 126 130 132 224 130 224 132 140 139 36 221 1 24 25 322 25 71 71 7
BalonParca AdiParca NoAdetTipApplied Date
1 FAN; COOLING
OD=700 		1-13660-286-1 01 1 0610-1510
1 FAN; COOLING
OD=700 		8-98296-792-0 01 1 1511-
7 COUPLING; FAN 1-21650-213-1 01 1 0610-0702
7 COUPLING; FAN 8-98071-043-0 01 1 0703-0806
7 COUPLING; FAN 8-98119-742-0 01 1 0807-
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 0610-
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 0610-
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-098-0 01 1 0610-1209
36 BELT; COOLING FAN
HONG KONG EQUIPMENT(PQ1) BEST VALUE PARTS 		1-87610-098-0 01 1 1210-
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 0610-1209
36 BELT; COOLING FAN
HONG KONG EQUIPMENT(PQ1) 1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 1210-
71 BOLT; ADJ PLATE,GEN
SINGAPORE EQUIPMENT(WQ3) (C) M10X140 FLANGE 		0-28156-014-0 01 1 1210-
71 BOLT; ADJ PLATE,GEN
SINGAPORE EQUIPMENT(WQ3) (D) M10X55 FLANGE 		8-97365-449-0 01 1 1210-
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28151-025-0 01 1 0610-1209
71 BOLT; ADJ PLATE,GEN
HONG KONG EQUIPMENT(PQ1) (A) M10X25 FLANGE 		0-28151-025-0 01 1 1210-
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28156-011-0 01 1 0610-1209
71 BOLT; ADJ PLATE,GEN
HONG KONG EQUIPMENT(PQ1) (B) M10X110 FLANGE 		0-28156-011-0 01 1 1210-
86 BOLT; ADJ
SINGAPORE EQUIPMENT(WQ3) M10X90 		1-09009-151-0 01 1 1210-
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 0610-1209
86 BOLT; ADJ
HONG KONG EQUIPMENT(PQ1) M10X135 		1-09009-113-1 01 1 1210-
126 PULLEY; IDLE
(A) 		1-13660-352-2 01 1 0610-1209
126 PULLEY; IDLE
HONG KONG EQUIPMENT(PQ1) (A) 		1-13660-352-2 01 1 1210-
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 0610-1209
126 PULLEY; IDLE
HONG KONG EQUIPMENT(PQ1) (B) 		1-13663-067-0 01 1 1210-
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 0610-1209
130 SPACER; IDLE PULLEY BRG
HONG KONG EQUIPMENT(PQ1) (A) 		1-13666-007-0 01 1 1210-
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 0610-1209
130 SPACER; IDLE PULLEY BRG
HONG KONG EQUIPMENT(PQ1) (B) 		1-13666-032-0 01 1 1210-
132 COVER; DUST 1-13664-009-2 02 1 0610-1209
132 COVER; DUST
HONG KONG EQUIPMENT(PQ1) 		1-13664-009-2 02 1 1210-
133 BRACKET; IDLE PULLEY 1-13669-197-2 01 1 0610-1209
133 BRACKET; IDLE PULLEY
HONG KONG EQUIPMENT(PQ1) 		1-13669-197-2 01 1 1210-
134 SPINDLE; IDLE PULLEY 1-13665-060-1 01 1 0610-1209
134 SPINDLE; IDLE PULLEY
HONG KONG EQUIPMENT(PQ1) 		1-13665-060-1 01 1 1210-
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 0610-1209
139 NIPPLE; GREASE,IDLE PULLEY
HONG KONG EQUIPMENT(PQ1) PT1/8 ELBOW 		0-90301-610-0 01 1 1210-
140 NUT; IDLE PULLEY
M18 		0-91111-518-0 01 1 0610-1209
140 NUT; IDLE PULLEY
HONG KONG EQUIPMENT(PQ1) M18 		0-91111-518-0 01 1 1210-
221 BOLT; IDLE PULLEY
M10X40 FLANGE 		0-28151-040-0 01 1 1104-
221 BOLT; IDLE PULLEY
M10X50 FLANGE 		0-28151-050-0 02 1 1104-
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 0610-1209
221 BOLT; IDLE PULLEY
HONG KONG EQUIPMENT(PQ1) M10X80 FLANGE 		0-28151-080-0 04 1 1210-
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 0610-0907
224 BEARING; IDLE PULLEY 8-97633-017-0 02 1 0908-1209
224 BEARING; IDLE PULLEY
HONG KONG EQUIPMENT(PQ1) 		8-97633-017-0 02 1 1210-
322 ADAPTER; COUPLING 8-97606-264-0 01 1 0610-

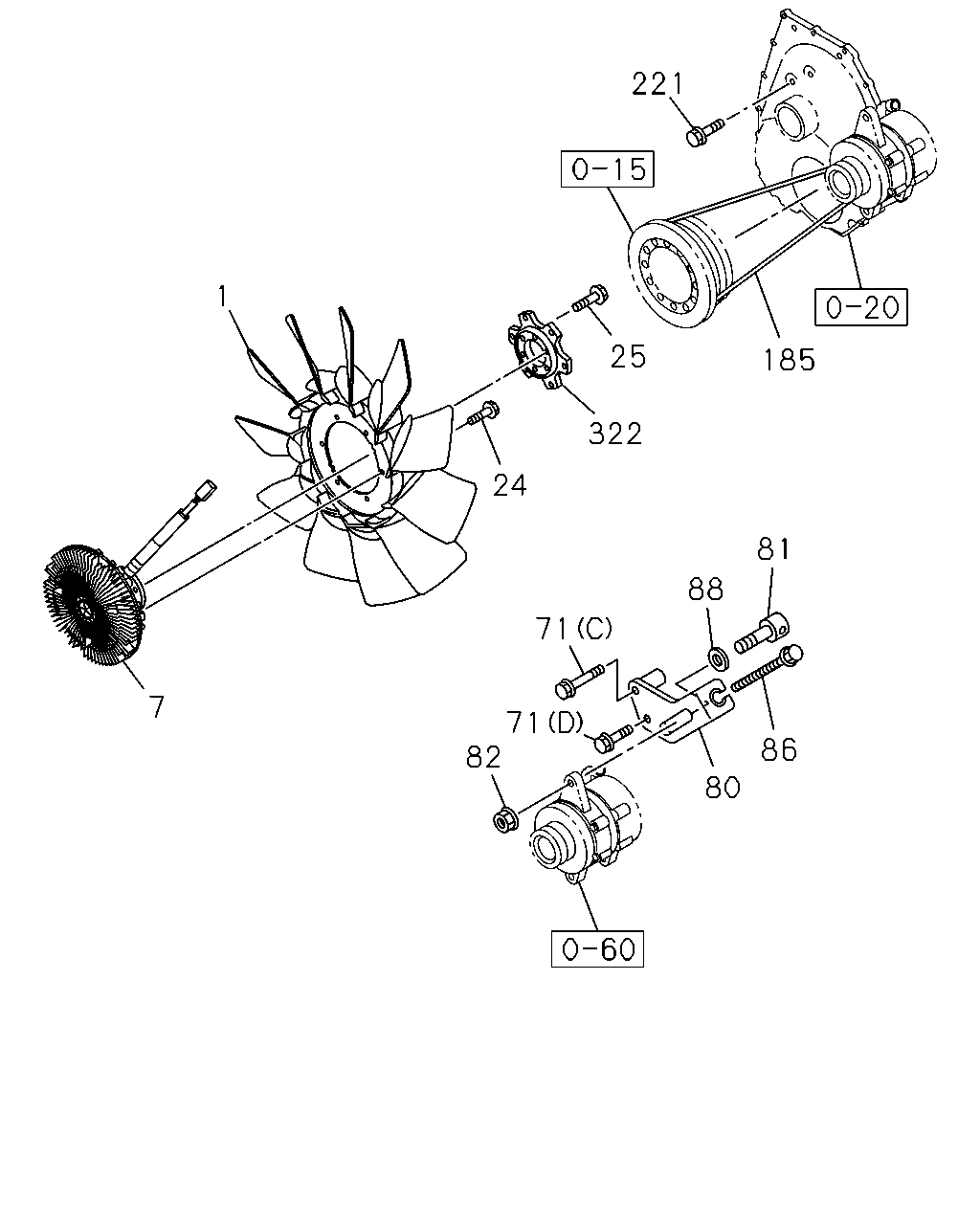

çizim 355308
221 25 185 322 24 81 88 71 71 82 80 86 1 7
BalonParca AdiParca NoAdetTipApplied Date
1 FAN; COOLING
OD=700 		1-13660-286-1 01 1 0610-1510
1 FAN; COOLING
OD=700 		8-98296-792-0 01 1 1511-
7 COUPLING; FAN 1-21650-213-1 01 1 0610-0702
7 COUPLING; FAN 8-98071-043-0 01 1 0703-0806
7 COUPLING; FAN 8-98119-742-0 01 1 0807-
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 0610-
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 0610-
71 BOLT; ADJ PLATE,GEN
SINGAPORE EQUIPMENT(WQ3) (C) M10X140 FLANGE 		0-28156-014-0 01 1 1210-
71 BOLT; ADJ PLATE,GEN
SINGAPORE EQUIPMENT(WQ3) (D) M10X55 FLANGE 		8-97365-449-0 01 1 1210-
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28151-025-0 01 1 0610-1209
71 BOLT; ADJ PLATE,GEN
HONG KONG EQUIPMENT(PQ1) (A) M10X25 FLANGE 		0-28151-025-0 01 1 1210-
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28156-011-0 01 1 0610-1209
71 BOLT; ADJ PLATE,GEN
HONG KONG EQUIPMENT(PQ1) (B) M10X110 FLANGE 		0-28156-011-0 01 1 1210-
80 PLATE; ADJ
SINGAPORE EQUIPMENT(WQ3) 		8-97639-550-0 01 1 1210-
81 PIECE; SLIDING
SINGAPORE EQUIPMENT(WQ3) M12X45 		1-13674-160-0 01 1 1210-
82 NUT; ADJ PLATE
SINGAPORE EQUIPMENT(WQ3) M12 FLANGE 		0-91180-112-0 01 1 1210-
86 BOLT; ADJ
SINGAPORE EQUIPMENT(WQ3) M10X90 		1-09009-151-0 01 1 1210-
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 0610-1209
86 BOLT; ADJ
HONG KONG EQUIPMENT(PQ1) M10X135 		1-09009-113-1 01 1 1210-
88 WASHER; PL,ADJ PLATE
SINGAPORE EQUIPMENT(WQ3) ID=12.5 OD=32 		0-91614-712-0 01 1 1210-
185 BELT; GEN DRIVE
SINGAPORE EQUIPMENT(WQ3) 		8-97639-551-0 01 1 1210-
221 BOLT; IDLE PULLEY
M10X40 FLANGE 		0-28151-040-0 01 1 1104-
221 BOLT; IDLE PULLEY
M10X50 FLANGE 		0-28151-050-0 02 1 1104-
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 0610-1209
221 BOLT; IDLE PULLEY
HONG KONG EQUIPMENT(PQ1) M10X80 FLANGE 		0-28151-080-0 04 1 1210-
322 ADAPTER; COUPLING 8-97606-264-0 01 1 0610-
