◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11126 - FTR(INDONESIA)6HH1 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#26269) — 73 parça

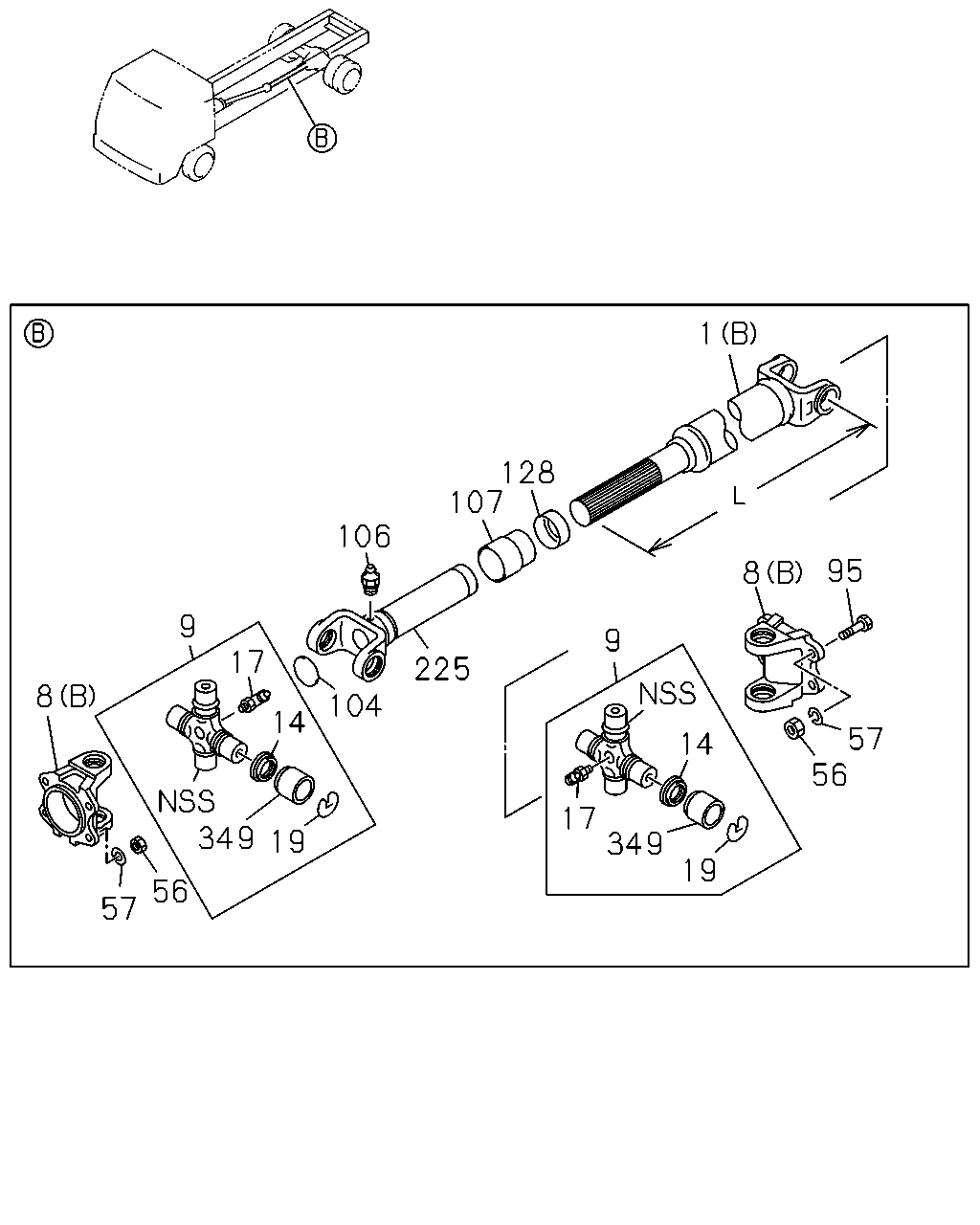

çizim 143439
1 128 107 106 95 8 9 9 17 225 8 104 14 57 56 14 349 17 349 19 19 56 57
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) L=1275 		1-37123-773-1 01 1 0711-
1 SHAFT; PROP
(A) L=1096 		1-37151-941-1 01 1 0711-1111
1 SHAFT; PROP
(A) L=1089 		8-98069-573-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0711-1111
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0711-
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0711-1111
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0711-1111
9 JOURNAL ASM; PROP SHAFT
END 		1-37300-102-1 AR 1 1112-
14 COVER; DUST,SPIDER
1ST IDN 		1-37319-012-0 04 1 0711-1111
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
END IDN 		1-37319-012-0 08 1 0711-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0711-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0711-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0711-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0711-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0711-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0711-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0711-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0711-
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0711-
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0711-
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0711-
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0711-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0711-
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0711-
128 SEAL; SLEEVE 1-37247-024-0 01 1 0711-
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0711-
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 12 1 0711-

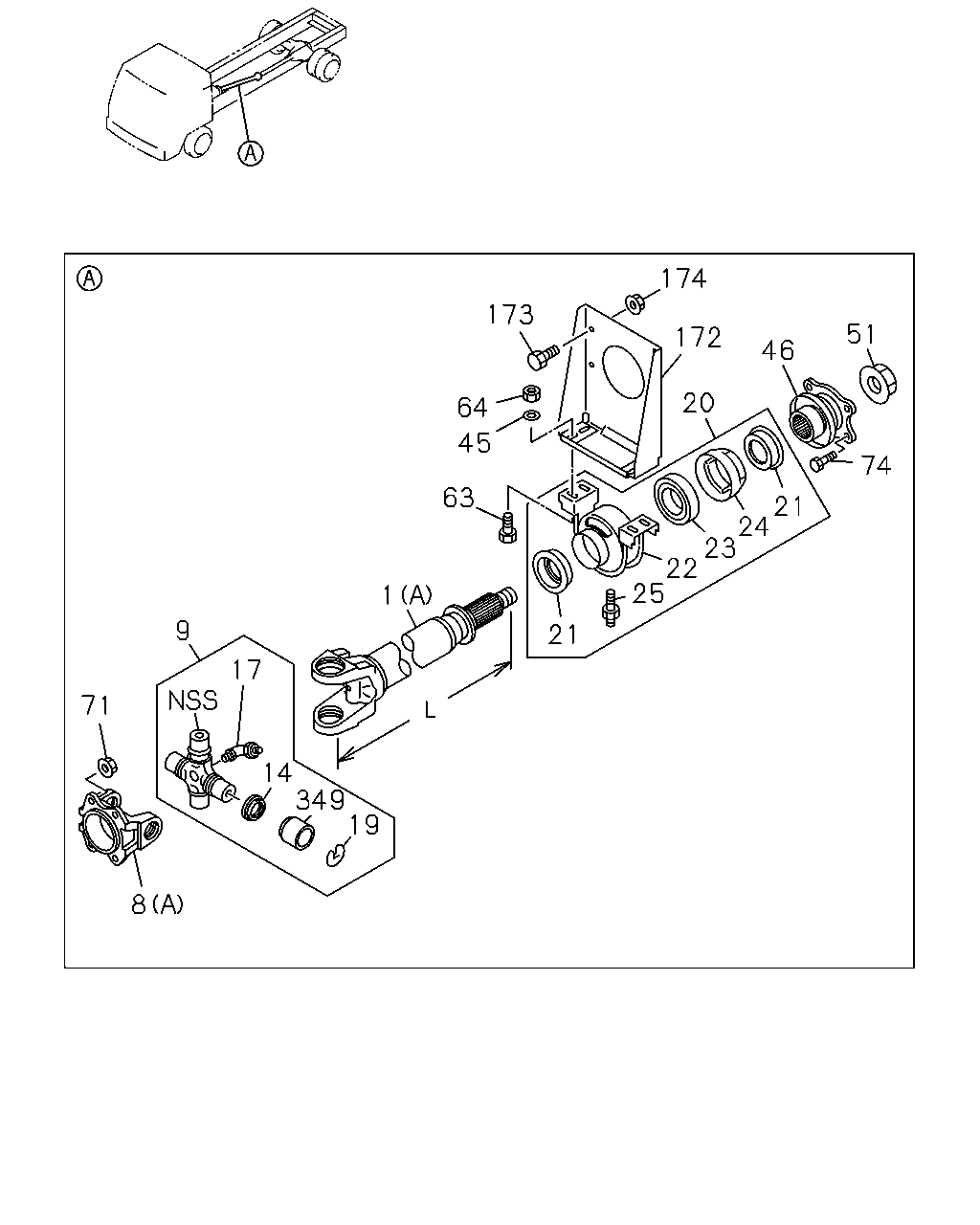

çizim 143443
174 173 51 172 46 20 64 74 45 63 21 24 23 22 25 1 9 21 17 71 14 349 19 8
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) L=1275 		1-37123-773-1 01 1 0711-
1 SHAFT; PROP
(A) L=1096 		1-37151-941-1 01 1 0711-1111
1 SHAFT; PROP
(A) L=1089 		8-98069-573-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0711-1111
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0711-
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0711-1111
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0711-1111
9 JOURNAL ASM; PROP SHAFT
END 		1-37300-102-1 AR 1 1112-
14 COVER; DUST,SPIDER
1ST IDN 		1-37319-012-0 04 1 0711-1111
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
END IDN 		1-37319-012-0 08 1 0711-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0711-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0711-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0711-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0711-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0711-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0711-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0711-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0711-
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0711-1111
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1112-
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0711-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0711-
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0711-
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0711-1111
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT IDN 		1-09380-006-0 01 1 0711-
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0711-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0711-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1112-
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0711-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 0711-
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0711-
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0711-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0711-
172 BRACKET; CENTER BRG 1-37515-071-2 01 1 0711-
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 0711-
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0711-
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 12 1 0711-
