Isuzu WW
▶
TRUCKS
▶
FTR
▶
11126 - FTR(INDONESIA)6HH1
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#26266) — 11 parça
◀

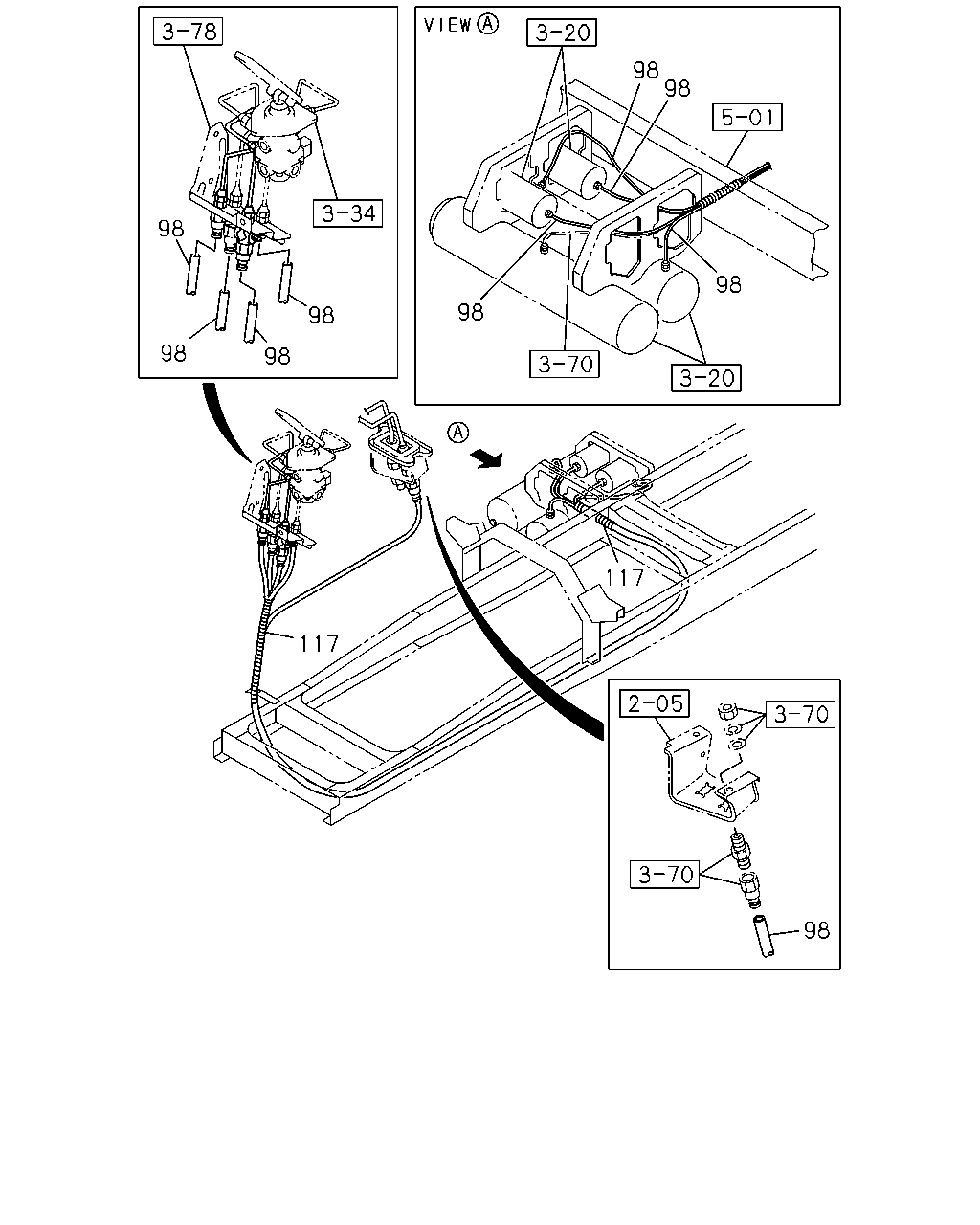

[375A] NO.2 (6 parça)

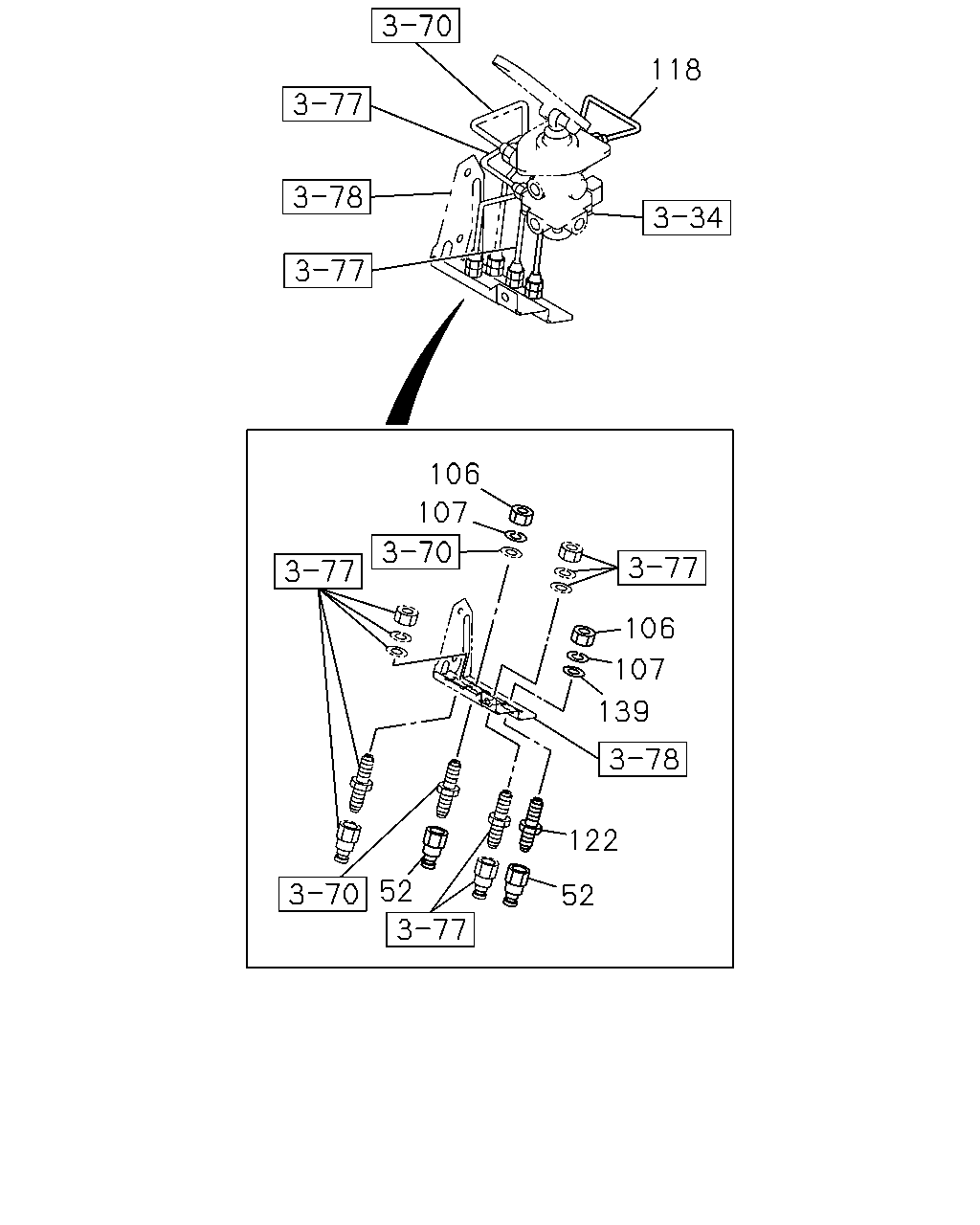

[375A] NO.1 (5 parça)
▶
118
106
107
106
107
139
122
52
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0711-
106
NUT; FLEX HOSE
M16 IDN
0-91111-516-0
02
1
0711-
107
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0711-
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=417
1-49118-722-0
01
1
0711-
122
CONNECTOR; FLEX HOSE
M16 STRAIGHT
1-09654-380-0
01
1
0711-
139
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0711-
98
98
98
98
98
98
98
98
117
117
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0711-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0711-
98
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0711-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0711-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0711-
