Isuzu WW
▶
TRUCKS
▶
FTR
▶
11126 - FTR(INDONESIA)6HH1
▶
3 - Brakes, Brake System
▶
3-70 - BRAKE PIPING; AIR,AIR MASTER
▶
3-70 — BRAKE PIPING; AIR,AIR MASTER
(#26265) — 39 parça
◀

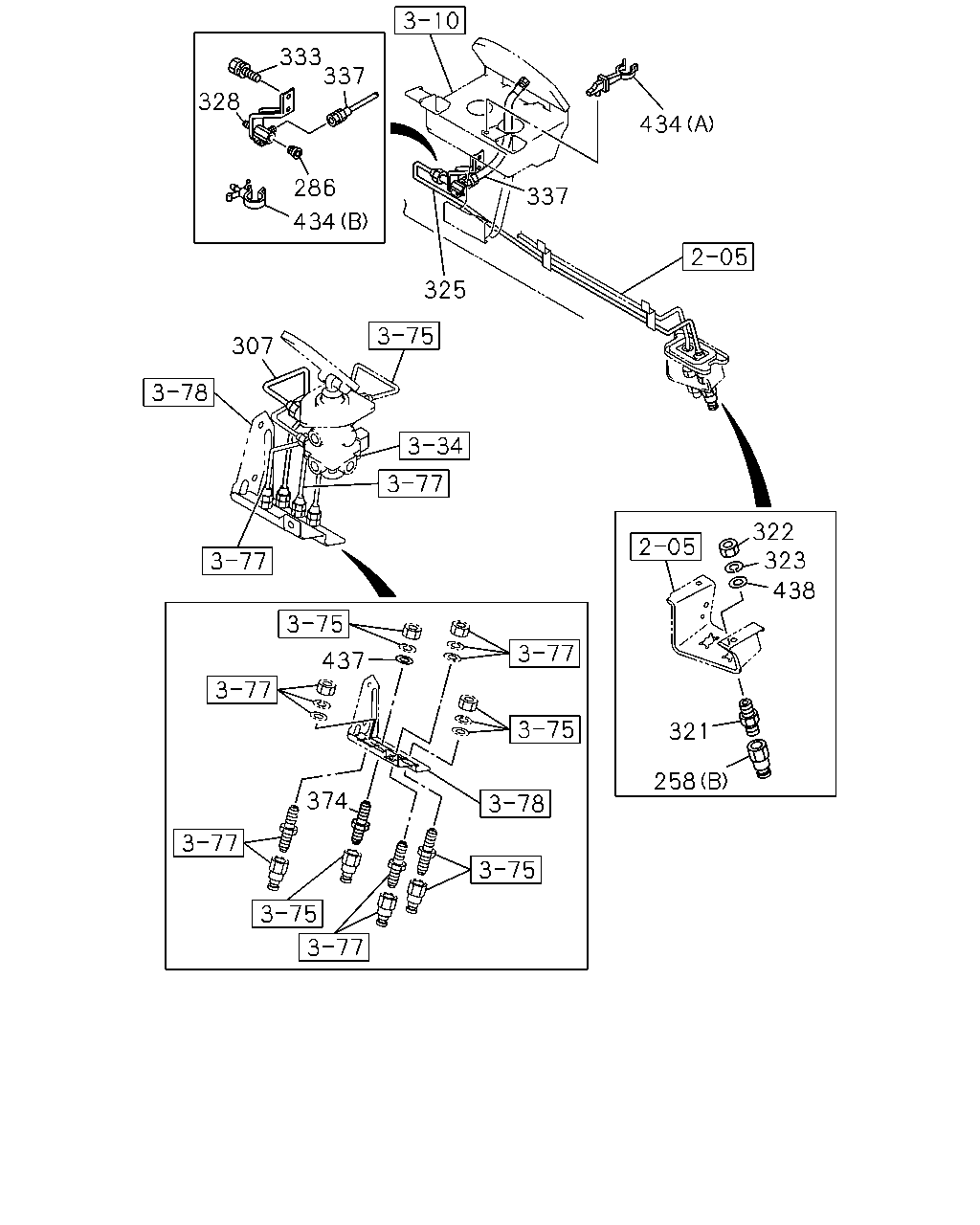

[370A] CAB SIDE (16 parça)
[370A] FRAME SIDE (23 parça)
▶
333
337
328
434
286
337
434
325
307
322
323
438
437
321
258
374
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
258
CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0711-
258
CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0711-
286
PLUG; AIR PIPE
9-09204-510-0
01
1
0711-
307
PIPE; AIR,FLEX HOSE TO BRK VLV
L=414
1-49121-497-0
01
1
0711-
321
JOINT; FLEX HOSE
1-09656-738-0
01
1
0711-
322
NUT; JOINT,FLEX HOSE
M10 H=8
1-09400-029-0
01
1
0711-
323
WASHER; LK,JOINT
ID=10.2
0-91510-510-0
01
1
0711-
325
PIPE; AIR,FLEX HOSE TO UNION
1-47492-452-2
01
1
0711-
328
UNION; AIR PIPE
1-47470-362-2
01
1
0711-
333
BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0711-
337
HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810
0-57210-810-0
01
1
0711-
374
CONNECTOR
M16 STRAIGHT
1-09654-380-0
01
1
0711-
434
CLIP
(A) ID=17
1-09987-105-1
01
1
0711-
434
CLIP
(B)
8-94297-486-0
02
1
0711-
437
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0711-
438
WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6
1-09985-184-0
01
1
0711-
222
170
297
296
367
14
154
296
444
80
184
6
186
185
3
2
258
1
202
243
7
244
202
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
L=360
1-09363-530-0
01
1
0711-
2
NUT; FLEX HOSE,AIR TANK
M22
0-91111-522-0
01
1
0711-
3
WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5
0-91510-522-0
01
1
0711-
6
BRACKET; FLEX HOSE,AIR TANK
1-47478-864-0
01
1
0711-
7
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE
0-28650-830-0
02
1
0711-
8
NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE
0-91180-108-0
02
1
0711-
14
PIPE; AIR,FLEX HOSE TO AIR TANK
L=1710
1-49123-695-0
01
1
0711-
80
UNION; 3 WAY
DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
0711-
154
PIPE; AIR,AIR TANK TO AIR GOV
1-49122-147-0
01
1
0711-
170
PIPE; AIR,AIR GOV TO FLEX HOSE
1-49123-698-0
01
1
0711-
184
HOSE; FLEX,AIR GOV
L=370
1-09363-586-0
01
1
0711-
185
NUT; FLEX HOSE,AIR GOV
M12
9-09840-280-0
01
1
0711-
186
WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2
0-91510-512-0
01
1
0711-
202
ADAPTER
DIN8 & M12 STRAIGHT
1-09660-873-0
02
1
0711-
222
PIPE; AIR,MAG VLV TO FLEX HOSE
L=1105 SERVICED BY L=1250
1-47434-389-0
01
1
0711-
243
UNION; AIR PIPE
M12 L=66.5
0-92113-306-0
01
1
0711-
244
NUT; UNION,AIR PIPE
M12
9-09840-280-0
01
1
0711-
258
CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0711-
258
CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0711-
296
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0711-
297
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0711-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0711-
444
BOLT; UNION
M8X20 FLANGE
0-28050-820-0
01
1
0711-
