Isuzu WW
▶
TRUCKS
▶
FTR
▶
11126 - FTR(INDONESIA)6HH1
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶

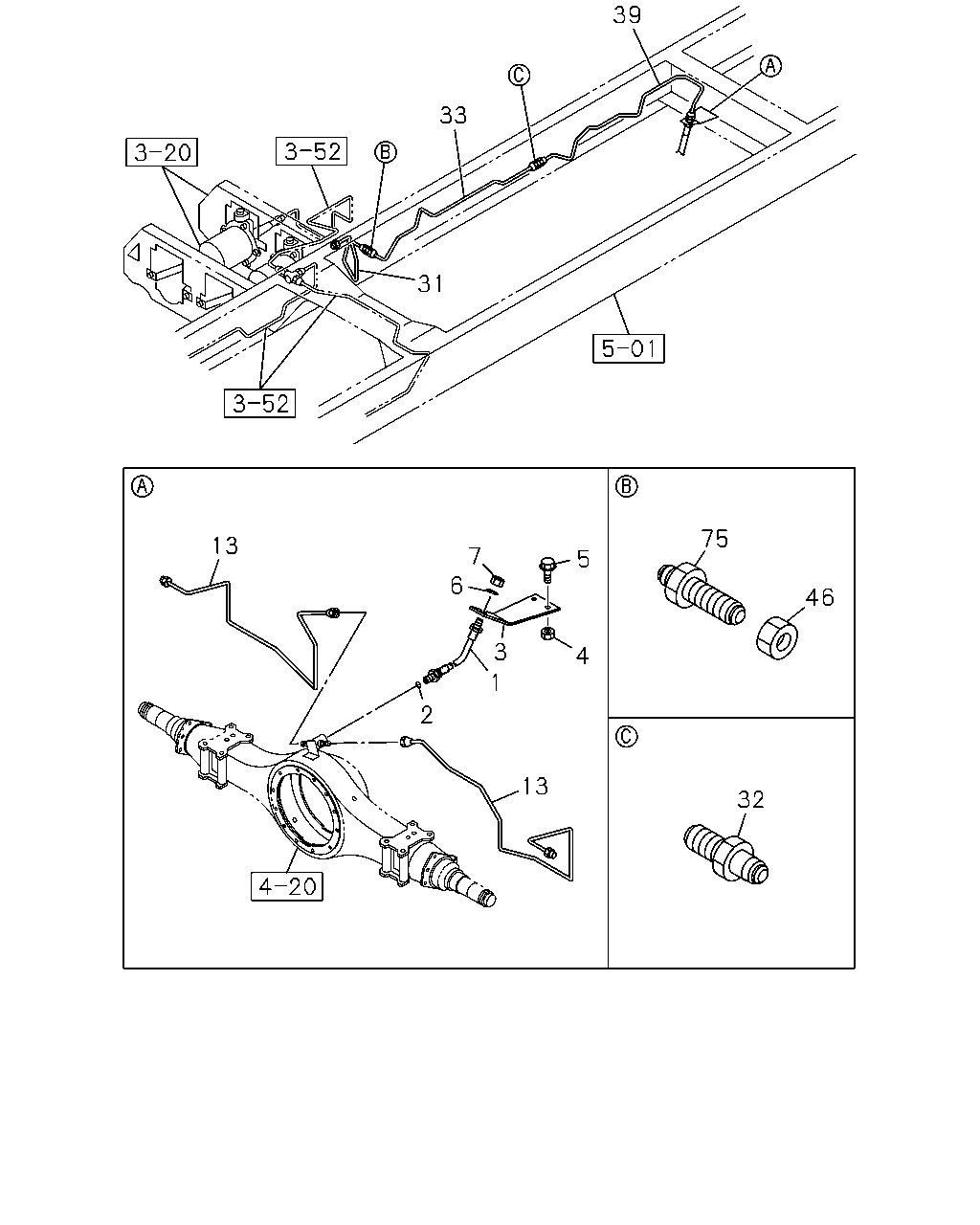

3-55 — BRAKE PIPING; OIL,REAR
(#26263) — 16 parça
39
33
31
75
13
7
5
6
46
3
4
1
2
13
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=700
0-05312-700-0
01
1
0711-0907
1
HOSE; FLEX,RR BRK
L=700
0-05212-700-0
01
1
0908-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
0711-
3
BRACKET; FLEX HOSE,RR BRK
1-47465-251-0
01
1
0711-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
0711-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE IDN
0-28650-825-0
02
1
0711-
6
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
0711-
7
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0711-
13
PIPE; BRK,RR AXLE
L=938
1-47428-958-0
01
1
0711-
13
PIPE; BRK,RR AXLE
L=1215
1-47428-959-0
01
1
0711-
31
PIPE; OIL,AIR MASTER TO UNION
L=405
1-49161-102-0
01
1
0711-
32
UNION; OIL PIPE
M12 L=40
0-92113-006-0
01
1
0711-
33
PIPE; OIL,UNION TO UNION
L=1581 SERVICED BY L=1620
1-47426-356-0
01
1
0711-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=2156 SERVICED BY L=2200
1-47426-360-0
01
1
0711-
46
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
0711-
75
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
01
1
0711-
