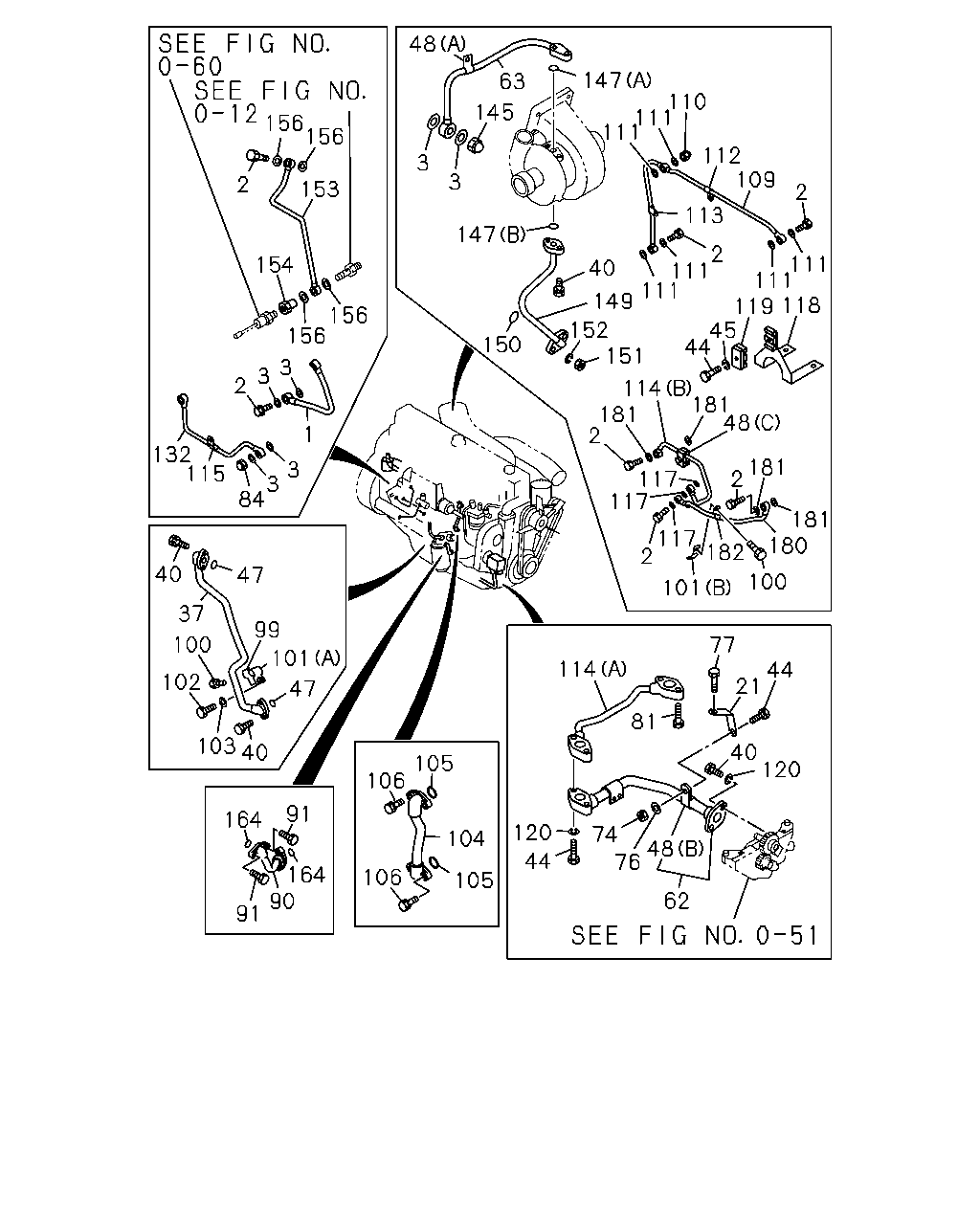

0-52A — OIL AND VACUUM PIPING; ENGINE (#2626) — 167 parça

156 156 2 153 154 156 156 3 3 2 1 132 115 84 3 3 47 40 37 100 102 103 40 47 101 99 164 91 164 90 91 106 105 104 105 106 44 120 74 76 48 62 81 77 21 44 120 40 48 3 3 145 63 147 110 111 111 147 150 101 2 117 182 100 180 181 117 117 2 181 114 181 48 181 2 112 109 2 113 2 111 111 119 118 44 45 111 111 40 149 152 151 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	1-13312-205-0	01	1	9002-	●	●
1	PIPE; OIL,INJ PUMP TO C/BL	9-13312-675-0	01	1	9002-			●
2	BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	04	1	9002-	●	●	●
2	BOLT; EYE,OIL PIPE M12X27 FLANGE	1-09675-085-0	01	1	9002-9306	●	●	●
2	BOLT; EYE,OIL PIPE M12X27 FLANGE	1-09675-085-0	01	1	9307-		●	●
2	BOLT; EYE,OIL PIPE M10X32	1-09675-119-0	01	1	9002-	●	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) M10X21 FLANGE	1-09675-077-0	01	1	9002-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	9002-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9002-	●	●	●
21	STAY; OIL PIPE	1-13345-105-1	01	1	9002-	●	●	●
37	PIPE; OIL,FILTER TO COOLER	1-13311-848-0	01	1	9002-	●	●	●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	02	1	9002-9005	●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-9306	●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	03	1	9002-9005	●	●	●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	03	1	9006-	●	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	9-01910-832-0	01	1	9002-9005	●	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	01	1	9006-	●	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	9-01910-832-0	02	1	9002-9005	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	02	1	9006-	●	●
40	BOLT; OIL PIPE M10X30	9-01931-030-0	02	1	9002-9002		●
40	BOLT; OIL PIPE M10X30 W/LK WASHER	0-50051-030-0	02	1	9003-		●
44	BOLT; CLIP,OIL PIPE M8X70	9-01055-870-0	02	1	9002-9005	●	●	●
44	BOLT; CLIP,OIL PIPE M8X70	0-10805-870-0	02	1	9006-	●	●	●
44	BOLT; CLIP,OIL PIPE M10X55	9-01656-055-0	01	1	9002-9004	●	●	●
44	BOLT; CLIP,OIL PIPE M10X55	0-16806-055-0	01	1	9005-	●	●	●
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	9-01931-022-0	01	1	9002-9002	●	●	●
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	0-50051-022-0	01	1	9003-	●	●	●
44	BOLT; CLIP,OIL PIPE M8X20	9-01970-820-0	01	1	9002-9005	●	●	●
44	BOLT; CLIP,OIL PIPE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9006-	●	●	●
44	BOLT; CLIP,OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M5X25	9-09602-082-0	01	1	9002-			●
45	WASHER; LK,CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=5.1	9-09150-505-0	01	1	9002-			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-170-0	02	1	9002-9003	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-450-0	02	1	9004-	●	●	●
48	CLIP; OIL PIPE (B)	1-09700-377-0	01	1	9002-	●	●	●
48	CLIP; OIL PIPE (A)	1-09700-113-0	01	1	9002-	●	●
48	CLIP; OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	9-15419-612-0	01	1	9307-			●
62	PIPE; OIL,PUMP TO C/BL	1-13311-871-1	01	1	9002-	●	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13312-064-0	01	1	9002-9306	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13312-408-0	01	1	9002-		●
74	NUT; CLIP,OIL PIPE,PUMP TO BODY M8	9-09110-408-0	01	1	9002-	●	●	●
76	WASHER; CLIP ID=8.4 OD=18	9-09160-608-0	01	1	9002-	●	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005	●	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-	●	●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●	●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-	●	●	●
84	NUT; CAP,OIL PIPE M10	9-09844-022-0	01	1	9002-	●	●	●
90	PIPE ASM; OIL,C/BL TO FILTER	1-13311-849-1	01	1	9002-	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22	9-01910-822-0	02	1	9002-9005	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	9-01910-840-0	02	1	9002-9005	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	0-50040-840-0	02	1	9006-	●	●	●
99	CLIP; OIL PIPE,FILTER TO COOLER ID=23.6 L=35	1-09700-634-0	01	1	9002-	●	●	●
100	BOLT; CLIP M10X20 W/LK WASHER	9-01911-020-0	01	1	9002-9002	●	●	●
100	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-	●	●	●
100	BOLT; CLIP M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005	●	●
100	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005			●
100	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-	●	●
100	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-			●
101	BRACKET; CLIP (A)	1-13345-118-0	01	1	9002-	●	●	●
101	BRACKET; CLIP (B)	1-23219-106-0	01	1	9010-	●	●
101	BRACKET; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-23219-106-0	01	1	9010-			●
102	BOLT; BRKT M14X25	9-92351-425-0	01	1	9002-9005	●	●	●
102	BOLT; BRKT M14X25	0-23801-425-0	01	1	9006-	●	●	●
103	WASHER; LK,BRKT ID=14.2	9-09150-514-0	01	1	9002-	●	●	●
104	PIPE ASM; OIL,COOLER TO BODY	1-13311-304-1	01	1	9002-	●	●
104	PIPE ASM; OIL,COOLER TO BODY SHORT CHASSIS(CXZ5MC)	1-13311-304-1	01	1	9002-			●
104	PIPE ASM; OIL,COOLER TO BODY LONG CHASSIS(CXZ5MF) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-13311-304-1	01	1	9002-			●
104	PIPE ASM; OIL,COOLER TO BODY LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-13312-466-1	01	1	9002-			●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9002-9003	●	●	●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22	9-01910-822-0	02	1	9002-9005	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	9-01910-828-0	02	1	9002-9005	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	0-50040-828-0	02	1	9006-	●	●	●
109	PIPE ASM; OIL,BODY TO HD	1-13312-057-0	01	1	9002-	●		●
109	PIPE ASM; OIL,BODY TO HD	1-13312-360-0	01	1	9002-		●
110	NUT; CAP OIL PIPE M10	9-09844-022-0	01	1	9002-	●		●
110	NUT; CAP OIL PIPE M12	9-09844-632-1	01	1	9002-		●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	06	1	9002-	●		●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	9002-		●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9002-		●
112	CLIP; OIL PIPE,TAP CHAMBER CVR	1-09700-144-0	01	1	9002-	●	●	●
113	CLIP; WATER OUTLET PIPE	1-09700-444-0	01	1	9002-	●	●	●
114	PIPE ASM; OIL,BODY (A) OD=15.0	1-13311-703-1	01	1	9002-	●	●	●
114	PIPE ASM; OIL,BODY (B)	1-13312-144-0	01	1	9002-	●	●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-13312-144-0	01	1	9002-			●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) OD=6.35	1-13312-866-1	01	1	9002-9102			●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) OD=6.35	1-13313-101-0	01	1	9103-			●
115	CLIP; PIPE,INJ PUMP	9-09917-411-0	01	1	9002-9401	●	●	●
115	CLIP; PIPE,INJ PUMP	9-09917-649-0	01	1	9402-		●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	03	1	9002-	●	●	●
118	BRACKET; CLIP,OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13319-012-1	01	1	9002-9102			●
118	BRACKET; CLIP,OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13319-016-0	01	1	9103-			●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09700-110-0	01	1	9002-9102			●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-15419-613-0	01	1	9103-			●
120	WASHER; PL,PIPE FIX ID=8.2	9-09150-508-0	02	1	9002-	●	●	●
120	WASHER; PL,PIPE FIX ID=10.2	9-09150-510-0	01	1	9002-	●	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	9-13312-414-1	01	1	9002-	●	●	●
145	NUT; CAP,OIL PIPE,TURBOCHARGER FEED M12	9-09844-632-1	01	1	9002-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9002-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-359-0	01	1	9002-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13312-815-0	01	1	9002-	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	9002-	●	●
151	NUT; PIPE,TURBOCHARGER RETAINER M8	9-09110-408-0	02	1	9002-	●	●
152	WASHER; LK,OIL PIPE,TURBOCHARGER ID=8.2	9-09150-508-0	02	1	9002-	●	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	9-13312-393-1	01	1	9002-			●
154	UNION; NIPPLE ENGINE REAR PTO(SV1)	9-09902-517-0	01	1	9002-			●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) ID=10.2 OD=15.2	1-09630-083-0	04	1	9002-			●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9002-9003	●	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●	●
180	PIPE ASM; OIL,FAN CENTER	1-13311-967-0	01	1	9002-9306	●
180	PIPE ASM; OIL,FAN CENTER AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13312-463-0	01	1	9002-			●
180	PIPE ASM; OIL,FAN CENTER	1-13312-463-0	01	1	9002-		●
180	PIPE ASM; OIL,FAN CENTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13312-500-0	01	1	9002-9102			●
180	PIPE ASM; OIL,FAN CENTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-100-0	01	1	9103-			●
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9002-	●	●	●
182	CLIP; OIL PIPE TO ELBOW ID=7 L=20	9-09524-635-0	02	1	9002-	●	●
182	CLIP; OIL PIPE TO ELBOW AIR COMPRESSOR HEAVY DUTY(E1Q) ID=7 L=20	9-09524-635-0	02	1	9002-			●
182	CLIP; OIL PIPE TO ELBOW EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=7 L=20	9-09524-635-0	01	1	9002-			●

194 195 195 195 194 195 200 216 214 212 224 72 237 204 205 238 203 217 214 72 212 249 239 228 240 228 204 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
72	WASHER; LK,OIL PIPE ID=16.2	9-09150-516-0	02	1	9406-		●
194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9002-	●	●	●
195	GASKET; EYE BOLT,PARTIAL FILTER ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-	●	●	●
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY L=500	1-09364-487-0	01	1	9002-	●	●	●
203	HOSE; FLEX,PARTIAL FILTER,RETURN L=500	1-09364-656-0	01	1	9002-	●	●	●
204	CLIP; OIL PIPE (B) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9002-9009	●	●	●
204	CLIP; OIL PIPE (B) ID=11 & 11 L=15 & 15	1-09700-656-0	02	1	9010-	●	●	●
204	CLIP; OIL PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9002-	●	●	●
205	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9009	●	●	●
205	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9010-9204	●	●	●
205	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●	●	●
205	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	02	1	9010-9204	●	●	●
205	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-	●	●	●
212	NUT; FLEX HOSE,PARTIAL FILTER M16	9-99111-416-0	02	1	9002-	●	●	●
214	WASHER; LK,FLEX HOSE,PARTIAL FILTER ID=16.2	9-09150-516-0	02	1	9002-9312	●	●	●
214	WASHER; LK,FLEX HOSE,PARTIAL FILTER ID=16.2	9-09150-516-0	02	1	9307-		●	●
216	BRACKET; FLEX HOSE,PARTIAL OIL FILTER	1-47475-997-1	01	1	9002-	●	●	●
217	BOLT; BRKT AUTO CAB TILT<WV2> M10X30 W/LK WASHER	9-01911-030-0	02	1	9002-9002	●	●	●
217	BOLT; BRKT AUTO CAB TILT<WV2> M10X30 W/LK WASHER	0-50041-030-0	02	1	9003-9306	●	●	●
217	BOLT; BRKT AUTO CAB TILT<WV2> M10X25 W/LK WASHER	0-50041-025-0	02	1	9307-9410		●	●
217	BOLT; BRKT AUTO CAB TILT<WV2> M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9411-		●	●
217	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M10X25	9-01911-025-0	02	1	9002-9002	●	●	●
217	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-9301	●	●	●
217	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M10X30 FLANGE	0-28081-030-0	02	1	9302-9306	●	●	●
224	PIPE; OIL,DELIVERY	1-13312-709-1	01	1	9002-9306	●	●	●
224	PIPE; OIL,DELIVERY	1-13313-277-0	01	1	9307-		●	●
228	NUT; CLIP M8	9-09110-408-0	02	1	9002-	●	●	●
228	NUT; CLIP M8	9-09110-408-0	01	1	9010-	●	●	●
237	CLIP; FLEX HOSE,PARTIAL FILTER ID=11 & 11 L=15 & 15	1-09700-656-0	02	1	9002-9009	●	●	●
237	CLIP; FLEX HOSE,PARTIAL FILTER ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9010-9103	●	●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9009	●	●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER M8X20 W/LK WASHER	9-01900-820-0	01	1	9010-9103	●	●	●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER M8	9-09110-408-0	02	1	9002-9009	●	●	●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER M8	9-09110-408-0	01	1	9010-9103	●	●	●
240	BRACKET; CLIP L=50	1-47475-299-2	01	1	9002-	●	●	●
240	BRACKET; CLIP L=50	1-47475-299-2	02	1	9010-	●	●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE	1-13312-677-1	01	1	9002-9306	●	●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE	1-13313-279-0	01	1	9307-		●	●

279 278 279 277 448 434 449 449 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
277	CAP; OIL FILLER	1-11750-024-1	01	1	9002-	●	●	●
278	HOSE; RUBBER,OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11749-077-0	01	1	9002-	●		●
278	HOSE; RUBBER,OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11749-084-0	01	1	9002-		●
279	CLIP; RUBBER HOSE EXC. OIL FILLER CAB BACK DELETE<E6X> ID=40	9-09916-024-1	02	1	9002-	●	●	●
434	NUT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8	9-09110-408-0	03	1	9002-9304	●	●	●
434	NUT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8	9-09110-408-0	04	1	9305-	●	●	●
448	FILLER; OIL	1-11740-213-1	01	1	9002-	●	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9002-9204	●	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9205-9304	●	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 FLANGE	0-28080-820-0	04	1	9305-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
